What Is a Sensor Ground in a Car? Stable Reference, Shared Circuits and Faults
A sensor ground is the return path that completes a sensor's circuit back to the control module that reads it. In many modern vehicles it is a dedicated wire, often labeled low reference, signal return or sensor ground in wiring diagrams. It is kept separate from the heavier grounds that serve motors, lights and the ignition system. Knowing what an automotive sensor ground does, why several sensors may share one, and how it fails makes many confusing diagnostic symptoms easier to interpret.
Stable reference: why sensors need a clean ground
Control modules interpret most analog sensors by measuring voltage, and voltage is always a difference between two points. When an engine control module reads a signal, it compares that signal against its own internal zero. A common arrangement is for the module to supply a regulated reference voltage, often 5 volts, along with a sensor ground. The sensor sits between those two circuits and returns a signal voltage somewhere in between, depending on temperature, pressure, position or another measured condition. For that signal to mean what the module thinks it means, the low side of the sensor must sit at the same electrical potential as the module's measuring circuit. If the sensor's ground is even slightly higher than the module's zero, every reading shifts by that amount.
This is why sensor grounds are usually not simply bolted to the nearest piece of body metal. High-current loads such as the starter, cooling fans and ignition coils push large currents through chassis and engine grounds, creating small voltage differences and electrical noise along those paths. Routing the sensor return directly back to the module, where it is typically terminated, gives the sensor and the measuring circuit a shared, quiet zero. Inside the module, the sensor ground is generally tied to the module's own ground through internal circuitry, but exactly how that is done varies by manufacturer and module design.
Shared circuits: how multiple sensors use one ground
To limit wiring weight, cost and the number of module pins, manufacturers often let several sensors share one sensor ground. A single module terminal may feed a wire that runs into the harness and branches at a splice to several sensors, such as throttle position, manifold pressure, coolant temperature or intake air temperature. The reference voltage supply is frequently shared in the same way. Which sensors are grouped together is entirely vehicle-specific, so the wiring diagram for the exact vehicle is the only reliable guide. Splices are often hidden inside taped harness sections, and diagrams usually identify them with a splice number and an approximate location.
Not every sensor is lumped onto one return. Modules commonly provide more than one sensor ground circuit so that groups of sensors are isolated from each other. Safety-related inputs such as accelerator pedal position sensors often use two or more separate signal tracks, each with its own reference and ground, so that a single wiring fault can be detected by comparing the tracks rather than silently corrupting both. Sharing saves wire, but it also means one damaged splice, connector or wire can affect every sensor downstream of it.
Fault effects: what happens when a sensor ground goes bad
The most common sensor ground problem is added resistance from corrosion, a loose or spread terminal, a damaged splice or a chafed wire. That resistance sits in series with the sensor, so the sensor's low side rises above the module's zero. For a two-wire thermistor sensor fed through a pull-up resistor inside the module, extra ground resistance makes the sensor look like it has more resistance than it really does. With a typical negative temperature coefficient coolant or air temperature sensor, that reads as colder than actual. For a three-wire potentiometer sensor such as a throttle position sensor, the whole output range tends to shift upward. These errors can be small enough to stay within the module's plausibility limits, so no code may set even while fuel control, idle quality or shift behavior is affected.
An open sensor ground produces more dramatic results. With no return path, the signal is often pulled toward the high end of its range, and the module may record out-of-range high readings and set codes. Because the ground is frequently shared, several sensors can fail at once, sometimes on unrelated systems. An intermittent open, such as a cracked wire near a flexing point or a corroded terminal, can cause symptoms that come and go with bumps, engine movement, moisture or temperature. A pattern of multiple sensors reading wrong in the same direction at the same time points more strongly to a shared ground or reference circuit than to several sensors failing together.
Practical implications and limits

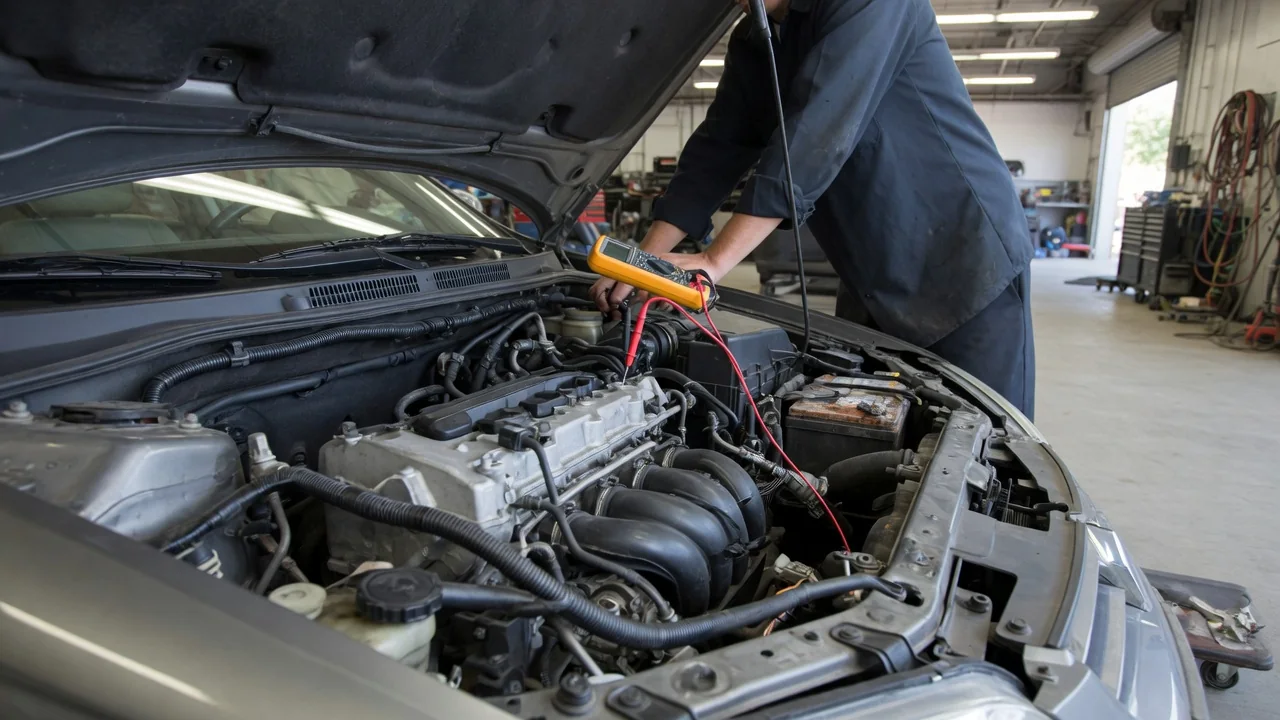

When a sensor ground is suspected, a voltage drop measurement with the circuit operating is generally more revealing than a resistance check. An ohmmeter passes very little current, so a wire with only a few intact strands or a lightly corroded terminal can look acceptable while still misbehaving under real conditions. Measuring the voltage between the sensor's ground terminal and the module ground, with the key on or the engine running, shows what the module actually experiences. Acceptable values and correct test points come from the vehicle's service information; there is no single universal number. Careful back-probing and checking terminal fit also matter, because piercing insulation or spreading a terminal can create the very fault being chased.
Workarounds tend to backfire. Running an extra wire from a sensor to the chassis or the battery negative ties a carefully isolated circuit to a noisy path and can make readings worse rather than better. Tapping a sensor ground to power an aftermarket gauge or accessory can introduce current and offsets the circuit was never designed to carry. Replacing a sensor without addressing a ground fault usually leaves the symptom in place, since the new part sits on the same flawed return. The lasting fix is repairing the original wire, splice or connector.
There are also limits to this general picture. Not every sensor uses a dedicated sensor ground; some are grounded through their housing or mounting, and some smart sensors report over a data network with their own power and ground supply. Terminology, circuit grouping and diagnostic code descriptions differ between manufacturers, and a ground problem can sit inside the module or at its main power grounds, affecting everything the module reads. The vehicle-specific wiring diagram and diagnostic procedure remain the authority for any actual repair.
