BMW 1 Series Specs, Engines & Dimensions (2007–2012) — First Generation Restyling

The First Generation Restyling of the BMW 1 Series covers Cabrio, Coupe, Hatchback 3-door and Hatchback 5-door bodies. This generation is the compact BMW in four practical shapes, from open-top Cabrio to five-door hatch.

← All BMW models

BMW 1 Series Engines and Transmissions

The BMW 1 Series engine choices in this restyling include petrol and diesel 2.0-litre powertrains, with transmission pairings that change how the car feels day to day. Cabrio examples include the gasoline 118i 2.0 AT Steptronic automatic, plus the 118i 2.0 MT and diesel 120d 2.0 MT manuals; all three keep rear-wheel drive.

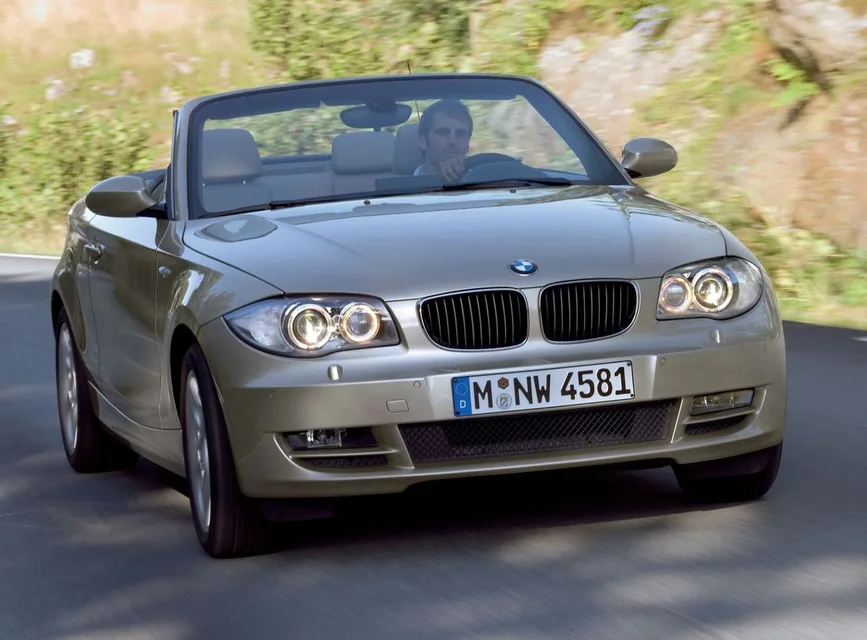

Cabrio — BMW 1 Series Engines and Transmissions

Cabrio BMW 1 Series Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
120i 2.0 MT	Gasoline	1995 cm³	156 hp	115 kW	200 N⋅m	Manual	RWD
118i 2.0 AT Steptronic	Gasoline	1995 cm³	143 hp	105 kW	190 N⋅m	Automatic	RWD
118i 2.0 MT	Gasoline	1995 cm³	143 hp	105 kW	190 N⋅m	Manual	RWD
120i 2.0 AT Steptronic	Gasoline	1995 cm³	170 hp	125 kW	200 N⋅m	Automatic	RWD
120i 2.0 MT	Gasoline	1995 cm³	170 hp	125 kW	200 N⋅m	Manual	RWD
135i 3.0 MT	Gasoline	2979 cm³	306 hp	225 kW	400 N⋅m	Manual	RWD
125i 3.0 AT Steptronic	Gasoline	2996 cm³	230 hp	169 kW	271 N⋅m	Automatic	RWD
125i 3.0 MT	Gasoline	2996 cm³	230 hp	169 kW	271 N⋅m	Manual	RWD
120d 2.0 AT Steptronic	Diesel	1995 cm³	177 hp	130 kW	350 N⋅m	Automatic	RWD
120d 2.0 MT	Diesel	1995 cm³	177 hp	130 kW	350 N⋅m	Manual	RWD
118d 2.0 MT	Diesel	1995 cm³	143 hp	105 kW	350 N⋅m	Manual	RWD
118d 2.0 AT Steptronic	Diesel	1995 cm³	143 hp	105 kW	350 N⋅m	Automatic	RWD
123d 2.0 MT	Diesel	1995 cm³	204 hp	150 kW	400 N⋅m	Manual	RWD
123d 2.0 AT Steptronic	Diesel	1995 cm³	204 hp	150 kW	400 N⋅m	Automatic	RWD
125i 3.0 MT	Gasoline	2996 cm³	218 hp	160 kW	270 N⋅m	Manual	RWD
125i 3.0 AT Steptronic	Gasoline	2996 cm³	218 hp	160 kW	270 N⋅m	Automatic	RWD
120i 2.0 AT Steptronic	Gasoline	1995 cm³	156 hp	115 kW	200 N⋅m	Automatic	RWD
135i 3.0 AT Steptronic	Gasoline	2979 cm³	306 hp	225 kW	400 N⋅m	Automatic	RWD

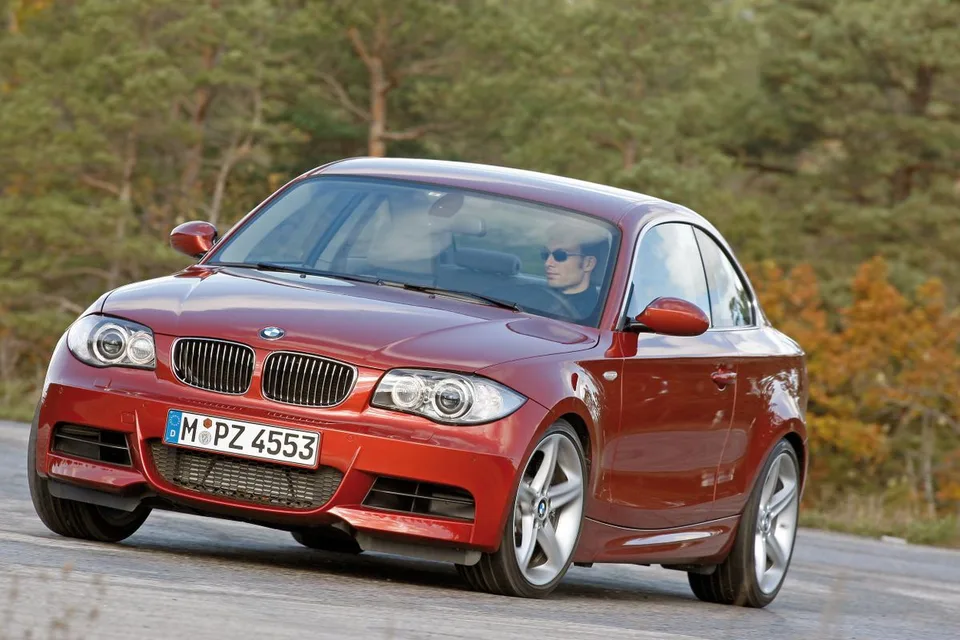

Coupe — BMW 1 Series Engines and Transmissions

Coupe BMW 1 Series Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
120d 2.0 AT Steptronic	Diesel	1995 cm³	177 hp	130 kW	350 N⋅m	Automatic	RWD
120d 2.0 MT	Diesel	1995 cm³	177 hp	130 kW	350 N⋅m	Manual	RWD
118d 2.0 AT Steptronic	Diesel	1995 cm³	143 hp	105 kW	350 N⋅m	Automatic	RWD
118d 2.0 MT	Diesel	1995 cm³	143 hp	105 kW	350 N⋅m	Manual	RWD
123d 2.0 MT	Diesel	1995 cm³	204 hp	150 kW	400 N⋅m	Manual	RWD
123d 2.0 AT Steptronic	Diesel	1995 cm³	204 hp	150 kW	400 N⋅m	Automatic	RWD
125i 3.0 AT Steptronic	Gasoline	2996 cm³	218 hp	160 kW	270 N⋅m	Automatic	RWD
120i 2.0 MT	Gasoline	1995 cm³	156 hp	115 kW	200 N⋅m	Manual	RWD
120i 2.0 AT Steptronic	Gasoline	1995 cm³	156 hp	115 kW	200 N⋅m	Automatic	RWD
120i 2.0 AT Steptronic	Gasoline	1995 cm³	170 hp	125 kW	200 N⋅m	Automatic	RWD
120i 2.0 MT	Gasoline	1995 cm³	170 hp	125 kW	200 N⋅m	Manual	RWD
135i 3.0 MT	Gasoline	2979 cm³	306 hp	225 kW	400 N⋅m	Manual	RWD
125i 3.0 MT	Gasoline	2996 cm³	218 hp	160 kW	270 N⋅m	Manual	RWD
135i 3.0 AT Steptronic	Gasoline	2979 cm³	306 hp	225 kW	400 N⋅m	Automatic	RWD

Hatchback 3-door — BMW 1 Series Engines and Transmissions

Hatchback 3-door BMW 1 Series Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
116i 1.6 AT	Gasoline	1596 cm³	116 hp	85 kW	150 N⋅m	Automatic	RWD
116i 1.6 MT	Gasoline	1596 cm³	116 hp	85 kW	150 N⋅m	Manual	RWD
118i 2.0 AT Steptronic	Gasoline	1995 cm³	136 hp	100 kW	180 N⋅m	Automatic	RWD
118i 2.0 MT	Gasoline	1995 cm³	136 hp	100 kW	180 N⋅m	Manual	RWD
120i 2.0 MT	Gasoline	1995 cm³	156 hp	115 kW	200 N⋅m	Manual	RWD
130i 3.0 AT Steptronic	Gasoline	2996 cm³	265 hp	195 kW	315 N⋅m	Automatic	RWD
130i 3.0 MT	Gasoline	2996 cm³	265 hp	195 kW	315 N⋅m	Manual	RWD
116i 1.6 MT	Gasoline	1599 cm³	122 hp	90 kW	160 N⋅m	Manual	RWD
116i 1.6 AT Steptronic	Gasoline	1599 cm³	122 hp	90 kW	160 N⋅m	Automatic	RWD
116i 2.0 MT	Gasoline	1995 cm³	122 hp	90 kW	185 N⋅m	Manual	RWD
116i 2.0 AT Steptronic	Gasoline	1995 cm³	122 hp	90 kW	185 N⋅m	Automatic	RWD
118i 2.0 MT	Gasoline	1995 cm³	143 hp	105 kW	190 N⋅m	Manual	RWD
120i 2.0 MT	Gasoline	1995 cm³	170 hp	125 kW	210 N⋅m	Manual	RWD
120i 2.0 AT Steptronic	Gasoline	1995 cm³	170 hp	125 kW	200 N⋅m	Automatic	RWD
130i 3.0 MT	Gasoline	2996 cm³	258 hp	190 kW	300 N⋅m	Manual	RWD
130i 3.0 AT Steptronic	Gasoline	2996 cm³	258 hp	190 kW	300 N⋅m	Automatic	RWD
116d 2.0 MT	Diesel	1995 cm³	116 hp	85 kW	260 N⋅m	Manual	RWD
118d 2.0 MT	Diesel	1995 cm³	143 hp	105 kW	300 N⋅m	Manual	RWD
118d 2.0 AT Steptronic	Diesel	1995 cm³	143 hp	105 kW	350 N⋅m	Automatic	RWD
120d 2.0 MT	Diesel	1995 cm³	177 hp	130 kW	350 N⋅m	Manual	RWD
120d 2.0 AT Steptronic	Diesel	1995 cm³	177 hp	130 kW	350 N⋅m	Automatic	RWD
123d 2.0 MT	Diesel	1995 cm³	204 hp	150 kW	400 N⋅m	Manual	RWD
123d 2.0 AT Steptronic	Diesel	1995 cm³	204 hp	150 kW	400 N⋅m	Automatic	RWD
118i 2.0 AT Steptronic	Gasoline	1995 cm³	143 hp	105 kW	190 N⋅m	Automatic	RWD
120i 2.0 AT Steptronic	Gasoline	1995 cm³	156 hp	115 kW	200 N⋅m	Automatic	RWD

Hatchback 5-door — BMW 1 Series Engines and Transmissions

Hatchback 5-door BMW 1 Series Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
116i 1.6 AT Steptronic	Gasoline	1596 cm³	116 hp	85 kW	150 N⋅m	Automatic	RWD
116i 1.6 MT	Gasoline	1596 cm³	116 hp	85 kW	150 N⋅m	Manual	RWD
116i 1.6 AT Steptronic	Gasoline	1599 cm³	122 hp	90 kW	160 N⋅m	Automatic	RWD
116i 1.6 MT	Gasoline	1599 cm³	122 hp	90 kW	160 N⋅m	Manual	RWD
116i 2.0 AT Steptronic	Gasoline	1995 cm³	122 hp	90 kW	185 N⋅m	Automatic	RWD
116i 2.0 MT	Gasoline	1995 cm³	122 hp	90 kW	185 N⋅m	Manual	RWD
118i 2.0 MT	Gasoline	1995 cm³	143 hp	105 kW	190 N⋅m	Manual	RWD
120i 2.0 MT	Gasoline	1995 cm³	170 hp	125 kW	210 N⋅m	Manual	RWD
120i 2.0 AT Steptronic	Gasoline	1995 cm³	170 hp	125 kW	200 N⋅m	Automatic	RWD
130i 3.0 MT	Gasoline	2996 cm³	258 hp	190 kW	300 N⋅m	Manual	RWD
130i 3.0 AT Steptronic	Gasoline	2996 cm³	258 hp	190 kW	310 N⋅m	Automatic	RWD
130i 3.0 AT Steptronic	Gasoline	2996 cm³	265 hp	195 kW	315 N⋅m	Automatic	RWD
130i 3.0 MT	Gasoline	2996 cm³	265 hp	195 kW	315 N⋅m	Manual	RWD
116d 2.0 MT	Diesel	1995 cm³	116 hp	85 kW	260 N⋅m	Manual	RWD
118d 2.0 MT	Diesel	1995 cm³	143 hp	105 kW	300 N⋅m	Manual	RWD
118d 2.0 AT Steptronic	Diesel	1995 cm³	143 hp	105 kW	350 N⋅m	Automatic	RWD
120d 2.0 MT	Diesel	1995 cm³	177 hp	130 kW	350 N⋅m	Manual	RWD
120d 2.0 AT Steptronic	Diesel	1995 cm³	177 hp	130 kW	350 N⋅m	Automatic	RWD
123d 2.0 MT	Diesel	1995 cm³	204 hp	150 kW	400 N⋅m	Manual	RWD
123d 2.0 AT Steptronic	Diesel	1995 cm³	204 hp	150 kW	400 N⋅m	Automatic	RWD
118i 2.0 AT Steptronic	Gasoline	1995 cm³	143 hp	105 kW	190 N⋅m	Automatic	RWD
118i 2.0 AT Steptronic	Gasoline	1995 cm³	136 hp	100 kW	180 N⋅m	Automatic	RWD
118i 2.0 MT	Gasoline	1995 cm³	136 hp	100 kW	180 N⋅m	Manual	RWD
120i 2.0 MT	Gasoline	1995 cm³	156 hp	115 kW	200 N⋅m	Manual	RWD
120i 2.0 AT Steptronic	Gasoline	1995 cm³	156 hp	115 kW	200 N⋅m	Automatic	RWD

BMW 1 Series Dimensions

Cabrio — BMW 1 Series Dimensions

Cabrio BMW 1 Series Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
120i 2.0 MT	4360 mm	1748 mm	1411 mm	2660 mm	1505 kg	1870 kg	140 mm
118i 2.0 AT Steptronic	4360 mm	1748 mm	1411 mm	2660 mm	1535 kg	1900 kg	140 mm
118i 2.0 MT	4360 mm	1748 mm	1411 mm	2660 mm	1505 kg	1870 kg	140 mm
120i 2.0 AT Steptronic	4360 mm	1748 mm	1411 mm	2660 mm	1535 kg	1900 kg	140 mm
120i 2.0 MT	4360 mm	1748 mm	1411 mm	2660 mm	1505 kg	1870 kg	140 mm
135i 3.0 MT	4360 mm	1748 mm	1411 mm	2660 mm	1675 kg	2040 kg	132 mm
125i 3.0 AT Steptronic	4360 mm	1748 mm	1411 mm	2660 mm	1615 kg	1950 kg	140 mm
125i 3.0 MT	4360 mm	1748 mm	1411 mm	2660 mm	1585 kg	1950 kg	140 mm
120d 2.0 AT Steptronic	4360 mm	1748 mm	1411 mm	2660 mm	1595 kg	1960 kg	140 mm
120d 2.0 MT	4360 mm	1748 mm	1411 mm	2660 mm	1585 kg	1950 kg	140 mm
118d 2.0 MT	4360 mm	1748 mm	1411 mm	2660 mm	1560 kg	1925 kg	140 mm
118d 2.0 AT Steptronic	4360 mm	1748 mm	1411 mm	2660 mm	1575 kg	1925 kg	140 mm
123d 2.0 MT	4360 mm	1748 mm	1411 mm	2660 mm	1615 kg	1980 kg	140 mm
123d 2.0 AT Steptronic	4360 mm	1748 mm	1411 mm	2660 mm	1615 kg	1980 kg	140 mm
125i 3.0 MT	4360 mm	1748 mm	1411 mm	2660 mm	1585 kg	1950 kg	140 mm
125i 3.0 AT Steptronic	4360 mm	1748 mm	1411 mm	2660 mm	1615 kg	1980 kg	140 mm
120i 2.0 AT Steptronic	4360 mm	1748 mm	1411 mm	2660 mm	1535 kg	1900 kg	140 mm
135i 3.0 AT Steptronic	4360 mm	1748 mm	1411 mm	2660 mm	1685 kg	2050 kg	132 mm

Coupe — BMW 1 Series Dimensions

Coupe BMW 1 Series Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
120d 2.0 AT Steptronic	4360 mm	1748 mm	1423 mm	2660 mm	1455 kg	1820 kg	147 mm
120d 2.0 MT	4360 mm	1748 mm	1423 mm	2660 mm	1450 kg	1815 kg	147 mm
118d 2.0 AT Steptronic	4360 mm	1748 mm	1423 mm	2660 mm	1395 kg	1760 kg	145 mm
118d 2.0 MT	4360 mm	1748 mm	1423 mm	2660 mm	1395 kg	1760 kg	145 mm
123d 2.0 MT	4360 mm	1748 mm	1423 mm	2660 mm	1495 kg	1860 kg	147 mm
123d 2.0 AT Steptronic	4360 mm	1748 mm	1423 mm	2660 mm	1495 kg	1860 kg	147 mm
125i 3.0 AT Steptronic	4360 mm	1748 mm	1423 mm	2660 mm	1505 kg	1870 kg	147 mm
120i 2.0 MT	4360 mm	1748 mm	1423 mm	2660 mm	1375 kg	1740 kg	140 mm
120i 2.0 AT Steptronic	4360 mm	1748 mm	1423 mm	2660 mm	1375 kg	1740 kg	140 mm
120i 2.0 AT Steptronic	4360 mm	1748 mm	1423 mm	2660 mm	1395 kg	1760 kg	145 mm
120i 2.0 MT	4360 mm	1748 mm	1423 mm	2660 mm	1375 kg	1740 kg	145 mm
135i 3.0 MT	4360 mm	1748 mm	1423 mm	2660 mm	1560 kg	1925 kg	132 mm
125i 3.0 MT	4360 mm	1748 mm	1423 mm	2660 mm	1480 kg	1845 kg	140 mm
135i 3.0 AT Steptronic	4360 mm	1748 mm	1423 mm	2660 mm	1565 kg	1930 kg	132 mm

Hatchback 3-door — BMW 1 Series Dimensions

Hatchback 3-door BMW 1 Series Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
116i 1.6 AT	4239 mm	1748 mm	1421 mm	2600 mm	1335 kg	1760 kg	145 mm
116i 1.6 MT	4239 mm	1748 mm	1421 mm	2600 mm	1245 kg	1745 kg	145 mm
118i 2.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1265 kg	1765 kg	145 mm
118i 2.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1265 kg	1765 kg	145 mm
120i 2.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1290 kg	1790 kg	145 mm
130i 3.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1375 kg	1875 kg	145 mm
130i 3.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1330 kg	1875 kg	145 mm
116i 1.6 MT	4239 mm	1748 mm	1421 mm	2600 mm	1230 kg	1765 kg	145 mm
116i 1.6 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1255 kg	1765 kg	145 mm
116i 2.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1355 kg	1780 kg	145 mm
116i 2.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1355 kg	1780 kg	145 mm
118i 2.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1280 kg	1775 kg	145 mm
120i 2.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1305 kg	1800 kg	145 mm
120i 2.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1285 kg	1810 kg	145 mm
130i 3.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1375 kg	1875 kg	145 mm
130i 3.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1400 kg	1900 kg	145 mm
116d 2.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1375 kg	1800 kg	145 mm
118d 2.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1325 kg	1830 kg	145 mm
118d 2.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1310 kg	1775 kg	145 mm
120d 2.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1380 kg	1875 kg	145 mm
120d 2.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1365 kg	1865 kg	145 mm
123d 2.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1485 kg	1910 kg	145 mm
123d 2.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1485 kg	1910 kg	145 mm
118i 2.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1290 kg	1790 kg	140 mm
120i 2.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1290 kg	1790 kg	145 mm

Hatchback 5-door — BMW 1 Series Dimensions

Hatchback 5-door BMW 1 Series Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
116i 1.6 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1245 kg	1745 kg	145 mm
116i 1.6 MT	4239 mm	1748 mm	1421 mm	2600 mm	1210 kg	1705 kg	145 mm
116i 1.6 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1255 kg	1800 kg	145 mm
116i 1.6 MT	4239 mm	1748 mm	1421 mm	2600 mm	1220 kg	1800 kg	145 mm
116i 2.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1375 kg	1800 kg	145 mm
116i 2.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1375 kg	1800 kg	145 mm
118i 2.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1280 kg	1775 kg	145 mm
120i 2.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1305 kg	1800 kg	145 mm
120i 2.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1395 kg	1820 kg	145 mm
130i 3.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1459 kg	1885 kg	145 mm
130i 3.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1410 kg	1910 kg	145 mm
130i 3.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1385 kg	1885 kg	145 mm
130i 3.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1375 kg	1875 kg	145 mm
116d 2.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1375 kg	1800 kg	145 mm
118d 2.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1325 kg	1830 kg	145 mm
118d 2.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1320 kg	1775 kg	145 mm
120d 2.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1380 kg	1875 kg	145 mm
120d 2.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1455 kg	1865 kg	145 mm
123d 2.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1495 kg	1920 kg	145 mm
123d 2.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1495 kg	1920 kg	145 mm
118i 2.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1300 kg	1800 kg	140 mm
118i 2.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1375 kg	1800 kg	145 mm
118i 2.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1275 kg	1775 kg	145 mm
120i 2.0 MT	4239 mm	1748 mm	1421 mm	2600 mm	1300 kg	1800 kg	145 mm
120i 2.0 AT Steptronic	4239 mm	1748 mm	1421 mm	2600 mm	1300 kg	1800 kg	145 mm

BMW 1 Series Cargo Space

Cabrio — BMW 1 Series Cargo Space

Cabrio BMW 1 Series Cargo Space
Modification	Trunk volume min	Trunk volume max
120i 2.0 MT	260 l	305 l
118i 2.0 AT Steptronic	260 l	305 l
118i 2.0 MT	260 l	305 l
120i 2.0 AT Steptronic	260 l	305 l
120i 2.0 MT	260 l	305 l
135i 3.0 MT	260 l	305 l
125i 3.0 AT Steptronic	260 l	305 l
125i 3.0 MT	260 l	305 l
120d 2.0 AT Steptronic	260 l	305 l
120d 2.0 MT	260 l	305 l
118d 2.0 MT	260 l	305 l
118d 2.0 AT Steptronic	260 l	305 l
123d 2.0 MT	260 l	305 l
123d 2.0 AT Steptronic	260 l	305 l
125i 3.0 MT	260 l	305 l
125i 3.0 AT Steptronic	260 l	305 l
120i 2.0 AT Steptronic	260 l	305 l
135i 3.0 AT Steptronic	260 l	305 l

Coupe — BMW 1 Series Cargo Space

Coupe BMW 1 Series Cargo Space
Modification	Trunk volume min
120d 2.0 AT Steptronic	360 l
120d 2.0 MT	360 l
118d 2.0 AT Steptronic	360 l
118d 2.0 MT	360 l
123d 2.0 MT	360 l
123d 2.0 AT Steptronic	360 l
125i 3.0 AT Steptronic	360 l
120i 2.0 MT	360 l
120i 2.0 AT Steptronic	360 l
120i 2.0 AT Steptronic	360 l
120i 2.0 MT	360 l
135i 3.0 MT	360 l
125i 3.0 MT	360 l
135i 3.0 AT Steptronic	360 l

Hatchback 3-door — BMW 1 Series Cargo Space

Hatchback 3-door BMW 1 Series Cargo Space
Modification	Trunk volume min	Trunk volume max
116i 1.6 AT	330 l	1150 l
116i 1.6 MT	330 l	1150 l
118i 2.0 AT Steptronic	330 l	1150 l
118i 2.0 MT	330 l	1150 l
120i 2.0 MT	330 l	1150 l
130i 3.0 AT Steptronic	330 l	1150 l
130i 3.0 MT	330 l	1150 l
116i 1.6 MT	330 l	1150 l
116i 1.6 AT Steptronic	330 l	1150 l
116i 2.0 MT	330 l	1150 l
116i 2.0 AT Steptronic	330 l	1150 l
118i 2.0 MT	330 l	1150 l
120i 2.0 MT	330 l	1150 l
120i 2.0 AT Steptronic	330 l	1150 l
130i 3.0 MT	330 l	1150 l
130i 3.0 AT Steptronic	330 l	1150 l
116d 2.0 MT	330 l	1150 l
118d 2.0 MT	330 l	1150 l
118d 2.0 AT Steptronic	330 l	1150 l
120d 2.0 MT	330 l	1150 l
120d 2.0 AT Steptronic	330 l	1150 l
123d 2.0 MT	330 l	1150 l
123d 2.0 AT Steptronic	330 l	1150 l
118i 2.0 AT Steptronic	330 l	1150 l
120i 2.0 AT Steptronic	330 l	1150 l

Hatchback 5-door — BMW 1 Series Cargo Space

Hatchback 5-door BMW 1 Series Cargo Space
Modification	Trunk volume min	Trunk volume max
116i 1.6 AT Steptronic	330 l	1150 l
116i 1.6 MT	330 l	1150 l
116i 1.6 AT Steptronic	330 l	1150 l
116i 1.6 MT	330 l	1150 l
116i 2.0 AT Steptronic	330 l	1150 l
116i 2.0 MT	330 l	1150 l
118i 2.0 MT	330 l	1150 l
120i 2.0 MT	330 l	1150 l
120i 2.0 AT Steptronic	330 l	1150 l
130i 3.0 MT	330 l	1150 l
130i 3.0 AT Steptronic	330 l	1150 l
130i 3.0 AT Steptronic	330 l	1150 l
130i 3.0 MT	330 l	1150 l
116d 2.0 MT	330 l	1150 l
118d 2.0 MT	330 l	1150 l
118d 2.0 AT Steptronic	330 l	1150 l
120d 2.0 MT	330 l	1150 l
120d 2.0 AT Steptronic	330 l	1150 l
123d 2.0 MT	330 l	1150 l
123d 2.0 AT Steptronic	330 l	1150 l
118i 2.0 AT Steptronic	330 l	1150 l
118i 2.0 AT Steptronic	330 l	1150 l
118i 2.0 MT	330 l	1150 l
120i 2.0 MT	330 l	1150 l
120i 2.0 AT Steptronic	330 l	1150 l

BMW 1 Series Trims and Equipment

BMW 1 Series trim levels describe cabin and convenience equipment, and they sit on a technical version rather than replacing it. On the 120d 2.0 AT Steptronic Cabrio, a diesel automatic with rear-wheel drive, equipment configurations can be listed as 120i cabrio. Match the version so the kit and drivetrain you want stay aligned.

BMW 1 Series Trims and Equipment
Modification	Body	Equipment
120i 2.0 AT Steptronic	Cabrio	Cabrio
120d 2.0 AT Steptronic	Cabrio	120i cabrio
125i 3.0 MT	Cabrio	125
125i 3.0 MT	Cabrio	Cabrio
125i 3.0 AT Steptronic	Cabrio	Cabrio
120i 2.0 AT Steptronic	Cabrio	120i cabrio
120i 2.0 AT Steptronic	Cabrio	Cabrio
135i 3.0 AT Steptronic	Cabrio	Cabrio
120d 2.0 AT Steptronic	Coupe	120d coupe
125i 3.0 AT Steptronic	Coupe	125
125i 3.0 MT	Coupe	Base
116i 1.6 AT	Hatchback 3-door	120d coupe
118i 2.0 AT Steptronic	Hatchback 3-door	120d coupe
118i 2.0 AT Steptronic	Hatchback 3-door	Base
120i 2.0 MT	Hatchback 3-door	120
130i 3.0 AT Steptronic	Hatchback 3-door	125
118i 2.0 AT Steptronic	Hatchback 3-door	Base
120i 2.0 AT Steptronic	Hatchback 3-door	Base
116i 1.6 AT Steptronic	Hatchback 5-door	120d coupe
118i 2.0 AT Steptronic	Hatchback 5-door	Base
118i 2.0 AT Steptronic	Hatchback 5-door	120d coupe
118i 2.0 AT Steptronic	Hatchback 5-door	Base
118i 2.0 MT	Hatchback 5-door	Base
120i 2.0 MT	Hatchback 5-door	120
120i 2.0 MT	Hatchback 5-door	Base
120i 2.0 AT Steptronic	Hatchback 5-door	Base
