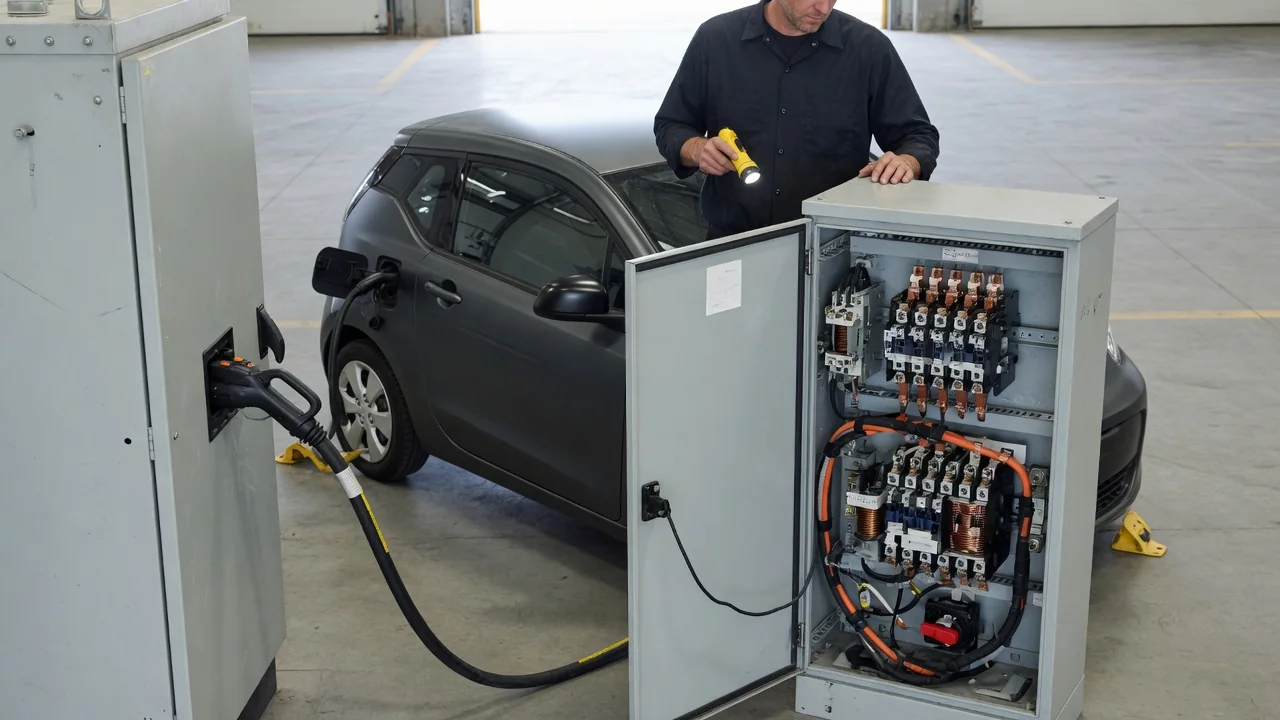

Why Do EV Chargers Have Contactors? Switching, Safety and Faults
An EV charger is often described as a simple power outlet, but a typical charging station does not keep its cable live all the time. Inside the unit, a contactor acts as a heavy-duty, electrically controlled switch that connects or disconnects power to the vehicle. The purpose of an EV charging contactor explains why a charger clicks when a session starts, why it sometimes refuses to deliver power, and what happens when that switch itself fails.
High-voltage switching
A contactor is an electromechanical switch built to carry and interrupt substantial current repeatedly. A small control circuit energizes a coil, the coil pulls a set of contacts together, and the main power path closes. When the coil is de-energized, springs force the contacts apart. Compared with a small signal relay, a contactor has larger contacts, greater spacing between them, and features intended to manage the arc that forms when current-carrying contacts separate. That makes it suitable for the voltages and currents involved in vehicle charging, where the switch may cycle at every plug-in and unplug over the life of the equipment.
In an AC charger, often called EVSE, the contactor sits between the supply and the charging cable. The wall unit usually does not convert power; the vehicle's onboard charger does that. The EVSE's main job is to decide when it is safe to pass AC power through, and the contactor is how it acts on that decision. Until the conditions are right, the cable and connector pins stay de-energized, so a cable lying on a driveway or a connector dropped on wet ground is not live while no vehicle is requesting power.
DC fast chargers rely on contactors as well, placed on the output side of a power conversion stage that produces high-voltage direct current. DC is harder to interrupt than AC because the current does not pass through zero many times per second, so an arc can be sustained longer. For that reason, DC switching designs pay close attention to contact ratings and to opening the circuit when current is low. The vehicle also has its own battery contactors, and the charger and car coordinate so both sets close and open in an orderly sequence.
Safety checks
Before an AC charger closes its contactor, it communicates with the vehicle over a control pilot line. Under widely used conventions such as SAE J1772 in North America and IEC 61851 elsewhere, the charger generates a pilot signal and the vehicle modifies it to indicate whether it is connected and whether it is ready to accept power. The charger uses the same signal to advertise how much current the circuit can supply. Only when the vehicle signals that it is ready does the charger energize the contactor. If the pilot shows that the car has stopped requesting power, or the connection is lost, the charger opens the contactor.
Contactor control is also tied to protective monitoring. Many chargers include ground-fault or residual-current detection that compares current flowing out with current returning; an imbalance suggests current is leaking through an unintended path, possibly a person. When that happens, opening the contactor removes power from the cable. Depending on the design, chargers may also check for a valid ground connection, abnormal supply voltage, or excessive temperature, and use the contactor to shut down when a limit is reached. Some units also test their ground-fault circuitry before a session begins.
A critical check concerns the contactor itself. Because a failed switch could leave the cable energized when it should be dead, many chargers verify contact state, either by sensing voltage on the output side or through auxiliary contacts that report position. If voltage is present when the contactor should be open, the charger can flag a welded-contact fault and refuse further sessions. On DC chargers, pre-charge steps and insulation checks are typically performed before the main contactors close, so the system confirms the high-voltage path is sound before full power flows.
Faults
The most serious contactor failure is welding, where the contacts fuse together and do not open on command. Welding can result from switching under heavy load, inrush current, a worn or inadequately rated component, or repeated arcing that degrades the contact surfaces. A charger that detects this condition generally locks out and displays an error, because it can no longer guarantee that the connector is de-energized when nothing is charging.
The opposite failure is a contactor that will not close or will not stay closed. Causes include a failed coil, a problem in the driver circuit that energizes it, low control voltage, or contacts so pitted that they no longer conduct well. Symptoms can include a session that starts and immediately stops, a vehicle that reports it is connected but not receiving power, or repeated clicking as the charger tries and fails to establish a session. Rapid cycling can also come from issues elsewhere, such as an unstable pilot signal, a tripping ground-fault monitor, or the vehicle pausing and resuming its request.
Wear and heat are gradual faults. Every switching operation under load erodes contact material, which raises resistance. Higher resistance produces heat at the contacts and their terminals, and loose terminations make this worse. Over time this can show up as discoloration, a burning smell, buzzing from the coil, or thermal shutdowns. These symptoms point to a component or wiring issue that needs inspection rather than repeated attempts to charge.
Practical implications and limits
For owners, a single click when charging begins and another when it ends is normal; it is the sound of the contactor doing its job. Because the vehicle normally reduces its draw before ending a session, unplugging a car that has finished charging should not force the contactor to break full current. Ending an active session from the vehicle or the charger's controls before pulling the connector follows the same logic and is gentler on the components than interrupting power abruptly. A charger error that persists after a reset, a lockout code tied to relay or contactor checks, or signs of heat are reasons to stop using the unit and have it examined.
There are limits to what can be inferred from the outside. Charger designs differ in what they monitor, how they report faults, and whether lower-power units use a full contactor or a smaller relay, so the meaning of a particular error code or light pattern depends on that charger's documentation. Vehicle behavior also varies, since each car manages its own onboard charger and battery contactors. Contactor replacement and internal diagnosis involve line voltage or high-voltage DC and should be left to a qualified electrician or the equipment's service provider. Bypassing a contactor or its feedback circuit defeats a core safety function and should never be attempted.
