Renault Megane Specs, Engines & Dimensions (2014–2017) — Third Generation Restyling 2

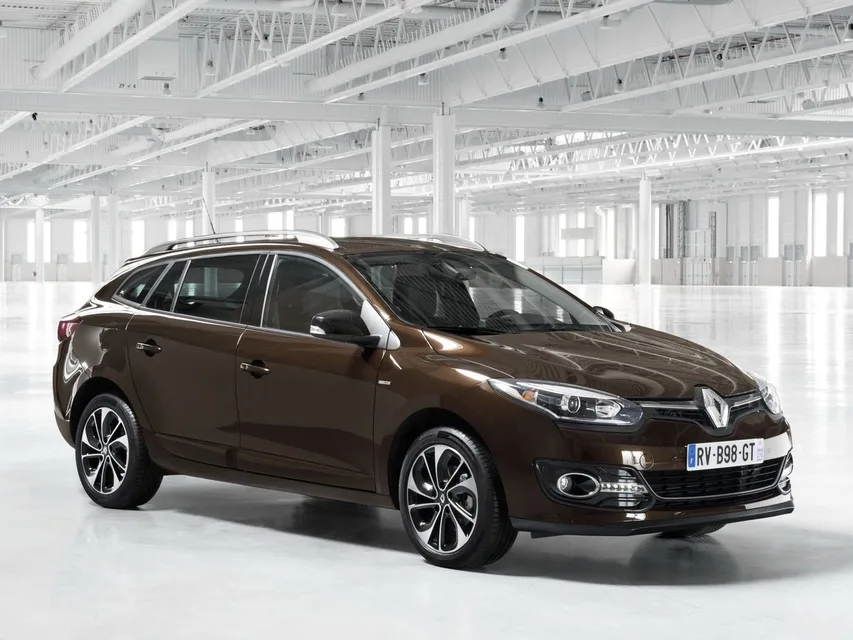

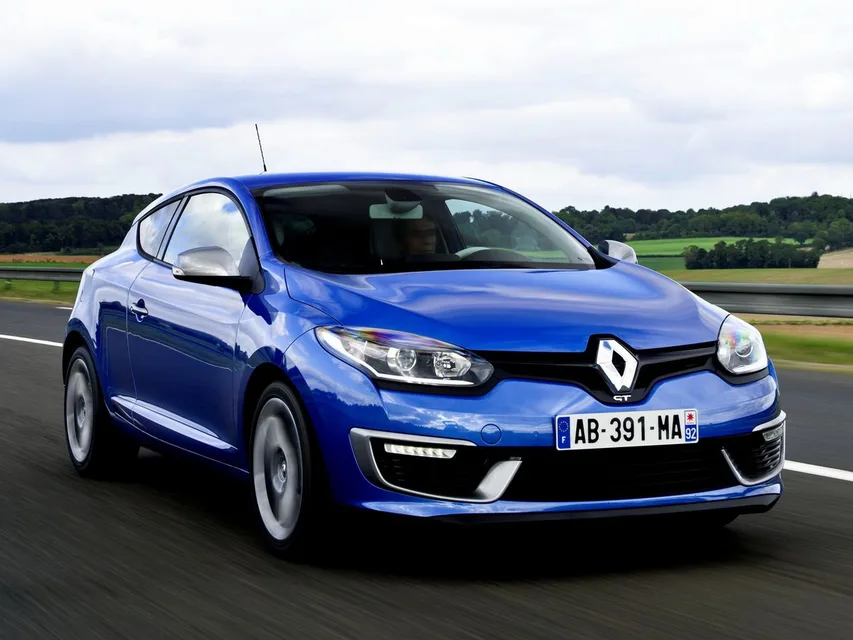

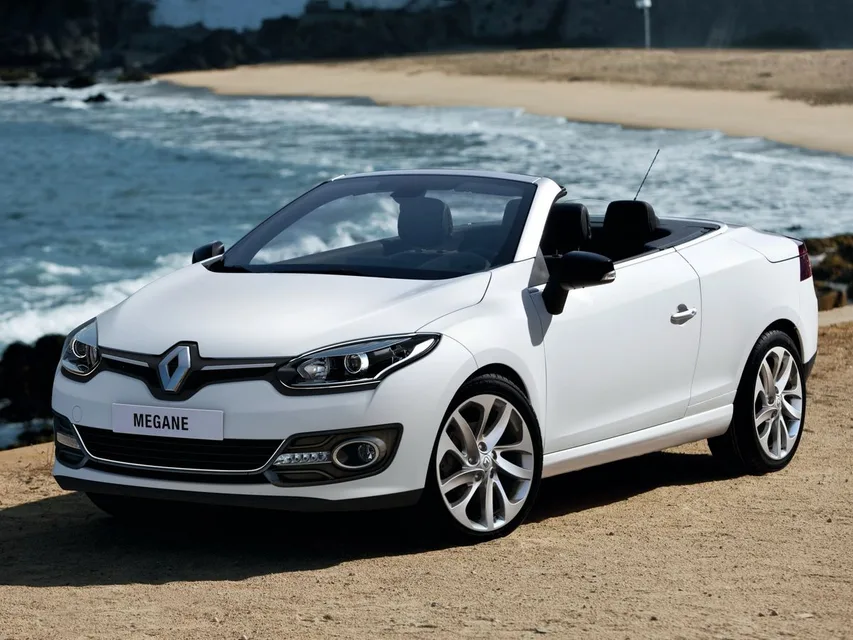

This facelift of the third-generation Renault Megane gives you a choice of three-door and five-door hatchbacks, an estate and a cabrio, with body styles suited to different passenger, luggage and leisure needs.

← All Renault models

Renault Megane Engines and Transmissions

Renault Megane engine choices include several ways to balance convenience and driver involvement. Selected three-door examples pair gasoline power with a continuously variable transmission in the 2.0 CVT, or diesel power with automated shifts in the 1.5 EDC. The diesel 1.6 MT gives you manual gear selection; all three use front-wheel drive.

Hatchback 3-door — Renault Megane Engines and Transmissions

Hatchback 3-door Renault Megane Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
2.0 MT	Gasoline	1997 cm³	137 hp	101 kW	190 N⋅m	Manual	FWD
1.2 MT	Gasoline	1197 cm³	116 hp	85 kW	190 N⋅m	Manual	FWD
1.2 MT	Gasoline	1197 cm³	130 hp	96 kW	205 N⋅m	Manual	FWD
2.0 CVT	Gasoline	1997 cm³	137 hp	101 kW	190 N⋅m	Variable	FWD
2.0 MT	Gasoline	1998 cm³	220 hp	162 kW	340 N⋅m	Manual	FWD
1.5 MT	Diesel	1461 cm³	95 hp	70 kW	200 N⋅m	Manual	FWD
1.5 EDC	Diesel	1461 cm³	110 hp	81 kW	240 N⋅m	Robotic	FWD
1.5 MT	Diesel	1461 cm³	110 hp	81 kW	240 N⋅m	Manual	FWD
1.6 MT	Diesel	1598 cm³	130 hp	96 kW	320 N⋅m	Manual	FWD
2.0 MT	Diesel	1997 cm³	165 hp	121 kW	380 N⋅m	Manual	FWD

Cabrio — Renault Megane Engines and Transmissions

Cabrio Renault Megane Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.2 MT	Gasoline	1197 cm³	130 hp	96 kW	205 N⋅m	Manual	FWD
2.0 CVT	Gasoline	1997 cm³	140 hp	103 kW	195 N⋅m	Variable	FWD
1.5 MT	Diesel	1461 cm³	110 hp	81 kW	240 N⋅m	Manual	FWD
1.5 EDC	Diesel	1461 cm³	110 hp	81 kW	240 N⋅m	Robotic	FWD
1.6 MT	Diesel	1598 cm³	130 hp	96 kW	320 N⋅m	Manual	FWD
2.0 MT	Diesel	1995 cm³	160 hp	118 kW	380 N⋅m	Manual	FWD

Estate 5-door — Renault Megane Engines and Transmissions

Estate 5-door Renault Megane Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.2 MT	Gasoline	1197 cm³	116 hp	85 kW	190 N⋅m	Manual	FWD
1.2 MT	Gasoline	1197 cm³	130 hp	96 kW	205 N⋅m	Manual	FWD
1.6 MT	Gasoline	1598 cm³	110 hp	81 kW	151 N⋅m	Manual	FWD
1.5 MT	Diesel	1461 cm³	95 hp	70 kW	200 N⋅m	Manual	FWD
1.5 MT	Diesel	1461 cm³	110 hp	81 kW	240 N⋅m	Manual	FWD
1.6 MT	Diesel	1598 cm³	130 hp	96 kW	320 N⋅m	Manual	FWD
2.0 MT	Diesel	1997 cm³	165 hp	121 kW	380 N⋅m	Manual	FWD
1.5 EDC	Diesel	1461 cm³	110 hp	81 kW	245 N⋅m	Robotic	FWD
1.2 EDC	Gasoline	1197 cm³	132 hp	97 kW	205 N⋅m	Robotic	FWD

Hatchback 5-door — Renault Megane Engines and Transmissions

Hatchback 5-door Renault Megane Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.6 MT	Gasoline	1598 cm³	106 hp	78 kW	145 N⋅m	Manual	FWD
1.6 CVT	Gasoline	1598 cm³	114 hp	84 kW	155 N⋅m	Variable	FWD
2.0 CVT	Gasoline	1997 cm³	137 hp	101 kW	190 N⋅m	Variable	FWD
2.0 MT	Gasoline	1997 cm³	137 hp	101 kW	190 N⋅m	Manual	FWD
1.2 MT	Gasoline	1197 cm³	116 hp	85 kW	190 N⋅m	Manual	FWD
1.2 MT	Gasoline	1197 cm³	130 hp	96 kW	205 N⋅m	Manual	FWD
2.0 MT	Gasoline	1998 cm³	220 hp	162 kW	340 N⋅m	Manual	FWD
1.5 MT	Diesel	1461 cm³	95 hp	70 kW	200 N⋅m	Manual	FWD
1.5 MT	Diesel	1461 cm³	110 hp	81 kW	240 N⋅m	Manual	FWD
1.6 MT	Diesel	1598 cm³	130 hp	96 kW	320 N⋅m	Manual	FWD
2.0 MT	Diesel	1997 cm³	165 hp	121 kW	380 N⋅m	Manual	FWD
1.5 EDC	Diesel	1461 cm³	110 hp	81 kW	240 N⋅m	Robotic	FWD

Renault Megane Dimensions

Hatchback 3-door — Renault Megane Dimensions

Hatchback 3-door Renault Megane Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
2.0 MT	4312 mm	1804 mm	1423 mm	2640 mm	1280 kg	1755 kg	160 mm
1.2 MT	4312 mm	1804 mm	1423 mm	2640 mm	1205 kg	1774 kg	120 mm
1.2 MT	4312 mm	1804 mm	1423 mm	2640 mm	1205 kg	1772 kg	120 mm
2.0 CVT	4312 mm	1804 mm	1423 mm	2640 mm	1358 kg	1780 kg	160 mm
2.0 MT	4312 mm	1804 mm	1423 mm	2640 mm	1424 kg	1914 kg	120 mm
1.5 MT	4312 mm	1804 mm	1423 mm	2640 mm	1205 kg	1795 kg	120 mm
1.5 EDC	4312 mm	1804 mm	1423 mm	2640 mm	1205 kg	1829 kg	120 mm
1.5 MT	4312 mm	1804 mm	1423 mm	2640 mm	1205 kg	1805 kg	120 mm
1.6 MT	4312 mm	1804 mm	1423 mm	2640 mm	1320 kg	1849 kg	120 mm
2.0 MT	4312 mm	1804 mm	1423 mm	2640 mm	1424 kg	1914 kg	120 mm

Cabrio — Renault Megane Dimensions

Cabrio Renault Megane Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.2 MT	4485 mm	1811 mm	1434 mm	2609 mm	1515 kg	1960 kg	120 mm
2.0 CVT	4485 mm	1811 mm	1434 mm	2609 mm	1515 kg	1960 kg	120 mm
1.5 MT	4485 mm	1811 mm	1434 mm	2609 mm	1527 kg	1985 kg	120 mm
1.5 EDC	4485 mm	1811 mm	1434 mm	2609 mm	1536 kg	2004 kg	120 mm
1.6 MT	4485 mm	1811 mm	1434 mm	2609 mm	1536 kg	2017 kg	120 mm
2.0 MT	4485 mm	1811 mm	1434 mm	2609 mm	1536 kg	2017 kg	120 mm

Estate 5-door — Renault Megane Dimensions

Estate 5-door Renault Megane Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.2 MT	4567 mm	1547 mm	1507 mm	2703 mm	1284 kg	1835 kg	120 mm
1.2 MT	4567 mm	1547 mm	1507 mm	2703 mm	1276 kg	1837 kg	120 mm
1.6 MT	4567 mm	1547 mm	1507 mm	2703 mm	1284 kg	1835 kg	120 mm
1.5 MT	4567 mm	1547 mm	1507 mm	2703 mm	1302 kg	1857 kg	120 mm
1.5 MT	4567 mm	1547 mm	1507 mm	2703 mm	1308 kg	1864 kg	120 mm
1.6 MT	4567 mm	1547 mm	1507 mm	2703 mm	1320 kg	1885 kg	120 mm
2.0 MT	4567 mm	1547 mm	1507 mm	2703 mm	1284 kg	1835 kg	120 mm
1.5 EDC	4567 mm	1547 mm	1507 mm	2703 mm	1289 kg	1850 kg	120 mm
1.2 EDC	4567 mm	1547 mm	1507 mm	2703 mm	1351 kg	1878 kg	120 mm

Hatchback 5-door — Renault Megane Dimensions

Hatchback 5-door Renault Megane Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.6 MT	4302 mm	1808 mm	1471 mm	2641 mm	1280 kg	1727 kg	160 mm
1.6 CVT	4302 mm	1808 mm	1471 mm	2641 mm	1353 kg	1738 kg	160 mm
2.0 CVT	4302 mm	1808 mm	1471 mm	2641 mm	1358 kg	1780 kg	160 mm
2.0 MT	4302 mm	1808 mm	1471 mm	2641 mm	1280 kg	1755 kg	160 mm
1.2 MT	4302 mm	1808 mm	1471 mm	2641 mm	1215 kg	Not provided	160 mm
1.2 MT	4302 mm	1808 mm	1471 mm	2641 mm	1205 kg	1781 kg	160 mm
2.0 MT	4302 mm	1808 mm	1471 mm	2641 mm	1205 kg	1781 kg	160 mm
1.5 MT	4302 mm	1808 mm	1471 mm	2641 mm	1300 kg	1797 kg	160 mm
1.5 MT	4302 mm	1808 mm	1471 mm	2641 mm	1215 kg	1813 kg	160 mm
1.6 MT	4302 mm	1808 mm	1471 mm	2641 mm	1320 kg	1859 kg	160 mm
2.0 MT	4302 mm	1808 mm	1471 mm	2641 mm	1320 kg	1859 kg	160 mm
1.5 EDC	4302 mm	1808 mm	1471 mm	2641 mm	1290 kg	1845 kg	160 mm

Renault Megane Cargo Space

Hatchback 3-door — Renault Megane Cargo Space

Hatchback 3-door Renault Megane Cargo Space
Modification	Trunk volume min	Trunk volume max
2.0 MT	344 l	991 l
1.2 MT	344 l	991 l
1.2 MT	344 l	991 l
2.0 CVT	344 l	991 l
2.0 MT	344 l	991 l
1.5 MT	344 l	991 l
1.5 EDC	344 l	991 l
1.5 MT	344 l	991 l
1.6 MT	344 l	991 l
2.0 MT	344 l	991 l

Cabrio — Renault Megane Cargo Space

Cabrio Renault Megane Cargo Space
Modification	Trunk volume min	Trunk volume max
1.2 MT	258 l	561 l
2.0 CVT	258 l	561 l
1.5 MT	258 l	561 l
1.5 EDC	258 l	561 l
1.6 MT	258 l	561 l
2.0 MT	258 l	561 l

Estate 5-door — Renault Megane Cargo Space

Estate 5-door Renault Megane Cargo Space
Modification	Trunk volume min	Trunk volume max
1.2 MT	524 l	1600 l
1.2 MT	524 l	1600 l
1.6 MT	524 l	1600 l
1.5 MT	524 l	1600 l
1.5 MT	524 l	1600 l
1.6 MT	524 l	1600 l
2.0 MT	524 l	1600 l
1.5 EDC	524 l	1600 l
1.2 EDC	524 l	1600 l

Hatchback 5-door — Renault Megane Cargo Space

Hatchback 5-door Renault Megane Cargo Space
Modification	Trunk volume min	Trunk volume max
1.6 MT	368 l	1162 l
1.6 CVT	368 l	1162 l
2.0 CVT	368 l	1162 l
2.0 MT	368 l	1162 l
1.2 MT	368 l	1162 l
1.2 MT	368 l	1162 l
2.0 MT	368 l	1162 l
1.5 MT	368 l	1162 l
1.5 MT	368 l	1162 l
1.6 MT	368 l	1162 l
2.0 MT	368 l	1162 l
1.5 EDC	368 l	1162 l

Renault Megane Trims and Equipment

Renault Megane trim levels distinguish equipment choices within a technical version. The gasoline, manual, front-wheel-drive 1.6 MT five-door hatchback includes Authentique and Confort configurations. When choosing between them, check the individual car’s comfort, audio and convenience features, since the shared engine and transmission designation does not establish its equipment.

Renault Megane Trims and Equipment
Modification	Body	Equipment
1.5 EDC	Estate 5-door	Expression
1.5 EDC	Estate 5-door	Expression PSR
1.2 EDC	Estate 5-door	Expression
1.2 EDC	Estate 5-door	Expression PSR
1.6 MT	Hatchback 5-door	Authentique
1.6 MT	Hatchback 5-door	Confort
1.6 MT	Hatchback 5-door	Expression
2.0 CVT	Hatchback 5-door	Confort
