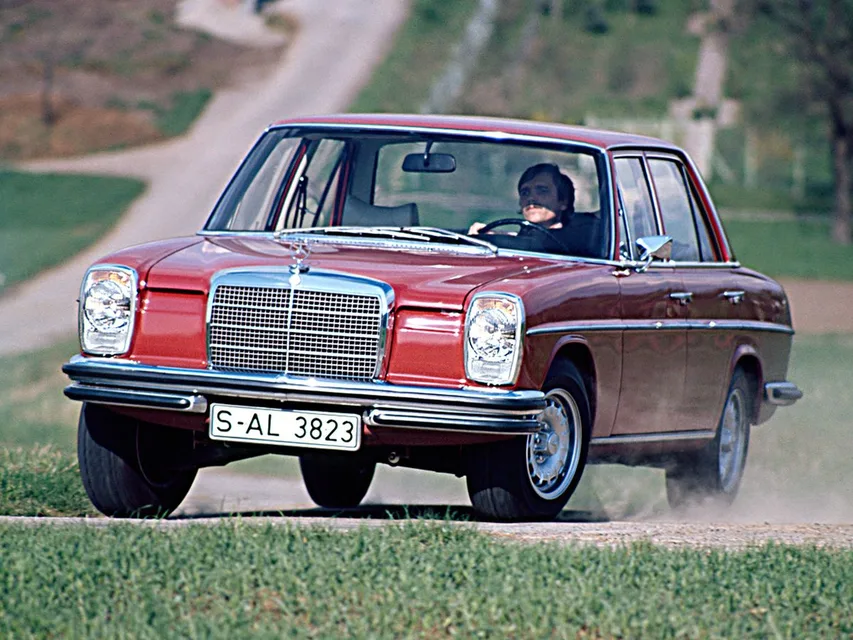

Catalog / Mercedes / W114 / 1 generation
Mercedes W114 Engines and Transmissions
The Mercedes W114 engine in these examples is gasoline, with a 2.5 sending power through a rear-wheel-drive drivetrain. Choose a 2.5 MT Coupe or Sedan when you want a manual, or a 2.5 AT Sedan for an automatic. Those powertrain pairings illustrate typical choices across both bodies, not every version offered.
Coupe — Mercedes W114 Engines and Transmissions
Coupe Mercedes W114 Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Transmission Type of drive
2.5 MT Gasoline 2500 cm³ 114 hp 84 kW Manual RWD 2.8 MT Gasoline 2746 cm³ 160 hp 118 kW Manual RWD 2.8 MT Gasoline 2746 cm³ 185 hp 136 kW Manual RWD 2.8 MT Gasoline 2800 cm³ 130 hp 96 kW Manual RWD
Sedan — Mercedes W114 Engines and Transmissions
Sedan Mercedes W114 Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive
2.5 MT Gasoline 2500 cm³ 114 hp 84 kW Not provided Manual RWD 2.5 AT Gasoline 2500 cm³ 114 hp 84 kW Not provided Automatic RWD 2.8 MT Gasoline 2746 cm³ 160 hp 118 kW Not provided Manual RWD 2.8 AT Gasoline 2746 cm³ 160 hp 118 kW Not provided Automatic RWD 2.8 MT Gasoline 2746 cm³ 185 hp 136 kW Not provided Manual RWD 2.8 AT Gasoline 2746 cm³ 185 hp 136 kW Not provided Automatic RWD 2.8 AT Gasoline 2800 cm³ 130 hp 96 kW Not provided Automatic RWD 2.3 MT Gasoline 2292 cm³ 120 hp 88 kW Not provided Manual RWD 2.8 MT Gasoline 2800 cm³ 130 hp 96 kW Not provided Manual RWD 2.2 MT Gasoline 2197 cm³ 105 hp 77 kW 179 N⋅m Manual RWD
Mercedes W114 Dimensions
Coupe — Mercedes W114 Dimensions
Coupe Mercedes W114 Dimensions Modification Length Width Height Wheelbase Curb weight Ground clearance, minimum
2.5 MT 4680 mm 1772 mm 1441 mm 2700 mm Not provided 165 mm 2.8 MT 4680 mm 1772 mm 1441 mm 2700 mm Not provided 165 mm 2.8 MT 4680 mm 1772 mm 1441 mm 2700 mm Not provided 165 mm 2.8 MT 4680 mm 1772 mm 1441 mm 2700 mm 1395 kg 165 mm
Sedan — Mercedes W114 Dimensions
Sedan Mercedes W114 Dimensions Modification Length Width Height Wheelbase Curb weight Max weight Ground clearance, minimum
2.5 MT 4680 mm 1772 mm 1441 mm 2700 mm Not provided Not provided 165 mm 2.5 AT 4680 mm 1772 mm 1441 mm 2700 mm Not provided Not provided 165 mm 2.8 MT 4680 mm 1772 mm 1441 mm 2700 mm Not provided Not provided 165 mm 2.8 AT 4680 mm 1772 mm 1441 mm 2700 mm Not provided Not provided 165 mm 2.8 MT 4680 mm 1772 mm 1441 mm 2700 mm Not provided Not provided 165 mm 2.8 AT 4680 mm 1772 mm 1441 mm 2700 mm Not provided Not provided 165 mm 2.8 AT 4680 mm 1772 mm 1441 mm 2700 mm Not provided Not provided 165 mm 2.3 MT 4680 mm 1772 mm 1441 mm 2700 mm 1355 kg Not provided 165 mm 2.8 MT 4680 mm 1772 mm 1441 mm 2700 mm 1395 kg Not provided 165 mm 2.2 MT 4680 mm 1772 mm 1441 mm 2700 mm 1335 kg 1885 kg 165 mm
