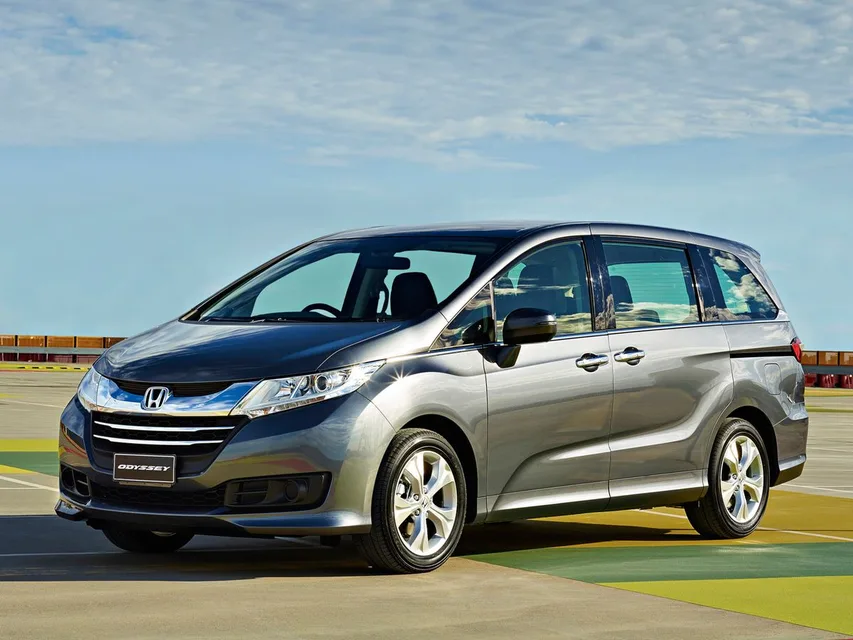

Honda Odyssey Specs, Engines & Dimensions (from 2013)

Honda Odyssey Engines and Transmissions

Selected Honda Odyssey engine options include the 2.0 CVT hybrid and 3.5 AT gasoline versions, both with front-wheel drive. The hybrid combines an engine with electric assistance and a variable transmission, while the gasoline example uses an automatic with stepped gears. Hybrid assistance can help reduce fuel use in stop-start traffic.

Minivan — Honda Odyssey Engines and Transmissions

Minivan Honda Odyssey Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
2.0 CVT	Hybrid	1993 cm³	145 hp	107 kW	175 N⋅m	Variable	FWD
2.4 CVT	Gasoline	2356 cm³	175 hp	129 kW	225 N⋅m	Variable	FWD
2.4 CVT	Gasoline	2356 cm³	175 hp	129 kW	225 N⋅m	Variable	AWD
2.4 CVT	Gasoline	2356 cm³	185 hp	136 kW	235 N⋅m	Variable	FWD
2.4 CVT	Gasoline	2356 cm³	185 hp	136 kW	235 N⋅m	Variable	AWD
2.4 CVT	Gasoline	2356 cm³	190 hp	140 kW	237 N⋅m	Variable	FWD
3.5 AT	Gasoline	2356 cm³	248 hp	182 kW	339 N⋅m	Automatic	FWD

Honda Odyssey Dimensions

Minivan — Honda Odyssey Dimensions

Minivan Honda Odyssey Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Ground clearance, minimum
2.0 CVT	4830 mm	1820 mm	1695 mm	2900 mm	1860 kg	150 mm
2.4 CVT	4830 mm	1820 mm	1695 mm	2900 mm	1720 kg	150 mm
2.4 CVT	4830 mm	1820 mm	1695 mm	2900 mm	1780 kg	150 mm
2.4 CVT	4830 mm	1820 mm	1695 mm	2900 mm	1820 kg	150 mm
2.4 CVT	4830 mm	1820 mm	1695 mm	2900 mm	1800 kg	150 mm
2.4 CVT	4830 mm	1820 mm	1695 mm	2900 mm	1740 kg	150 mm
3.5 AT	4830 mm	1820 mm	1695 mm	2900 mm	1720 kg	150 mm
