The Ford Mondeo 2.2 MT of the fourth generation is an estate version whose diesel engine and manual gearbox are worth understanding in terms of how that fuel releases its energy.
4 generation · Estate 5-door

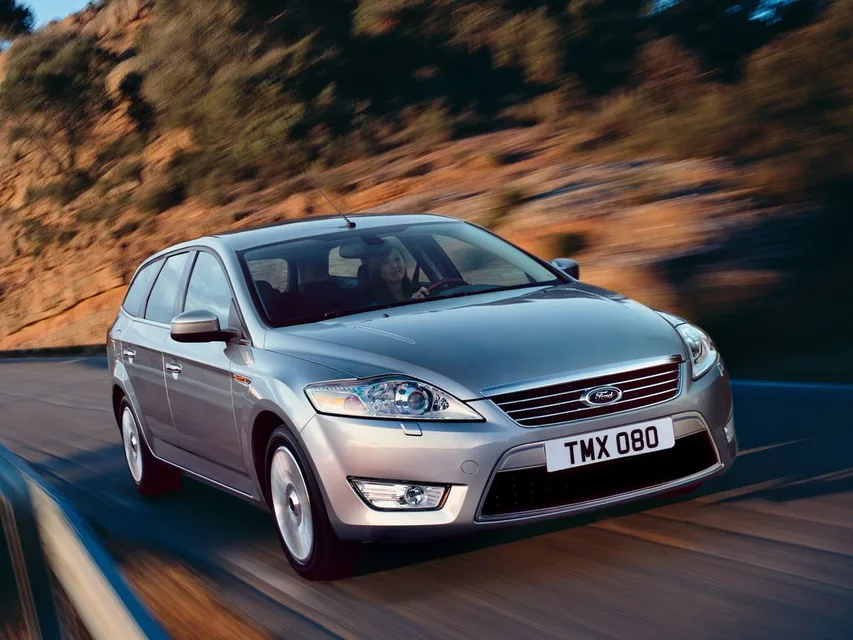

Generation photo. Individual trim appearance may differ.
The highest speed a vehicle can sustain under manufacturer test conditions. Some cars are electronically limited below their mechanical potential. Glossary entry
218 km/h
Engine type
Diesel
Transmission
Manual
Type of boost?
A turbocharger or supercharger compresses the air entering the engine so a smaller engine can produce more power. Naturally aspirated engines draw air without a compressor. Glossary entry
Turbo
Type of drive?
Which wheels receive power: front-wheel drive, rear-wheel drive or all-wheel drive. All-wheel drive can send power to every wheel for extra traction. Glossary entry
FWD
Bore and stroke?
The diameter of a cylinder (bore) and the distance the piston travels inside it (stroke). Together they determine the displacement of the engine. Glossary entry
86 × 94.6 mm
Engine capacity?
The total volume swept by all pistons inside the cylinders, usually stated in cubic centimetres or litres. Larger displacement often means more power but higher consumption. Glossary entry
2198 cm³
Engine location
Front, transverse
Number of gears?
How many fixed forward ratios a gearbox offers. More gears can improve economy and refinement; continuously variable transmissions have no fixed steps. Glossary entry
6
Maximum power?
A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry
175 hp
Maximum power, kw?
A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry
129 kW
Compression ratio?
The ratio between the largest and smallest volume of a cylinder as the piston moves. Higher ratios improve efficiency but may require higher-octane fuel. Glossary entry
17.5
Maximum power rpm
3500 rpm
Maximum torque N⋅m
400 N⋅m
Maximum torque rpm
1750 rpm
Acceleration to 100?
The time a vehicle needs to reach 100 km/h from a standstill, a common shorthand for overall performance. Glossary entry
8.9 s
Engine power system
Not provided
Number of cylinders
4
Valves per cylinder?
The number of intake and exhaust valves in each cylinder. Four valves per cylinder is common and helps the engine breathe at higher speeds. Glossary entry
4
Cylinder arrangement
Inline
Maximum power ICE
Not provided
Maximum power ICE
Not provided
Energy & emissions
ECO class
Not provided
Battery power
Not provided
Fuel grade
Diesel
Mild Hybrid?
A car with a small electric motor and battery that assist the combustion engine and recover braking energy but cannot drive on electricity alone. Glossary entry
Not provided
Battery type
Not provided
CO2 emissions?
The amount of carbon dioxide released per kilometre under a standardised test. Lower figures usually go hand in hand with lower fuel consumption. Glossary entry
Not provided
Full charge home
Not provided
Power consumption
Not provided
Fuel tank capacity
70 l
Full public charging time
Not provided
Driving range, maximum?
The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry
Not provided
Driving range, minimum?
The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry
Not provided
Fuel consumption city
8.4 l
Average consumption
6.2 l
Fuel consumption highway
4.9 l
Dimensions & body
Doors number
5
Number of seats
5
Width
1886 mm
Height
1548 mm
Length
4830 mm
Body type
Estate 5-door
Wheelbase?
The distance between the centres of the front and rear wheels. A longer wheelbase usually gives more cabin space and a calmer ride; a shorter one helps agility and parking. Glossary entry
2850 mm
U-turn diameter
Not provided
Depth of the ford to be crossed
Not provided
Body style
Estate
Rear track width?
The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry
1605 mm
Trunk volume max
1733 l
Trunk volume min
542 l
Front track width?
The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry
1589 mm
Max weight
2005 kg
Curb weight?
The weight of the vehicle with all standard equipment and fluids but without passengers or cargo. Glossary entry
1390 kg
Ground clearance, maximum?
The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry
Not provided
Ground clearance, minimum?
The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry
130 mm
Identity & configuration
Body code
4
Vehicle class
D
Body designation
BG
Right-hand drive
No
Additional specifications
Stop
2010-08-31
Start
2007-09-01
Wheel size
Not provided
Rear brakes
Disc
Front brakes
Disc
Rear suspension
Independent, spring
Front suspension
Independent, spring
No specifications match your search. Try another label or value, or clear the search.
Not provided means the source has no value. Zero remains zero. Units are shown as supplied; range test cycles are only stated when known.
Fuel cost calculator
Estimates use only the figures you enter, in your own currency. No live fuel prices or emissions data are used.
Fuel per trip
L
Trip cost
Monthly cost
Annual cost
Enable JavaScript to calculate estimates.
Engine and Transmission
A diesel engine ignites by compression: air alone is squeezed until it grows hot enough that injected fuel burns on contact, so there is no spark plug and timing is governed by when injection begins.
Drivetrain and Everyday Driving
With front-wheel drive, each front tyre must simultaneously carry the car forward and steer it. Both jobs draw on one small contact patch, so grip spent on acceleration is grip unavailable for cornering.
Body and Practicality
An estate five-door body places a full-height tailgate at the rear rather than a lid over a separate boot, so the opening reaches up to roof level and long items can be slid in from behind at load-floor height.
