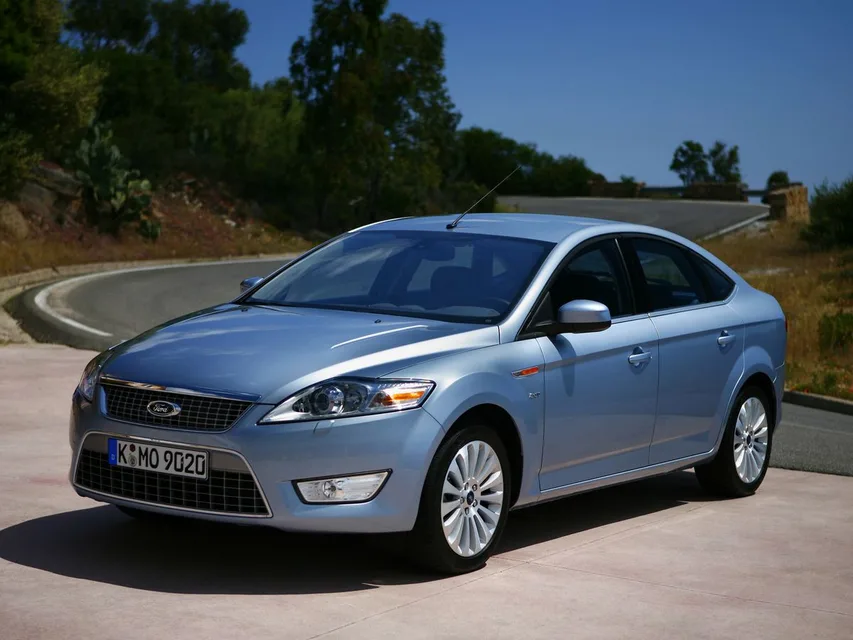

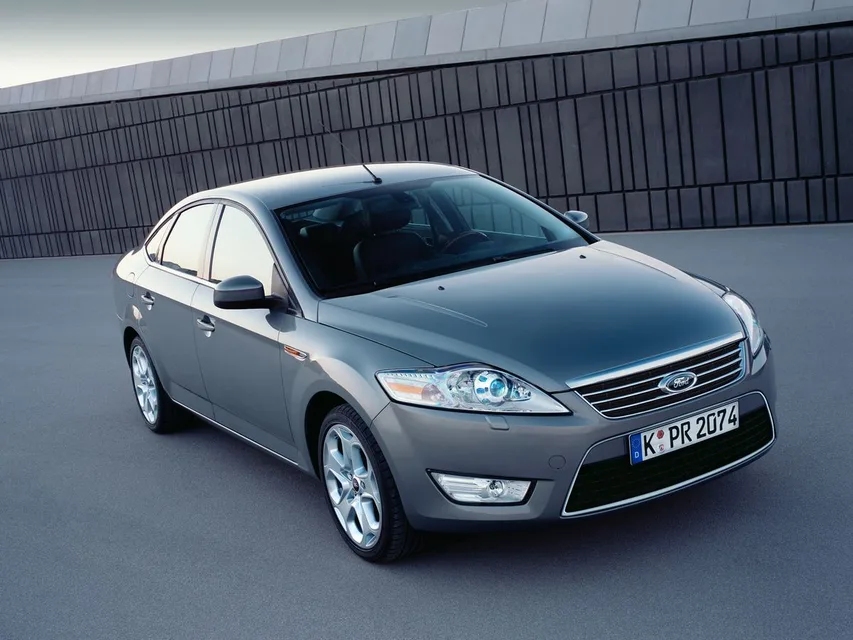

Ford Mondeo Specs, Engines & Dimensions (2007–2010) — Fourth Generation

The fourth-generation Ford Mondeo is a family car offered as a Liftback, Sedan, or Estate 5-door. You choose a body first, then match engine, transmission, and equipment to commuting, motorway miles, or load-carrying.

← All Ford models

Ford Mondeo Engines and Transmissions

Ford Mondeo engine options on this generation include diesel and gasoline units with front-wheel drive. The 2.2 MT Liftback is a diesel manual, the 2.0 Powershift Liftback pairs gasoline with a robotic transmission, and the 1.8 AT Liftback is a diesel automatic. These powertrain examples are not the complete lineup.

Liftback — Ford Mondeo Engines and Transmissions

Liftback Ford Mondeo Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
2.2 MT	Diesel	2198 cm³	175 hp	129 kW	400 N⋅m	Manual	FWD
1.8 MT	Diesel	1753 cm³	101 hp	74 kW	280 N⋅m	Manual	FWD
1.8 MT	Diesel	1753 cm³	125 hp	92 kW	285 N⋅m	Manual	FWD
1.8 AT	Diesel	1753 cm³	125 hp	92 kW	285 N⋅m	Automatic	FWD
2.0 MT	Diesel	1997 cm³	130 hp	96 kW	320 N⋅m	Manual	FWD
2.0 MT	Diesel	1997 cm³	140 hp	103 kW	320 N⋅m	Manual	FWD
2.0 AT	Diesel	1997 cm³	140 hp	103 kW	320 N⋅m	Automatic	FWD
2.0 MT	Gasoline	1999 cm³	145 hp	107 kW	185 N⋅m	Manual	FWD
2.5 MT	Gasoline	2521 cm³	220 hp	162 kW	320 N⋅m	Manual	FWD
1.6 MT	Gasoline	1596 cm³	110 hp	81 kW	160 N⋅m	Manual	FWD
1.6 MT	Gasoline	1596 cm³	125 hp	92 kW	160 N⋅m	Manual	FWD
2.0 Powershift	Gasoline	1999 cm³	203 hp	149 kW	300 N⋅m	Robotic	FWD
2.0 AT	Diesel	1997 cm³	130 hp	96 kW	320 N⋅m	Automatic	FWD
2.3 AT	Gasoline	2261 cm³	161 hp	118 kW	208 N⋅m	Automatic	FWD

Sedan — Ford Mondeo Engines and Transmissions

Sedan Ford Mondeo Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.6 MT	Gasoline	1596 cm³	125 hp	92 kW	160 N⋅m	Manual	FWD
2.0 MT	Gasoline	1999 cm³	145 hp	107 kW	185 N⋅m	Manual	FWD
2.5 MT	Gasoline	2521 cm³	220 hp	162 kW	320 N⋅m	Manual	FWD
2.0 Powershift	Gasoline	1999 cm³	203 hp	149 kW	300 N⋅m	Robotic	FWD
2.0 AT	Diesel	1997 cm³	140 hp	103 kW	320 N⋅m	Automatic	FWD
1.8 AT	Diesel	1753 cm³	125 hp	92 kW	285 N⋅m	Automatic	FWD
1.8 MT	Diesel	1753 cm³	125 hp	92 kW	285 N⋅m	Manual	FWD
2.0 MT	Diesel	1997 cm³	130 hp	96 kW	320 N⋅m	Manual	FWD
2.0 MT	Diesel	1997 cm³	140 hp	103 kW	320 N⋅m	Manual	FWD
2.2 MT	Diesel	2198 cm³	175 hp	129 kW	400 N⋅m	Manual	FWD
2.3 AT	Gasoline	2261 cm³	161 hp	118 kW	208 N⋅m	Automatic	FWD
2.0 AT	Diesel	1997 cm³	130 hp	96 kW	320 N⋅m	Automatic	FWD

Estate 5-door — Ford Mondeo Engines and Transmissions

Estate 5-door Ford Mondeo Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
2.0 AT	Diesel	1997 cm³	140 hp	96 kW	320 N⋅m	Automatic	FWD
2.2 MT	Diesel	2198 cm³	175 hp	129 kW	400 N⋅m	Manual	FWD
2.0 MT	Diesel	1997 cm³	140 hp	103 kW	320 N⋅m	Manual	FWD
1.8 MT	Diesel	1753 cm³	101 hp	74 kW	280 N⋅m	Manual	FWD
1.8 MT	Diesel	1753 cm³	125 hp	92 kW	285 N⋅m	Manual	FWD
1.8 AT	Diesel	1753 cm³	125 hp	92 kW	285 N⋅m	Automatic	FWD
2.0 MT	Diesel	1997 cm³	130 hp	96 kW	320 N⋅m	Manual	FWD
2.0 MT	Gasoline	1999 cm³	145 hp	107 kW	185 N⋅m	Manual	FWD
2.5 MT	Gasoline	2521 cm³	220 hp	162 kW	320 N⋅m	Manual	FWD
1.6 MT	Gasoline	1596 cm³	110 hp	81 kW	160 N⋅m	Manual	FWD
1.6 MT	Gasoline	1596 cm³	125 hp	92 kW	160 N⋅m	Manual	FWD
2.0 Powershift	Gasoline	1999 cm³	203 hp	149 kW	300 N⋅m	Robotic	FWD
2.0 AT	Diesel	1997 cm³	130 hp	96 kW	320 N⋅m	Automatic	FWD
2.3 AT	Gasoline	2261 cm³	161 hp	118 kW	208 N⋅m	Automatic	FWD

Ford Mondeo Dimensions

Liftback — Ford Mondeo Dimensions

Liftback Ford Mondeo Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
2.2 MT	4778 mm	1886 mm	1500 mm	2850 mm	1478 kg	1800 kg	130 mm
1.8 MT	4778 mm	1886 mm	1500 mm	2850 mm	1435 kg	2150 kg	103 mm
1.8 MT	4778 mm	1886 mm	1500 mm	2850 mm	1503 kg	Not provided	130 mm
1.8 AT	4778 mm	1886 mm	1500 mm	2850 mm	1503 kg	2190 kg	130 mm
2.0 MT	4778 mm	1886 mm	1500 mm	2850 mm	1485 kg	2170 kg	103 mm
2.0 MT	4778 mm	1886 mm	1500 mm	2850 mm	1485 kg	2170 kg	130 mm
2.0 AT	4778 mm	1886 mm	1500 mm	2850 mm	Not provided	Not provided	130 mm
2.0 MT	4778 mm	1886 mm	1500 mm	2850 mm	1405 kg	2090 kg	130 mm
2.5 MT	4778 mm	1886 mm	1500 mm	2850 mm	1495 kg	2185 kg	130 mm
1.6 MT	4778 mm	1886 mm	1500 mm	2850 mm	1365 kg	2050 kg	103 mm
1.6 MT	4778 mm	1886 mm	1500 mm	2850 mm	1365 kg	2050 kg	130 mm
2.0 Powershift	4778 mm	1886 mm	1500 mm	2850 mm	1494 kg	2200 kg	130 mm
2.0 AT	4778 mm	1886 mm	1500 mm	2850 mm	1510 kg	2190 kg	130 mm
2.3 AT	4778 mm	1886 mm	1500 mm	2850 mm	1470 kg	2165 kg	130 mm

Sedan — Ford Mondeo Dimensions

Sedan Ford Mondeo Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.6 MT	4844 mm	1886 mm	1500 mm	2850 mm	1365 kg	2050 kg	130 mm
2.0 MT	4844 mm	1886 mm	1500 mm	2850 mm	1405 kg	2090 kg	130 mm
2.5 MT	4844 mm	1886 mm	1500 mm	2850 mm	1495 kg	2185 kg	130 mm
2.0 Powershift	4844 mm	1886 mm	1500 mm	2850 mm	1494 kg	2200 kg	130 mm
2.0 AT	4844 mm	1886 mm	1500 mm	2850 mm	1510 kg	2190 kg	130 mm
1.8 AT	4844 mm	1886 mm	1500 mm	2850 mm	1503 kg	2190 kg	130 mm
1.8 MT	4844 mm	1886 mm	1500 mm	2850 mm	1503 kg	Not provided	130 mm
2.0 MT	4844 mm	1886 mm	1500 mm	2850 mm	1485 kg	2170 kg	130 mm
2.0 MT	4844 mm	1886 mm	1500 mm	2850 mm	1485 kg	2170 kg	130 mm
2.2 MT	4844 mm	1886 mm	1500 mm	2850 mm	1390 kg	2005 kg	130 mm
2.3 AT	4844 mm	1886 mm	1500 mm	2850 mm	1470 kg	2165 kg	130 mm
2.0 AT	4844 mm	1886 mm	1500 mm	2850 mm	1503 kg	2190 kg	130 mm

Estate 5-door — Ford Mondeo Dimensions

Estate 5-door Ford Mondeo Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
2.0 AT	4830 mm	1886 mm	1548 mm	2850 mm	1530 kg	2300 kg	130 mm
2.2 MT	4830 mm	1886 mm	1548 mm	2850 mm	1390 kg	2005 kg	130 mm
2.0 MT	4830 mm	1886 mm	1548 mm	2850 mm	1505 kg	2275 kg	130 mm
1.8 MT	4830 mm	1886 mm	1548 mm	2850 mm	1455 kg	2255 kg	102 mm
1.8 MT	4830 mm	1886 mm	1548 mm	2850 mm	1565 kg	Not provided	130 mm
1.8 AT	4830 mm	1886 mm	1548 mm	2850 mm	1565 kg	2190 kg	130 mm
2.0 MT	4830 mm	1886 mm	1548 mm	2850 mm	1505 kg	2275 kg	130 mm
2.0 MT	4830 mm	1886 mm	1548 mm	2850 mm	1425 kg	2200 kg	130 mm
2.5 MT	4830 mm	1886 mm	1548 mm	2850 mm	1515 kg	2295 kg	130 mm
1.6 MT	4830 mm	1886 mm	1548 mm	2850 mm	1385 kg	2050 kg	102 mm
1.6 MT	4830 mm	1886 mm	1548 mm	2850 mm	1385 kg	2050 kg	130 mm
2.0 Powershift	4830 mm	1886 mm	1548 mm	2850 mm	1513 kg	2300 kg	130 mm
2.0 AT	4830 mm	1886 mm	1548 mm	2850 mm	1505 kg	2190 kg	130 mm
2.3 AT	4830 mm	1886 mm	1548 mm	2850 mm	1490 kg	2265 kg	130 mm

Ford Mondeo Cargo Space

Liftback — Ford Mondeo Cargo Space

Liftback Ford Mondeo Cargo Space
Modification	Trunk volume min	Trunk volume max
2.2 MT	528 l	1448 l
1.8 MT	528 l	1448 l
1.8 MT	528 l	1448 l
1.8 AT	528 l	1448 l
2.0 MT	528 l	1448 l
2.0 MT	528 l	1448 l
2.0 AT	528 l	1448 l
2.0 MT	528 l	1448 l
2.5 MT	528 l	1448 l
1.6 MT	528 l	1448 l
1.6 MT	528 l	1448 l
2.0 Powershift	528 l	1448 l
2.0 AT	528 l	1448 l
2.3 AT	528 l	1448 l

Sedan — Ford Mondeo Cargo Space

Sedan Ford Mondeo Cargo Space
Modification	Trunk volume min
1.6 MT	535 l
2.0 MT	535 l
2.5 MT	535 l
2.0 Powershift	535 l
2.0 AT	535 l
1.8 AT	535 l
1.8 MT	535 l
2.0 MT	535 l
2.0 MT	535 l
2.2 MT	535 l
2.3 AT	535 l
2.0 AT	535 l

Estate 5-door — Ford Mondeo Cargo Space

Estate 5-door Ford Mondeo Cargo Space
Modification	Trunk volume min	Trunk volume max
2.0 AT	542 l	1733 l
2.2 MT	542 l	1733 l
2.0 MT	542 l	1733 l
1.8 MT	542 l	1733 l
1.8 MT	542 l	1733 l
1.8 AT	542 l	1733 l
2.0 MT	542 l	1733 l
2.0 MT	542 l	1733 l
2.5 MT	542 l	1733 l
1.6 MT	542 l	1733 l
1.6 MT	542 l	1733 l
2.0 Powershift	542 l	1733 l
2.0 AT	542 l	1733 l
2.3 AT	542 l	1733 l

Ford Mondeo Trims and Equipment

Ford Mondeo trim levels sit on a chosen technical version rather than replacing it. The 2.3 AT Estate 5-door is a gasoline automatic with front-wheel drive, offered with Titanium and Trend equipment. Pick the powertrain you need, then the trim that sets cabin comfort and convenience.

Ford Mondeo Trims and Equipment
Modification	Body	Equipment
2.2 MT	Liftback	Titanium X
2.2 MT	Liftback	Sport
2.0 AT	Liftback	Titanium
2.0 AT	Liftback	Trend X
2.0 MT	Liftback	Titanium
2.0 MT	Liftback	Trend
2.0 Powershift	Liftback	Trend
2.0 AT	Liftback	Titanium
2.0 AT	Liftback	Titanium Black
2.0 AT	Liftback	Ghia leather
2.0 AT	Liftback	Trend X
2.3 AT	Liftback	Titanium
2.3 AT	Liftback	Trend
2.3 AT	Liftback	Ghia
2.3 AT	Liftback	Trend X
1.6 MT	Sedan	Ambiente
2.0 MT	Sedan	Ghia
2.0 Powershift	Sedan	Trend
2.0 AT	Sedan	Titanium
2.0 AT	Sedan	Titanium Black
2.0 AT	Sedan	Titanium
2.0 AT	Sedan	Titanium X
2.0 AT	Sedan	Trend
2.0 AT	Sedan	Trend X
2.3 AT	Sedan	Titanium
2.3 AT	Sedan	Trend
2.3 AT	Sedan	Ghia leather
2.3 AT	Sedan	Trend X
2.0 AT	Sedan	Titanium
2.0 AT	Sedan	Trend X
2.0 AT	Estate 5-door	Titanium
2.0 AT	Estate 5-door	Titanium
2.0 AT	Estate 5-door	Trend X
2.2 MT	Estate 5-door	Sport
2.0 MT	Estate 5-door	Titanium X
2.0 MT	Estate 5-door	Trend
2.0 Powershift	Estate 5-door	Trend
2.0 AT	Estate 5-door	Trend X
2.3 AT	Estate 5-door	Titanium
2.3 AT	Estate 5-door	Trend
2.3 AT	Estate 5-door	Ghia
2.3 AT	Estate 5-door	Ghia leather
2.3 AT	Estate 5-door	Trend X
