BMW M3 Specs, Engines & Dimensions (2020–2025)

BMW M3 Engines and Transmissions

Among the BMW M3 engine and transmission combinations, the rear-wheel-drive 3.0 MT Sedan offers manual involvement, while the automatic 3.0 M xDrive M Steptronic Sedan adds all-wheel-drive traction. The selected 3.0 Steptronic Estate 5-door combines gasoline power, an automatic transmission and rear-wheel drive, easing your workload in traffic.

Estate 5-door — BMW M3 Engines and Transmissions

Estate 5-door BMW M3 Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
3.0 Steptronic	Gasoline	2993 cm³	510 hp	375 kW	650 N⋅m	Automatic	RWD

Sedan — BMW M3 Engines and Transmissions

Sedan BMW M3 Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
3.0 Steptronic	Gasoline	2993 cm³	510 hp	375 kW	650 N⋅m	Automatic	RWD
3.0 M xDrive M Steptronic	Gasoline	2993 cm³	510 hp	375 kW	650 N⋅m	Automatic	AWD
3.0 MT	Gasoline	2993 cm³	480 hp	353 kW	550 N⋅m	Manual	RWD
3.0 Steptronic CS	Gasoline	2993 cm³	550 hp	404 kW	650 N⋅m	Automatic	AWD

BMW M3 Dimensions

Estate 5-door — BMW M3 Dimensions

Estate 5-door BMW M3 Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
3.0 Steptronic	4794 mm	1903 mm	1433 mm	2875 mm	1865 kg	2370 kg	120 mm

Sedan — BMW M3 Dimensions

Sedan BMW M3 Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
3.0 Steptronic	4794 mm	1903 mm	1433 mm	2875 mm	1730 kg	2210 kg	120 mm
3.0 M xDrive M Steptronic	4794 mm	1903 mm	1433 mm	2875 mm	1780 kg	2260 kg	120 mm
3.0 MT	4794 mm	1903 mm	1433 mm	2875 mm	1705 kg	2210 kg	120 mm
3.0 Steptronic CS	4794 mm	1903 mm	1433 mm	2875 mm	1765 kg	Not provided	120 mm

BMW M3 Cargo Space

Estate 5-door — BMW M3 Cargo Space

Estate 5-door BMW M3 Cargo Space
Modification	Trunk volume min
3.0 Steptronic	480 l

Sedan — BMW M3 Cargo Space

Sedan BMW M3 Cargo Space
Modification	Trunk volume min
3.0 Steptronic	480 l
3.0 M xDrive M Steptronic	480 l
3.0 MT	480 l
3.0 Steptronic CS	480 l

BMW M3 Trims and Equipment

When comparing BMW M3 trim levels, distinguish the powertrain designation from the equipment configuration. The rear-wheel-drive 3.0 Steptronic Sedan has a configuration named Competition. Check the individual car’s seats, comfort features and driver assistance equipment to understand what it offers, as the version name alone does not establish every included feature.

BMW M3 Trims and Equipment
Modification	Body	Equipment
3.0 Steptronic	Sedan	Competition
3.0 M xDrive M Steptronic	Sedan	Competition

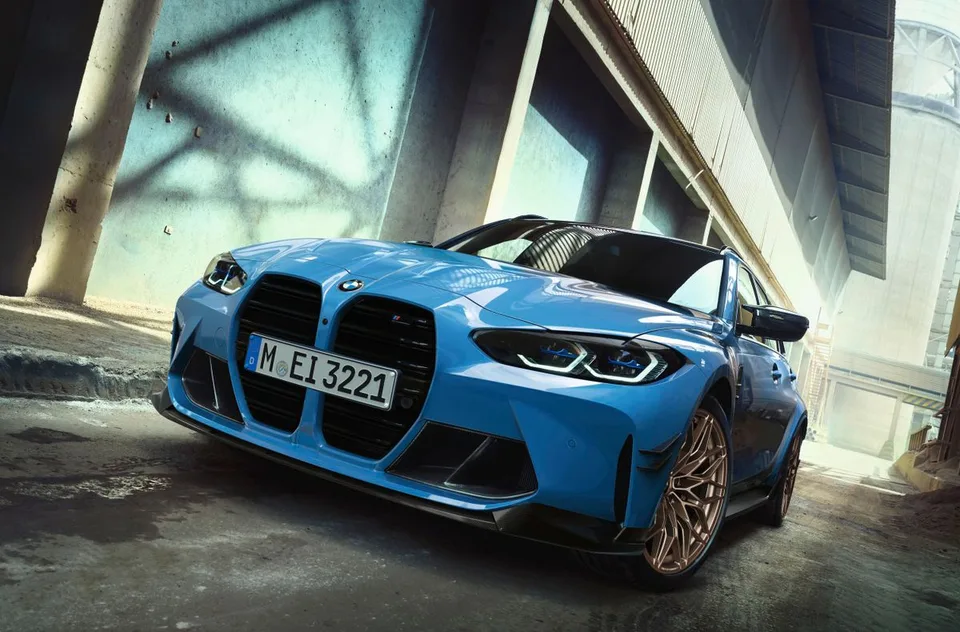

BMW M3 Specs, Engines & Dimensions (2020–2025) — Sixth Generation
