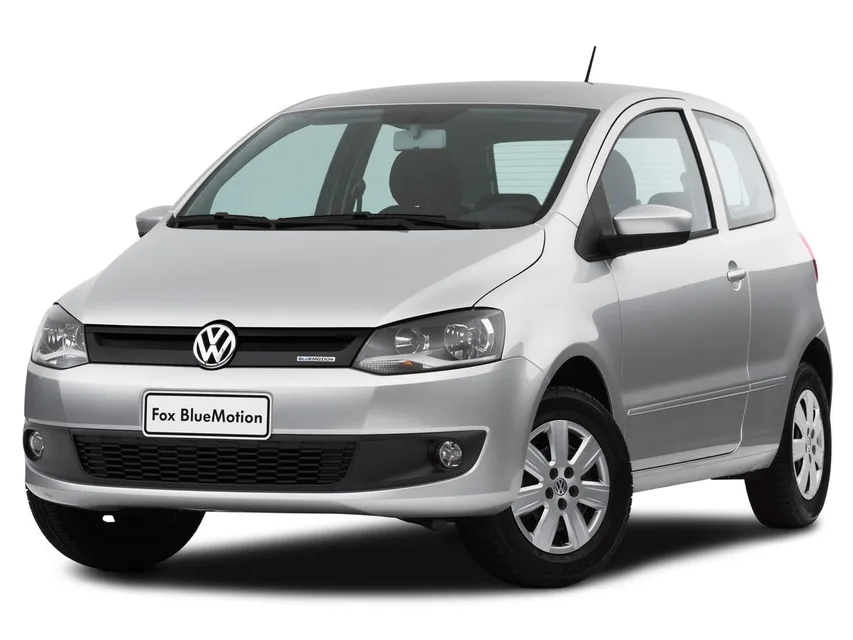

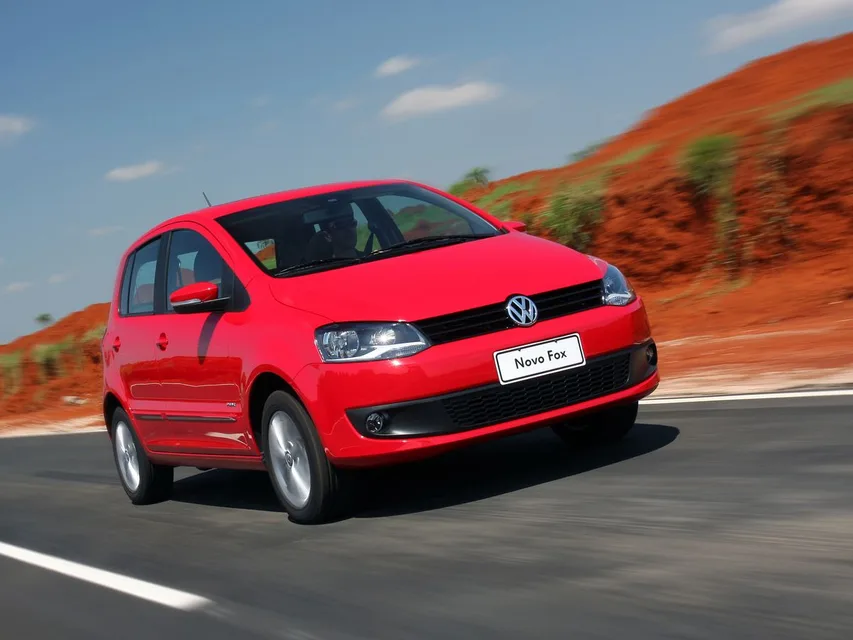

Volkswagen Fox Specs, Engines & Dimensions (2009–2011)

Volkswagen Fox Engines and Transmissions

The Volkswagen Fox engine range centres on small-capacity gasoline units sized for city work rather than outright speed. The 1.0 MT in the Mini 3-doors pairs a manual gearbox with front-wheel drive, a simple drivetrain that keeps weight down and fuel use modest.

Mini 5-doors — Volkswagen Fox Engines and Transmissions

Mini 5-doors Volkswagen Fox Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.6 MT	Gasoline	1598 cm³	101 hp	74 kW	152 N⋅m	Manual	FWD
1.6 AT	Gasoline	1598 cm³	101 hp	74 kW	152 N⋅m	Automatic	FWD
1.6 MT	Gasoline	1598 cm³	101 hp	72 kW	152 N⋅m	Manual	FWD
1.6 AT	Gasoline	1598 cm³	101 hp	72 kW	152 N⋅m	Automatic	FWD

Mini 3-doors — Volkswagen Fox Engines and Transmissions

Mini 3-doors Volkswagen Fox Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.0 MT	Gasoline	999 cm³	72 hp	53 kW	89 N⋅m	Manual	FWD

Volkswagen Fox Dimensions

Mini 5-doors — Volkswagen Fox Dimensions

Mini 5-doors Volkswagen Fox Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight
1.6 MT	4034 mm	1677 mm	1600 mm	2468 mm	1142 kg	1580 kg
1.6 AT	4034 mm	1677 mm	1600 mm	2468 mm	1158 kg	1580 kg
1.6 MT	4034 mm	1677 mm	1600 mm	2468 mm	1078 kg	1518 kg
1.6 AT	4034 mm	1677 mm	1600 mm	2468 mm	1088 kg	1508 kg

Mini 3-doors — Volkswagen Fox Dimensions

Mini 3-doors Volkswagen Fox Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight
1.0 MT	3823 mm	1640 mm	1543 mm	2465 mm	1009 kg	1449 kg

Volkswagen Fox Cargo Space

Mini 5-doors — Volkswagen Fox Cargo Space

Mini 5-doors Volkswagen Fox Cargo Space
Modification	Trunk volume min
1.6 MT	438 l
1.6 AT	438 l
1.6 MT	438 l
1.6 AT	438 l

Mini 3-doors — Volkswagen Fox Cargo Space

Mini 3-doors Volkswagen Fox Cargo Space
Modification	Trunk volume min	Trunk volume max
1.0 MT	260 l	1016 l
