Catalog / Toyota / Tacoma / 2 generation THE GLOBAL CAR CATALOG
Toyota Tacoma Specs, Engines & Dimensions (2004–2011) — Second Generation

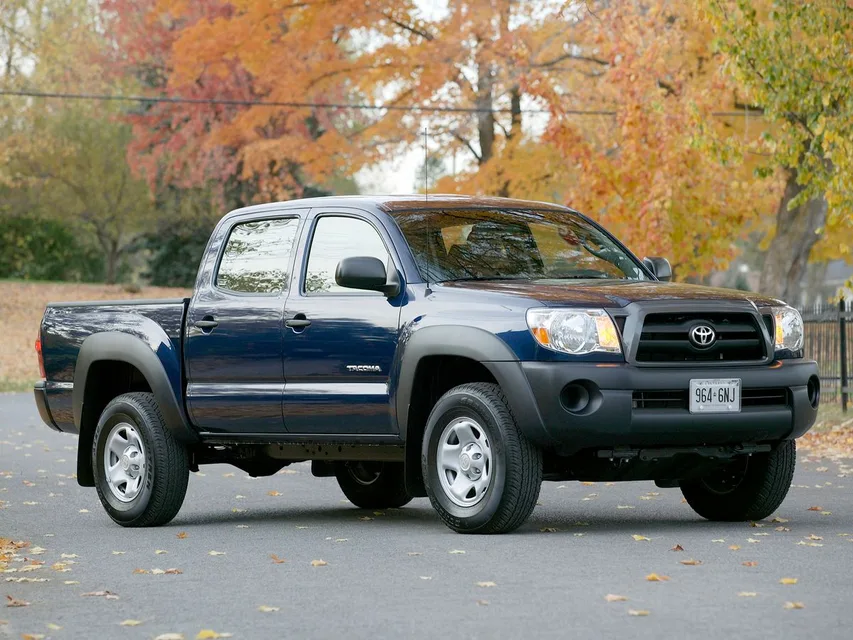

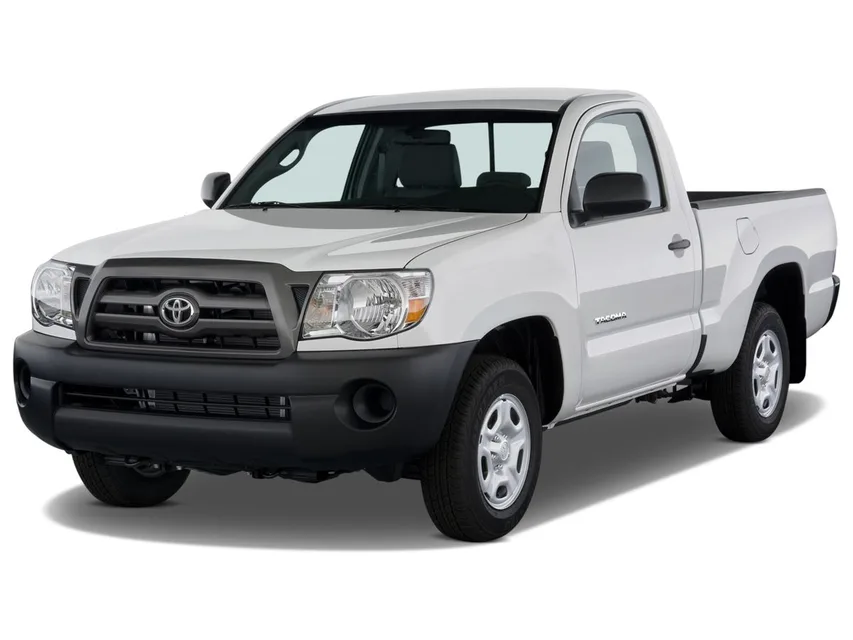

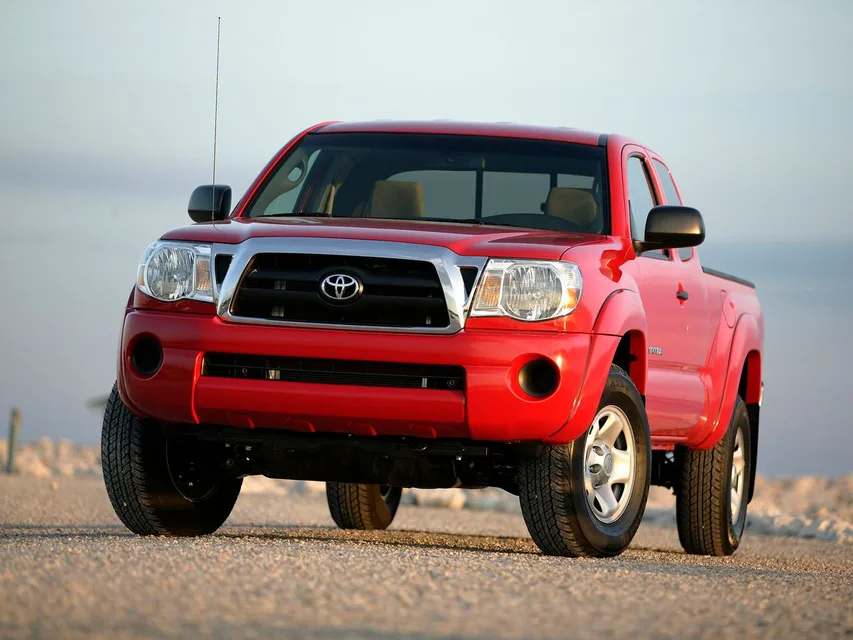

The second-generation Toyota Tacoma offers single-cab, extended-cab and double-cab body styles. Your choice depends on how often you carry passengers and whether the pickup will mainly handle everyday journeys or regular hauling.
Toyota Tacoma Engines and Transmissions Toyota Tacoma Dimensions ← All Toyota models
Toyota Tacoma Engines and Transmissions
Your Toyota Tacoma engine choice affects how relaxed the pickup feels under load. The 2.7 suits lighter duties, while the 4.0 offers more pulling power. Selected double-cab powertrains include the manual 2.7 MT and automatic 2.7 AT with all-wheel drive, plus the automatic, rear-wheel-drive 4.0 AT.
Pickup double-cab — Toyota Tacoma Engines and Transmissions
Pickup double-cab Toyota Tacoma Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive 4.0 MT Gasoline 3955 cm³ 236 hp 174 kW 361 N⋅m Manual AWD 4.0 MT Gasoline 3955 cm³ 245 hp 180 kW 361 N⋅m Manual AWD 2.7 MT Gasoline 2694 cm³ 160 hp 117 kW 246 N⋅m Manual AWD 2.7 AT Gasoline 2694 cm³ 160 hp 117 kW 246 N⋅m Automatic AWD 4.0 MT Gasoline 3956 cm³ 236 hp 174 kW 360 N⋅m Manual RWD 4.0 AT Gasoline 3956 cm³ 236 hp 174 kW 360 N⋅m Automatic RWD 4.0 AT Gasoline 3956 cm³ 236 hp 174 kW 360 N⋅m Automatic AWD 4.0 AT Gasoline 3956 cm³ 245 hp 180 kW 360 N⋅m Automatic AWD
Pickup single-cab — Toyota Tacoma Engines and Transmissions
Pickup single-cab Toyota Tacoma Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive 2.7 MT Gasoline 2694 cm³ 159 hp 117 kW 244 N⋅m Manual RWD 2.7 AT Gasoline 2694 cm³ 159 hp 117 kW 244 N⋅m Automatic RWD 2.7 MT Gasoline 2694 cm³ 159 hp 117 kW 244 N⋅m Manual AWD 2.7 MT Gasoline 2694 cm³ 182 hp 134 kW 240 N⋅m Manual AWD 2.7 AT Gasoline 2694 cm³ 182 hp 134 kW 240 N⋅m Automatic AWD 4.0 MT Gasoline 3955 cm³ 236 hp 174 kW 361 N⋅m Manual AWD 4.0 AT Gasoline 3955 cm³ 236 hp 174 kW 361 N⋅m Automatic AWD 4.0 AT Gasoline 3955 cm³ 245 hp 180 kW 361 N⋅m Automatic AWD 4.0 MT Gasoline 3955 cm³ 245 hp 180 kW 361 N⋅m Manual AWD
Pickup 1.5-cab — Toyota Tacoma Engines and Transmissions
Pickup 1.5-cab Toyota Tacoma Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive 2.7 MT Gasoline 2694 cm³ 159 hp 117 kW 244 N⋅m Manual AWD 2.7 AT Gasoline 2694 cm³ 159 hp 117 kW 244 N⋅m Automatic RWD 4.0 MT Gasoline 3956 cm³ 236 hp 174 kW 360 N⋅m Manual AWD 4.0 AT Gasoline 3956 cm³ 236 hp 174 kW 360 N⋅m Automatic AWD 4.0 AT Gasoline 3956 cm³ 245 hp 180 kW 360 N⋅m Automatic AWD 4.0 MT Gasoline 3956 cm³ 245 hp 180 kW 360 N⋅m Manual AWD
Toyota Tacoma Dimensions
Pickup double-cab — Toyota Tacoma Dimensions
Pickup double-cab Toyota Tacoma Dimensions Modification Length Width Height Wheelbase Curb weight Max weight Ground clearance, minimum 4.0 MT 5286 mm 1895 mm 1781 mm 3246 mm Not provided Not provided 215 mm 4.0 MT 5286 mm 1895 mm 1781 mm 3246 mm Not provided Not provided 215 mm 2.7 MT 5286 mm 1895 mm 1781 mm 3246 mm Not provided Not provided 215 mm 2.7 AT 5286 mm 1895 mm 1781 mm 3246 mm Not provided Not provided 215 mm 4.0 MT 5286 mm 1895 mm 1781 mm 3246 mm 1844 kg 2472 kg 239 mm 4.0 AT 5286 mm 1895 mm 1781 mm 3246 mm 1749 kg 2427 kg 241 mm 4.0 AT 5286 mm 1895 mm 1781 mm 3246 mm 1855 kg 2472 kg 239 mm 4.0 AT 5286 mm 1895 mm 1781 mm 3246 mm 1855 kg 2472 kg 239 mm
Pickup single-cab — Toyota Tacoma Dimensions
Pickup single-cab Toyota Tacoma Dimensions Modification Length Width Height Wheelbase Curb weight Max weight Ground clearance, minimum 2.7 MT 4836 mm 1834 mm 1669 mm 2779 mm 1452 kg 2064 kg 206 mm 2.7 AT 4836 mm 1834 mm 1669 mm 2779 mm 1461 kg 2064 kg 206 mm 2.7 MT 4836 mm 1834 mm 1669 mm 2779 mm 1640 kg 2313 kg 241 mm 2.7 MT 4836 mm 1834 mm 1669 mm 2779 mm Not provided Not provided 215 mm 2.7 AT 4836 mm 1834 mm 1669 mm 2779 mm Not provided Not provided 215 mm 4.0 MT 4836 mm 1834 mm 1669 mm 2779 mm Not provided Not provided 215 mm 4.0 AT 4836 mm 1834 mm 1669 mm 2779 mm Not provided Not provided 215 mm 4.0 AT 4836 mm 1834 mm 1669 mm 2779 mm Not provided Not provided 215 mm 4.0 MT 4836 mm 1834 mm 1669 mm 2779 mm Not provided Not provided 215 mm
Pickup 1.5-cab — Toyota Tacoma Dimensions
Pickup 1.5-cab Toyota Tacoma Dimensions Modification Length Width Height Wheelbase Curb weight Max weight Ground clearance, minimum 2.7 MT 5286 mm 1834 mm 1669 mm 3231 mm 1771 kg 2423 kg 241 mm 2.7 AT 5286 mm 1834 mm 1669 mm 3231 mm 1592 kg 2200 kg 206 mm 4.0 MT 5286 mm 1834 mm 1669 mm 3231 mm 1799 kg 2423 kg 241 mm 4.0 AT 5286 mm 1834 mm 1669 mm 3231 mm 1810 kg 2423 kg 241 mm 4.0 AT 5286 mm 1834 mm 1669 mm 3231 mm 1810 kg 2423 kg 241 mm 4.0 MT 5286 mm 1834 mm 1669 mm 3231 mm 1799 kg 2423 kg 241 mm
