Toyota Caldina Specs, Engines & Dimensions (1997–1999)

Toyota Caldina Engines and Transmissions

Toyota Caldina engine options span modest gasoline units and a diesel. A 1.8 MT pairs a manual gearbox with front-wheel drive for low running costs, while the 1.8 AT adds automatic ease. The 2.2 AT diesel combines automatic shifting with an all-wheel-drive drivetrain for surer traction.

Estate 5-door — Toyota Caldina Engines and Transmissions

Estate 5-door Toyota Caldina Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.8 MT	Gasoline	1762 cm³	115 hp	85 kW	154 N⋅m	Manual	FWD
1.8 AT	Gasoline	1762 cm³	115 hp	85 kW	154 N⋅m	Automatic	FWD
2.0 AT	Gasoline	1998 cm³	125 hp	92 kW	172 N⋅m	Automatic	AWD
2.0 MT	Gasoline	1998 cm³	125 hp	92 kW	172 N⋅m	Manual	AWD
2.0 MT	Gasoline	1998 cm³	135 hp	99 kW	181 N⋅m	Manual	AWD
2.0 AT	Gasoline	1998 cm³	135 hp	99 kW	181 N⋅m	Automatic	AWD
2.0 AT	Gasoline	1998 cm³	140 hp	103 kW	186 N⋅m	Automatic	FWD
2.0 AT	Gasoline	1998 cm³	190 hp	140 kW	205 N⋅m	Automatic	AWD
2.0 MT	Gasoline	1998 cm³	260 hp	191 kW	323 N⋅m	Manual	AWD
2.0 AT	Gasoline	1998 cm³	260 hp	191 kW	323 N⋅m	Automatic	AWD
2.2 AT	Diesel	2184 cm³	94 hp	69 kW	205 N⋅m	Automatic	AWD
2.2 AT	Diesel	2184 cm³	94 hp	69 kW	206 N⋅m	Automatic	FWD
2.2 MT	Diesel	2184 cm³	94 hp	69 kW	206 N⋅m	Manual	FWD

Toyota Caldina Dimensions

Estate 5-door — Toyota Caldina Dimensions

Estate 5-door Toyota Caldina Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.8 MT	4520 mm	1720 mm	1475 mm	2580 mm	1200 kg	Not provided	155 mm
1.8 AT	4520 mm	1720 mm	1475 mm	2580 mm	1230 kg	Not provided	155 mm
2.0 AT	4520 mm	1720 mm	1475 mm	2580 mm	Not provided	1475 kg	150 mm
2.0 MT	4520 mm	1720 mm	1475 mm	2580 mm	1350 kg	1475 kg	150 mm
2.0 MT	4520 mm	1720 mm	1475 mm	2580 mm	1340 kg	Not provided	150 mm
2.0 AT	4520 mm	1720 mm	1475 mm	2580 mm	1380 kg	Not provided	150 mm
2.0 AT	4520 mm	1720 mm	1475 mm	2580 mm	1280 kg	Not provided	155 mm
2.0 AT	4520 mm	1720 mm	1475 mm	2580 mm	1430 kg	Not provided	140 mm
2.0 MT	4520 mm	1720 mm	1475 mm	2580 mm	1460 kg	Not provided	140 mm
2.0 AT	4520 mm	1720 mm	1475 mm	2580 mm	1490 kg	Not provided	140 mm
2.2 AT	4520 mm	1720 mm	1475 mm	2580 mm	1410 kg	Not provided	150 mm
2.2 AT	4520 mm	1720 mm	1475 mm	2580 mm	Not provided	Not provided	150 mm
2.2 MT	4520 mm	1720 mm	1475 mm	2580 mm	1410 kg	Not provided	150 mm

Toyota Caldina Cargo Space

Estate 5-door — Toyota Caldina Cargo Space

Estate 5-door Toyota Caldina Cargo Space
Modification	Trunk volume min	Trunk volume max
1.8 MT	530 l	1000 l
1.8 AT	530 l	1000 l
2.0 AT	530 l	1000 l
2.0 MT	530 l	1000 l
2.0 MT	530 l	1000 l
2.0 AT	530 l	1000 l
2.0 AT	530 l	1000 l
2.0 AT	530 l	1000 l
2.0 MT	530 l	1000 l
2.0 AT	530 l	1000 l
2.2 AT	530 l	1000 l
2.2 AT	530 l	1000 l
2.2 MT	530 l	1000 l

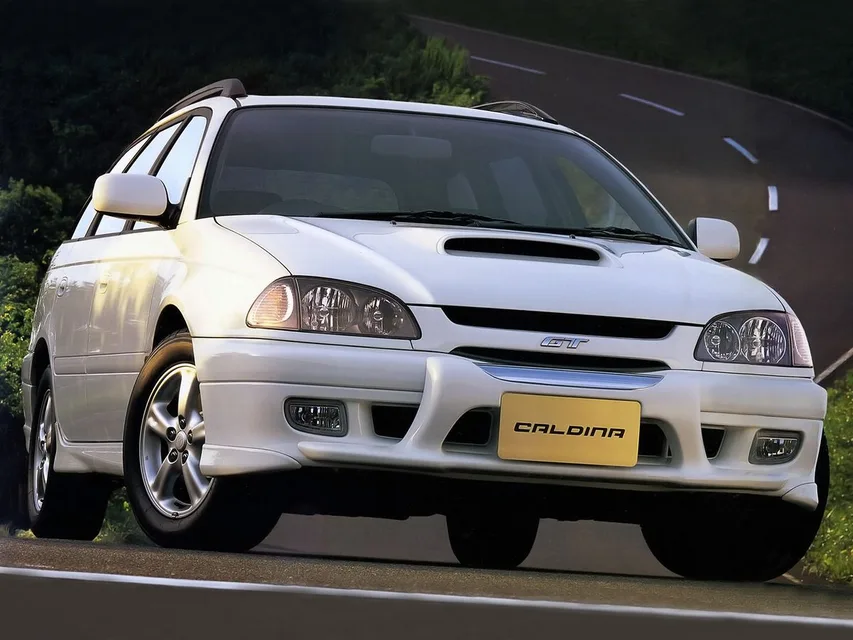

Toyota Caldina Specs, Engines & Dimensions (1997–1999) — Second Generation
