Subaru Legacy Specs, Engines & Dimensions (2006–2009) — Fourth Generation Restyling 1

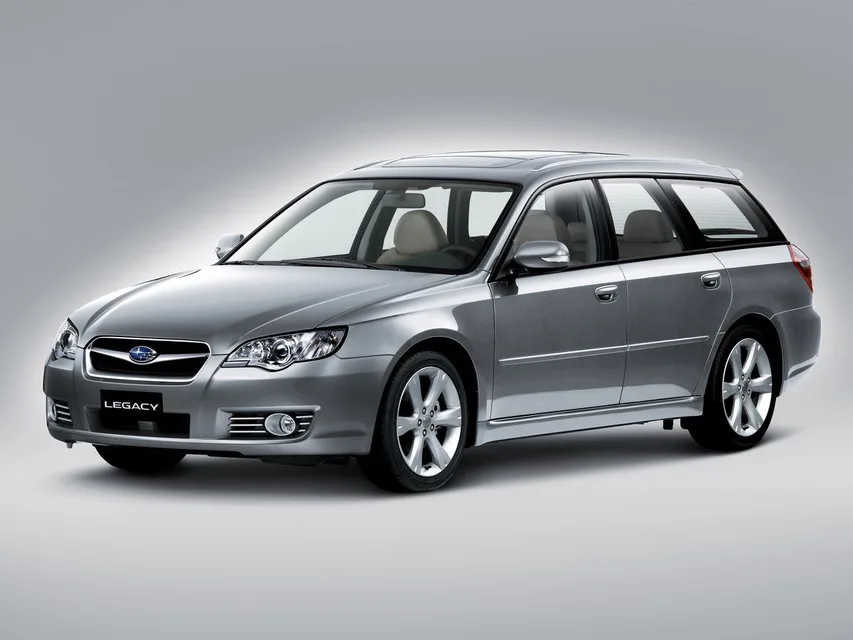

The Subaru Legacy Fourth Generation Restyling 1 covers the Sedan and Estate 5-door after the first mid-cycle update. You still get all-wheel drive and gasoline powertrains aimed at everyday driving rather than a wholesale redesign.
Subaru Legacy Engines and Transmissions Subaru Legacy Dimensions ← All Subaru models
Subaru Legacy Engines and Transmissions
A Subaru Legacy engine in this restyling is a gasoline unit with all-wheel drive, so the powertrain favors sure-footed daily driving. Sedan examples include the 2.5 MT, 3.0 MT and 3.0 AT: you choose a manual or automatic transmission, while the drivetrain remains all-wheel drive.
Sedan — Subaru Legacy Engines and Transmissions
Sedan Subaru Legacy Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive 2.0 MT Gasoline 1994 cm³ 165 hp 121 kW 187 N⋅m Manual AWD 2.0 AT Gasoline 1994 cm³ 165 hp 121 kW 187 N⋅m Automatic AWD 2.0 MT Gasoline 1994 cm³ 150 hp 110 kW 196 N⋅m Manual AWD 2.0 AT Gasoline 1994 cm³ 150 hp 110 kW 196 N⋅m Automatic AWD 3.0 MT Gasoline 2999 cm³ 245 hp 180 kW 297 N⋅m Manual AWD 3.0 AT Gasoline 2999 cm³ 245 hp 180 kW 297 N⋅m Automatic AWD 2.5 MT Gasoline 2457 cm³ 173 hp 127 kW 227 N⋅m Manual AWD 2.5 AT Gasoline 2457 cm³ 173 hp 127 kW 227 N⋅m Automatic AWD
Estate 5-door — Subaru Legacy Engines and Transmissions
Estate 5-door Subaru Legacy Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive 2.0 MT Gasoline 1994 cm³ 165 hp 121 kW 187 N⋅m Manual AWD 2.0 AT Gasoline 1994 cm³ 165 hp 121 kW 187 N⋅m Automatic AWD 2.0 MT Gasoline 1994 cm³ 150 hp 110 kW 196 N⋅m Manual AWD 2.0 AT Gasoline 1994 cm³ 150 hp 110 kW 196 N⋅m Automatic AWD 3.0 MT Gasoline 2999 cm³ 245 hp 180 kW 297 N⋅m Manual AWD 3.0 AT Gasoline 2999 cm³ 245 hp 180 kW 297 N⋅m Automatic AWD 2.5 MT Gasoline 2457 cm³ 173 hp 127 kW 227 N⋅m Manual AWD 2.5 AT Gasoline 2457 cm³ 173 hp 127 kW 227 N⋅m Automatic AWD
Subaru Legacy Dimensions
Sedan — Subaru Legacy Dimensions
Sedan Subaru Legacy Dimensions Modification Length Width Height Wheelbase Curb weight Max weight Ground clearance, minimum 2.0 MT 4665 mm 1730 mm 1425 mm 2670 mm 1395 kg 1925 kg 150 mm 2.0 AT 4665 mm 1730 mm 1425 mm 2670 mm 1415 kg 1925 kg 150 mm 2.0 MT 4665 mm 1730 mm 1425 mm 2670 mm 1390 kg 1935 kg 150 mm 2.0 AT 4665 mm 1730 mm 1425 mm 2670 mm 1410 kg 1910 kg 150 mm 3.0 MT 4665 mm 1730 mm 1425 mm 2670 mm 1560 kg 2030 kg 150 mm 3.0 AT 4665 mm 1730 mm 1425 mm 2670 mm 1530 kg 2030 kg 150 mm 2.5 MT 4665 mm 1730 mm 1425 mm 2670 mm 1395 kg 1910 kg 150 mm 2.5 AT 4665 mm 1730 mm 1425 mm 2670 mm 1415 kg 1910 kg 150 mm
Estate 5-door — Subaru Legacy Dimensions
Estate 5-door Subaru Legacy Dimensions Modification Length Width Height Wheelbase Curb weight Max weight Ground clearance, minimum 2.0 MT 4665 mm 1730 mm 1425 mm 2670 mm 1395 kg 1925 kg 150 mm 2.0 AT 4665 mm 1730 mm 1425 mm 2670 mm 1415 kg 1925 kg 150 mm 2.0 MT 4665 mm 1730 mm 1425 mm 2670 mm 1390 kg 1935 kg 150 mm 2.0 AT 4665 mm 1730 mm 1425 mm 2670 mm 1410 kg 1910 kg 150 mm 3.0 MT 4665 mm 1730 mm 1425 mm 2670 mm 1560 kg 2030 kg 150 mm 3.0 AT 4665 mm 1730 mm 1425 mm 2670 mm 1530 kg 2030 kg 150 mm 2.5 MT 4665 mm 1730 mm 1425 mm 2670 mm 1395 kg 1910 kg 150 mm 2.5 AT 4665 mm 1730 mm 1425 mm 2670 mm 1415 kg 1910 kg 150 mm
