Mitsubishi Lancer Specs, Engines & Dimensions (2003–2010) — Ninth Generation

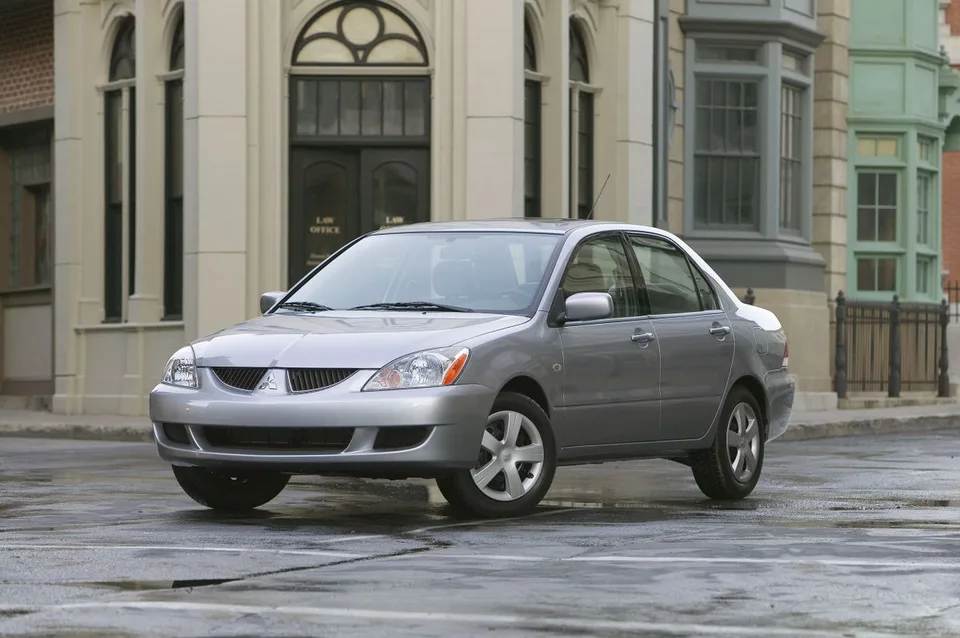

Meet the ninth-generation Mitsubishi Lancer, a compact car offered as a Sedan or practical Estate. It pairs familiar gasoline engines with automatic, CVT, or manual gearboxes, giving everyday drivers a straightforward balance of comfort, efficiency, and available all-wheel drive.

← All Mitsubishi models

Mitsubishi Lancer Engines and Transmissions

The Mitsubishi Lancer engine lineup is built around usable, low-stress gasoline units. For example, a 1.3 AT pairs a modest engine with an automatic transmission and front-wheel drive for easy city driving. Those needing all-weather traction can choose a 1.8 CVT with all-wheel drive, while a 2.4 MT offers a more hands-on feel through a manual gearbox.

Sedan — Mitsubishi Lancer Engines and Transmissions

Sedan Mitsubishi Lancer Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.3 MT	Gasoline	1299 cm³	75 hp	55 kW	120 N⋅m	Manual	FWD
1.3 MT	Gasoline	1299 cm³	82 hp	60 kW	120 N⋅m	Manual	FWD
1.3 AT	Gasoline	1299 cm³	82 hp	60 kW	120 N⋅m	Automatic	FWD
1.5 MT	Gasoline	1468 cm³	90 hp	66 kW	133 N⋅m	Manual	FWD
1.5 CVT	Gasoline	1468 cm³	90 hp	66 kW	133 N⋅m	Variable	FWD
1.5 CVT	Gasoline	1468 cm³	90 hp	66 kW	133 N⋅m	Variable	AWD
1.5 CVT	Gasoline	1468 cm³	91 hp	66 kW	133 N⋅m	Variable	FWD
1.5 CVT	Gasoline	1468 cm³	91 hp	66 kW	133 N⋅m	Variable	AWD
1.5 MT	Gasoline	1468 cm³	91 hp	66 kW	133 N⋅m	Manual	FWD
1.5 CVT	Gasoline	1468 cm³	100 hp	74 kW	140 N⋅m	Variable	FWD
1.5 CVT	Gasoline	1468 cm³	100 hp	74 kW	140 N⋅m	Variable	AWD
1.5 MT	Gasoline	1468 cm³	100 hp	74 kW	140 N⋅m	Manual	FWD
1.8 CVT	Gasoline	1834 cm³	114 hp	84 kW	155 N⋅m	Variable	FWD
1.8 CVT	Gasoline	1834 cm³	130 hp	96 kW	174 N⋅m	Variable	AWD
1.8 CVT	Gasoline	1834 cm³	130 hp	96 kW	174 N⋅m	Variable	FWD
1.8 AT	Gasoline	1834 cm³	165 hp	121 kW	220 N⋅m	Automatic	FWD
2.0 MT	Gasoline	1997 cm³	120 hp	88 kW	Not provided	Manual	FWD
2.0 AT	Gasoline	1997 cm³	120 hp	88 kW	Not provided	Automatic	FWD
2.0 CVT	Gasoline	1997 cm³	135 hp	99 kW	176 N⋅m	Variable	FWD
2.0 AT	Gasoline	1997 cm³	135 hp	99 kW	176 N⋅m	Automatic	FWD
2.4 MT	Gasoline	2378 cm³	162 hp	119 kW	217 N⋅m	Manual	FWD
2.4 AT	Gasoline	2378 cm³	162 hp	119 kW	217 N⋅m	Automatic	FWD
1.6 MT	Gasoline	1584 cm³	98 hp	72 kW	150 N⋅m	Manual	FWD
1.6 AT	Gasoline	1584 cm³	98 hp	72 kW	150 N⋅m	Automatic	FWD
1.6 CVT	Gasoline	1584 cm³	98 hp	72 kW	150 N⋅m	Variable	FWD
2.0 MT	Gasoline	1997 cm³	135 hp	99 kW	176 N⋅m	Manual	FWD

Estate 5-door — Mitsubishi Lancer Engines and Transmissions

Estate 5-door Mitsubishi Lancer Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.6 MT	Gasoline	1584 cm³	98 hp	72 kW	150 N⋅m	Manual	FWD
1.6 AT	Gasoline	1584 cm³	98 hp	72 kW	150 N⋅m	Automatic	FWD
2.0 MT	Gasoline	1997 cm³	135 hp	99 kW	176 N⋅m	Manual	FWD
1.8 CVT	Gasoline	1834 cm³	114 hp	84 kW	155 N⋅m	Variable	FWD
1.8 CVT	Gasoline	1834 cm³	114 hp	84 kW	155 N⋅m	Variable	AWD
1.8 CVT	Gasoline	1834 cm³	130 hp	96 kW	174 N⋅m	Variable	AWD
1.8 CVT	Gasoline	1834 cm³	130 hp	96 kW	174 N⋅m	Variable	FWD
1.8 AT	Gasoline	1834 cm³	165 hp	121 kW	220 N⋅m	Automatic	FWD
2.0 AT	Gasoline	1997 cm³	135 hp	99 kW	176 N⋅m	Automatic	FWD
2.0 CVT	Gasoline	1997 cm³	135 hp	99 kW	176 N⋅m	Variable	FWD

Mitsubishi Lancer Dimensions

Sedan — Mitsubishi Lancer Dimensions

Sedan Mitsubishi Lancer Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.3 MT	4480 mm	1695 mm	1445 mm	2600 mm	1165 kg	1750 kg	165 mm
1.3 MT	4480 mm	1695 mm	1445 mm	2600 mm	1165 kg	1750 kg	165 mm
1.3 AT	4480 mm	1695 mm	1445 mm	2600 mm	Not provided	1750 kg	165 mm
1.5 MT	4480 mm	1695 mm	1445 mm	2600 mm	1080 kg	Not provided	150 mm
1.5 CVT	4480 mm	1695 mm	1445 mm	2600 mm	1110 kg	Not provided	150 mm
1.5 CVT	4480 mm	1695 mm	1445 mm	2600 mm	1200 kg	Not provided	155 mm
1.5 CVT	4480 mm	1695 mm	1445 mm	2600 mm	1130 kg	Not provided	150 mm
1.5 CVT	4480 mm	1695 mm	1445 mm	2600 mm	1210 kg	Not provided	155 mm
1.5 MT	4480 mm	1695 mm	1445 mm	2600 mm	1100 kg	Not provided	150 mm
1.5 CVT	4480 mm	1695 mm	1445 mm	2600 mm	Not provided	Not provided	150 mm
1.5 CVT	4480 mm	1695 mm	1445 mm	2600 mm	Not provided	Not provided	150 mm
1.5 MT	4480 mm	1695 mm	1445 mm	2600 mm	Not provided	Not provided	150 mm
1.8 CVT	4480 mm	1695 mm	1445 mm	2600 mm	1200 kg	Not provided	150 mm
1.8 CVT	4480 mm	1695 mm	1445 mm	2600 mm	Not provided	Not provided	150 mm
1.8 CVT	4480 mm	1695 mm	1445 mm	2600 mm	Not provided	Not provided	150 mm
1.8 AT	4480 mm	1695 mm	1445 mm	2600 mm	1280 kg	Not provided	135 mm
2.0 MT	4480 mm	1695 mm	1445 mm	2600 mm	1270 kg	1750 kg	135 mm
2.0 AT	4480 mm	1695 mm	1445 mm	2600 mm	Not provided	1750 kg	135 mm
2.0 CVT	4480 mm	1695 mm	1445 mm	2600 mm	1270 kg	1750 kg	135 mm
2.0 AT	4480 mm	1695 mm	1445 mm	2600 mm	1295 kg	1770 kg	135 mm
2.4 MT	4480 mm	1695 mm	1445 mm	2600 mm	1330 kg	Not provided	165 mm
2.4 AT	4480 mm	1695 mm	1445 mm	2600 mm	1330 kg	Not provided	165 mm
1.6 MT	4480 mm	1695 mm	1445 mm	2600 mm	1185 kg	1750 kg	165 mm
1.6 AT	4480 mm	1695 mm	1445 mm	2600 mm	1205 kg	1750 kg	165 mm
1.6 CVT	4480 mm	1695 mm	1445 mm	2600 mm	1205 kg	1750 kg	165 mm
2.0 MT	4480 mm	1695 mm	1445 mm	2600 mm	1270 kg	1750 kg	165 mm

Estate 5-door — Mitsubishi Lancer Dimensions

Estate 5-door Mitsubishi Lancer Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.6 MT	4485 mm	1695 mm	1480 mm	2600 mm	1275 kg	1780 kg	165 mm
1.6 AT	4485 mm	1695 mm	1480 mm	2600 mm	1275 kg	1780 kg	165 mm
2.0 MT	4485 mm	1695 mm	1480 mm	2600 mm	1320 kg	1780 kg	165 mm
1.8 CVT	4485 mm	1695 mm	1480 mm	2600 mm	1280 kg	Not provided	150 mm
1.8 CVT	4485 mm	1695 mm	1480 mm	2600 mm	1350 kg	Not provided	155 mm
1.8 CVT	4485 mm	1695 mm	1480 mm	2600 mm	1290 kg	Not provided	150 mm
1.8 CVT	4485 mm	1695 mm	1480 mm	2600 mm	1220 kg	Not provided	150 mm
1.8 AT	4485 mm	1695 mm	1480 mm	2600 mm	1300 kg	Not provided	150 mm
2.0 AT	4485 mm	1695 mm	1480 mm	2600 mm	1320 kg	1780 kg	135 mm
2.0 CVT	4485 mm	1695 mm	1480 mm	2600 mm	Not provided	1780 kg	135 mm

Mitsubishi Lancer Cargo Space

Sedan — Mitsubishi Lancer Cargo Space

Sedan Mitsubishi Lancer Cargo Space
Modification	Trunk volume min
1.3 MT	430 l
1.3 MT	430 l
1.3 AT	430 l
1.5 MT	430 l
1.5 CVT	430 l
1.5 CVT	430 l
1.5 CVT	430 l
1.5 CVT	430 l
1.5 MT	430 l
1.5 CVT	430 l
1.5 CVT	430 l
1.5 MT	430 l
1.8 CVT	430 l
1.8 CVT	430 l
1.8 CVT	430 l
1.8 AT	430 l
2.0 MT	430 l
2.0 AT	430 l
2.0 CVT	430 l
2.0 AT	430 l
2.4 MT	430 l
2.4 AT	430 l
1.6 MT	430 l
1.6 AT	430 l
1.6 CVT	430 l
2.0 MT	430 l

Estate 5-door — Mitsubishi Lancer Cargo Space

Estate 5-door Mitsubishi Lancer Cargo Space
Modification	Trunk volume min	Trunk volume max
1.6 MT	344 l	1079 l
1.6 AT	344 l	1079 l
2.0 MT	344 l	1079 l
1.8 CVT	344 l	1079 l
1.8 CVT	344 l	1079 l
1.8 CVT	344 l	1079 l
1.8 CVT	344 l	1079 l
1.8 AT	344 l	1079 l
2.0 AT	344 l	1079 l
2.0 CVT	344 l	1079 l

Mitsubishi Lancer Trims and Equipment

Mitsubishi Lancer trim levels tie equipment to specific technical versions, so you know what to expect. A 1.6 CVT sedan with front-wheel drive, for instance, comes in Executive and Executive Plus trims. Executive covers everyday essentials, while Executive Plus adds extra comfort and convenience features for a more polished drive.

Mitsubishi Lancer Trims and Equipment
Modification	Body	Equipment
1.6 MT	Sedan	Executive
1.6 AT	Sedan	Executive
1.6 CVT	Sedan	Executive
1.6 CVT	Sedan	Executive Plus
1.6 CVT	Sedan	Premium
1.6 CVT	Sedan	Sport
2.0 MT	Sedan	Sport
1.6 MT	Estate 5-door	Invite
1.6 AT	Estate 5-door	Invite Plus
2.0 MT	Estate 5-door	Intense
