THE GLOBAL CAR CATALOG

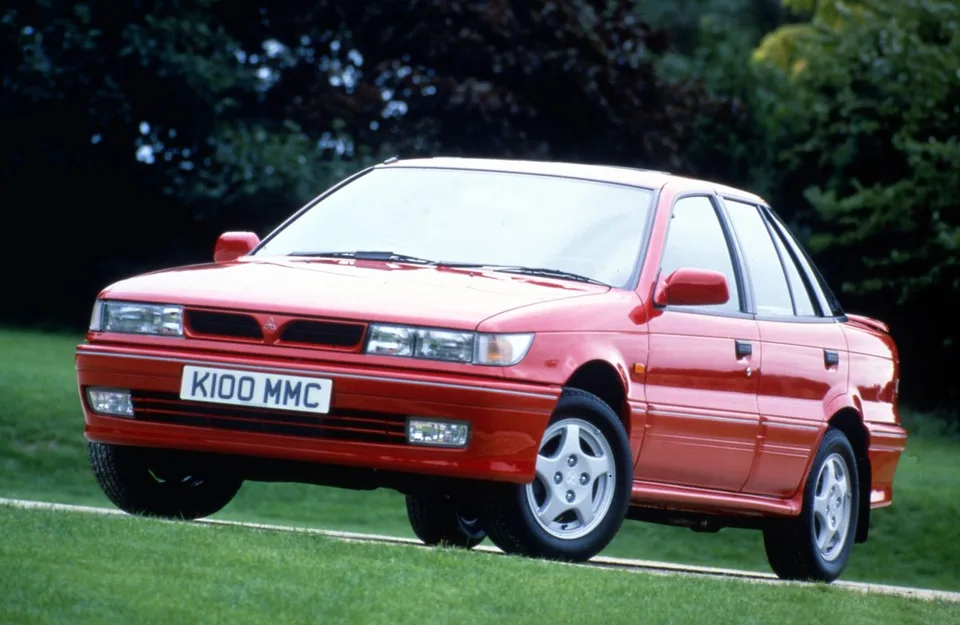

Mitsubishi Lancer Specs, Engines & Dimensions (1985–1992) — Sixth Generation

The sixth-generation Mitsubishi Lancer offers practical Sedan and Estate 5-door bodies with a choice of gasoline or diesel engines, manual or automatic transmissions, and front- or all-wheel drive.

← All Mitsubishi models

Mitsubishi Lancer Engines and Transmissions

Mitsubishi Lancer engine options balance everyday efficiency with capable performance. For example, a 1.3 AT gasoline automatic pairs front-wheel drive with easy urban driving. Choose a 1.8 MT diesel manual with all-wheel drive for stronger low-end pull and extra traction, or a 1.5 MT gasoline manual also available with all-wheel drive. Transmissions and drivetrains suit different needs, from simple commuting to more demanding conditions.

Sedan — Mitsubishi Lancer Engines and Transmissions

Sedan Mitsubishi Lancer Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.3 MT	Gasoline	1298 cm³	79 hp	58 kW	105 N⋅m	Manual	FWD
1.3 AT	Gasoline	1298 cm³	79 hp	58 kW	105 N⋅m	Automatic	FWD
1.3 MT	Gasoline	1299 cm³	75 hp	55 kW	108 N⋅m	Manual	FWD
1.5 MT	Gasoline	1468 cm³	91 hp	67 kW	121 N⋅m	Manual	FWD
1.5 AT	Gasoline	1496 cm³	97 hp	71 kW	125 N⋅m	Automatic	FWD
1.5 MT	Gasoline	1496 cm³	97 hp	71 kW	125 N⋅m	Manual	FWD
1.5 MT	Gasoline	1496 cm³	97 hp	71 kW	125 N⋅m	Manual	AWD
1.5 AT	Gasoline	1496 cm³	97 hp	71 kW	125 N⋅m	Automatic	AWD
1.5 AT	Gasoline	1496 cm³	115 hp	85 kW	135 N⋅m	Automatic	FWD
1.5 MT	Gasoline	1496 cm³	115 hp	85 kW	135 N⋅m	Manual	FWD
1.6 MT	Gasoline	1597 cm³	90 hp	66 kW	137 N⋅m	Manual	FWD
1.6 AT	Gasoline	1597 cm³	90 hp	66 kW	137 N⋅m	Automatic	FWD
1.6 AT	Gasoline	1597 cm³	113 hp	83 kW	137 N⋅m	Automatic	AWD
1.6 MT	Gasoline	1597 cm³	113 hp	83 kW	137 N⋅m	Manual	FWD
1.6 MT	Gasoline	1597 cm³	113 hp	83 kW	137 N⋅m	Manual	AWD
1.6 MT	Gasoline	1597 cm³	140 hp	103 kW	147 N⋅m	Manual	FWD
1.6 AT	Gasoline	1597 cm³	140 hp	103 kW	147 N⋅m	Automatic	FWD
1.6 AT	Gasoline	1597 cm³	175 hp	129 kW	166 N⋅m	Automatic	FWD
1.6 MT	Gasoline	1597 cm³	175 hp	129 kW	166 N⋅m	Manual	FWD
1.8 MT	Gasoline	1834 cm³	195 hp	143 kW	269 N⋅m	Manual	AWD
1.8 AT	Gasoline	1834 cm³	195 hp	143 kW	269 N⋅m	Automatic	AWD
1.8 MT	Gasoline	1834 cm³	205 hp	151 kW	274 N⋅m	Manual	AWD
1.8 AT	Gasoline	1834 cm³	205 hp	151 kW	274 N⋅m	Automatic	AWD
1.8 AT	Diesel	1795 cm³	76 hp	56 kW	149 N⋅m	Automatic	AWD
1.8 AT	Diesel	1795 cm³	76 hp	56 kW	149 N⋅m	Automatic	FWD
1.8 MT	Diesel	1795 cm³	76 hp	56 kW	149 N⋅m	Manual	AWD
1.8 MT	Diesel	1795 cm³	76 hp	56 kW	149 N⋅m	Manual	FWD
2.0 MT	Diesel	1998 cm³	68 hp	50 kW	123 N⋅m	Manual	FWD
2.0 MT	Diesel	1998 cm³	88 hp	65 kW	176 N⋅m	Manual	FWD
2.0 AT	Diesel	1998 cm³	88 hp	65 kW	176 N⋅m	Automatic	AWD
2.0 AT	Diesel	1998 cm³	88 hp	65 kW	176 N⋅m	Automatic	FWD
2.0 MT	Diesel	1998 cm³	88 hp	65 kW	176 N⋅m	Manual	AWD
1.5 AT	Gasoline	1468 cm³	91 hp	67 kW	121 N⋅m	Automatic	FWD
1.6 AT	Gasoline	1597 cm³	113 hp	83 kW	137 N⋅m	Automatic	FWD

Estate 5-door — Mitsubishi Lancer Engines and Transmissions

Estate 5-door Mitsubishi Lancer Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.6 MT	Gasoline	1597 cm³	113 hp	83 kW	137 N⋅m	Manual	FWD
1.6 MT	Gasoline	1597 cm³	113 hp	83 kW	137 N⋅m	Manual	AWD
1.6 AT	Gasoline	1597 cm³	113 hp	83 kW	137 N⋅m	Automatic	AWD
1.6 AT	Gasoline	1597 cm³	113 hp	83 kW	137 N⋅m	Automatic	FWD
2.0 MT	Diesel	1998 cm³	68 hp	50 kW	123 N⋅m	Manual	FWD

Mitsubishi Lancer Dimensions

Sedan — Mitsubishi Lancer Dimensions

Sedan Mitsubishi Lancer Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.3 MT	4270 mm	1690 mm	1385 mm	2500 mm	910 kg	Not provided	150 mm
1.3 AT	4270 mm	1690 mm	1385 mm	2500 mm	920 kg	Not provided	150 mm
1.3 MT	4270 mm	1690 mm	1385 mm	2500 mm	940 kg	1450 kg	150 mm
1.5 MT	4270 mm	1690 mm	1385 mm	2500 mm	920 kg	Not provided	150 mm
1.5 AT	4270 mm	1690 mm	1385 mm	2500 mm	990 kg	Not provided	150 mm
1.5 MT	4270 mm	1690 mm	1385 mm	2500 mm	940 kg	Not provided	150 mm
1.5 MT	4270 mm	1690 mm	1385 mm	2500 mm	1050 kg	Not provided	150 mm
1.5 AT	4270 mm	1690 mm	1385 mm	2500 mm	1080 kg	Not provided	150 mm
1.5 AT	4270 mm	1690 mm	1385 mm	2500 mm	1010 kg	Not provided	150 mm
1.5 MT	4270 mm	1690 mm	1385 mm	2500 mm	990 kg	Not provided	150 mm
1.6 MT	4270 mm	1690 mm	1385 mm	2500 mm	1210 kg	Not provided	150 mm
1.6 AT	4270 mm	1690 mm	1385 mm	2500 mm	Not provided	Not provided	150 mm
1.6 AT	4270 mm	1690 mm	1385 mm	2500 mm	Not provided	Not provided	150 mm
1.6 MT	4270 mm	1690 mm	1385 mm	2500 mm	1020 kg	1550 kg	150 mm
1.6 MT	4270 mm	1690 mm	1385 mm	2500 mm	Not provided	Not provided	150 mm
1.6 MT	4270 mm	1690 mm	1385 mm	2500 mm	1060 kg	Not provided	150 mm
1.6 AT	4270 mm	1690 mm	1385 mm	2500 mm	1080 kg	Not provided	150 mm
1.6 AT	4270 mm	1690 mm	1385 mm	2500 mm	1070 kg	Not provided	150 mm
1.6 MT	4270 mm	1690 mm	1385 mm	2500 mm	1050 kg	Not provided	150 mm
1.8 MT	4270 mm	1690 mm	1385 mm	2500 mm	1150 kg	Not provided	150 mm
1.8 AT	4270 mm	1690 mm	1385 mm	2500 mm	1200 kg	Not provided	150 mm
1.8 MT	4270 mm	1690 mm	1385 mm	2500 mm	1130 kg	Not provided	150 mm
1.8 AT	4270 mm	1690 mm	1385 mm	2500 mm	1210 kg	Not provided	150 mm
1.8 AT	4270 mm	1690 mm	1385 mm	2500 mm	1140 kg	Not provided	150 mm
1.8 AT	4270 mm	1690 mm	1385 mm	2500 mm	1030 kg	Not provided	150 mm
1.8 MT	4270 mm	1690 mm	1385 mm	2500 mm	1110 kg	Not provided	150 mm
1.8 MT	4270 mm	1690 mm	1385 mm	2500 mm	1010 kg	Not provided	150 mm
2.0 MT	4270 mm	1690 mm	1385 mm	2500 mm	1070 kg	1580 kg	150 mm
2.0 MT	4270 mm	1690 mm	1385 mm	2500 mm	1060 kg	Not provided	150 mm
2.0 AT	4270 mm	1690 mm	1385 mm	2500 mm	1200 kg	Not provided	150 mm
2.0 AT	4270 mm	1690 mm	1385 mm	2500 mm	1080 kg	Not provided	150 mm
2.0 MT	4270 mm	1690 mm	1385 mm	2500 mm	1170 kg	Not provided	150 mm
1.5 AT	4270 mm	1690 mm	1385 mm	2500 mm	990 kg	Not provided	150 mm
1.6 AT	4270 mm	1690 mm	1385 mm	2500 mm	Not provided	1550 kg	150 mm

Estate 5-door — Mitsubishi Lancer Dimensions

Estate 5-door Mitsubishi Lancer Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.6 MT	4275 mm	1690 mm	1470 mm	1450 mm	1035 kg	1600 kg	150 mm
1.6 MT	4275 mm	1690 mm	1470 mm	1450 mm	1210 kg	1680 kg	150 mm
1.6 AT	4275 mm	1690 mm	1470 mm	1450 mm	Not provided	1680 kg	150 mm
1.6 AT	4275 mm	1690 mm	1470 mm	1450 mm	1085 kg	1600 kg	150 mm
2.0 MT	4275 mm	1690 mm	1470 mm	1450 mm	1128 kg	1620 kg	150 mm

Mitsubishi Lancer Cargo Space

Estate 5-door — Mitsubishi Lancer Cargo Space

Estate 5-door Mitsubishi Lancer Cargo Space
Modification	Trunk volume min	Trunk volume max
1.6 MT	470 l	740 l
1.6 MT	470 l	740 l
1.6 AT	470 l	740 l
1.6 AT	470 l	740 l
2.0 MT	470 l	740 l
