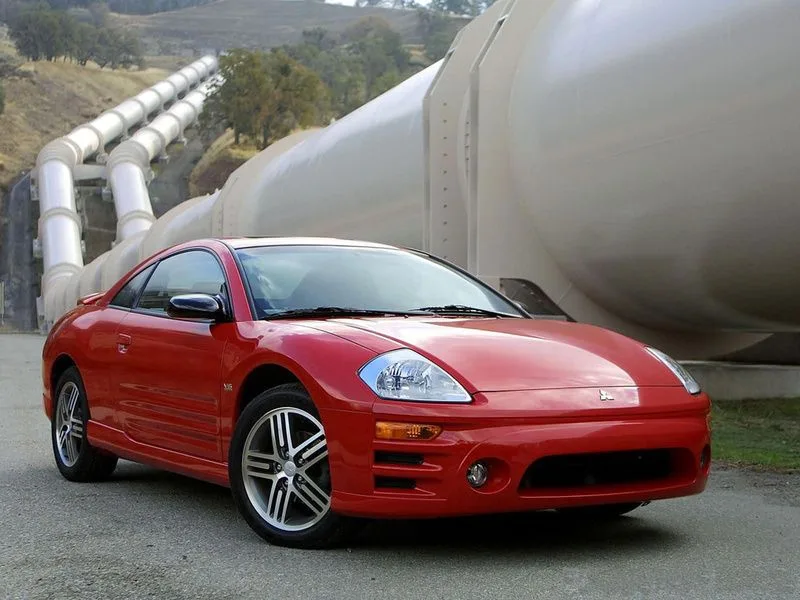

The third-generation Mitsubishi Eclipse is a compact two-door you can order as a Coupe or Cabrio. Both bodies keep a sporty everyday layout, with gasoline power and a front-drive setup.
Wheel offset shapes how a Mitsubishi Eclipse sits, steers, and clears its suspension. When owners compare aftermarket rims for different…
Choosing the correct oil for a 2003 Mitsubishi Eclipse affects more than routine upkeep; it sustains oil pressure, valvetrain lubrication…
You choose a Mitsubishi Eclipse engine as a gasoline four-cylinder or a larger V6, always through a front-drive drivetrain. Cabrio examples such as the 2.4 MT, 2.4 AT, and 3.0 MT pair those motors with a manual or automatic. They illustrate this generation, not every Coupe or Cabrio.
| Modification | Engine type | Engine capacity | Maximum power | Maximum power, kw | Maximum torque N⋅m | Transmission | Type of drive |
|---|---|---|---|---|---|---|---|
| 2.4 MT | Gasoline | 2351 cm³ | 149 hp | 112 kW | 214 N⋅m | Manual | FWD |
| 2.4 AT | Gasoline | 2351 cm³ | 149 hp | 110 kW | 214 N⋅m | Automatic | FWD |
| 3.0 MT | Gasoline | 2972 cm³ | 203 hp | 151 kW | 278 N⋅m | Manual | FWD |
| 3.0 AT | Gasoline | 2972 cm³ | 203 hp | 149 kW | 278 N⋅m | Automatic | FWD |
| 3.0 AT | Gasoline | 2972 cm³ | 213 hp | 157 kW | 278 N⋅m | Automatic | FWD |
| Modification | Engine type | Engine capacity | Maximum power | Maximum power, kw | Maximum torque N⋅m | Transmission | Type of drive |
|---|---|---|---|---|---|---|---|
| 2.4 MT | Gasoline | 2351 cm³ | 149 hp | 110 kW | 214 N⋅m | Manual | FWD |
| 2.4 AT | Gasoline | 2351 cm³ | 149 hp | 110 kW | 214 N⋅m | Automatic | FWD |
| 2.4 MT | Gasoline | 2351 cm³ | 156 hp | 115 kW | 221 N⋅m | Manual | FWD |
| 3.0 MT | Gasoline | 2972 cm³ | 208 hp | 153 kW | 278 N⋅m | Manual | FWD |
| 3.0 AT | Gasoline | 2972 cm³ | 208 hp | 153 kW | 278 N⋅m | Automatic | FWD |
| Modification | Length | Width | Height | Wheelbase | Curb weight | Max weight | Ground clearance, minimum |
|---|---|---|---|---|---|---|---|
| 2.4 MT | 4455 mm | 1750 mm | 1341 mm | 2510 mm | 1420 kg | 1860 kg | 140 mm |
| 2.4 AT | 4455 mm | 1750 mm | 1341 mm | 2510 mm | 1420 kg | 2042 kg | 145 mm |
| 3.0 MT | 4455 mm | 1750 mm | 1341 mm | 2510 mm | 1540 kg | 1760 kg | 140 mm |
| 3.0 AT | 4455 mm | 1750 mm | 1341 mm | 2510 mm | 1540 kg | Not provided | 145 mm |
| 3.0 AT | 4455 mm | 1750 mm | 1341 mm | 2510 mm | 1525 kg | 2173 kg | 145 mm |
| Modification | Length | Width | Height | Wheelbase | Curb weight | Max weight | Ground clearance, minimum |
|---|---|---|---|---|---|---|---|
| 2.4 MT | 4455 mm | 1750 mm | 1310 mm | 2560 mm | 1320 kg | 1918 kg | 145 mm |
| 2.4 AT | 4455 mm | 1750 mm | 1310 mm | 2560 mm | 1320 kg | 1918 kg | 145 mm |
| 2.4 MT | 4455 mm | 1750 mm | 1310 mm | 2560 mm | 1320 kg | 1780 kg | 140 mm |
| 3.0 MT | 4455 mm | 1750 mm | 1310 mm | 2560 mm | 1480 kg | 2137 kg | 145 mm |
| 3.0 AT | 4455 mm | 1750 mm | 1310 mm | 2560 mm | 1480 kg | 2137 kg | 145 mm |
| Modification | Trunk volume min |
|---|---|
| 2.4 MT | 170 l |
| 2.4 AT | 170 l |
| 3.0 MT | 170 l |
| 3.0 AT | 170 l |
| 3.0 AT | 170 l |
