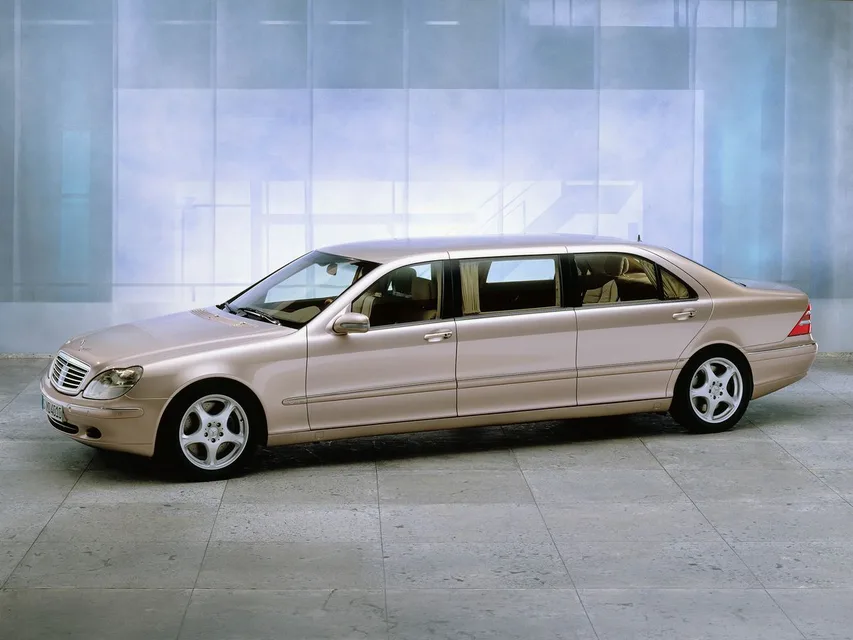

Catalog / Mercedes / S-Class / 4 generation
Mercedes S-Class Engines and Transmissions
The Mercedes S-Class engine range balances strong performance with everyday usability. Petrol options like the S600 5.8 and S500 5.0 deliver smooth, responsive power, while the S320CDI 3.2 diesel offers impressive torque and efficiency. Each pairs with an automatic gearbox and rear-wheel drive for relaxed cruising.
Limousine — Mercedes S-Class Engines and Transmissions
Limousine Mercedes S-Class Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive
S600 5.8 AT Gasoline 5786 cm³ 367 hp 270 kW 530 N⋅m Automatic RWD S500 5.0 AT Gasoline 4966 cm³ 306 hp 225 kW 460 N⋅m Automatic RWD S600 5.5 AT Gasoline 5513 cm³ 500 hp 368 kW 800 N⋅m Automatic RWD
Sedan Long — Mercedes S-Class Engines and Transmissions
Sedan Long Mercedes S-Class Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive
S280 2.8 AT Gasoline 2799 cm³ 204 hp 150 kW 270 N⋅m Automatic RWD S600 5.8 AT Gasoline 5786 cm³ 367 hp 270 kW 530 N⋅m Automatic RWD S320 3.2 AT Gasoline 3199 cm³ 224 hp 165 kW 315 N⋅m Automatic RWD S430 4.3 AT Gasoline 4266 cm³ 279 hp 205 kW 400 N⋅m Automatic RWD S500 5.0 AT Gasoline 4966 cm³ 306 hp 225 kW 460 N⋅m Automatic RWD S320CDI 3.2 AT Diesel 3224 cm³ 197 hp 145 kW 470 N⋅m Automatic RWD
Sedan — Mercedes S-Class Engines and Transmissions
Sedan Mercedes S-Class Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive
S280 2.8 AT Gasoline 2799 cm³ 204 hp 150 kW 270 N⋅m Automatic RWD S320 3.2 AT Diesel 3224 cm³ 197 hp 145 kW 470 N⋅m Automatic RWD S400 4.0 AT Diesel 3996 cm³ 250 hp 184 kW 560 N⋅m Automatic RWD S320 3.2 AT Gasoline 3199 cm³ 224 hp 165 kW 315 N⋅m Automatic RWD S430 4.3 AT Gasoline 4266 cm³ 279 hp 205 kW 400 N⋅m Automatic RWD S500 5.0 AT Gasoline 4966 cm³ 306 hp 225 kW 460 N⋅m Automatic RWD
Mercedes S-Class Dimensions
Limousine — Mercedes S-Class Dimensions
Limousine Mercedes S-Class Dimensions Modification Length Width Height Wheelbase Curb weight Max weight Ground clearance, minimum
S600 5.8 AT 6158 mm 1855 mm 1462 mm 4085 mm 1960 kg 2460 kg 150 mm S500 5.0 AT 6158 mm 1855 mm 1462 mm 4085 mm 1855 kg 2400 kg 150 mm S600 5.5 AT 6158 mm 1855 mm 1462 mm 4085 mm 2500 kg Not provided 150 mm
Sedan Long — Mercedes S-Class Dimensions
Sedan Long Mercedes S-Class Dimensions Modification Length Width Height Wheelbase Curb weight Max weight Ground clearance, minimum
S280 2.8 AT 5158 mm 1854 mm 1445 mm 3085 mm 1770 kg 2300 kg 150 mm S600 5.8 AT 5158 mm 1854 mm 1445 mm 3085 mm 1960 kg 2460 kg 150 mm S320 3.2 AT 5158 mm 1854 mm 1445 mm 3085 mm 1800 kg 2330 kg 150 mm S430 4.3 AT 5158 mm 1854 mm 1445 mm 3085 mm 1895 kg 2420 kg 150 mm S500 5.0 AT 5158 mm 1854 mm 1445 mm 3085 mm 1855 kg 2380 kg 150 mm S320CDI 3.2 AT 5158 mm 1854 mm 1445 mm 3085 mm 1875 kg 2475 kg 150 mm
Sedan — Mercedes S-Class Dimensions
Sedan Mercedes S-Class Dimensions Modification Length Width Height Wheelbase Curb weight Max weight Ground clearance, minimum
S280 2.8 AT 5042 mm 1854 mm 1445 mm 2965 mm 1770 kg 2300 kg 150 mm S320 3.2 AT 5042 mm 1854 mm 1445 mm 2965 mm 1830 kg 2430 kg 150 mm S400 4.0 AT 5042 mm 1854 mm 1445 mm 2965 mm 1990 kg 2475 kg 150 mm S320 3.2 AT 5042 mm 1854 mm 1445 mm 2965 mm 1770 kg 2300 kg 150 mm S430 4.3 AT 5042 mm 1854 mm 1445 mm 2965 mm 1875 kg 2400 kg 150 mm S500 5.0 AT 5042 mm 1854 mm 1445 mm 2965 mm 1855 kg 2400 kg 150 mm
Mercedes S-Class Cargo Space
Limousine — Mercedes S-Class Cargo Space
Sedan Long — Mercedes S-Class Cargo Space
Sedan — Mercedes S-Class Cargo Space
Mercedes S-Class Trims and Equipment
Mercedes S-Class trim levels shape comfort and convenience without altering core powertrains. For example, the S320 3.2 AT in Sedan Long form offers a configuration called Standart. This provides a well-equipped base, while other versions may add extended features, allowing buyers to tailor luxury to their needs.
