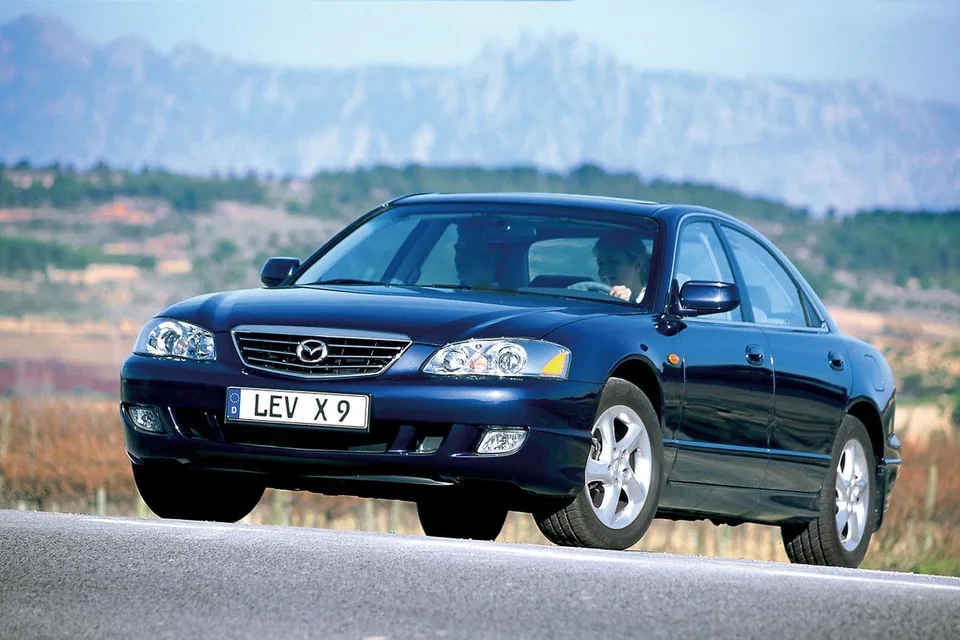

Mazda Xedos 9 Specs, Engines & Dimensions (2000–2002) — First Generation Restyling

The facelifted Mazda Xedos 9 sedan offers several powertrain and equipment combinations. Your preferred gearbox is a useful starting point, while cabin features and maintenance history help you choose between individual cars.

← All Mazda models

6 modificationsAll supplied years

Mazda Xedos 9 Engines and Transmissions

Among the Mazda Xedos 9 engine and transmission combinations are the gasoline 2.0 MT, 2.0 AT and 2.3 MT, all with front-wheel drive. A manual gives you direct control over gear changes, while an automatic reduces the work of driving in stop-start traffic.

Sedan — Mazda Xedos 9 Engines and Transmissions

Sedan Mazda Xedos 9 Engines and Transmissions
ModificationEngine typeEngine capacityMaximum powerMaximum power, kwMaximum torque N⋅mTransmissionType of drive
2.0 MTGasoline1995 cm³143 hp105 kW176 N⋅mManualFWD
2.0 ATGasoline1995 cm³143 hp105 kW176 N⋅mAutomaticFWD
2.3 MTGasoline2255 cm³211 hp155 kW290 N⋅mManualFWD
2.3 ATGasoline2255 cm³211 hp155 kW290 N⋅mAutomaticFWD
2.5 MTGasoline2497 cm³170 hp125 kW212 N⋅mManualFWD
2.5 ATGasoline2497 cm³170 hp125 kW212 N⋅mAutomaticFWD

Mazda Xedos 9 Dimensions

Sedan — Mazda Xedos 9 Dimensions

Sedan Mazda Xedos 9 Dimensions
ModificationLengthWidthHeightWheelbaseCurb weightMax weightGround clearance, minimum
2.0 MT4875 mm1770 mm1375 mm2750 mm1415 kg1940 kg140 mm
2.0 AT4875 mm1770 mm1375 mm2750 mmNot providedNot provided120 mm
2.3 MT4875 mm1770 mm1375 mm2750 mm1500 kg1985 kg140 mm
2.3 AT4875 mm1770 mm1375 mm2750 mm1500 kg1985 kg140 mm
2.5 MT4875 mm1770 mm1375 mm2750 mm1415 kg1940 kg140 mm
2.5 AT4875 mm1770 mm1375 mm2750 mm1415 kg1940 kg140 mm

Mazda Xedos 9 Cargo Space

Sedan — Mazda Xedos 9 Cargo Space

Sedan Mazda Xedos 9 Cargo Space
ModificationTrunk volume min
2.0 MT420 l
2.0 AT420 l
2.3 MT420 l
2.3 AT420 l
2.5 MT420 l
2.5 AT420 l

Mazda Xedos 9 Trims and Equipment

When comparing Mazda Xedos 9 trim levels, GLX is an equipment designation associated with the gasoline, front-wheel-drive 2.5 AT. The version name identifies the engine and automatic transmission; GLX describes its equipment package. Check the individual car’s fitted features and try its cabin controls to judge whether it suits you.

Mazda Xedos 9 Trims and Equipment
ModificationBodyEquipment
2.5 ATSedanGLX
