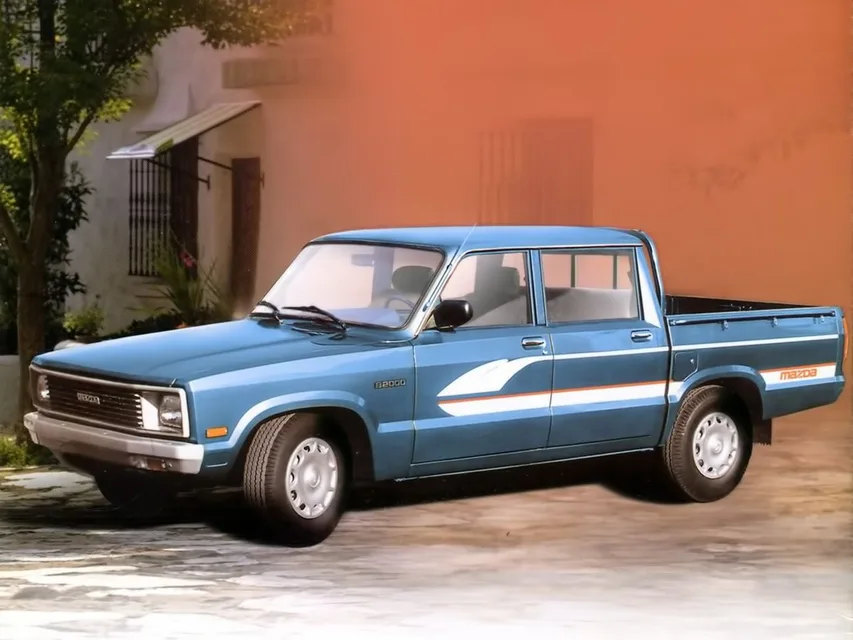

Catalog / Mazda / Proceed / 3 generation
Mazda Proceed Engines and Transmissions
The Mazda Proceed engine lineup balances everyday usability with work-ready capability. A 2.0-liter gasoline unit can be paired with either a manual or automatic transmission, both driving the rear wheels for dependable performance. For those needing extra torque, a 2.2-liter diesel is available with a manual gearbox, ideal for heavier loads.
Pickup double-cab — Mazda Proceed Engines and Transmissions
Pickup double-cab Mazda Proceed Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Transmission Type of drive
2.0 AT Gasoline 1970 cm³ 75 hp 56 kW Automatic RWD 2.0 MT Gasoline 1970 cm³ 75 hp 56 kW Manual RWD
Pickup 1.5-cab — Mazda Proceed Engines and Transmissions
Pickup 1.5-cab Mazda Proceed Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive
1.6 MT Gasoline 1586 cm³ 95 hp 71 kW Not provided Manual RWD 1.6 AT Gasoline 1586 cm³ 95 hp 71 kW Not provided Automatic RWD 1.8 MT Gasoline 1769 cm³ 83 hp 64 kW 134 N⋅m Manual RWD 1.8 AT Gasoline 1769 cm³ 83 hp 64 kW 134 N⋅m Automatic RWD 2.0 AT Gasoline 1970 cm³ 75 hp 56 kW Not provided Automatic RWD 2.0 MT Gasoline 1970 cm³ 75 hp 56 kW Not provided Manual RWD 2.2 MT Diesel 2209 cm³ 66 hp 49 kW Not provided Manual RWD 2.2 AT Diesel 2209 cm³ 66 hp 49 kW Not provided Automatic RWD
Mazda Proceed Dimensions
Pickup double-cab — Mazda Proceed Dimensions
Pickup double-cab Mazda Proceed Dimensions Modification Length Width Height Wheelbase
2.0 AT 4740 mm 1740 mm 1680 mm 2865 mm 2.0 MT 4740 mm 1740 mm 1680 mm 2865 mm
Pickup 1.5-cab — Mazda Proceed Dimensions
Pickup 1.5-cab Mazda Proceed Dimensions Modification Length Width Height Wheelbase
1.6 MT 4445 mm 1740 mm 1680 mm 2715 mm 1.6 AT 4445 mm 1740 mm 1680 mm 2715 mm 1.8 MT 4445 mm 1740 mm 1680 mm 2715 mm 1.8 AT 4445 mm 1740 mm 1680 mm 2715 mm 2.0 AT 4445 mm 1740 mm 1680 mm 2715 mm 2.0 MT 4445 mm 1740 mm 1680 mm 2715 mm 2.2 MT 4445 mm 1740 mm 1680 mm 2715 mm 2.2 AT 4445 mm 1740 mm 1680 mm 2715 mm
