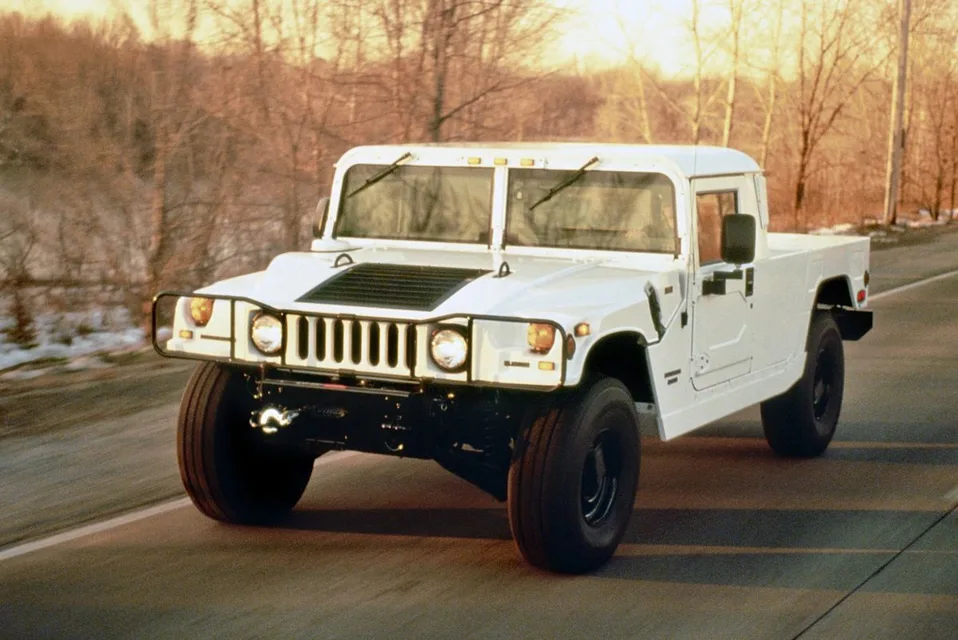

Hummer H1 Specs, Engines & Dimensions (1992–2006) — First Generation
The Hummer H1 First Generation brought military-grade capability to civilian roads. Offered in SUV, double-cab, and single-cab pickup bodies, it paired rugged construction with serious off-road hardware and a choice of powerful engines.
Hummer H1 Engines and Transmissions Hummer H1 Dimensions ← All Hummer models
Hummer H1 Engines and Transmissions
The Hummer H1 engine lineup emphasized durability and torque. A 5.7-liter gasoline V8 and a 6.6-liter diesel V8 were available, both paired with automatic transmissions and full-time all-wheel drive. These drivetrains delivered the low-end pulling power needed for steep grades, deep mud, or heavy loads, making the H1 a true workhorse on and off pavement.
SUV 5-doors — Hummer H1 Engines and Transmissions
SUV 5-doors Hummer H1 Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive 5.7 AT Gasoline 5733 cm³ 190 hp 140 kW 450 N⋅m Automatic AWD 6.5 AT Diesel 6500 cm³ 180 hp 132 kW 366 N⋅m Automatic AWD 6.5 AT Diesel 6500 cm³ 195 hp 143 kW 583 N⋅m Automatic AWD 6.6 AT Diesel 6599 cm³ 305 hp 224 kW 820 N⋅m Automatic AWD
Pickup double-cab — Hummer H1 Engines and Transmissions
Pickup double-cab Hummer H1 Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive 5.7 AT Gasoline 5733 cm³ 190 hp 140 kW 450 N⋅m Automatic AWD 6.2 AT Diesel 6217 cm³ 152 hp 112 kW 339 N⋅m Automatic AWD 6.5 AT Diesel 6466 cm³ 172 hp 126 kW 393 N⋅m Automatic AWD 6.5 AT Diesel 6466 cm³ 197 hp 145 kW 583 N⋅m Automatic AWD 6.5 AT Diesel 6466 cm³ 208 hp 153 kW 597 N⋅m Automatic AWD 6.5 AT Diesel 6500 cm³ 180 hp 132 kW 366 N⋅m Automatic AWD 6.6 AT Diesel 6599 cm³ 305 hp 224 kW 820 N⋅m Automatic AWD
Pickup single-cab — Hummer H1 Engines and Transmissions
Pickup single-cab Hummer H1 Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive 5.7 AT Gasoline 5733 cm³ 190 hp 140 kW 450 N⋅m Automatic AWD 6.5 AT Diesel 6500 cm³ 180 hp 132 kW 366 N⋅m Automatic AWD
Hummer H1 Dimensions
SUV 5-doors — Hummer H1 Dimensions
SUV 5-doors Hummer H1 Dimensions Modification Length Width Height Wheelbase Curb weight Max weight Ground clearance, minimum 5.7 AT 4686 mm 2197 mm 1956 mm 3302 mm 1818 kg 3245 kg 406 mm 6.5 AT 4686 mm 2197 mm 1956 mm 3302 mm 2703 kg 3720 kg 406 mm 6.5 AT 4686 mm 2197 mm 1956 mm 3302 mm 2703 kg 3720 kg 406 mm 6.6 AT 4686 mm 2197 mm 1956 mm 3302 mm 2703 kg 3720 kg 406 mm
Pickup double-cab — Hummer H1 Dimensions
Pickup double-cab Hummer H1 Dimensions Modification Length Width Height Wheelbase Curb weight Max weight Ground clearance, minimum 5.7 AT 4686 mm 2197 mm 1956 mm 3302 mm 1818 kg 3245 kg 406 mm 6.2 AT 4686 mm 2197 mm 1956 mm 3302 mm 3090 kg Not provided 406 mm 6.5 AT 4686 mm 2197 mm 1956 mm 3302 mm 3091 kg 4899 kg 406 mm 6.5 AT 4686 mm 2197 mm 1956 mm 3302 mm 3091 kg 4899 kg 406 mm 6.5 AT 4686 mm 2197 mm 1956 mm 3302 mm 3271 kg 4672 kg 406 mm 6.5 AT 4686 mm 2197 mm 1956 mm 3302 mm 2703 kg 3720 kg 406 mm 6.6 AT 4686 mm 2197 mm 1956 mm 3302 mm 2703 kg 3720 kg 406 mm
Pickup single-cab — Hummer H1 Dimensions
Pickup single-cab Hummer H1 Dimensions Modification Length Width Height Wheelbase Curb weight Max weight Ground clearance, minimum 5.7 AT 4686 mm 2197 mm 1956 mm 3302 mm 1818 kg 3245 kg 406 mm 6.5 AT 4686 mm 2197 mm 1956 mm 3302 mm 2703 kg 3720 kg 406 mm
