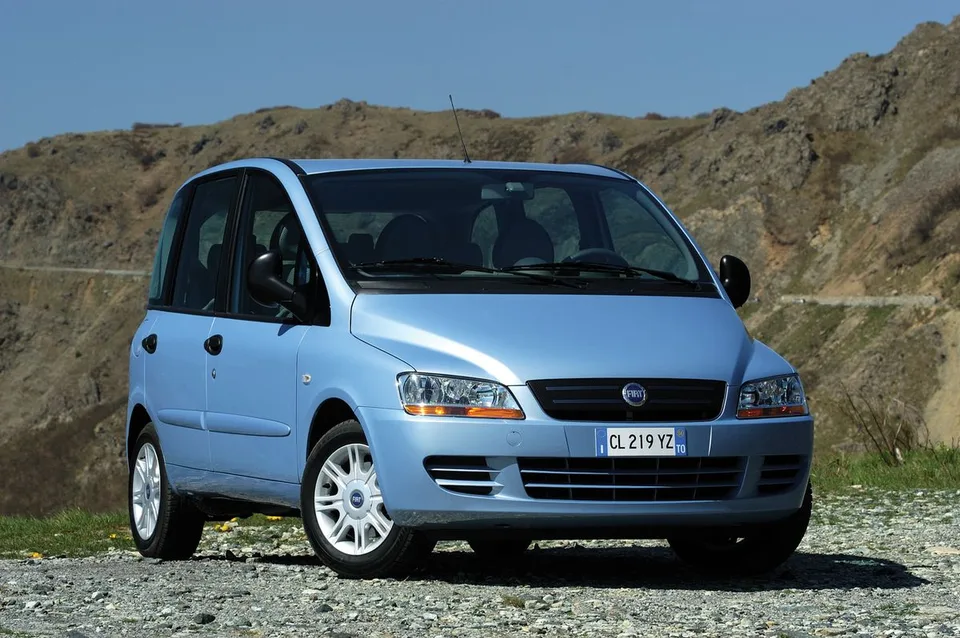

Fiat Multipla Specs, Engines & Dimensions (2004–2010)

Fiat Multipla Engines and Transmissions

Fiat Multipla engine choices after the restyling focus on everyday usability, pairing gasoline and diesel options with manual transmissions. The gasoline units suit shorter trips and lighter loads, while the diesels reward higher mileage with relaxed torque and better fuel economy.

Compact Van — Fiat Multipla Engines and Transmissions

Compact Van Fiat Multipla Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.6 MT	Gasoline	1581 cm³	95 hp	70 kW	130 N⋅m	Manual	FWD
1.6 MT	Gasoline	1596 cm³	103 hp	76 kW	145 N⋅m	Manual	FWD
1.6 MT	Gasoline	1596 cm³	103 hp	76 kW	145 N⋅m	Manual	FWD
1.9 MT	Diesel	1910 cm³	115 hp	85 kW	200 N⋅m	Manual	FWD
1.9 MT	Diesel	1910 cm³	120 hp	88 kW	206 N⋅m	Manual	FWD

Fiat Multipla Dimensions

Compact Van — Fiat Multipla Dimensions

Compact Van Fiat Multipla Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.6 MT	4090 mm	1871 mm	1695 mm	2666 mm	1565 kg	2050 kg	120 mm
1.6 MT	4090 mm	1871 mm	1695 mm	2666 mm	1375 kg	1870 kg	120 mm
1.6 MT	4090 mm	1871 mm	1695 mm	2666 mm	1305 kg	1990 kg	130 mm
1.9 MT	4090 mm	1871 mm	1695 mm	2666 mm	1445 kg	1930 kg	120 mm
1.9 MT	4090 mm	1871 mm	1695 mm	2666 mm	1375 kg	2050 kg	130 mm

Fiat Multipla Cargo Space

Compact Van — Fiat Multipla Cargo Space

Compact Van Fiat Multipla Cargo Space
Modification	Trunk volume min	Trunk volume max
1.6 MT	430 l	1850 l
1.6 MT	430 l	1850 l
1.6 MT	430 l	1850 l
1.9 MT	430 l	1850 l
1.9 MT	430 l	1850 l

Fiat Multipla Trims and Equipment

Fiat Multipla Trims and Equipment
Modification	Body	Equipment
1.6 MT	Compact Van	SX
1.6 MT	Compact Van	Dynamic
1.9 MT	Compact Van	SX
1.9 MT	Compact Van	Dynamic
