Why Does a Sunroof Need Drain Tubes?
Many drivers assume the glass panel in the roof seals out rain the way a windshield does. It does not. Anyone asking why does a sunroof need drain tubes is really asking how a movable panel can sit in an opening on top of a car without flooding the cabin. The answer lies in a design that expects water to get past the seal and gives it a controlled way out.
Tray and drains
A sunroof panel has to slide or tilt, so its perimeter seal cannot be clamped tight like fixed glass. The seal mainly blocks wind noise and slows most of the rain, but some water always slips past the edge, especially in heavy downpours or a car wash. Underneath the opening, engineers place a shallow trough, often called a tray or water channel, that surrounds the frame and catches whatever gets by before it can reach the headliner.

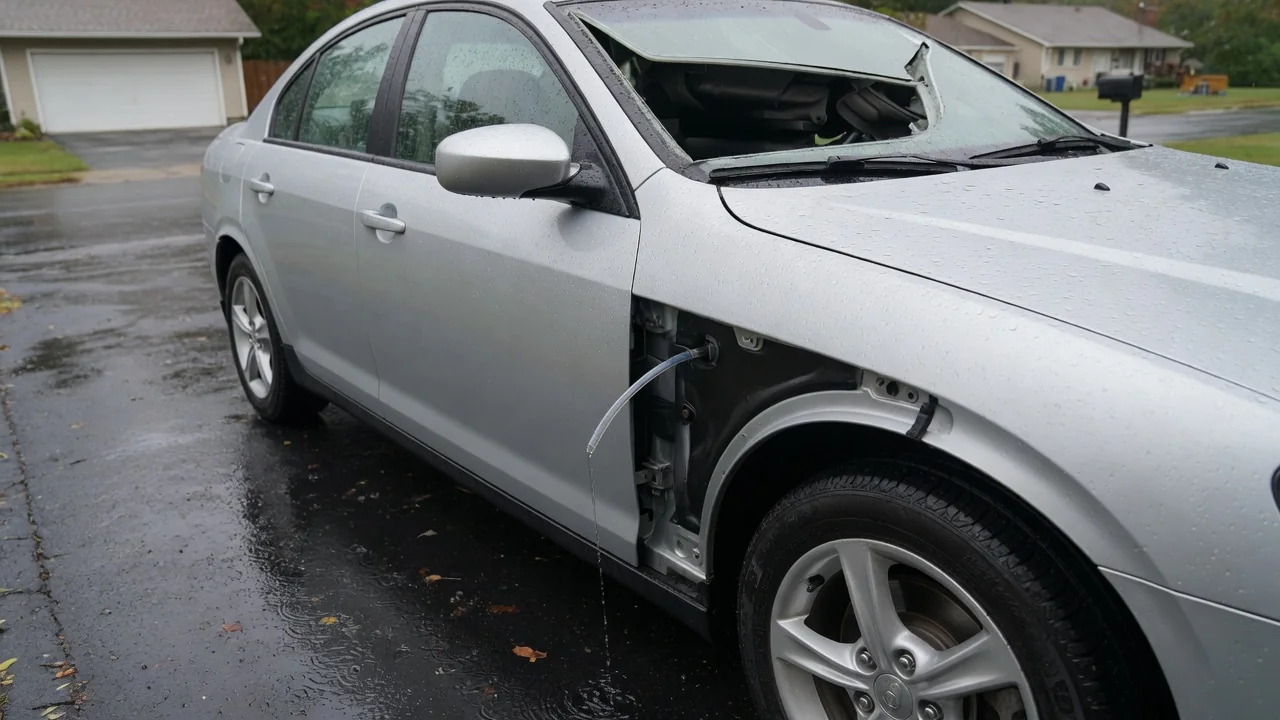

The tray would overflow quickly if it had nowhere to send that water, which is where the drain tubes come in. Small outlets, usually at the corners of the frame, connect to flexible hoses routed down inside the roof pillars and out through the body near the wheel wells, door sills, or rear bumper area. The number of drains and their routing differ between vehicles, and panoramic roofs with larger openings tend to use longer channels, so exact layouts depend on the model.
Outlet blockage
Because the outlets are small and the tray sits open to the outside world whenever the panel is open, debris collects there over time. Pollen, pine needles, leaf fragments, dust, and seed pods wash toward the corners and can settle in the drain openings or farther down the hose. Vehicles parked under trees usually collect this material faster than garaged ones, and a tube that narrows gradually may still pass a light drizzle while backing up in a storm.
Blockage is not the only way the path can fail. A hose can slip off its fitting at the tray, become pinched behind trim, or have its lower exit sealed by mud or a rubber end piece that sticks shut. In each case the result is the same: water rises in the tray until it spills over the inner lip and into the cabin structure. Since the hoses run hidden inside pillars, where the water finally appears may be far from the actual restriction.
Warning signs
The most familiar sign is a damp or stained headliner near the front corners of the roof opening or along the tops of the pillars. Water may also drip from the overhead console, map lights, or grab handles after rain, or run down behind trim and show up as wet carpet in a footwell. A musty smell, windows that fog persistently, or a sloshing sound overhead during braking and cornering can all point to water sitting where it should be flowing away.
These symptoms deserve careful interpretation rather than quick assumptions. Wet carpet can also come from a door seal, a windshield bond, a cabin air intake, or an air conditioning condensate drain, so the sunroof is one suspect among several. Electrical oddities matter too, because modules, connectors, and airbag wiring often sit behind the trim that water travels through. If a warning light or stored fault code appears after a leak, treat it as evidence that moisture may have reached a circuit, not proof that any particular component has failed.
Everyday Use and Observations
Ordinary habits reveal a lot about how well the system is working. After a rainstorm or a wash, a healthy setup typically lets a little water trickle out beneath the car behind the front wheels or near the rear, depending on where the manufacturer placed the exits. With the panel open, the tray and its corner openings are often visible from outside, and standing water, sludge, or packed leaves in that channel suggests the outlets are not keeping up.
Parking and climate influence what owners notice. A car left nose-down on a steep driveway sends water toward the front drains, while a nose-up slope loads the rear ones, so a leak that appears only in one parking spot is a useful clue. Freezing weather can temporarily trap ice in a tube and mimic a clog until temperatures rise. Keeping the visible channel free of loose leaves when the panel is open, and noting when and where dampness appears, gives a technician helpful history.
Limits and Next Steps
There are limits to what can be learned or safely done from the driveway. The hoses are thin, the fittings are light plastic, and the routing passes side curtain airbags and wiring on many vehicles, so forcing stiff tools or high-pressure air into a drain can disconnect or puncture a tube and turn a slow drip into a hidden leak inside the pillar. Access points, hose materials, and approved cleaning methods vary by manufacturer, which makes model-specific service information important.
When dampness keeps returning, a professional inspection is the sensible next step. A shop can confirm whether each drain flows freely, check that hoses remain attached at both ends, and distinguish a drainage fault from a seal, glass alignment, or body seam issue. Prompt attention matters because soaked padding dries slowly and can encourage corrosion, mold, and electrical trouble. Understanding that the tubes are a planned part of the roof, not a backup, helps owners describe what they observe and decide when to seek help.
