Why Can a Sensor Code Point to a Wiring Problem?

A diagnostic trouble code that names a sensor does not always mean the sensor itself has failed. The engine control module can only judge the electrical signal that reaches it, so a broken wire, a corroded terminal, or a poor ground can look exactly like a bad part. Understanding why a sensor trouble code so often leads back to wiring explains why careful technicians test the circuit before replacing components, and why a new sensor sometimes fails to clear the problem.

Circuit checks: what the module actually sees

The control module does not measure temperature, pressure, or position directly. It reads a voltage, a frequency, or a digital message produced by the sensor and carried through the harness. Many common sensors use three wires: a regulated reference voltage supplied by the module, a ground or signal return, and a signal wire that reports the measurement. Two-wire sensors, such as many thermistor-type temperature sensors, rely on the module's internal circuitry to create the signal. In every case, the reading depends on the entire path, not just the sensor element. If any part of that path changes resistance, opens, or touches something it should not, the module receives a value that no longer reflects real conditions.

This is why code descriptions often include phrases like "circuit low," "circuit high," or "circuit open." These codes generally describe the electrical state of the signal rather than a verdict on the sensor. An open signal or reference wire can produce an abnormal reading, a signal wire shorted to ground can drag the voltage down, and a short to a voltage source can push it up. A "range/performance" code is different: it usually means the signal is electrically plausible but disagrees with what the module expects from other inputs. Exact definitions and setting criteria vary by manufacturer, so the code description in the vehicle's service information is the reference to use.

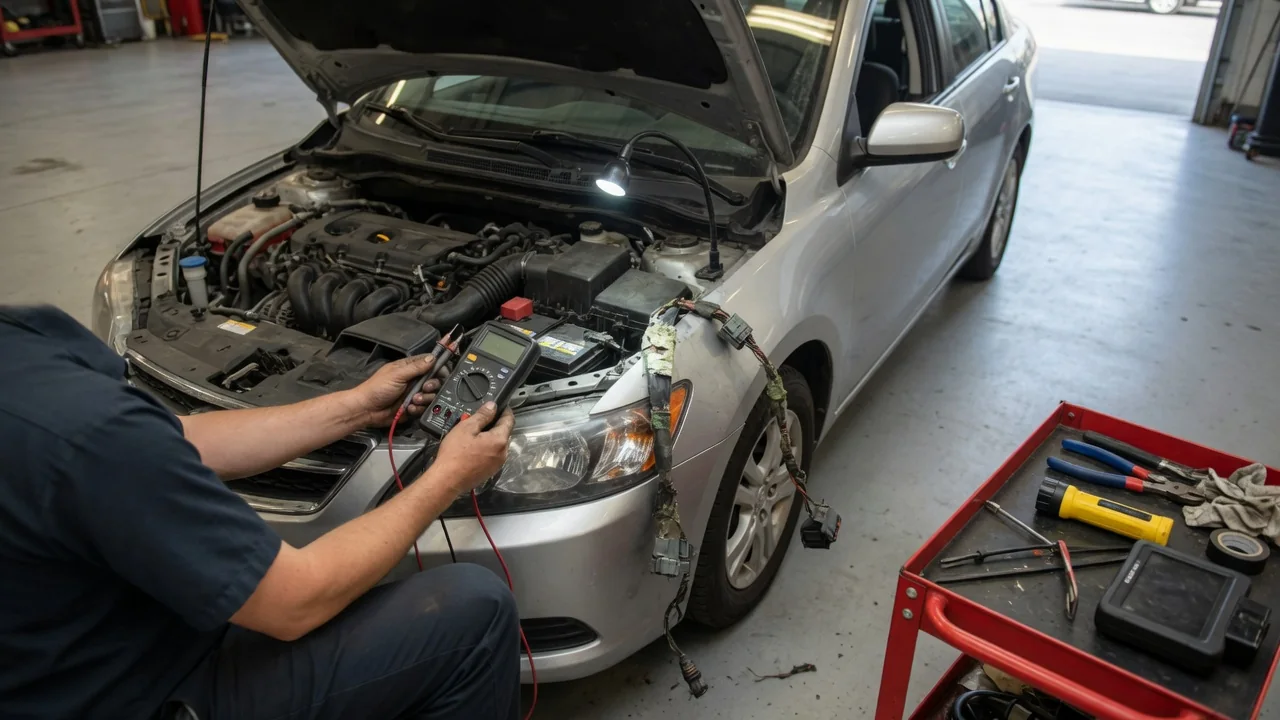

Circuit checks therefore focus on three questions. Is the reference voltage present at the sensor connector? Is the ground path sound under load? Does the signal wire carry the sensor's output back to the module without excessive resistance or a short? A digital multimeter can check continuity and resistance with the circuit unpowered, while a voltage drop test measures how much voltage is lost across a wire or connection while current flows. Voltage drop testing often reveals a corroded or partially broken conductor that still passes a simple continuity check.

Connector faults and why they mimic a failed sensor

Connectors are a frequent weak point because they join separate parts and are exposed to heat, vibration, moisture, and handling during repairs. A terminal can loosen so that it no longer grips its mating pin firmly, a condition sometimes checked by comparing pin drag with a matching test terminal. Corrosion can build up when a seal is damaged or missing, adding resistance that distorts a low-current signal. A terminal can also back out of the connector body if its locking feature is broken, making contact only when the harness sits in a certain position.

Because sensor signals are often small, even modest added resistance can shift a reading enough to set a code. Bent pins, spread female terminals, and connectors that were never fully latched can cause intermittent faults that come and go with temperature, moisture, or road vibration. In these cases, replacing the sensor may appear to fix the problem for a while, simply because unplugging and reconnecting the connector disturbed the poor contact.

Harness damage away from the connector produces similar symptoms. Insulation can chafe against a bracket or engine component until a conductor touches metal, creating a short to ground. A wire can break inside intact-looking insulation, especially near flex points. Rodent damage, earlier repairs with poor splices, and heat damage from nearby components are other general causes worth inspecting.

Diagnosis: separating the sensor from the wiring

A structured diagnosis begins with the exact code, its description, and any freeze frame data the module stored when it was set. Freeze frame information can show engine temperature, speed, and load at the moment of the fault, which may hint at whether heat, vibration, or a particular operating condition is involved. Checking for related codes matters too. When several sensors report problems at once, a shared circuit is a strong suspect, because many vehicles feed more than one sensor from the same reference voltage or ground. A short in one sensor or its wiring can pull down that shared supply and trigger codes for components that are themselves fine.

The next step is usually a careful visual inspection of the harness and connectors, followed by watching live data with a scan tool. Observing the sensor reading while gently flexing the harness and connector, often called a wiggle test, can reveal an intermittent connection when the value jumps or drops out. If the reading responds normally to changes in the measured condition and stays stable during the wiggle test, attention may shift toward the sensor itself or toward a real mechanical condition the sensor is correctly reporting.

Electrical tests then confirm the circuit. With the connector unplugged and the ignition on, the technician checks for reference voltage and ground on the harness side. With the circuit unpowered, resistance measured between the sensor connector and the module connector shows whether each wire is continuous and free of shorts to ground or to other circuits. The wiring diagram and test procedure in the vehicle's service information define which pins to check and what results indicate a fault.

Practical implications and limits

For owners, the main lesson is that a code is a starting point for testing rather than a parts list. Replacing a sensor without checking its circuit can waste money and leave the underlying fault in place. The same code returning soon after a new part is installed is a common sign that wiring or a connection was the real issue.

There are limits to what basic tools can show. A multimeter may miss very brief dropouts that a scan tool graph or an oscilloscope would capture, and some sensors communicate digitally, which makes a simple voltage reading less informative. Probing technique also matters: piercing insulation can let moisture in and create a new fault, and forcing meter leads into connector terminals can spread them. Back-probing through the connector seal or using proper adapters reduces that risk.

Finally, not every sensor code is electrical, and not every wiring fault sets a code. A sensor can accurately report a real problem, such as a vacuum leak or a cooling system issue, so the code may be correct about the symptom while the cause lies elsewhere. Diagnostic logic, code setting criteria, and shared circuit layouts differ between manufacturers and model years, so vehicle-specific service information remains the authority when general reasoning reaches its limit.
