Honda Pilot Transmission Fluid Change: Requirements and Procedure

What a Pilot transmission service actually is

A Honda Pilot transmission fluid change is a drain-and-fill of the automatic transmission, using the Honda-specified ATF for that model year, then setting the level by the method Honda published for that gearbox. It is not a universal “flush,” and it is not the same job on every Pilot. Fluid type, fill method, drain volume, and whether a dipstick even exists all change with generation and transmission family.

Honda-designed 5-speed and 6-speed units are the ones owners most often service at home: a drain plug, a fill path, and Honda ATF DW-1 (which superseded ATF-Z1 on older 5-speeds). Later 9-speed and 10-speed Pilots are temperature-checked, sealed-style fills. Those jobs need a scan tool or equivalent temperature reading, the correct Honda ATF, and a level-check procedure that is easy to get wrong. Confirm the exact fluid name, capacity notes, and plug torque in the owner’s manual and factory service information for the vehicle’s year before buying fluid or turning a wrench. Those figures are year- and gearbox-specific and are not restated here as a single set of numbers.

Which fluid the gearbox is built for

Honda transmissions are picky about friction characteristics. Using a generic “multi-vehicle” ATF in a Honda-spec unit is a common cause of harsh shifts, flare, or clutch wear. Match the bottle to the gearbox, not to a parts-store catch-all label.

Generation (typical U.S. years) Transmission family Fluid Honda specifies (confirm on the vehicle) Service character; First generation, 2003–2008 Honda 5-speed automatic Originally ATF-Z1; Honda ATF DW-1 supersedes Z1 Drain-and-fill; dipstick level check on these years; Second generation, 2009–2015 Honda 5-speed, then 6-speed (about 2012–2015) Honda ATF DW-1 Drain-and-fill; dipstick on these Honda-designed units; Third generation, 2016–2022 Honda 6-speed on earlier years; 9-speed on later years (commonly from the 2019 refresh) DW-1 on the Honda 6-speed; Honda ATF Type 3.1 is the usual factory call-out on the 9-speed 6-speed is still a conventional drain-and-fill; 9-speed is a temperature-based fill; Fourth generation, 2023 and newer Honda 10-speed automatic Honda ATF specified for the 10-speed (often listed as ATF Type 2.0 in factory materials—verify on the under-hood or service label and the manual) Sealed, temperature-based fill; treat as dealer or specialist work unless you have the procedure and tools

Trim, market, and mid-cycle changes can move a given year from one column to another. Read the under-hood label, the owner’s manual fluid chart, and the transmission case tags rather than assuming two Pilots of the same generation take the same bottle. If the manual and a parts catalog disagree, the factory service information for that VIN wins.

When the fluid is due

On Maintenance Minder-equipped Pilots, a transmission-fluid service item appears when the control unit calculates that ATF life is used up. That reminder is the factory trigger. Severe use—towing, mountain driving, short trips, extreme heat, taxi or delivery duty—uses the fluid faster than highway commuting.

Honda has described ATF as a long-life fill under normal conditions on some model years, which is why a Minder code can arrive later than independent shops often suggest. A time or mileage interval from a third party is an editorial maintenance preference, not a substitute for the Minder or the severe-service schedule in that year’s manual. Dark, burnt-smelling fluid, delayed engagement, flare between gears, or shudder under light throttle are inspection findings that justify service sooner, and they can also mean the unit already has wear that a fluid change will not reverse.

What you need before starting

Work on a cold-to-warm but not freshly highway-hot vehicle, on level ground, with the parking brake set and the wheels chocked. You need the correct Honda ATF in enough quantity for at least one drain-and-fill (a single drain replaces only the sump portion, not the whole system), a drain pan large enough for that volume, the correct drain-plug washer (replace it; do not reuse a crushed crush washer), a torque wrench, and a way to refill: dipstick tube and funnel on older Honda units, or the fill plug Honda specifies on later boxes.

For 9-speed and 10-speed units, add a means to read transmission fluid temperature, the factory overflow or check-plug procedure, and Honda’s specified fill plug and level-check plugs. If you do not have those, stop and have the vehicle serviced. Do not “top off until it looks right” on a sealed transmission.

Confirm year, transmission type, and the exact ATF name in the owner’s manual and on the vehicle labels. Buy Honda-branded fluid of that type, plus a new drain-plug sealing washer. Do not mix ATF families. Gather a torque wrench, correctly sized sockets or hex/Allen bits for the plugs on that case, a funnel or fill adapter, and a drain pan. Plan for safe lifting: jack stands or a lift on designated points, never a jack alone. The vehicle must sit level for a valid fill. Have a scan tool or Honda procedure for fluid temperature if the transmission is a 9-speed or 10-speed, or schedule the job with a shop that does.

Drain-and-fill on Honda 5-speed and 6-speed Pilots

This is the procedure that matches most 2003–2015 Pilots and 2016–2018 6-speed third-generation trucks. Warm the engine and transmission with a short drive so the fluid flows, then park level. Honda’s shop sequence is a drain from the transmission drain bolt, replacement of the sealing washer, torque of that bolt to the value in the service manual, and refill with the same volume drained, using DW-1, followed by a dipstick check at operating temperature, engine idling, in Park, on level ground. Wipe the dipstick with a lint-free cloth; do not use shop rags that leave fibers.

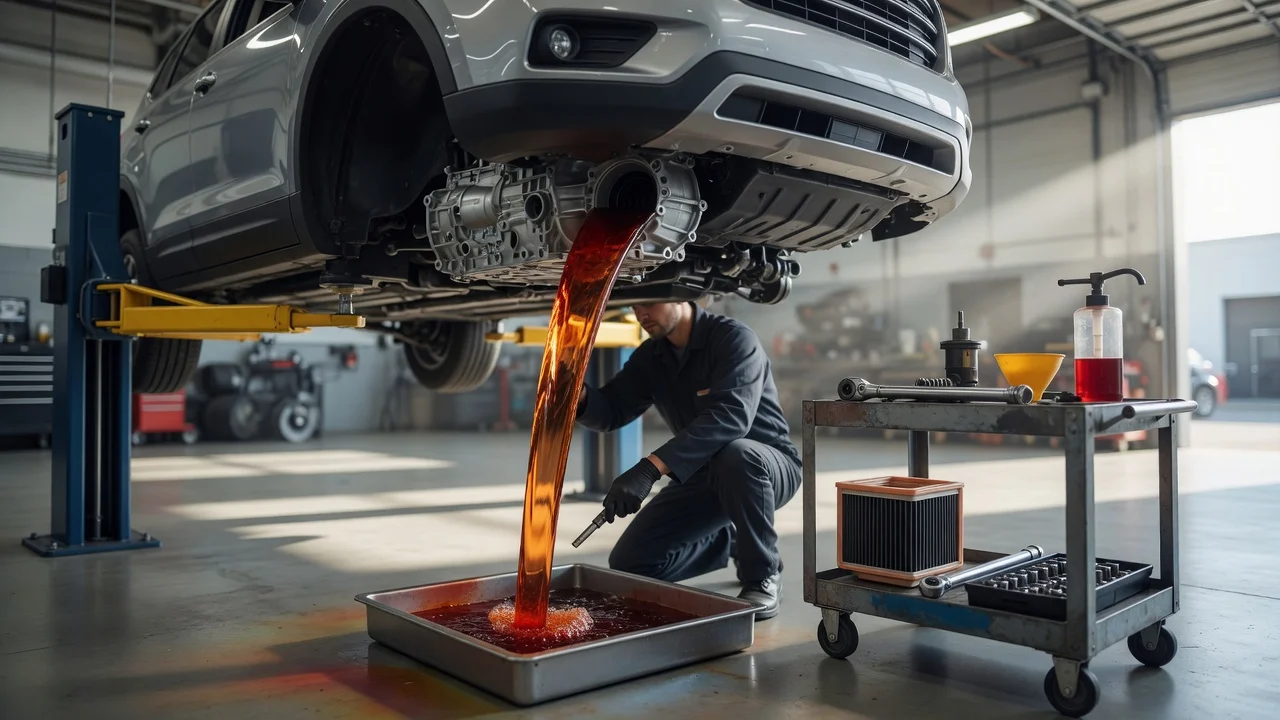

Identify the transmission drain plug on the pan or case. It is not the engine-oil drain. If you cannot tell them apart with certainty, do not proceed. Place the drain pan, remove the plug, and let the fluid drain fully. Note color and smell. Pink-to-red and mild is normal for in-service DW-1; dark brown and burnt is a wear warning. Inspect the magnet or plug for heavy metallic sludge or flakes. Fine gray film can appear in normal use; chips or clumps are a reason to stop and diagnose, not just refill. Install a new washer and tighten the drain plug to the factory torque for that year. Guessing tightness risks a stripped pan or a slow leak. Look up the value; it is not interchangeable across all Honda automatics. Refill through the dipstick tube with DW-1, starting with a volume equal to what came out. Do not dump in a dry-fill capacity; that overfills a unit that still holds fluid in the torque converter and cooler. Start the engine, cycle slowly through each range with the brake applied, return to Park, and check the level on the HOT range of the dipstick with the engine idling, as that year’s manual describes. Add only DW-1, in small amounts, until the level is correct. Inspect the drain plug and cooler lines for leaks, take a short drive, then recheck the level once more on level ground.

One drain typically exchanges only part of the total ATF. Shops that want a higher replacement fraction repeat the drain-and-fill after a drive, sometimes two or three times, always checking the dipstick so the unit is never left overfull. Honda does not treat a high-pressure machine flush as the standard owner procedure, and a flush with the wrong fluid left in the cooler or machine tank can contaminate a fresh fill.

9-speed and 10-speed fills

Later Pilots with the 9-speed or 10-speed automatic do not use a conventional dipstick as the level tool. The factory method is: fill through the designated fill plug, bring fluid temperature into a published window, idle in Park on a level surface, and let excess ATF run from an overflow or check plug until the stream becomes a drip. Filling cold, filling with the engine off, or filling without temperature data leaves the gearbox over- or under-filled. Either condition can damage clutches and the valve body.

Use only the Honda ATF type listed for that transmission (Type 3.1 on the typical 9-speed application; the 10-speed type printed in that year’s service information). Do not substitute DW-1 in a Type 3.1 or Type 2.0 gearbox, and do not pour Type 3.1 into a DW-1 6-speed. If the check plug is on the side of the case, raising the vehicle unevenly will dump fluid or hide a low level. This is the professional-service boundary for most owners: without the temperature procedure, the correct plugs, and the specified fluid, the job belongs at a Honda dealer or an independent shop that follows Honda’s fill SSM or service manual, not a general “ATF exchange” machine set to another car’s program.

Filter, pan, and cooler notes

Many Honda automatics use an internal filter that is not a routine spin-on part. Dropping the pan to replace that filter is a separate, messier service than a drain-and-fill and is not required at every fluid change in Honda’s normal schedule. If the pan does come off, a new pan gasket, cleaned magnets, and the correct filter and bolts are mandatory; overtightened pan bolts warp the pan and cause leaks.

The cooler and lines hold used fluid. After a transmission repair, Honda procedures often include cooler flushing or replacement so debris is not washed back into a rebuilt unit. For a healthy gearbox getting a maintenance drain-and-fill, repeated drain-and-fills do more of that exchange than an unapproved chemical flush.

Precautions at the steps they affect

Wrong fluid: stop before pouring. DW-1, Type 3.1, and 10-speed ATF are not interchangeable. Overfill: as damaging as a low level. Refill what drained, then use the dipstick or overflow method—never both guessed. Drain-plug washer: replace it when the plug comes out. A reused crush washer is a leak waiting on the next heat cycle. Torque: use the service-manual value. A stripped transmission pan is an expensive mistake. Level ground and specified temperature: required for any valid check, especially on sealed 9-speed and 10-speed units. Burnt fluid and debris: a fluid change will not fix a failing clutch pack. Diagnose before filling a damaged unit and calling it serviced. Towing capacity and aftermarket coolers: extra heat still requires the correct Honda ATF; a cooler does not authorize a different fluid brand.

How to know the job is done

Completion looks like this: the drain plug is torqued with a new washer and dry; the fill or dipstick path is closed; the ATF on the stick or at the overflow is within the published marks or drip condition at the published temperature; there is no leak after a drive; shifts are the same or cleaner, without delayed Drive or Reverse; and the Maintenance Minder transmission item, if it was due, has been reset with Honda’s reset method for that year so the next interval starts from a known point.

If engagement is worse after the fill, the first checks are level, fluid type, and whether the unit was already slipping. Do not keep adding fluid to chase a slip. Recheck level with the Honda method, and if the level is correct, have the transmission diagnosed rather than repeating exchanges.

What still has to come from the vehicle’s manual

Exact drain-plug torque, refill quarts for a pan drain versus a dry fill, the 9-speed and 10-speed temperature window, and the printed ATF part name for a specific VIN are factory figures. They differ enough by year and gearbox that a single article cannot publish one safe number for every Pilot. Use this guide to choose the right kind of service and to stay inside Honda’s drain-and-fill logic; use the owner’s manual and factory service information for the settings that go on the wrench and the bottle.
