Dodge Dakota and Durango EVAP System Diagrams and Common Faults
When a check engine light points to the evaporative emission control system on a Dodge Dakota or Durango, an accurate EVAP system diagram is the first tool for tracing vapor lines, solenoids, and the charcoal canister. Because layouts changed across platform generations, diagrams for a 2003 Dakota, 2007 Durango, or 2018 Durango are not interchangeable. Understanding how fuel tank pressure is managed and where components sit helps owners perform safe visual checks and speak the same language as a technician before any smoke test or scan-tool diagnosis.
How the EVAP System Works on Dakota and Durango Models

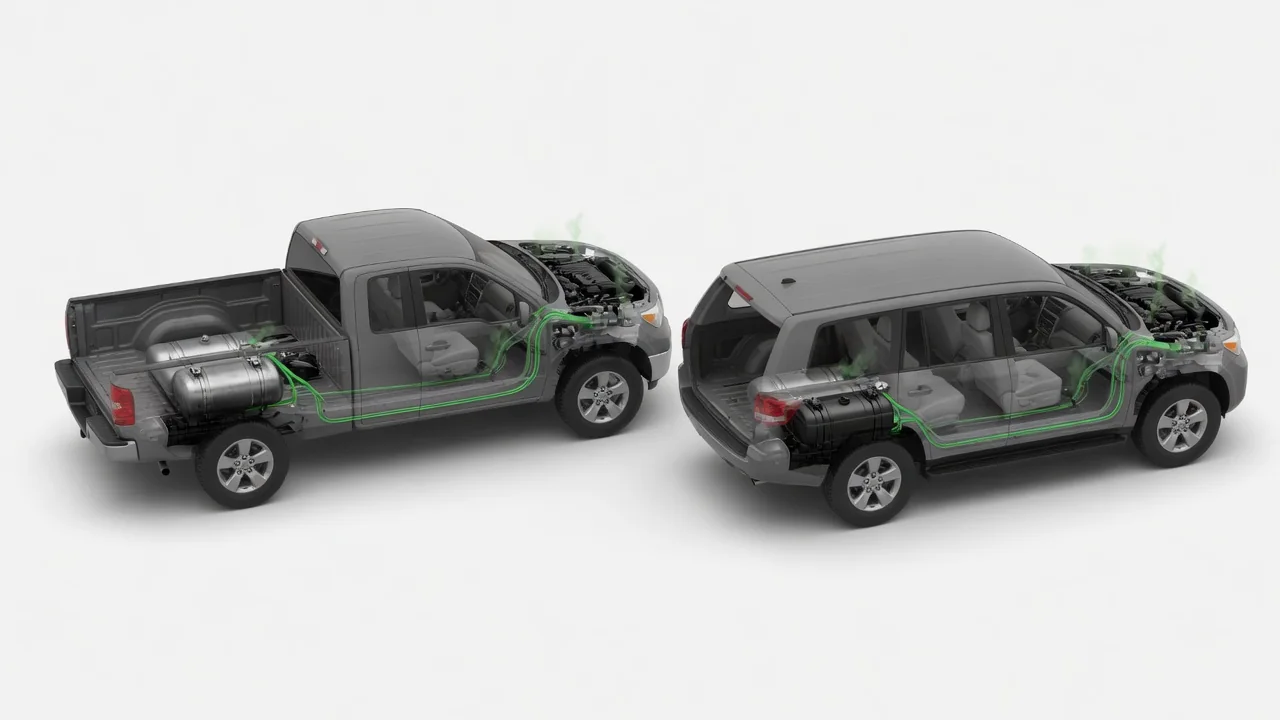

Fuel vapor builds inside the fuel tank as gasoline warms and sloshes. Instead of venting those hydrocarbons to the atmosphere, the EVAP system stores them in a charcoal canister and later feeds them to the engine. Vapor travels from the tank through rollover valves and a vapor line to the canister, where activated carbon holds the fuel until the engine computer opens the purge solenoid. Intake manifold vacuum then pulls the stored vapor into the combustion chambers through a purge line.
Every diagram shows the same core parts connected in a loop: the fuel filler neck and cap, tank vapor valves, charcoal canister, purge solenoid near the engine, and a vent or leak-detection device on the canister. Hoses and hard plastic vapor lines link these components. The engine computer periodically closes the vent, applies vacuum, and monitors fuel tank pressure to test for leaks. Because test logic and component placement vary with model year and engine calibration, any diagram must be matched to the exact vehicle before diagnosis.
2000-2004 Dodge Dakota EVAP System Layout
On the 2000-2004 Dodge Dakota, expect tank-side parts at the rear near the fuel tank, along with a canister and vent valve mounted on the frame or above the spare tire. A purge line runs forward along the body to the engine bay, ending at the purge solenoid and intake manifold. Cab style and bed length can change where hoses are clipped, and 4x4 trucks may route lines differently around the transfer case. Always confirm component locations in the service information for the specific build.
When reading a factory-style diagram, start at the fuel tank and trace vapor toward the canister, then follow the purge line to the engine. Identify purge-side hoses by their connection to intake vacuum and vent-side hoses by their path to the canister and atmosphere. Match electrical connectors to the purge solenoid, vent valve, and any tank pressure sensor. Use the diagram only for visual inspection, looking for cracked, disconnected, or chafed hoses and damaged locking tabs, without opening any fuel or vapor line.
2001-2003 Dodge Durango EVAP System Layout
The first-generation Dodge Durango from 2001-2003 shares its platform with the Dakota, so the EVAP layout follows the same basic flow: tank and rollover valves at the rear, a canister under the body, and purge components in the engine bay. However, the Durango's longer floor and rear-mounted spare can shift the canister location. Different engines and 4x4 drivetrains also alter underbody routing, so owners should not assume a Dakota diagram fits their SUV without confirmation.
Typically, the purge solenoid sits near the throttle body or intake manifold, while the charcoal canister and vent valve are mounted on or above the frame rail behind the rear axle. To match the diagram to the vehicle, locate the vapor lines from the tank and follow them forward until they disappear into the body or engine compartment. Before assuming a hose is missing or misrouted, compare the connector shapes and line diameters with the diagram for the exact engine and drivetrain.
2004-2009 Dodge Durango EVAP Diagram, Including the 2007 Model
The second-generation Durango (2004-2009) moved to an independent rear suspension design, changing where the fuel tank and EVAP components are packaged. A 2007 Durango diagram will not match the Dakota-based first generation. Look for the canister near the fuel tank, often above it or in the rear quarter area, with a purge solenoid in the engine bay. The leak-monitoring strategy may use a canister vent valve, a leak detection pump, or an engine-off natural vacuum test, depending on the engine calibration.
Because the underbody is crowded and visibility is poor, use the diagram to identify only what can be seen from a safe position. Check the filler neck for rust or cracks, look for loose or hanging vapor lines, and inspect the canister area for impact damage. Do not attempt to remove shields or components without proper support. If the vehicle sets an EVAP leak code, record the exact code and freeze-frame data, then confirm which leak test the vehicle uses before replacing any part.
2014-2018 Dodge Durango EVAP System Diagram
The third-generation Durango (2011-present, including 2014-2018 diagrams) uses a sealed EVAP system with tighter leak detection thresholds. The charcoal canister and vent valve are typically mounted near the fuel tank, while the purge solenoid remains under the hood. The engine bay side of the diagram is straightforward: purge line from the canister, purge solenoid, and a service port. The tank side includes a capless or cap-style filler neck, a fuel tank pressure sensor, and vapor lines routed along the body.
On V6 models, the purge solenoid may be located near the throttle body; on V8s, it may sit closer to the firewall or intake manifold. Running changes within these model years can alter connector shapes and line lengths. When using a diagram, first verify that the engine and year match, then trace the purge side from the canister forward and the vent side from the canister to the atmosphere. If the vehicle has a capless filler, inspect the spring-loaded flapper for debris and proper sealing.
Common EVAP Leak and Solenoid Symptoms on These Vehicles
Common EVAP symptoms across Dakota and Durango models include an illuminated check engine light with a leak or purge code, a fuel odor near the rear of the vehicle, and difficulty refueling when the fill nozzle clicks off repeatedly. A rough idle immediately after filling up often points to a purge valve stuck open, allowing raw fuel vapor to enter the intake at idle. A failed emissions readiness monitor can occur if the EVAP self-test never completes, even without a stored fault code.
Small-leak codes (like P0456 on some models) indicate a leak smaller than about 0.020 inch, while large-leak codes (like P0455) mean a major opening such as a loose fuel cap or broken hose. Circuit codes for the purge or vent solenoid indicate an electrical fault, not automatically a bad part. A stuck-open purge valve and a cracked hose can both cause a rich idle or fuel smell, so the code alone is not diagnostic. Start by checking the fuel cap seal, filler neck condition, and visible hoses, then clear the code and see if it returns.
Safe Inspection Limits and When to Get Professional EVAP Testing
Fuel vapor is highly flammable, so any inspection must be done with the engine off and cool, in a well-ventilated area away from sparks, flames, or smoking. Never open vapor lines, remove the fuel cap on a hot engine, or apply pressure to the EVAP system. Even a small leak can release combustible vapors, and disconnecting the wrong hose can damage a connector or release pressure unexpectedly. If you smell strong gasoline or see liquid fuel, stop and have the vehicle towed.
Finding a small EVAP leak requires a professional smoke machine that injects vapor into the sealed system and a bright light to spot the wisp at the leak point. A scan tool is needed to command the purge and vent solenoids and run the manufacturer-specific leak test. Seek professional help when a code returns after basic checks, when the vehicle must pass an emissions inspection, or when the fuel smell is strong. Bring a written list of codes, freeze-frame data, and any recent refueling or repair history to speed diagnosis.
