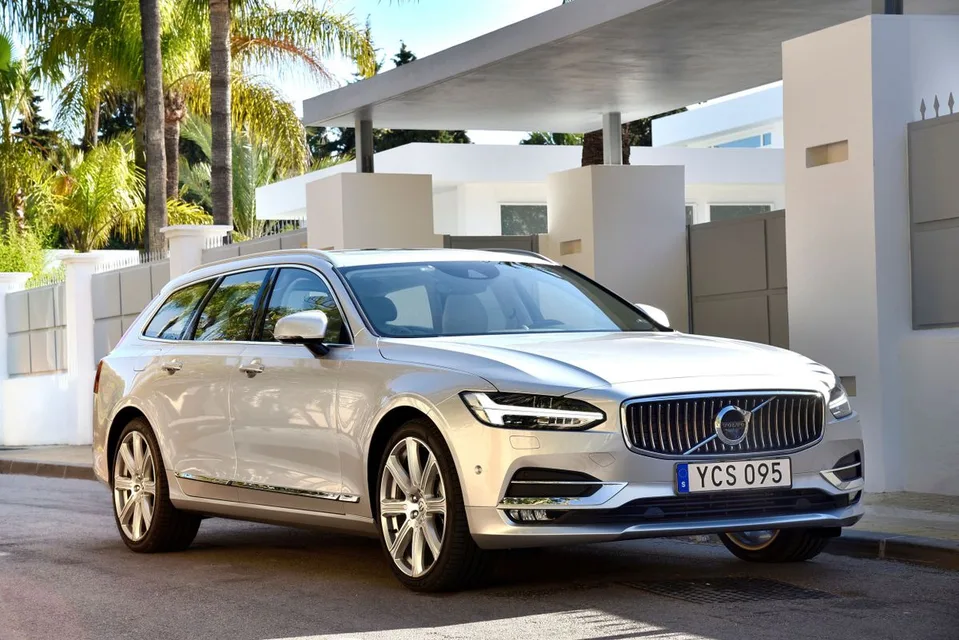

Volvo V90 Specs, Engines & Dimensions (2016–2020)

Volvo V90 Engines and Transmissions

Every Volvo V90 engine here is a 2.0-litre four-cylinder with an automatic transmission, so the real choice is fuel and drivetrain. Diesel and gasoline versions drive the front wheels and suit steady mileage, while the plug-in hybrid adds all-wheel drive and quiet electric running around town.

Estate 5-door — Volvo V90 Engines and Transmissions

Estate 5-door Volvo V90 Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
2.0 AT	Diesel	1969 cm³	190 hp	140 kW	400 N⋅m	Automatic	FWD
2.0 AT	Diesel	1969 cm³	235 hp	173 kW	480 N⋅m	Automatic	AWD
2.0 AT	Gasoline	1969 cm³	254 hp	187 kW	350 N⋅m	Automatic	FWD
2.0 AT	Gasoline	1969 cm³	320 hp	235 kW	400 N⋅m	Automatic	AWD
2.0 AT	Hybrid	1969 cm³	320 hp	235 kW	400 N⋅m	Automatic	AWD
2.0 AT	Gasoline	1969 cm³	310 hp	228 kW	400 N⋅m	Automatic	AWD

Volvo V90 Dimensions

Estate 5-door — Volvo V90 Dimensions

Estate 5-door Volvo V90 Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
2.0 AT	4936 mm	1890 mm	1475 mm	2941 mm	1840 kg	2310 kg	153 mm
2.0 AT	4936 mm	1890 mm	1475 mm	2941 mm	1927 kg	2400 kg	153 mm
2.0 AT	4936 mm	1890 mm	1475 mm	2941 mm	1825 kg	2300 kg	153 mm
2.0 AT	4936 mm	1890 mm	1475 mm	2941 mm	1924 kg	2400 kg	153 mm
2.0 AT	4936 mm	1890 mm	1475 mm	2941 mm	1825 kg	Not provided	153 mm
2.0 AT	4936 mm	1890 mm	1475 mm	2941 mm	1924 kg	2400 kg	153 mm

Volvo V90 Cargo Space

Estate 5-door — Volvo V90 Cargo Space

Estate 5-door Volvo V90 Cargo Space
Modification	Trunk volume min
2.0 AT	1526 l
2.0 AT	1526 l
2.0 AT	1526 l
2.0 AT	1526 l
2.0 AT	1526 l
2.0 AT	1526 l

Volvo V90 Specs, Engines & Dimensions (2016–2020) — Second Generation

Volvo V90

Volvo V90

Volvo V90

Volvo V90

Volvo V90

Volvo V90

Volvo V90 Engines and Transmissions

Estate 5-door — Volvo V90 Engines and Transmissions

Volvo V90 Dimensions

Estate 5-door — Volvo V90 Dimensions

Volvo V90 Cargo Space

Estate 5-door — Volvo V90 Cargo Space
