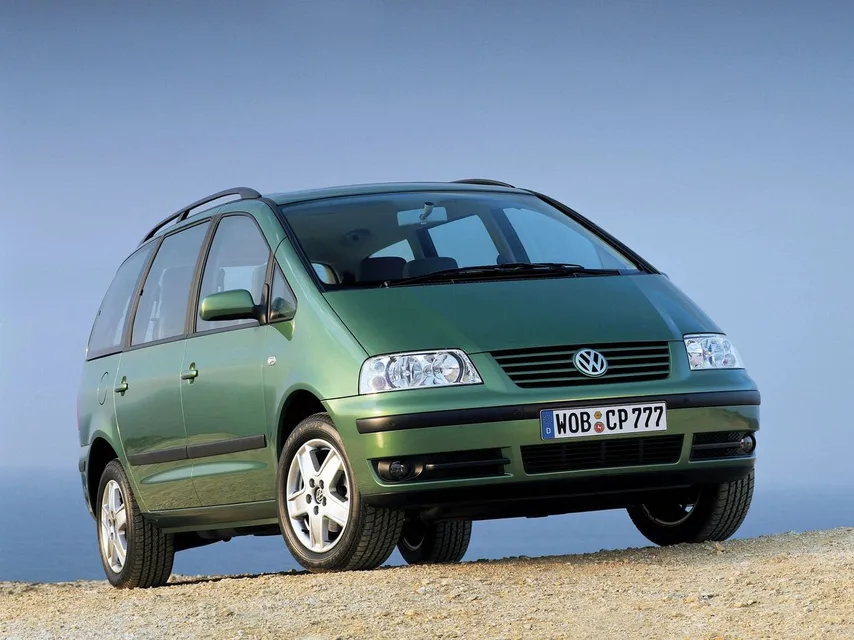

Catalog / Volkswagen / Sharan / 1 generation, restyling
Volkswagen Sharan Engines and Transmissions
Volkswagen Sharan engine choices include gasoline and diesel options. Among them, the front-wheel-drive 1.8 AT offers automatic convenience in traffic, while the gasoline 1.8 MT combines front-wheel drive with manual gear selection. The diesel 1.9 MT pairs a manual transmission with all-wheel drive, which can help you pull away on slippery surfaces.
Minivan — Volkswagen Sharan Engines and Transmissions
Minivan Volkswagen Sharan Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive
1.8 AT Gasoline 1781 cm³ 150 hp 110 kW 210 N⋅m Automatic FWD 1.8 MT Gasoline 1781 cm³ 150 hp 110 kW 220 N⋅m Manual FWD 2.0 AT Gasoline 1984 cm³ 115 hp 85 kW 170 N⋅m Automatic FWD 2.0 MT Gasoline 1984 cm³ 115 hp 85 kW 170 N⋅m Manual FWD 2.8 MT Gasoline 2792 cm³ 204 hp 150 kW 265 N⋅m Manual FWD 2.8 AT Gasoline 2792 cm³ 204 hp 150 kW 270 N⋅m Automatic FWD 2.8 MT Gasoline 2792 cm³ 204 hp 150 kW 265 N⋅m Manual AWD 1.9 MT Diesel 1896 cm³ 90 hp 66 kW 240 N⋅m Manual FWD 1.9 MT Diesel 1896 cm³ 110 hp 81 kW 235 N⋅m Manual FWD 1.9 AT Diesel 1896 cm³ 110 hp 81 kW 235 N⋅m Automatic FWD 1.9 AT Diesel 1896 cm³ 115 hp 85 kW 310 N⋅m Automatic FWD 1.9 MT Diesel 1896 cm³ 115 hp 85 kW 310 N⋅m Manual AWD 1.9 MT Diesel 1896 cm³ 115 hp 85 kW 310 N⋅m Manual FWD 1.9 MT Diesel 1896 cm³ 130 hp 96 kW 310 N⋅m Manual FWD 1.9 MT Diesel 1896 cm³ 130 hp 96 kW 310 N⋅m Manual FWD
Volkswagen Sharan Dimensions
Minivan — Volkswagen Sharan Dimensions
Minivan Volkswagen Sharan Dimensions Modification Length Width Height Wheelbase Curb weight Max weight Ground clearance, minimum
1.8 AT 4634 mm 1810 mm 1730 mm 2841 mm 1607 kg 2400 kg 150 mm 1.8 MT 4634 mm 1810 mm 1730 mm 2841 mm 1600 kg 2450 kg 150 mm 2.0 AT 4634 mm 1810 mm 1730 mm 2841 mm 1573 kg 2350 kg 150 mm 2.0 MT 4634 mm 1810 mm 1730 mm 2841 mm 1580 kg 2430 kg 201 mm 2.8 MT 4634 mm 1810 mm 1730 mm 2841 mm 1755 kg 2470 kg 150 mm 2.8 AT 4634 mm 1810 mm 1730 mm 2841 mm 1627 kg 2470 kg 150 mm 2.8 MT 4634 mm 1810 mm 1730 mm 2841 mm 1715 kg 2510 kg 201 mm 1.9 MT 4634 mm 1810 mm 1730 mm 2841 mm 1583 kg 2430 kg 201 mm 1.9 MT 4634 mm 1810 mm 1730 mm 2841 mm 1665 kg 2400 kg 150 mm 1.9 AT 4634 mm 1810 mm 1730 mm 2841 mm 1775 kg 2400 kg 150 mm 1.9 AT 4634 mm 1810 mm 1730 mm 2841 mm 1705 kg 2430 kg 150 mm 1.9 MT 4634 mm 1810 mm 1730 mm 2841 mm 1770 kg 2430 kg 150 mm 1.9 MT 4634 mm 1810 mm 1730 mm 2841 mm 1650 kg 2510 kg 150 mm 1.9 MT 4634 mm 1810 mm 1730 mm 2841 mm 1583 kg 2430 kg 201 mm 1.9 MT 4634 mm 1810 mm 1730 mm 2841 mm 1710 kg 2470 kg 150 mm
Volkswagen Sharan Cargo Space
Minivan — Volkswagen Sharan Cargo Space
