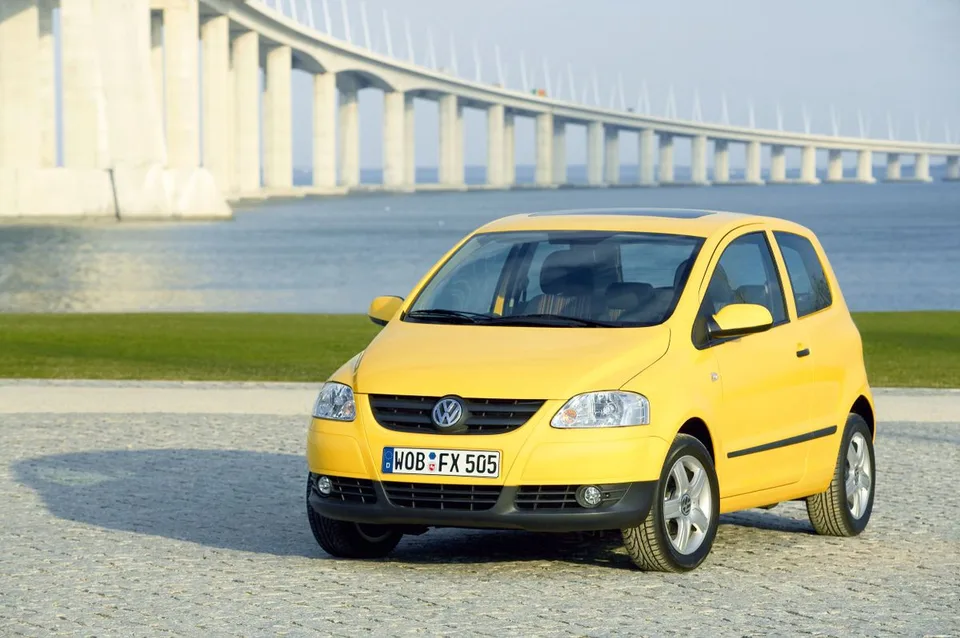

Volkswagen Fox 1.2 MT Specs — First Generation

Rear overhang on the Fox covers bodywork behind the axle, some of it wheel arch and bumper structure rather than usable load length.

1 generation · Mini 3-doors

2003–2009

1.2 MT

Gasoline · Manual · FWD

At a glance

View full specifications ↓

Choose a trim

Confirmed trim details are not yet available for this modification.

Report an inaccuracy ↗

Specifications

Jump to a section

Performance & powertrain

Top speed
?

The highest speed a vehicle can sustain under manufacturer test conditions. Some cars are electronically limited below their mechanical potential. Glossary entry

148 km/h
Engine type
Gasoline
Transmission
Manual
Type of boost
?

A turbocharger or supercharger compresses the air entering the engine so a smaller engine can produce more power. Naturally aspirated engines draw air without a compressor. Glossary entry

No
Type of drive
?

Which wheels receive power: front-wheel drive, rear-wheel drive or all-wheel drive. All-wheel drive can send power to every wheel for extra traction. Glossary entry

FWD
Bore and stroke
?

The diameter of a cylinder (bore) and the distance the piston travels inside it (stroke). Together they determine the displacement of the engine. Glossary entry

76.5 × 86.9 mm
Engine capacity
?

The total volume swept by all pistons inside the cylinders, usually stated in cubic centimetres or litres. Larger displacement often means more power but higher consumption. Glossary entry

1198 cm³
Engine location
Front, transverse
Number of gears
?

How many fixed forward ratios a gearbox offers. More gears can improve economy and refinement; continuously variable transmissions have no fixed steps. Glossary entry

5
Maximum power
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

55 hp
Maximum power, kw
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

41 kW
Compression ratio
?

The ratio between the largest and smallest volume of a cylinder as the piston moves. Higher ratios improve efficiency but may require higher-octane fuel. Glossary entry

10.3
Maximum power rpm
4750 rpm
Maximum torque N⋅m
108 N⋅m
Maximum torque rpm
3000 rpm
Acceleration to 100
?

The time a vehicle needs to reach 100 km/h from a standstill, a common shorthand for overall performance. Glossary entry

17.5 s
Engine power system
Distributed injection (multi-point)
Number of cylinders
3
Valves per cylinder
?

The number of intake and exhaust valves in each cylinder. Four valves per cylinder is common and helps the engine breathe at higher speeds. Glossary entry

2
Cylinder arrangement
Inline
Maximum power ICE
Not provided
Maximum power ICE
Not provided

Energy & emissions

ECO class
Not provided
Battery power
Not provided
Fuel grade
95
Mild Hybrid
?

A car with a small electric motor and battery that assist the combustion engine and recover braking energy but cannot drive on electricity alone. Glossary entry

Not provided
Battery type
Not provided
CO2 emissions
?

The amount of carbon dioxide released per kilometre under a standardised test. Lower figures usually go hand in hand with lower fuel consumption. Glossary entry

Not provided
Full charge home
Not provided
Power consumption
Not provided
Fuel tank capacity
50 l
Full public charging time
Not provided
Driving range, maximum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

Not provided
Driving range, minimum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

Not provided
Fuel consumption city
Not provided
Average consumption
Not provided
Fuel consumption highway
Not provided

Dimensions & body

Doors number
3
Number of seats
4
Width
1660 mm
Height
1544 mm
Length
3828 mm
Body type
Mini 3-doors
Wheelbase
?

The distance between the centres of the front and rear wheels. A longer wheelbase usually gives more cabin space and a calmer ride; a shorter one helps agility and parking. Glossary entry

2468 mm
U-turn diameter
Not provided
Depth of the ford to be crossed
Not provided
Body style
Mini
Rear track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

1424 mm
Trunk volume max
1016 l
Trunk volume min
260 l
Front track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

1428 mm
Max weight
1410 kg
Curb weight
?

The weight of the vehicle with all standard equipment and fluids but without passengers or cargo. Glossary entry

975 kg
Ground clearance, maximum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

Not provided
Ground clearance, minimum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

Not provided

Identity & configuration

Vehicle class
A
Right-hand drive
No

Additional specifications

Stop
2009-12-31
Start
2003-01-01
Wheel size
Not provided
Rear brakes
Drum
Front brakes
Disc
Rear suspension
Semi-independent, springorts hélicoïdaux, sem
Front suspension
Independent, spring

Not provided means the source has no value. Zero remains zero. Units are shown as supplied; range test cycles are only stated when known.

Fuel cost calculator

Estimates use only the figures you enter, in your own currency. No live fuel prices or emissions data are used.

Units

Enable JavaScript to calculate estimates.

Engine and Transmission

Gasoline burns as a throttled charge, so the driver's pedal largely meters how much air enters. With a manual gearbox, the clutch fully separates engine from wheels, letting that combustion continue while no torque is transmitted.

Drivetrain and Everyday Driving

Front-wheel drive names the driven axle, not the hardware dividing torque within it. Differentials vary in internal design and in whether any locking or torque-biasing function exists, and that detail comes from the specification rather than the layout.

Body and Practicality

A three-door's hatch lid rises through an arc, sweeping backward before reaching its highest point. Lifting it by hand still demands that swept space stay clear, so a garage door or overhanging branch can block it mid-travel.
