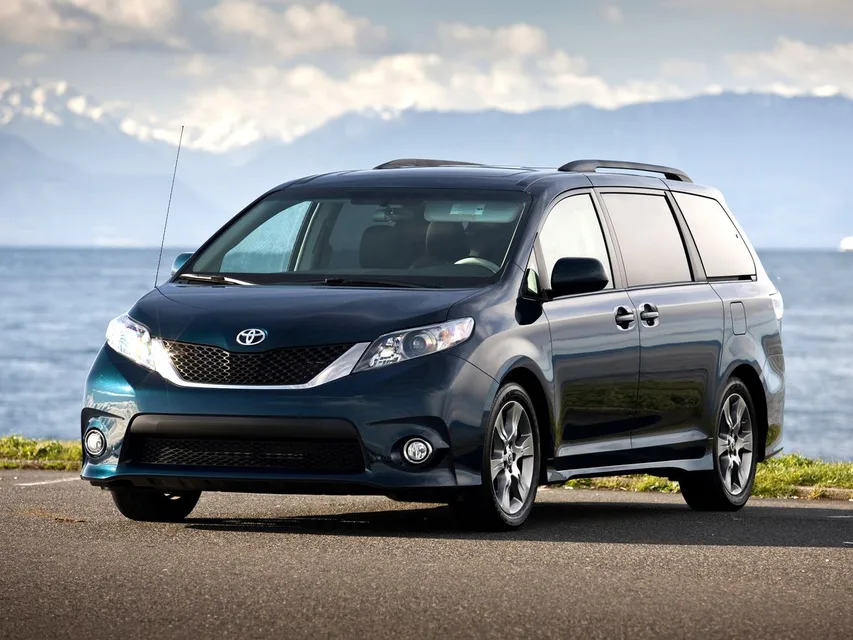

Toyota Sienna Specs, Engines & Dimensions (2010–2014)

Toyota Sienna Engines and Transmissions

A Toyota Sienna engine example from this generation is the 2.7 AT minivan, with gasoline power, an automatic transmission, and a front-wheel-drive drivetrain. That powertrain keeps your commuting and family trips simple. Treat it as one selected configuration, not the complete lineup.

Minivan — Toyota Sienna Engines and Transmissions

Minivan Toyota Sienna Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
2.7 AT	Gasoline	2700 cm³	187 hp	138 kW	252 N⋅m	Automatic	FWD
3.5 AT	Gasoline	3456 cm³	266 hp	196 kW	392 N⋅m	Automatic	AWD
3.5 AT	Gasoline	3456 cm³	268 hp	197 kW	392 N⋅m	Automatic	FWD
3.5 AT	Gasoline	3456 cm³	296 hp	218 kW	358 N⋅m	Automatic	FWD
3.5 AT	Gasoline	3456 cm³	296 hp	218 kW	358 N⋅m	Automatic	AWD

Toyota Sienna Dimensions

Minivan — Toyota Sienna Dimensions

Minivan Toyota Sienna Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Ground clearance, minimum
2.7 AT	5085 mm	1986 mm	1750 mm	3030 mm	1939 kg	165 mm
3.5 AT	5085 mm	1986 mm	1750 mm	3030 mm	2082 kg	165 mm
3.5 AT	5085 mm	1986 mm	1750 mm	3030 mm	1987 kg	165 mm
3.5 AT	5085 mm	1986 mm	1750 mm	3030 mm	1987 kg	165 mm
3.5 AT	5085 mm	1986 mm	1750 mm	3030 mm	2095 kg	165 mm

Toyota Sienna Cargo Space

Minivan — Toyota Sienna Cargo Space

Minivan Toyota Sienna Cargo Space
Modification	Trunk volume min	Trunk volume max
2.7 AT	1107 l	2466 l
3.5 AT	1107 l	2466 l
3.5 AT	1107 l	2466 l
3.5 AT	1107 l	2466 l
3.5 AT	1107 l	2466 l

Toyota Sienna Trims and Equipment

Toyota Sienna Trims and Equipment
Modification	Body	Equipment
3.5 AT	Minivan	L
3.5 AT	Minivan	LE
3.5 AT	Minivan	XLE
