Toyota Prius Plug-In Specs, Engines & Dimensions (2016–2017) — Fourth Generation

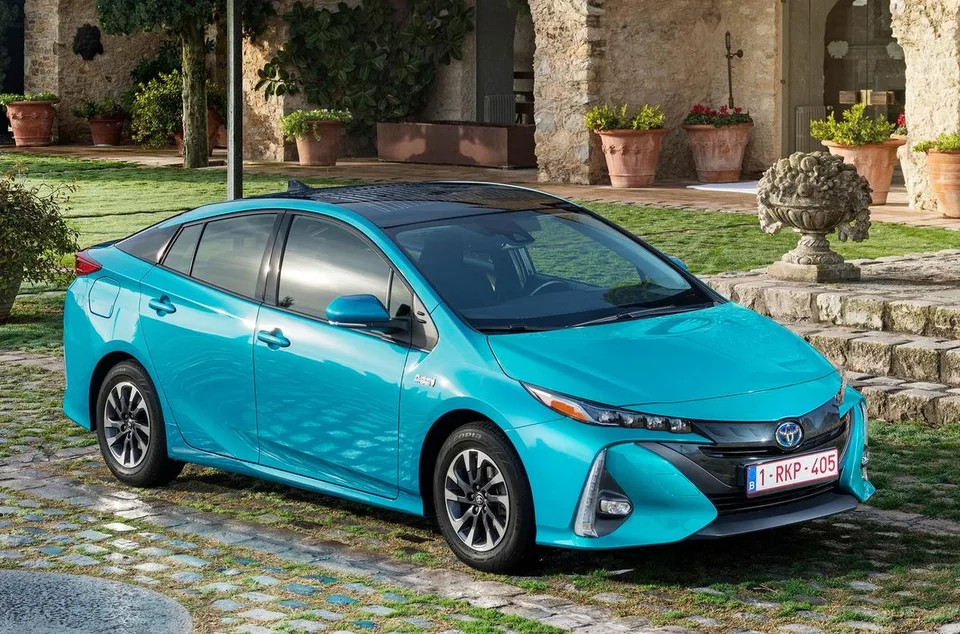

The fourth-generation Toyota Prius Plug-In combines liftback practicality with the option to drive on stored electricity. Your charging routine and equipment priorities help determine which version makes sense for you.

← All Toyota models

1 modificationAll supplied years

Toyota Prius Plug-In Engines and Transmissions

The selected 2ZR-FXE powertrain combines a petrol engine with electric assistance, a variable transmission and front-wheel drive. You get acceleration without conventional stepped gear changes. Under stronger acceleration, engine revs can rise and remain elevated while road speed builds, which is normal for this transmission design.

Liftback — Toyota Prius Plug-In Engines and Transmissions

Liftback Toyota Prius Plug-In Engines and Transmissions
ModificationEngine typeEngine capacityMaximum powerMaximum power, kwMaximum torque N⋅mTransmissionType of drive
2ZR-FXEPlug-in1798 cm³98 hp72 kW145 N⋅mVariableFWD

Toyota Prius Plug-In Dimensions

Liftback — Toyota Prius Plug-In Dimensions

Liftback Toyota Prius Plug-In Dimensions
ModificationLengthWidthHeightWheelbaseCurb weightMax weightGround clearance, minimum
2ZR-FXE4645 mm1760 mm1470 mm2700 mm1530 kg1930 kg130 mm

Toyota Prius Plug-In Cargo Space

Liftback — Toyota Prius Plug-In Cargo Space

Liftback Toyota Prius Plug-In Cargo Space
ModificationTrunk volume min
2ZR-FXE359 l

Toyota Prius Plug-In Trims and Equipment

Standart and Comfort are equipment configurations associated with the selected 2ZR-FXE Liftback version. These Toyota Prius Plug-In trim levels help distinguish equipment choices within the same basic drivetrain specification. When choosing, check the actual comfort, infotainment and driver assistance features fitted to the car you are considering.

Toyota Prius Plug-In Trims and Equipment
ModificationBodyEquipment
2ZR-FXELiftbackStandart
2ZR-FXELiftbackComfort

Toyota Prius Plug-In Battery, Range, Charging

The selected 2ZR-FXE plug-in hybrid uses a lithium-ion battery. Battery capacity influences electric range, while temperature, speed and heating use affect how far a charge takes you. Regular charging helps you cover more journeys electrically; when the usable plug-in charge is depleted, the car continues operating as a hybrid.

Liftback — Toyota Prius Plug-In Battery, Range, Charging

Liftback Toyota Prius Plug-In Battery, Range, Charging
ModificationBattery powerBattery typeDriving range, maximumFull charge homeFull public charging time
2ZR-FXE4.5 kWhLithium-ion batterie45 km240 min120 min
