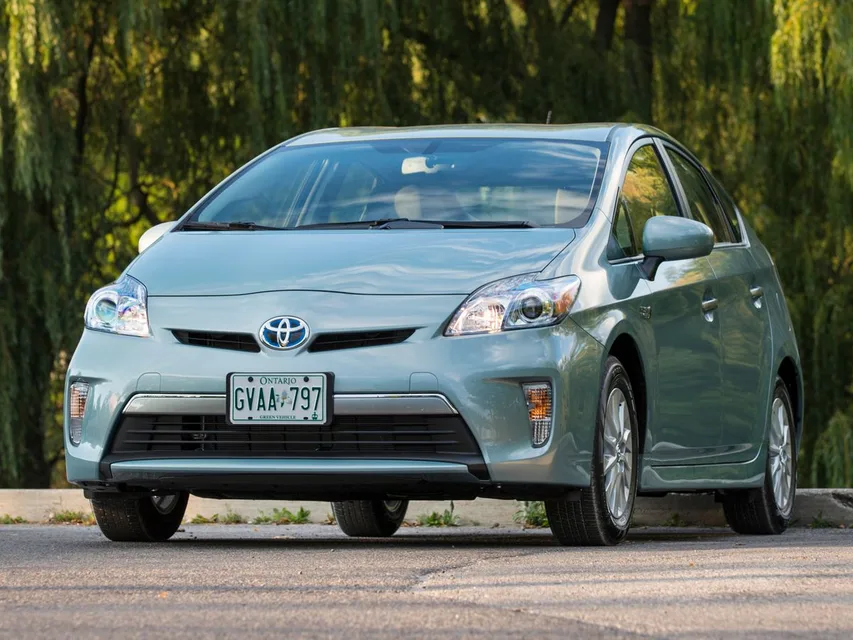

Toyota Prius Plug-In 1.8 CVT 2ZR-FXE Specs — Third Generation

For longer journeys, the Toyota Prius Plug-In 1.8 CVT 2ZR-FXE invites thoughts about preparation and personal comfort rather than headline figures.

3 generation · Liftback

2012–2016

1.8 CVT 2ZR-FXE

Plug-in · Variable · FWD

At a glance

View full specifications ↓

Choose a trim

Report an inaccuracy ↗

Specifications

Jump to a section

Performance & powertrain

Top speed
?

The highest speed a vehicle can sustain under manufacturer test conditions. Some cars are electronically limited below their mechanical potential. Glossary entry

100 km/h
Engine type
Plug-in
Transmission
Variable
Type of boost
?

A turbocharger or supercharger compresses the air entering the engine so a smaller engine can produce more power. Naturally aspirated engines draw air without a compressor. Glossary entry

Not provided
Type of drive
?

Which wheels receive power: front-wheel drive, rear-wheel drive or all-wheel drive. All-wheel drive can send power to every wheel for extra traction. Glossary entry

FWD
Bore and stroke
?

The diameter of a cylinder (bore) and the distance the piston travels inside it (stroke). Together they determine the displacement of the engine. Glossary entry

80.5 x 88.3 mm
Engine capacity
?

The total volume swept by all pistons inside the cylinders, usually stated in cubic centimetres or litres. Larger displacement often means more power but higher consumption. Glossary entry

1798 cm³
Engine location
Front, transverse
Number of gears
?

How many fixed forward ratios a gearbox offers. More gears can improve economy and refinement; continuously variable transmissions have no fixed steps. Glossary entry

Not provided
Maximum power
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

136 hp
Maximum power, kw
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

100 kW
Compression ratio
?

The ratio between the largest and smallest volume of a cylinder as the piston moves. Higher ratios improve efficiency but may require higher-octane fuel. Glossary entry

13
Maximum power rpm
5200 rpm
Maximum torque N⋅m
207 N⋅m
Maximum torque rpm
4000 rpm
Acceleration to 100
?

The time a vehicle needs to reach 100 km/h from a standstill, a common shorthand for overall performance. Glossary entry

11.4 s
Engine power system
Distributed injection (multi-point)
Number of cylinders
4
Valves per cylinder
?

The number of intake and exhaust valves in each cylinder. Four valves per cylinder is common and helps the engine breathe at higher speeds. Glossary entry

4
Cylinder arrangement
Inline
Maximum power ICE
99 hp
Maximum power ICE
72 kW

Energy & emissions

ECO class
Not provided
Battery power
4.4 kWh
Fuel grade
95
Mild Hybrid
?

A car with a small electric motor and battery that assist the combustion engine and recover braking energy but cannot drive on electricity alone. Glossary entry

Not provided
Battery type
Lithium-ion batterie
CO2 emissions
?

The amount of carbon dioxide released per kilometre under a standardised test. Lower figures usually go hand in hand with lower fuel consumption. Glossary entry

41 g/km
Full charge home
180 min
Power consumption
Not provided
Fuel tank capacity
43 l
Full public charging time
90 min
Driving range, maximum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

26 km
Driving range, minimum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

Not provided
Fuel consumption city
Not provided
Average consumption
3.2 l
Fuel consumption highway
Not provided

Dimensions & body

Doors number
5
Number of seats
5
Width
1745 mm
Height
1490 mm
Length
4460 mm
Body type
Liftback
Wheelbase
?

The distance between the centres of the front and rear wheels. A longer wheelbase usually gives more cabin space and a calmer ride; a shorter one helps agility and parking. Glossary entry

2700 mm
U-turn diameter
Not provided
Depth of the ford to be crossed
Not provided
Body style
Sedan
Rear track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

1545 mm
Trunk volume max
1360 l
Trunk volume min
354 l
Front track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

1530 mm
Max weight
1840 kg
Curb weight
?

The weight of the vehicle with all standard equipment and fluids but without passengers or cargo. Glossary entry

1450 kg
Ground clearance, maximum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

Not provided
Ground clearance, minimum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

Not provided

Identity & configuration

Vehicle class
C
Right-hand drive
No

Additional specifications

Stop
2016-10-31
Start
2012-01-01
Wheel size
Not provided
Rear brakes
Disc
Front brakes
Ventilated disc
Rear suspension
Independent, spring
Front suspension
Independent, spring

Not provided means the source has no value. Zero remains zero. Units are shown as supplied; range test cycles are only stated when known.

Fuel cost calculator

Estimates use only the figures you enter, in your own currency. No live fuel prices or emissions data are used.

Units

Enable JavaScript to calculate estimates.

Engine and Transmission

Predictable responses in everyday traffic help make a long trip feel less demanding. When power delivery is easy to judge, merging and maintaining speed require less constant adjustment.

Drivetrain and Everyday Driving

Simple, intuitive controls support a more relaxed atmosphere on long stretches. You can operate routine functions with barely a glance, which is especially valuable when fatigue begins to build.

Body and Practicality

Luggage needs often grow on longer trips. Having flexible storage that keeps bags within reach and the cabin uncluttered can make packing and unpacking much easier at each stop.
