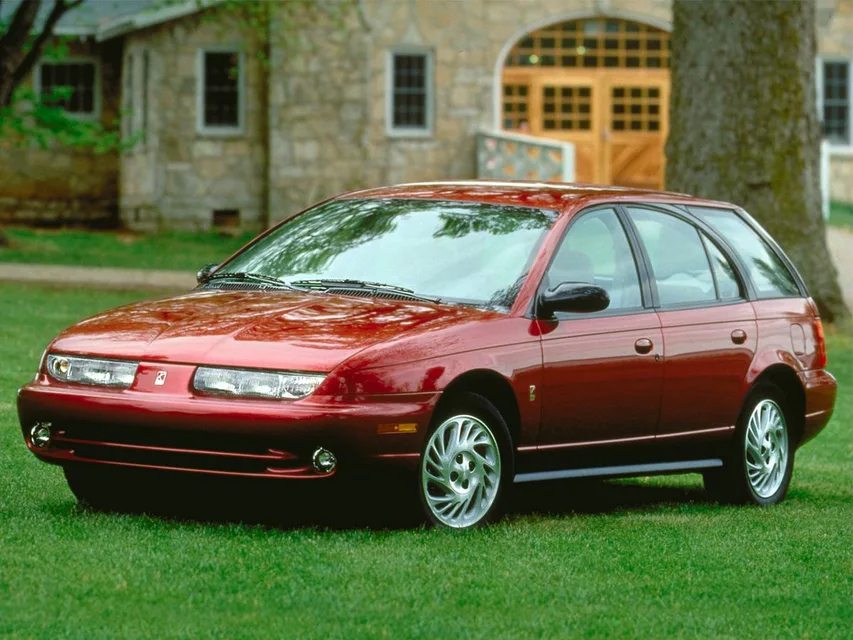

Saturn SW Specs, Engines & Dimensions (1996–2001)

Saturn SW Engines and Transmissions

A Saturn SW engine in this Second Generation is gasoline, so you refuel at a regular pump and get straightforward power for commuting, errands, and highway trips in the Estate 5-door. Transmission choice then shapes the powertrain, from a more involved shift pattern to an easier automatic drivetrain.

Estate 5-door — Saturn SW Engines and Transmissions

Estate 5-door Saturn SW Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.9 MT	Gasoline	1901 cm³	100 hp	74 kW	155 N⋅m	Manual	FWD
1.9 AT	Gasoline	1901 cm³	100 hp	74 kW	155 N⋅m	Automatic	FWD
1.9 MT	Gasoline	1901 cm³	126 hp	93 kW	165 N⋅m	Manual	FWD
1.9 AT	Gasoline	1901 cm³	126 hp	93 kW	165 N⋅m	Automatic	FWD

Saturn SW Dimensions

Estate 5-door — Saturn SW Dimensions

Estate 5-door Saturn SW Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.9 MT	4478 mm	1718 mm	1364 mm	2601 mm	1074 kg	Not provided	140 mm
1.9 AT	4478 mm	1718 mm	1364 mm	2601 mm	Not provided	Not provided	140 mm
1.9 MT	4478 mm	1718 mm	1364 mm	2601 mm	1112 kg	Not provided	140 mm
1.9 AT	4478 mm	1718 mm	1364 mm	2601 mm	1120 kg	1550 kg	140 mm

Saturn SW Cargo Space

Estate 5-door — Saturn SW Cargo Space

Estate 5-door Saturn SW Cargo Space
Modification	Trunk volume min	Trunk volume max
1.9 MT	705 l	1648 l
1.9 AT	705 l	1648 l
1.9 MT	705 l	1648 l
1.9 AT	705 l	1648 l
