Catalog / Mitsubishi / Space Wagon / 3 generation

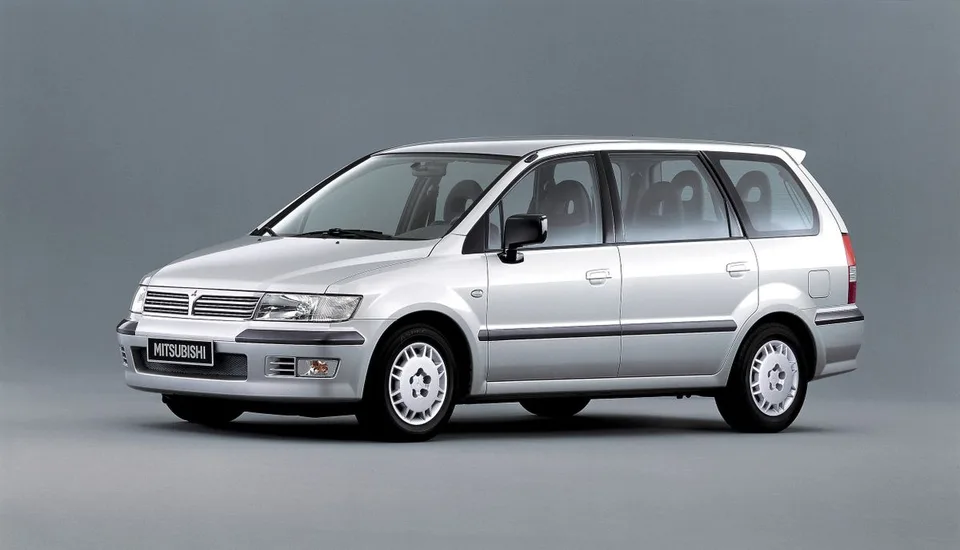

Mitsubishi Space Wagon Engines and Transmissions
A Mitsubishi Space Wagon engine in this Compact Van generation is gasoline, so you pick displacement, transmission and drivetrain. The 2.0 MT uses a manual and front-wheel drive for a more involved commute, while 3.0 AT versions add an automatic with either front-wheel or all-wheel drive.
Compact Van — Mitsubishi Space Wagon Engines and Transmissions
Compact Van Mitsubishi Space Wagon Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive
2.4 MT Gasoline 2351 cm³ 147 hp 108 kW 211 N⋅m Manual FWD 2.4 MT Gasoline 2351 cm³ 147 hp 108 kW 211 N⋅m Manual AWD 2.4 AT Gasoline 2351 cm³ 147 hp 108 kW 211 N⋅m Automatic AWD 2.4 MT Gasoline 2351 cm³ 150 hp 110 kW 225 N⋅m Manual FWD 2.4 AT Gasoline 2351 cm³ 150 hp 110 kW 225 N⋅m Automatic FWD 2.4 MT Gasoline 2351 cm³ 150 hp 110 kW 225 N⋅m Manual AWD 2.4 AT Gasoline 2351 cm³ 150 hp 110 kW 225 N⋅m Automatic AWD 3.0 AT Gasoline 2972 cm³ 215 hp 158 kW 299 N⋅m Automatic FWD 3.0 AT Gasoline 2972 cm³ 215 hp 158 kW 299 N⋅m Automatic AWD 2.0 MT Gasoline 1997 cm³ 133 hp 98 kW 175 N⋅m Manual FWD 2.4 AT Gasoline 2351 cm³ 147 hp 108 kW 211 N⋅m Automatic FWD 2.0 AT Gasoline 1997 cm³ 133 hp 98 kW 175 N⋅m Automatic FWD
Mitsubishi Space Wagon Dimensions
Compact Van — Mitsubishi Space Wagon Dimensions
Compact Van Mitsubishi Space Wagon Dimensions Modification Length Width Height Wheelbase Curb weight Max weight Ground clearance, minimum
2.4 MT 4600 mm 1775 mm 1690 mm 2780 mm 1510 kg 2180 kg 150 mm 2.4 MT 4600 mm 1775 mm 1690 mm 2780 mm 1610 kg 2260 kg 150 mm 2.4 AT 4600 mm 1775 mm 1690 mm 2780 mm 1610 kg 2260 kg 150 mm 2.4 MT 4600 mm 1775 mm 1690 mm 2780 mm 1510 kg 2180 kg 150 mm 2.4 AT 4600 mm 1775 mm 1690 mm 2780 mm 1510 kg 2180 kg 150 mm 2.4 MT 4600 mm 1775 mm 1690 mm 2780 mm 1610 kg 2260 kg 150 mm 2.4 AT 4600 mm 1775 mm 1690 mm 2780 mm 1610 kg 2260 kg 150 mm 3.0 AT 4600 mm 1775 mm 1690 mm 2780 mm 1640 kg Not provided 150 mm 3.0 AT 4600 mm 1775 mm 1690 mm 2780 mm 1720 kg Not provided 150 mm 2.0 MT 4600 mm 1775 mm 1690 mm 2780 mm 1475 kg 2120 kg 150 mm 2.4 AT 4600 mm 1775 mm 1690 mm 2780 mm 1530 kg 2180 kg 150 mm 2.0 AT 4600 mm 1775 mm 1690 mm 2780 mm Not provided 1980 kg 150 mm
Mitsubishi Space Wagon Cargo Space
Compact Van — Mitsubishi Space Wagon Cargo Space
