Mercury Milan Specs, Engines & Dimensions (2005–2010) — First Generation

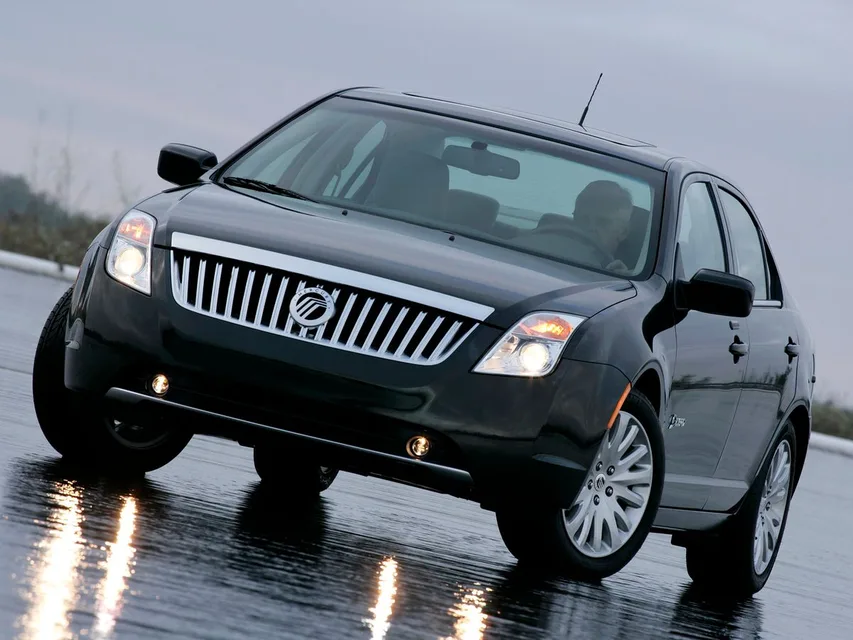

The first-generation Mercury Milan is a four-door sedan aimed at everyday commuting. You get gasoline power, a choice of transmissions, and drivetrain layouts that range from simple front-drive to all-wheel drive.

← All Mercury models

5 modificationsAll supplied years

Mercury Milan Engines and Transmissions

Powertrain choices on this generation include the 2.3 MT sedan with a gasoline four-cylinder, manual transmission, and front-wheel drive. A 2.3 AT pairs that same Mercury Milan engine with an automatic. The 3.0 AT is another example: a V6 automatic drivetrain with all-wheel drive when you want extra traction.

Sedan — Mercury Milan Engines and Transmissions

Sedan Mercury Milan Engines and Transmissions
ModificationEngine typeEngine capacityMaximum powerMaximum power, kwMaximum torque N⋅mTransmissionType of drive
2.3 MTGasoline2261 cm³162 hp119 kW203 N⋅mManualFWD
2.3 ATGasoline2261 cm³162 hp119 kW203 N⋅mAutomaticFWD
3.0 ATGasoline2967 cm³212 hp156 kW271 N⋅mAutomaticFWD
3.0 ATGasoline2967 cm³224 hp165 kW278 N⋅mAutomaticFWD
3.0 ATGasoline2967 cm³224 hp165 kW278 N⋅mAutomaticAWD

Mercury Milan Dimensions

Sedan — Mercury Milan Dimensions

Sedan Mercury Milan Dimensions
ModificationLengthWidthHeightWheelbaseCurb weightMax weightGround clearance, minimum
2.3 MT4863 mm1864 mm1417 mm2728 mm1450 kg1980 kgNot provided
2.3 AT4863 mm1864 mm1417 mm2728 mmNot providedNot provided150 mm
3.0 AT4863 mm1864 mm1417 mm2728 mm1535 kgNot provided150 mm
3.0 AT4863 mm1864 mm1417 mm2728 mm1535 kg2040 kgNot provided
3.0 AT4863 mm1864 mm1417 mm2728 mm1615 kg2120 kgNot provided

Mercury Milan Cargo Space

Sedan — Mercury Milan Cargo Space

Sedan Mercury Milan Cargo Space
ModificationTrunk volume min
2.3 MT442 l
2.3 AT442 l
3.0 AT442 l
3.0 AT442 l
3.0 AT442 l
