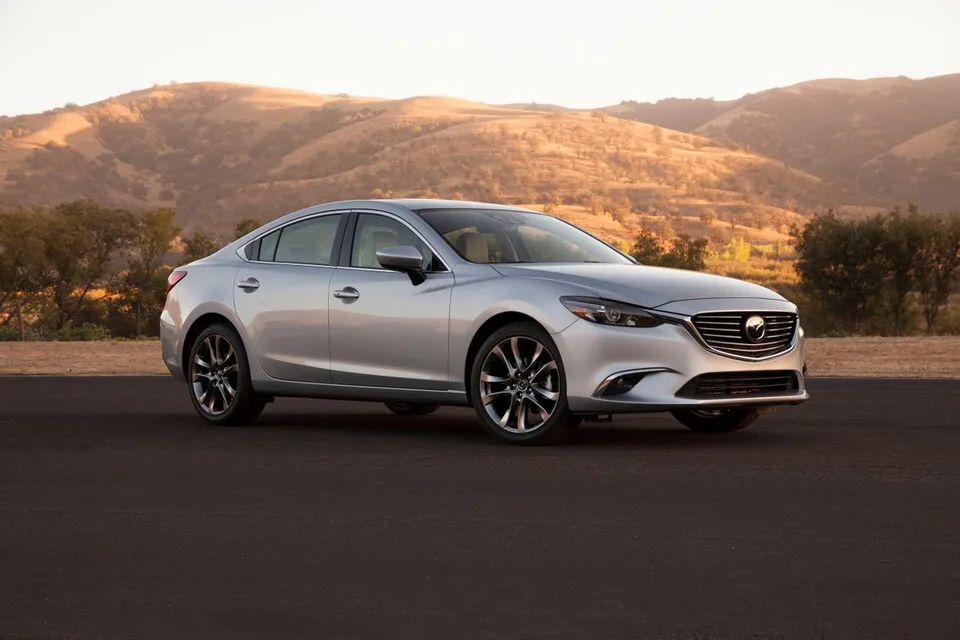

The Mazda 6 Third Generation Restyling is offered as an Estate 5-door and a Sedan. You pick the body that suits daily use: a four-door saloon, or a wagon with extra load space behind the rear seats.
Choosing replacement wheels for a 2014 Mazda 6 involves more than matching the bolt pattern. The offset determines where the wheel and tire…
The Mazda 6 steering angle sensor location is a frequent starting point when the steering feel changes or a stability control warning…
A Mazda 6 engine here is a gasoline unit with an automatic transmission and front-wheel drive. Estate 5-door examples include 2.0 AT and 2.5 AT; the Sedan is shown with 2.5 AT. These powertrain pairings illustrate the generation, not every drivetrain you might find.
| Modification | Engine type | Engine capacity | Maximum power | Maximum power, kw | Maximum torque N⋅m | Transmission | Type of drive |
|---|---|---|---|---|---|---|---|
| 2.0 MT | Gasoline | 1998 cm³ | 145 hp | 107 kW | 210 N⋅m | Manual | FWD |
| 2.0 MT | Gasoline | 1998 cm³ | 165 hp | 121 kW | 210 N⋅m | Manual | FWD |
| 2.5 AT | Gasoline | 2488 cm³ | 192 hp | 141 kW | 256 N⋅m | Automatic | FWD |
| 2.2 MT | Diesel | 2191 cm³ | 150 hp | 110 kW | 380 N⋅m | Manual | FWD |
| 2.2 AT | Diesel | 2191 cm³ | 150 hp | 110 kW | 380 N⋅m | Automatic | FWD |
| 2.2 MT | Diesel | 2191 cm³ | 150 hp | 110 kW | 380 N⋅m | Manual | AWD |
| 2.2 AT | Diesel | 2191 cm³ | 150 hp | 110 kW | 380 N⋅m | Automatic | AWD |
| 2.2 MT | Diesel | 2191 cm³ | 175 hp | 129 kW | 420 N⋅m | Manual | FWD |
| 2.2 AT | Diesel | 2191 cm³ | 175 hp | 129 kW | 420 N⋅m | Automatic | FWD |
| 2.2 MT | Diesel | 2191 cm³ | 175 hp | 129 kW | 420 N⋅m | Manual | AWD |
| 2.2 AT | Diesel | 2191 cm³ | 175 hp | 129 kW | 420 N⋅m | Automatic | AWD |
| 2.0 AT | Gasoline | 1998 cm³ | 165 hp | 121 kW | 210 N⋅m | Automatic | FWD |
| Modification | Engine type | Engine capacity | Maximum power | Maximum power, kw | Maximum torque N⋅m | Transmission | Type of drive |
|---|---|---|---|---|---|---|---|
| 2.0 AT | Gasoline | 1998 cm³ | 150 hp | 110 kW | 210 N⋅m | Automatic | FWD |
| 2.0 MT | Gasoline | 1998 cm³ | 150 hp | 110 kW | 210 N⋅m | Manual | FWD |
| 2.0 MT | Gasoline | 1998 cm³ | 165 hp | 121 kW | 210 N⋅m | Manual | FWD |
| 2.2 MT | Diesel | 2191 cm³ | 150 hp | 110 kW | 380 N⋅m | Manual | FWD |
| 2.2 AT | Diesel | 2191 cm³ | 150 hp | 110 kW | 380 N⋅m | Automatic | FWD |
| 2.2 MT | Diesel | 2191 cm³ | 175 hp | 129 kW | 420 N⋅m | Manual | FWD |
| 2.2 AT | Diesel | 2191 cm³ | 175 hp | 129 kW | 420 N⋅m | Automatic | FWD |
| 2.5 AT | Gasoline | 2488 cm³ | 192 hp | 141 kW | 256 N⋅m | Automatic | FWD |
| 2.0 AT | Gasoline | 1998 cm³ | 165 hp | 121 kW | 210 N⋅m | Automatic | FWD |
| Modification | Length | Width | Height | Wheelbase | Curb weight | Max weight | Ground clearance, minimum |
|---|---|---|---|---|---|---|---|
| 2.0 MT | 4805 mm | 1840 mm | 1480 mm | 2750 mm | 1305 kg | 1980 kg | 165 mm |
| 2.0 MT | 4805 mm | 1840 mm | 1480 mm | 2750 mm | 1305 kg | 1990 kg | 165 mm |
| 2.5 AT | 4805 mm | 1840 mm | 1480 mm | 2750 mm | 1365 kg | 2040 kg | 165 mm |
| 2.2 MT | 4805 mm | 1840 mm | 1480 mm | 2750 mm | 1410 kg | 2090 kg | 165 mm |
| 2.2 AT | 4805 mm | 1840 mm | 1480 mm | 2750 mm | 1425 kg | 2110 kg | 165 mm |
| 2.2 MT | 4805 mm | 1840 mm | 1480 mm | 2750 mm | 1470 kg | 2135 kg | 165 mm |
| 2.2 AT | 4805 mm | 1840 mm | 1480 mm | 2750 mm | 1485 kg | 2150 kg | 165 mm |
| 2.2 MT | 4805 mm | 1840 mm | 1480 mm | 2750 mm | 1410 kg | 2090 kg | 165 mm |
| 2.2 AT | 4805 mm | 1840 mm | 1480 mm | 2750 mm | 1425 kg | 2110 kg | 165 mm |
| 2.2 MT | 4805 mm | 1840 mm | 1480 mm | 2750 mm | 1470 kg | 2135 kg | 165 mm |
| 2.2 AT | 4805 mm | 1840 mm | 1480 mm | 2750 mm | 1485 kg | 2150 kg | 165 mm |
| 2.0 AT | 4805 mm | 1840 mm | 1480 mm | 2750 mm | 1340 kg | 2020 kg | 165 mm |
| Modification | Length | Width | Height | Wheelbase | Curb weight | Max weight | Ground clearance, minimum |
|---|---|---|---|---|---|---|---|
| 2.0 AT | 4870 mm | 1840 mm | 1450 mm | 2830 mm | 1370 kg | 1830 kg | 165 mm |
| 2.0 MT | 4870 mm | 1840 mm | 1450 mm | 2830 mm | 1340 kg | 1800 kg | 165 mm |
| 2.0 MT | 4870 mm | 1840 mm | 1450 mm | 2830 mm | 1300 kg | 1945 kg | 165 mm |
| 2.2 MT | 4870 mm | 1840 mm | 1450 mm | 2830 mm | 1410 kg | 2055 kg | 165 mm |
| 2.2 AT | 4870 mm | 1840 mm | 1450 mm | 2830 mm | 1420 kg | 2070 kg | 165 mm |
| 2.2 MT | 4870 mm | 1840 mm | 1450 mm | 2830 mm | 1410 kg | 2055 kg | 165 mm |
| 2.2 AT | 4870 mm | 1840 mm | 1450 mm | 2830 mm | 1420 kg | 2070 kg | 165 mm |
| 2.5 AT | 4870 mm | 1840 mm | 1450 mm | 2830 mm | 1400 kg | 1860 kg | 165 mm |
| 2.0 AT | 4870 mm | 1840 mm | 1450 mm | 2830 mm | 1330 kg | 1975 kg | 165 mm |
| Modification | Trunk volume min | Trunk volume max |
|---|---|---|
| 2.0 MT | 522 l | 1648 l |
| 2.0 MT | 522 l | 1648 l |
| 2.5 AT | 522 l | 1648 l |
| 2.2 MT | 522 l | 1648 l |
| 2.2 AT | 522 l | 1648 l |
| 2.2 MT | 522 l | 1648 l |
| 2.2 AT | 522 l | 1648 l |
| 2.2 MT | 522 l | 1648 l |
| 2.2 AT | 522 l | 1648 l |
| 2.2 MT | 522 l | 1648 l |
| 2.2 AT | 522 l | 1648 l |
| 2.0 AT | 522 l | 1648 l |
Mazda 6 trim levels sit on a technical version rather than replacing it. On the 2.5 AT Sedan, Active and Supreme are equipment configurations of the same gasoline automatic, front-wheel-drive car. You pick the powertrain first, then the trim for cabin features.
| Modification | Body | Equipment |
|---|---|---|
| 2.0 AT | Estate 5-door | Luxury |
| 2.0 AT | Sedan | Active |
| 2.0 AT | Sedan | Drive |
| 2.0 AT | Sedan | Supreme |
| 2.0 AT | Sedan | Supreme Plus |
| 2.0 AT | Sedan | Supreme Plus (Package 1) |
| 2.0 AT | Sedan | Supreme Plus (Package 2) |
| 2.0 AT | Sedan | Supreme Plus (Package 3) |
| 2.5 AT | Sedan | Active |
| 2.5 AT | Sedan | Supreme |
| 2.5 AT | Sedan | Supreme Plus |
| 2.5 AT | Sedan | Supreme Plus (Package 1) |
| 2.5 AT | Sedan | Supreme Plus (Package 2) |
| 2.5 AT | Sedan | Supreme Plus (Package 3) |
| 2.5 AT | Sedan | Executive |
| 2.5 AT | Sedan | Executive (Package 4) |
| 2.5 AT | Sedan | Premium |
| 2.5 AT | Sedan | Luxury |
| 2.0 AT | Sedan | Luxury |
