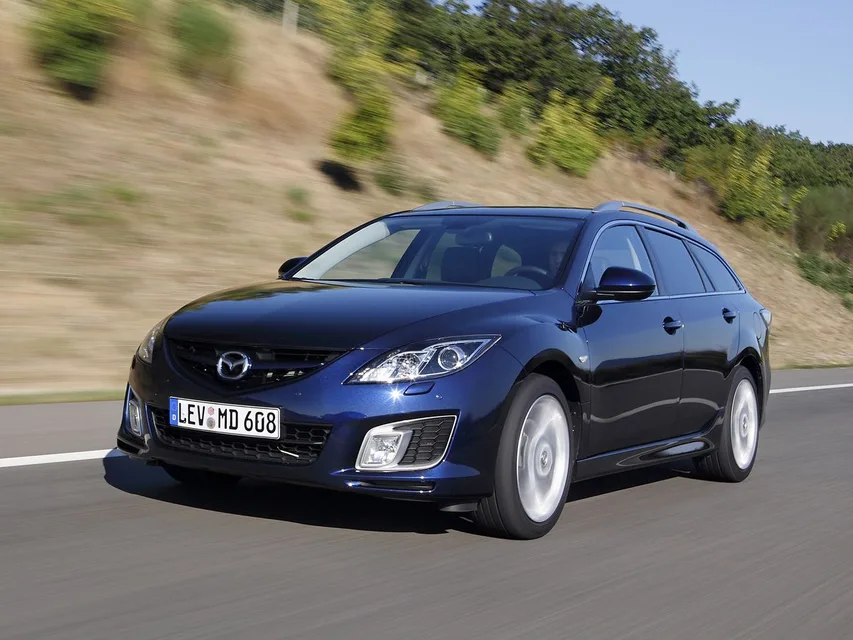

Mazda 6 Specs, Engines & Dimensions (2007–2013) — Second Generation

This Second Generation Mazda 6 covers Liftback, Estate 5-door, and Sedan bodies. You can match engine, gearbox, and shape to how you drive rather than treating one version as the whole range.

← All Mazda models

Mazda 6 Engines and Transmissions

You can choose a Mazda 6 engine as a modest gasoline unit, a diesel for longer trips, or a larger gasoline automatic. The 1.8 MT Liftback is a gasoline manual with front-wheel drive, the 2.0 MT Estate 5-door a diesel manual, the 2.5 AT Liftback an automatic. These are powertrain examples, not the full lineup.

Liftback — Mazda 6 Engines and Transmissions

Liftback Mazda 6 Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.8 MT	Gasoline	1798 cm³	120 hp	88 kW	165 N⋅m	Manual	FWD
2.0 MT	Gasoline	1999 cm³	147 hp	108 kW	184 N⋅m	Manual	FWD
2.5 MT	Gasoline	2488 cm³	170 hp	125 kW	226 N⋅m	Manual	FWD
2.2 MT	Diesel	2184 cm³	125 hp	92 kW	310 N⋅m	Manual	FWD
2.2 MT	Diesel	2184 cm³	163 hp	120 kW	360 N⋅m	Manual	FWD
2.2 MT	Diesel	2184 cm³	185 hp	136 kW	400 N⋅m	Manual	FWD
2.0 AT	Gasoline	1999 cm³	147 hp	108 kW	184 N⋅m	Automatic	FWD
2.5 AT	Gasoline	2488 cm³	170 hp	125 kW	226 N⋅m	Automatic	FWD
2.0 AT	Gasoline	1999 cm³	155 hp	114 kW	193 N⋅m	Automatic	FWD

Estate 5-door — Mazda 6 Engines and Transmissions

Estate 5-door Mazda 6 Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.8 MT	Gasoline	1798 cm³	120 hp	88 kW	165 N⋅m	Manual	FWD
2.0 AT	Gasoline	1999 cm³	147 hp	108 kW	184 N⋅m	Automatic	FWD
2.0 MT	Gasoline	1999 cm³	147 hp	108 kW	184 N⋅m	Manual	FWD
2.5 AT	Gasoline	2488 cm³	170 hp	125 kW	226 N⋅m	Automatic	FWD
2.5 MT	Gasoline	2488 cm³	170 hp	125 kW	226 N⋅m	Manual	FWD
2.0 MT	Diesel	1998 cm³	140 hp	103 kW	330 N⋅m	Manual	FWD
2.2 MT	Diesel	2184 cm³	125 hp	92 kW	310 N⋅m	Manual	FWD
2.2 MT	Diesel	2184 cm³	163 hp	120 kW	360 N⋅m	Manual	FWD
2.2 MT	Diesel	2184 cm³	185 hp	136 kW	400 N⋅m	Manual	FWD

Sedan — Mazda 6 Engines and Transmissions

Sedan Mazda 6 Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.8 MT	Gasoline	1798 cm³	120 hp	88 kW	165 N⋅m	Manual	FWD
2.0 MT	Gasoline	1999 cm³	147 hp	108 kW	184 N⋅m	Manual	FWD
2.5 MT	Gasoline	2488 cm³	170 hp	125 kW	226 N⋅m	Manual	FWD
3.7 MT	Gasoline	3719 cm³	273 hp	201 kW	366 N⋅m	Manual	FWD
3.7 AT	Gasoline	3719 cm³	273 hp	201 kW	366 N⋅m	Automatic	FWD
2.2 MT	Diesel	2184 cm³	125 hp	92 kW	310 N⋅m	Manual	FWD
2.2 MT	Diesel	2184 cm³	163 hp	120 kW	360 N⋅m	Manual	FWD
2.2 MT	Diesel	2184 cm³	185 hp	136 kW	400 N⋅m	Manual	FWD
2.0 MT	Gasoline	1999 cm³	155 hp	114 kW	193 N⋅m	Manual	FWD
2.0 AT	Gasoline	1999 cm³	147 hp	108 kW	184 N⋅m	Automatic	FWD
2.5 AT	Gasoline	2488 cm³	170 hp	125 kW	226 N⋅m	Automatic	FWD
2.0 AT	Gasoline	1999 cm³	155 hp	114 kW	193 N⋅m	Automatic	FWD

Mazda 6 Dimensions

Liftback — Mazda 6 Dimensions

Liftback Mazda 6 Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.8 MT	4755 mm	1795 mm	1440 mm	2725 mm	1395 kg	1925 kg	165 mm
2.0 MT	4755 mm	1795 mm	1440 mm	2725 mm	1410 kg	1950 kg	165 mm
2.5 MT	4755 mm	1795 mm	1440 mm	2725 mm	1430 kg	1970 kg	165 mm
2.2 MT	4755 mm	1795 mm	1440 mm	2725 mm	1560 kg	2100 kg	165 mm
2.2 MT	4755 mm	1795 mm	1440 mm	2725 mm	1560 kg	2100 kg	165 mm
2.2 MT	4755 mm	1795 mm	1440 mm	2725 mm	1570 kg	2100 kg	165 mm
2.0 AT	4755 mm	1795 mm	1440 mm	2725 mm	1430 kg	1975 kg	165 mm
2.5 AT	4755 mm	1795 mm	1440 mm	2725 mm	1430 kg	1970 kg	165 mm
2.0 AT	4755 mm	1795 mm	1440 mm	2725 mm	Not provided	1935 kg	165 mm

Estate 5-door — Mazda 6 Dimensions

Estate 5-door Mazda 6 Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.8 MT	4785 mm	1795 mm	1490 mm	2725 mm	1420 kg	1965 kg	165 mm
2.0 AT	4785 mm	1795 mm	1490 mm	2725 mm	1455 kg	2020 kg	165 mm
2.0 MT	4785 mm	1795 mm	1490 mm	2725 mm	1430 kg	1970 kg	165 mm
2.5 AT	4785 mm	1795 mm	1490 mm	2725 mm	Not provided	Not provided	165 mm
2.5 MT	4785 mm	1795 mm	1490 mm	2725 mm	1455 kg	2010 kg	165 mm
2.0 MT	4785 mm	1795 mm	1490 mm	2725 mm	1575 kg	2035 kg	165 mm
2.2 MT	4785 mm	1795 mm	1490 mm	2725 mm	1570 kg	2135 kg	165 mm
2.2 MT	4785 mm	1795 mm	1490 mm	2725 mm	1575 kg	2135 kg	165 mm
2.2 MT	4785 mm	1795 mm	1490 mm	2725 mm	1585 kg	2145 kg	165 mm

Sedan — Mazda 6 Dimensions

Sedan Mazda 6 Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.8 MT	4755 mm	1795 mm	1440 mm	2725 mm	1355 kg	1850 kg	165 mm
2.0 MT	4755 mm	1795 mm	1440 mm	2725 mm	1370 kg	1905 kg	165 mm
2.5 MT	4755 mm	1795 mm	1440 mm	2725 mm	1395 kg	1930 kg	165 mm
3.7 MT	4755 mm	1795 mm	1440 mm	2725 mm	1395 kg	Not provided	165 mm
3.7 AT	4755 mm	1795 mm	1440 mm	2725 mm	Not provided	Not provided	165 mm
2.2 MT	4755 mm	1795 mm	1440 mm	2725 mm	1520 kg	2055 kg	165 mm
2.2 MT	4755 mm	1795 mm	1440 mm	2725 mm	1520 kg	2055 kg	165 mm
2.2 MT	4755 mm	1795 mm	1440 mm	2725 mm	1530 kg	2065 kg	165 mm
2.0 MT	4755 mm	1795 mm	1440 mm	2725 mm	1390 kg	2000 kg	165 mm
2.0 AT	4755 mm	1795 mm	1440 mm	2725 mm	1395 kg	1935 kg	165 mm
2.5 AT	4755 mm	1795 mm	1440 mm	2725 mm	Not provided	Not provided	165 mm
2.0 AT	4755 mm	1795 mm	1440 mm	2725 mm	1395 kg	1935 kg	165 mm

Mazda 6 Cargo Space

Liftback — Mazda 6 Cargo Space

Liftback Mazda 6 Cargo Space
Modification	Trunk volume min	Trunk volume max
1.8 MT	510 l	1702 l
2.0 MT	510 l	1702 l
2.5 MT	510 l	1702 l
2.2 MT	510 l	1702 l
2.2 MT	510 l	1702 l
2.2 MT	510 l	1702 l
2.0 AT	510 l	1702 l
2.5 AT	510 l	1702 l
2.0 AT	510 l	1702 l

Estate 5-door — Mazda 6 Cargo Space

Estate 5-door Mazda 6 Cargo Space
Modification	Trunk volume min	Trunk volume max
1.8 MT	519 l	1751 l
2.0 AT	519 l	1751 l
2.0 MT	519 l	1751 l
2.5 AT	519 l	1751 l
2.5 MT	519 l	1751 l
2.0 MT	519 l	1751 l
2.2 MT	519 l	1751 l
2.2 MT	519 l	1751 l
2.2 MT	519 l	1751 l

Sedan — Mazda 6 Cargo Space

Sedan Mazda 6 Cargo Space
Modification	Trunk volume min
1.8 MT	501 l
2.0 MT	501 l
2.5 MT	501 l
3.7 MT	501 l
3.7 AT	501 l
2.2 MT	501 l
2.2 MT	501 l
2.2 MT	501 l
2.0 MT	501 l
2.0 AT	501 l
2.5 AT	501 l
2.0 AT	501 l

Mazda 6 Trims and Equipment

Mazda 6 trim levels sit on a named technical version rather than replacing it. On the 1.8 MT Liftback, Direct and Touring are equipment configurations for that same gasoline manual. You pick the powertrain first, then the equipment that suits how you use the car.

Mazda 6 Trims and Equipment
Modification	Body	Equipment
1.8 MT	Liftback	Direct
1.8 MT	Liftback	Touring
2.0 MT	Liftback	Sport
2.0 AT	Liftback	Luxury
2.5 AT	Liftback	Premium
2.0 AT	Liftback	Luxury
1.8 MT	Estate 5-door	Touring
1.8 MT	Sedan	Direct
1.8 MT	Sedan	Touring
2.0 MT	Sedan	Sport
2.5 MT	Sedan	Luxury
2.0 AT	Sedan	Executive
2.0 AT	Sedan	Luxury
2.0 AT	Sedan	Premium
2.5 AT	Sedan	Premium
2.0 AT	Sedan	Executive
2.0 AT	Sedan	Luxury
