Mazda 323 Lantis Specs, Engines & Dimensions (1985–1993) — Third Generation

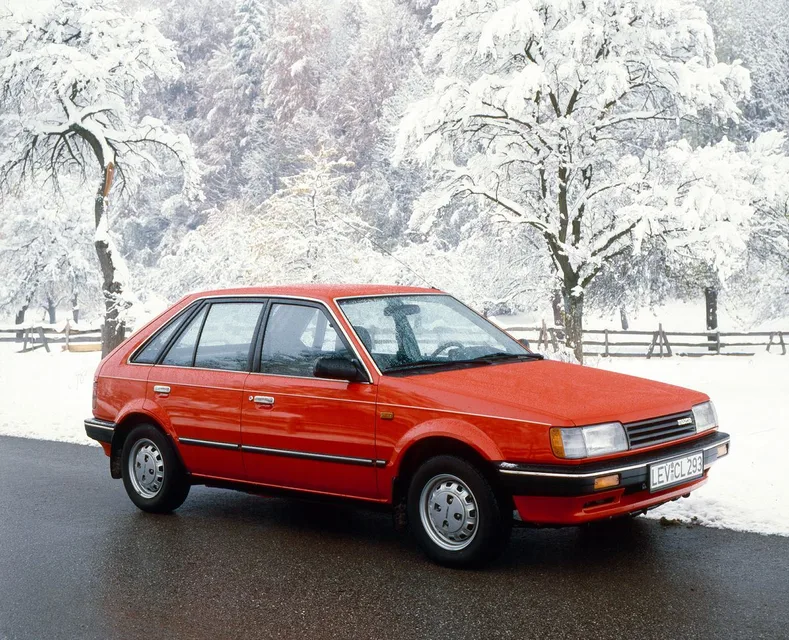

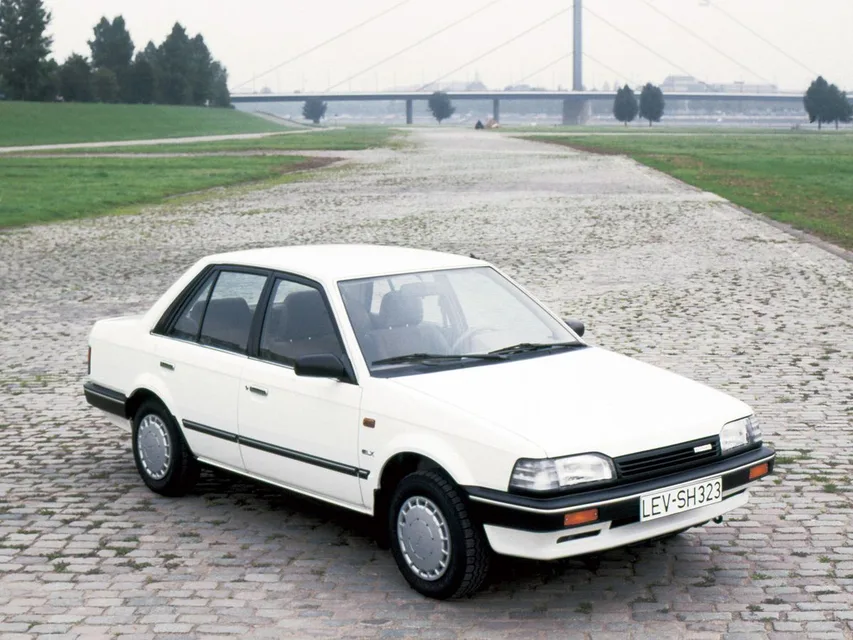

The third-generation Mazda 323 Lantis offers sedan, three- and five-door hatchback, and five-door estate bodies. Alongside body style, the engine and transmission help determine how well a version suits your everyday driving.

← All Mazda models

Mazda 323 Lantis Engines and Transmissions

Sedan examples include the diesel 1.7 MT and gasoline 1.3 MT, both with manual transmissions and front-wheel drive. The gasoline 1.6 AT pairs an automatic transmission with all-wheel drive, easing your workload in traffic and offering extra traction when road surfaces are slippery.

Sedan — Mazda 323 Lantis Engines and Transmissions

Sedan Mazda 323 Lantis Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.5 MT	Gasoline	1500 cm³	73 hp	54 kW	Not provided	Manual	FWD
1.7 MT	Diesel	1700 cm³	54 hp	40 kW	Not provided	Manual	FWD
1.3 MT	Gasoline	1299 cm³	60 hp	44 kW	103 N⋅m	Manual	FWD
1.3 AT	Gasoline	1299 cm³	60 hp	44 kW	103 N⋅m	Automatic	FWD
1.5 MT	Gasoline	1498 cm³	75 hp	55 kW	116 N⋅m	Manual	FWD
1.5 AT	Gasoline	1498 cm³	75 hp	55 kW	116 N⋅m	Automatic	FWD
1.5 AT	Gasoline	1500 cm³	73 hp	54 kW	Not provided	Automatic	FWD
1.5 MT	Gasoline	1500 cm³	95 hp	70 kW	Not provided	Manual	FWD
1.5 AT	Gasoline	1500 cm³	95 hp	70 kW	Not provided	Automatic	FWD
1.5 MT	Gasoline	1500 cm³	115 hp	85 kW	Not provided	Manual	FWD
1.5 AT	Gasoline	1500 cm³	115 hp	85 kW	Not provided	Automatic	FWD
1.6 MT	Gasoline	1597 cm³	104 hp	76 kW	133 N⋅m	Manual	FWD
1.6 AT	Gasoline	1597 cm³	104 hp	76 kW	133 N⋅m	Automatic	FWD
1.6 MT	Gasoline	1600 cm³	140 hp	103 kW	Not provided	Manual	FWD
1.6 MT	Gasoline	1600 cm³	140 hp	103 kW	Not provided	Manual	AWD
1.6 AT	Gasoline	1600 cm³	140 hp	103 kW	Not provided	Automatic	AWD
1.6 AT	Gasoline	1600 cm³	140 hp	103 kW	Not provided	Automatic	FWD
1.6 MT	Gasoline	1597 cm³	84 hp	62 kW	123 N⋅m	Manual	FWD
1.6 AT	Gasoline	1597 cm³	84 hp	62 kW	123 N⋅m	Automatic	FWD
1.7 AT	Diesel	1700 cm³	54 hp	40 kW	Not provided	Automatic	FWD

Hatchback 5-door — Mazda 323 Lantis Engines and Transmissions

Hatchback 5-door Mazda 323 Lantis Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.5 MT	Gasoline	1500 cm³	73 hp	54 kW	Not provided	Manual	FWD
1.6 MT	Gasoline	1597 cm³	73 hp	54 kW	122 N⋅m	Manual	FWD
1.6 AT	Gasoline	1597 cm³	73 hp	54 kW	122 N⋅m	Automatic	FWD
1.6 MT	Gasoline	1597 cm³	86 hp	63 kW	123 N⋅m	Manual	FWD
1.6 AT	Gasoline	1597 cm³	86 hp	63 kW	123 N⋅m	Automatic	FWD
1.7 MT	Diesel	1700 cm³	54 hp	40 kW	Not provided	Manual	FWD
1.7 MT	Diesel	1700 cm³	57 hp	42 kW	Not provided	Manual	FWD
1.1 MT	Gasoline	1100 cm³	54 hp	40 kW	Not provided	Manual	FWD
1.3 MT	Gasoline	1299 cm³	60 hp	44 kW	103 N⋅m	Manual	FWD
1.3 AT	Gasoline	1299 cm³	60 hp	44 kW	103 N⋅m	Automatic	FWD
1.4 MT	Gasoline	1400 cm³	60 hp	44 kW	Not provided	Manual	FWD
1.5 MT	Gasoline	1498 cm³	75 hp	55 kW	116 N⋅m	Manual	FWD
1.5 AT	Gasoline	1498 cm³	75 hp	55 kW	116 N⋅m	Automatic	FWD
1.5 AT	Gasoline	1500 cm³	73 hp	54 kW	Not provided	Automatic	FWD
1.5 MT	Gasoline	1500 cm³	95 hp	70 kW	Not provided	Manual	FWD
1.5 AT	Gasoline	1500 cm³	95 hp	70 kW	Not provided	Automatic	FWD
1.5 MT	Gasoline	1500 cm³	115 hp	85 kW	Not provided	Manual	FWD
1.5 AT	Gasoline	1500 cm³	115 hp	85 kW	Not provided	Automatic	FWD
1.6 MT	Gasoline	1597 cm³	104 hp	76 kW	133 N⋅m	Manual	FWD
1.6 AT	Gasoline	1597 cm³	104 hp	76 kW	133 N⋅m	Automatic	FWD
1.6 MT	Gasoline	1597 cm³	150 hp	110 kW	195 N⋅m	Manual	AWD
1.6 MT	Gasoline	1600 cm³	140 hp	103 kW	Not provided	Manual	FWD
1.6 MT	Gasoline	1600 cm³	140 hp	103 kW	Not provided	Manual	AWD
1.6 AT	Gasoline	1600 cm³	140 hp	103 kW	Not provided	Automatic	AWD
1.6 AT	Gasoline	1600 cm³	140 hp	103 kW	Not provided	Automatic	FWD

Hatchback 3-door — Mazda 323 Lantis Engines and Transmissions

Hatchback 3-door Mazda 323 Lantis Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.5 MT	Gasoline	1500 cm³	73 hp	54 kW	Not provided	Manual	FWD
1.6 MT	Gasoline	1597 cm³	73 hp	54 kW	122 N⋅m	Manual	FWD
1.6 AT	Gasoline	1597 cm³	73 hp	54 kW	122 N⋅m	Automatic	FWD
1.6 MT	Gasoline	1597 cm³	86 hp	63 kW	123 N⋅m	Manual	FWD
1.6 AT	Gasoline	1597 cm³	86 hp	63 kW	123 N⋅m	Automatic	FWD
1.7 MT	Diesel	1700 cm³	54 hp	40 kW	Not provided	Manual	FWD
1.7 MT	Diesel	1700 cm³	57 hp	42 kW	Not provided	Manual	FWD
1.1 MT	Gasoline	1100 cm³	54 hp	40 kW	Not provided	Manual	FWD
1.3 MT	Gasoline	1299 cm³	60 hp	44 kW	103 N⋅m	Manual	FWD
1.3 AT	Gasoline	1299 cm³	60 hp	44 kW	103 N⋅m	Automatic	FWD
1.4 MT	Gasoline	1400 cm³	60 hp	44 kW	Not provided	Manual	FWD
1.5 MT	Gasoline	1498 cm³	75 hp	55 kW	116 N⋅m	Manual	FWD
1.5 AT	Gasoline	1498 cm³	75 hp	55 kW	116 N⋅m	Automatic	FWD
1.5 AT	Gasoline	1500 cm³	73 hp	54 kW	Not provided	Automatic	FWD
1.5 MT	Gasoline	1500 cm³	95 hp	70 kW	Not provided	Manual	FWD
1.5 AT	Gasoline	1500 cm³	95 hp	70 kW	Not provided	Automatic	FWD
1.5 MT	Gasoline	1500 cm³	115 hp	85 kW	Not provided	Manual	FWD
1.5 AT	Gasoline	1500 cm³	115 hp	85 kW	Not provided	Automatic	FWD
1.6 MT	Gasoline	1597 cm³	104 hp	76 kW	133 N⋅m	Manual	FWD
1.6 AT	Gasoline	1597 cm³	104 hp	76 kW	133 N⋅m	Automatic	FWD
1.6 MT	Gasoline	1597 cm³	150 hp	110 kW	195 N⋅m	Manual	AWD
1.6 MT	Gasoline	1600 cm³	140 hp	103 kW	Not provided	Manual	FWD
1.6 MT	Gasoline	1600 cm³	140 hp	103 kW	Not provided	Manual	AWD
1.6 AT	Gasoline	1600 cm³	140 hp	103 kW	Not provided	Automatic	AWD
1.6 AT	Gasoline	1600 cm³	140 hp	103 kW	Not provided	Automatic	FWD

Estate 5-door — Mazda 323 Lantis Engines and Transmissions

Estate 5-door Mazda 323 Lantis Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.5 MT	Gasoline	1498 cm³	75 hp	55 kW	116 N⋅m	Manual	FWD
1.5 MT	Gasoline	1500 cm³	73 hp	54 kW	Not provided	Manual	FWD
1.6 MT	Gasoline	1597 cm³	73 hp	54 kW	122 N⋅m	Manual	FWD
1.6 AT	Gasoline	1597 cm³	73 hp	54 kW	122 N⋅m	Automatic	FWD
1.6 MT	Gasoline	1597 cm³	86 hp	63 kW	123 N⋅m	Manual	FWD
1.6 MT	Gasoline	1597 cm³	86 hp	63 kW	123 N⋅m	Manual	AWD
1.6 AT	Gasoline	1597 cm³	86 hp	63 kW	123 N⋅m	Automatic	AWD
1.6 AT	Gasoline	1597 cm³	86 hp	63 kW	123 N⋅m	Automatic	FWD
1.7 MT	Diesel	1700 cm³	54 hp	40 kW	Not provided	Manual	FWD
1.7 MT	Diesel	1700 cm³	56 hp	41 kW	Not provided	Manual	FWD
1.7 MT	Diesel	1700 cm³	57 hp	42 kW	Not provided	Manual	FWD

Mazda 323 Lantis Dimensions

Sedan — Mazda 323 Lantis Dimensions

Sedan Mazda 323 Lantis Dimensions
Modification	Length	Width	Height	Wheelbase	Ground clearance, minimum
1.5 MT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.7 MT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.3 MT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.3 AT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.5 MT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.5 AT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.5 AT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.5 MT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.5 AT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.5 MT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.5 AT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.6 MT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.6 AT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.6 MT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.6 MT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.6 AT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.6 AT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.6 MT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.6 AT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm
1.7 AT	4310 mm	1645 mm	1390 mm	2398 mm	150 mm

Hatchback 5-door — Mazda 323 Lantis Dimensions

Hatchback 5-door Mazda 323 Lantis Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.5 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.7 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.7 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.1 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.3 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.3 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.4 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.5 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.5 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.5 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.5 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.5 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.5 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.5 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 MT	4110 mm	1645 mm	1390 mm	2398 mm	995 kg	1550 kg	150 mm
1.6 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm

Hatchback 3-door — Mazda 323 Lantis Dimensions

Hatchback 3-door Mazda 323 Lantis Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.5 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.7 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.7 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.1 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.3 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.3 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.4 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.5 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.5 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.5 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.5 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.5 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.5 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.5 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 MT	4110 mm	1645 mm	1390 mm	2398 mm	995 kg	1550 kg	150 mm
1.6 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 MT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm
1.6 AT	4110 mm	1645 mm	1390 mm	2398 mm	Not provided	Not provided	150 mm

Estate 5-door — Mazda 323 Lantis Dimensions

Estate 5-door Mazda 323 Lantis Dimensions
Modification	Length	Width	Height	Wheelbase	Ground clearance, minimum
1.5 MT	4310 mm	1645 mm	1430 mm	2398 mm	150 mm
1.5 MT	4310 mm	1645 mm	1430 mm	2398 mm	150 mm
1.6 MT	4310 mm	1645 mm	1430 mm	2398 mm	150 mm
1.6 AT	4310 mm	1645 mm	1430 mm	2398 mm	150 mm
1.6 MT	4310 mm	1645 mm	1430 mm	2398 mm	150 mm
1.6 MT	4310 mm	1645 mm	1430 mm	2398 mm	150 mm
1.6 AT	4310 mm	1645 mm	1430 mm	2398 mm	150 mm
1.6 AT	4310 mm	1645 mm	1430 mm	2398 mm	150 mm
1.7 MT	4310 mm	1645 mm	1430 mm	2398 mm	150 mm
1.7 MT	4310 mm	1645 mm	1430 mm	2398 mm	150 mm
1.7 MT	4310 mm	1645 mm	1430 mm	2398 mm	150 mm
