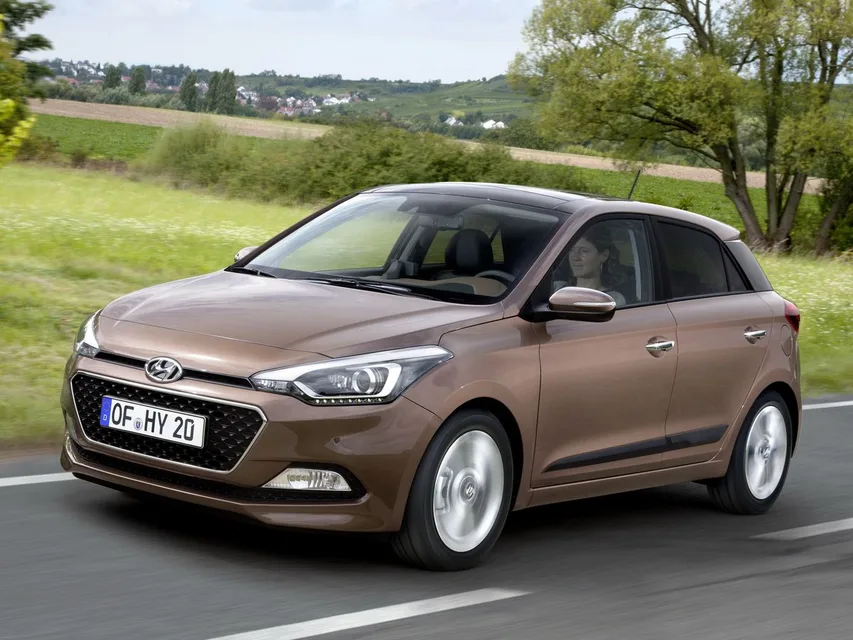

Hyundai i20 Specs, Engines & Dimensions (2014–2018) — Second Generation

The Hyundai i20 Second Generation offers a versatile city car experience with both 3-door and 5-door body styles. Known for its efficient engines and practical design, it remains a popular choice in the compact segment.

← All Hyundai models

15 modificationsAll supplied years

Hyundai i20 Engines and Transmissions

Hyundai i20 engine options include a 1.1-liter diesel paired with a manual transmission, ideal for fuel-conscious drivers, and a 1.4-liter diesel with manual for more robust performance. A 1.4-liter gasoline with automatic provides smooth urban driving.

Mini 3-doors — Hyundai i20 Engines and Transmissions

Mini 3-doors Hyundai i20 Engines and Transmissions
ModificationEngine typeEngine capacityMaximum powerMaximum power, kwMaximum torque N⋅mTransmissionType of drive
1.1 MTDiesel1120 cm³75 hp55 kW180 N⋅mManualFWD
1.4 MTDiesel1396 cm³90 hp66 kW240 N⋅mManualFWD
1.3 MTGasoline1248 cm³84 hp62 kW122 N⋅mManualFWD
1.4 MTGasoline1368 cm³100 hp74 kW134 N⋅mManualFWD
1.4 ATGasoline1368 cm³100 hp74 kW134 N⋅mAutomaticFWD

Mini 5-doors — Hyundai i20 Engines and Transmissions

Mini 5-doors Hyundai i20 Engines and Transmissions
ModificationEngine typeEngine capacityMaximum powerMaximum power, kwMaximum torque N⋅mTransmissionType of drive
1.0 MTGasoline998 cm³100 hp74 kW172 N⋅mManualFWD
1.0 MTGasoline998 cm³120 hp88 kW172 N⋅mManualFWD
1.4 MTGasoline1368 cm³100 hp74 kW134 N⋅mManualFWD
1.4 MTDiesel1396 cm³90 hp66 kW240 N⋅mManualFWD
1.1 MTDiesel1120 cm³75 hp55 kW180 N⋅mManualFWD
1.4 MTDiesel1396 cm³90 hp66 kW240 N⋅mManualFWD
1.3 MTGasoline1248 cm³75 hp55 kW122 N⋅mManualFWD
1.4 MTGasoline1368 cm³100 hp74 kW134 N⋅mManualFWD
1.3 MTGasoline1248 cm³84 hp62 kW122 N⋅mManualFWD
1.4 ATGasoline1368 cm³100 hp74 kW134 N⋅mAutomaticFWD

Hyundai i20 Dimensions

Mini 3-doors — Hyundai i20 Dimensions

Mini 3-doors Hyundai i20 Dimensions
ModificationLengthWidthHeightWheelbaseCurb weightGround clearance, minimum
1.1 MT4045 mm1730 mm1449 mm2570 mm1145 kg140 mm
1.4 MT4045 mm1730 mm1449 mm2570 mm1165 kg140 mm
1.3 MT4045 mm1730 mm1449 mm2570 mm1040 kg140 mm
1.4 MT4045 mm1730 mm1449 mm2570 mm1060 kg140 mm
1.4 AT4045 mm1730 mm1449 mm2570 mm1080 kg140 mm

Mini 5-doors — Hyundai i20 Dimensions

Mini 5-doors Hyundai i20 Dimensions
ModificationLengthWidthHeightWheelbaseCurb weightMax weightGround clearance, minimum
1.0 MT4065 mm1760 mm1529 mm2570 mm1085 kg1610 kg160 mm
1.0 MT4065 mm1760 mm1529 mm2570 mm1090 kg1650 kg160 mm
1.4 MT4065 mm1760 mm1529 mm2570 mm1050 kg1620 kg160 mm
1.4 MT4065 mm1760 mm1529 mm2570 mm1175 kg1700 kg160 mm
1.1 MT4065 mm1760 mm1529 mm2570 mm1143 kg1680 kg170 mm
1.4 MT4065 mm1760 mm1529 mm2570 mm1165 kg1690 kg170 mm
1.3 MT4065 mm1760 mm1529 mm2570 mm1040 kg1580 kg170 mm
1.4 MT4065 mm1760 mm1529 mm2570 mm1060 kg1600 kg170 mm
1.3 MT4065 mm1760 mm1529 mm2570 mm1040 kg1580 kg170 mm
1.4 AT4065 mm1760 mm1529 mm2570 mm1079 kg1620 kg170 mm

Hyundai i20 Cargo Space

Mini 3-doors — Hyundai i20 Cargo Space

Mini 3-doors Hyundai i20 Cargo Space
ModificationTrunk volume minTrunk volume max
1.1 MT336 l1011 l
1.4 MT336 l1011 l
1.3 MT336 l1011 l
1.4 MT336 l1011 l
1.4 AT336 l1011 l

Mini 5-doors — Hyundai i20 Cargo Space

Mini 5-doors Hyundai i20 Cargo Space
ModificationTrunk volume minTrunk volume max
1.0 MT326 l1042 l
1.0 MT326 l1042 l
1.4 MT326 l1042 l
1.4 MT326 l1042 l
1.1 MT326 l1042 l
1.4 MT326 l1042 l
1.3 MT326 l1042 l
1.4 MT326 l1042 l
1.3 MT326 l1042 l
1.4 AT326 l1042 l

Hyundai i20 Trims and Equipment

Hyundai i20 trim levels offer distinct equipment packages. For instance, the 1.4 AT in the 5-door body is available in Insight and Inspire configurations, with Inspire typically adding enhanced comfort and technology features, allowing buyers to tailor the car to their needs.

Hyundai i20 Trims and Equipment
ModificationBodyEquipment
1.3 MTMini 5-doorsInsight
1.4 ATMini 5-doorsInsight
1.4 ATMini 5-doorsInspire
1.4 ATMini 5-doorsPremium
1.4 ATMini 5-doorsClassic
