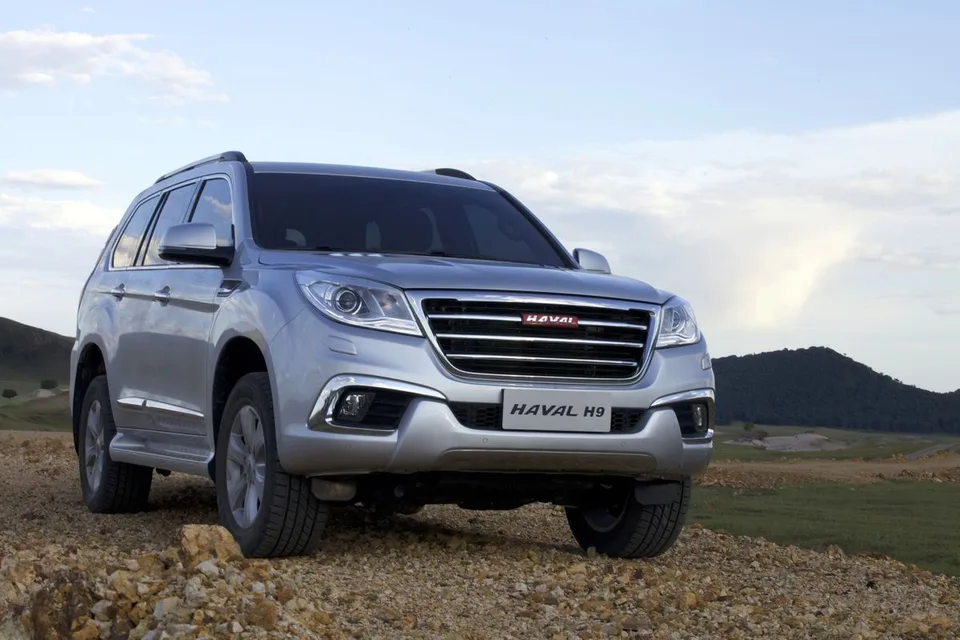

Haval H9 2.0 AT Elite Equipment — First Generation

The Haval H9 2.0 AT Elite is the version covered here, and the notes below look at everyday cabin comfort, learning the controls and keeping a phone useful on longer journeys.

1 generation · SUV 5-doors

2014–2017

2.0 AT

Gasoline · Automatic · AWD

At a glance

View full specifications ↓

Elite

Report an inaccuracy ↗

Specifications

Jump to a section

Performance & powertrain

Top speed
?

The highest speed a vehicle can sustain under manufacturer test conditions. Some cars are electronically limited below their mechanical potential. Glossary entry

Not provided
Engine type
Gasoline
Transmission
Automatic
Type of boost
?

A turbocharger or supercharger compresses the air entering the engine so a smaller engine can produce more power. Naturally aspirated engines draw air without a compressor. Glossary entry

Turbo
Type of drive
?

Which wheels receive power: front-wheel drive, rear-wheel drive or all-wheel drive. All-wheel drive can send power to every wheel for extra traction. Glossary entry

AWD
Bore and stroke
?

The diameter of a cylinder (bore) and the distance the piston travels inside it (stroke). Together they determine the displacement of the engine. Glossary entry

Not provided
Engine capacity
?

The total volume swept by all pistons inside the cylinders, usually stated in cubic centimetres or litres. Larger displacement often means more power but higher consumption. Glossary entry

1967 cm³
Engine location
Front, longitudinal
Number of gears
?

How many fixed forward ratios a gearbox offers. More gears can improve economy and refinement; continuously variable transmissions have no fixed steps. Glossary entry

8
Maximum power
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

245 hp
Maximum power, kw
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

180 kW
Compression ratio
?

The ratio between the largest and smallest volume of a cylinder as the piston moves. Higher ratios improve efficiency but may require higher-octane fuel. Glossary entry

Not provided
Maximum power rpm
5200 rpm
Maximum torque N⋅m
350 N⋅m
Maximum torque rpm
1500 – 4800 rpm
Acceleration to 100
?

The time a vehicle needs to reach 100 km/h from a standstill, a common shorthand for overall performance. Glossary entry

10 s
Engine power system
Distributed injection (multi-point)
Number of cylinders
4
Valves per cylinder
?

The number of intake and exhaust valves in each cylinder. Four valves per cylinder is common and helps the engine breathe at higher speeds. Glossary entry

4
Cylinder arrangement
Inline
Maximum power ICE
Not provided
Maximum power ICE
Not provided

Energy & emissions

ECO class
Euro 5
Battery power
Not provided
Fuel grade
95
Mild Hybrid
?

A car with a small electric motor and battery that assist the combustion engine and recover braking energy but cannot drive on electricity alone. Glossary entry

Not provided
Battery type
Not provided
CO2 emissions
?

The amount of carbon dioxide released per kilometre under a standardised test. Lower figures usually go hand in hand with lower fuel consumption. Glossary entry

Not provided
Full charge home
Not provided
Power consumption
Not provided
Fuel tank capacity
Not provided
Full public charging time
Not provided
Driving range, maximum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

Not provided
Driving range, minimum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

Not provided
Fuel consumption city
Not provided
Average consumption
Not provided
Fuel consumption highway
Not provided

Dimensions & body

Doors number
5
Number of seats
5
Width
1926 mm
Height
1900 mm
Length
4856 mm
Body type
SUV 5-doors
Wheelbase
?

The distance between the centres of the front and rear wheels. A longer wheelbase usually gives more cabin space and a calmer ride; a shorter one helps agility and parking. Glossary entry

2800 mm
U-turn diameter
Not provided
Depth of the ford to be crossed
Not provided
Body style
SUV
Rear track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

1610 mm
Trunk volume max
Not provided
Trunk volume min
Not provided
Front track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

1610 mm
Max weight
Not provided
Curb weight
?

The weight of the vehicle with all standard equipment and fluids but without passengers or cargo. Glossary entry

Not provided
Ground clearance, maximum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

Not provided
Ground clearance, minimum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

206 mm

Identity & configuration

Vehicle class
J
Right-hand drive
No

Additional specifications

Stop
2017-10-31
Start
2014-11-01
Wheel size
Not provided
Rear brakes
Ventilated disc
Front brakes
Ventilated disc
Rear suspension
Independent, spring
Front suspension
Independent, spring

Trim equipment

Dimensions & body

Number of seats
5

Additional specifications

Driver Assistance Systems
Anti-lock braking system (ABS), Electronic stability program (ESP), Hill start assist (HAS), Collision avoidance system
Stop
2017-10-31
View
Automatic headlight range control, Adaptive front-lighting system, Fog lamp, Headlight washer system, Light sensor, Rain sensor
Start
2014-11-01
Airbags
Driver's airbag, Passenger airbag, Window airbags (curtains)
Camera
Rear-view camera
Isofix
Isofix for the back row
Comfort
On-board computer, Keyless entry system, Engine Start Button, Power folding mirrors, Power mirrors, Multifunction steering wheel
Exterior
Metallic, Decorative moldings, Roof rack
Interior
Folding rear seat, Third rear headrest, Passenger seat backrest fold-down function, Pedal pads, Kicking plates, Leather steering wheel, Sunroof, Front center armrest, Power window
Safety
Driver drowsiness detection, Tire pressure sensors
Headlights
Xenon / Bi-Xenon
Sound
Audio system Hi-Fi
Diameter
R18 ″
Multimedia
AUX, USB
Cruise control
Cruise control
Parking assist system
Front parking sensors, Rear parking sensors
Power steering
Power steering
Air conditioner
Single-zone climate control
Seat position memory
Front seats with memory function
Electric heating
Front seats, Heated wipers, Side mirrors
Steering wheel adjustment
Steering wheel height adjustment, Steering wheel reach adjustment
Anti theft system
Alarm, Keyless central locking, Immobilizer
Seat trim
Genuine leather seats
Power seat adjustment
Front seat adjustment

Not provided means the source has no value. Zero remains zero. Units are shown as supplied; range test cycles are only stated when known.

Fuel cost calculator

Estimates use only the figures you enter, in your own currency. No live fuel prices or emissions data are used.

Units

Enable JavaScript to calculate estimates.

Comfort and Convenience

Cabin temperature is the comfort question people rarely agree on: one passenger feels cold where another feels stuffy. Preferences shift with clothing, the time of day and how long someone has been sitting.

Safety and Driver Assistance

Sitting in an unfamiliar car for a minute before setting off is time well spent. Locating the hazard switch, the demister and the mirror adjusters while stationary means they are already known once traffic demands attention.

Multimedia and Connectivity

Battery level decides how useful a phone stays by evening, so many drivers top it up on the road rather than at home. Where a suitable socket or port is available, a long trip ends with a usable phone.
