THE GLOBAL CAR CATALOG

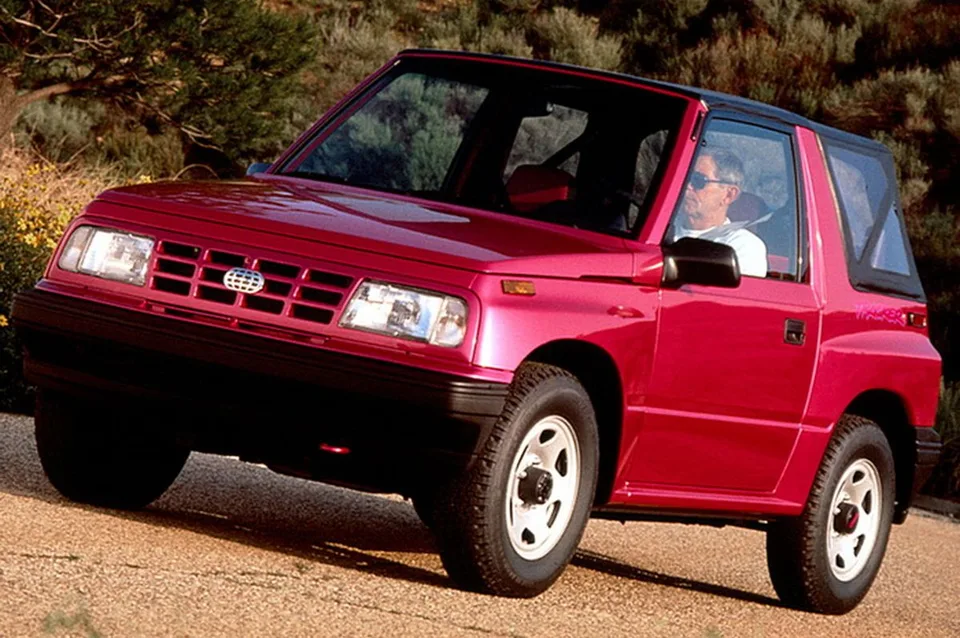

The first-generation Geo Tracker is a compact, fun-to-drive SUV offered in three-door hardtop, five-door, and cabriolet body styles, known for its simple design and off-road capability.
The Geo Tracker engine is a straightforward 1.6-liter four-cylinder that works well for both daily driving and light trails. Transmission choices include a five-speed manual or a four-speed automatic, and you can pick rear-wheel drive or part-time all-wheel drive depending on how you plan to use the truck.
| Modification | Engine type | Engine capacity | Maximum power | Maximum power, kw | Maximum torque N⋅m | Transmission | Type of drive |
|---|---|---|---|---|---|---|---|
| 1.6 MT | Gasoline | 1589 cm³ | 97 hp | 71 kW | 132 N⋅m | Manual | AWD |
| 1.6 MT | Gasoline | 1589 cm³ | 97 hp | 71 kW | 132 N⋅m | Manual | RWD |
| 1.6 AT | Gasoline | 1589 cm³ | 97 hp | 71 kW | 132 N⋅m | Automatic | AWD |
| 1.6 AT | Gasoline | 1589 cm³ | 97 hp | 71 kW | 132 N⋅m | Automatic | RWD |
| Modification | Engine type | Engine capacity | Maximum power | Maximum power, kw | Maximum torque N⋅m | Transmission | Type of drive |
|---|---|---|---|---|---|---|---|
| 1.6 MT | Gasoline | 1589 cm³ | 97 hp | 71 kW | 132 N⋅m | Manual | AWD |
| 1.6 MT | Gasoline | 1589 cm³ | 97 hp | 71 kW | 132 N⋅m | Manual | RWD |
| 1.6 AT | Gasoline | 1589 cm³ | 97 hp | 71 kW | 132 N⋅m | Automatic | AWD |
| 1.6 AT | Gasoline | 1589 cm³ | 97 hp | 71 kW | 132 N⋅m | Automatic | RWD |
| Modification | Engine type | Engine capacity | Maximum power | Maximum power, kw | Maximum torque N⋅m | Transmission | Type of drive |
|---|---|---|---|---|---|---|---|
| 1.6 AT | Gasoline | 1589 cm³ | 97 hp | 71 kW | 132 N⋅m | Automatic | RWD |
| 1.6 MT | Gasoline | 1589 cm³ | 97 hp | 71 kW | 132 N⋅m | Manual | RWD |
| 1.6 MT | Gasoline | 1590 cm³ | 97 hp | 71 kW | 132 N⋅m | Manual | AWD |
| 1.6 AT | Gasoline | 1590 cm³ | 97 hp | 71 kW | 132 N⋅m | Automatic | AWD |
| Modification | Length | Width | Height | Wheelbase | Curb weight | Max weight | Ground clearance, minimum |
|---|---|---|---|---|---|---|---|
| 1.6 MT | 3632 mm | 1630 mm | 1662 mm | 2200 mm | 1040 kg | 1500 kg | 200 mm |
| 1.6 MT | 3632 mm | 1630 mm | 1662 mm | 2200 mm | Not provided | 1500 kg | 200 mm |
| 1.6 AT | 3632 mm | 1630 mm | 1662 mm | 2200 mm | Not provided | 1500 kg | 200 mm |
| 1.6 AT | 3632 mm | 1630 mm | 1662 mm | 2200 mm | Not provided | 1500 kg | 200 mm |
| Modification | Length | Width | Height | Wheelbase | Curb weight | Max weight | Ground clearance, minimum |
|---|---|---|---|---|---|---|---|
| 1.6 MT | 4030 mm | 1635 mm | 1700 mm | 2480 mm | 1165 kg | 1650 kg | 200 mm |
| 1.6 MT | 4030 mm | 1635 mm | 1700 mm | 2480 mm | Not provided | 1650 kg | 200 mm |
| 1.6 AT | 4030 mm | 1635 mm | 1700 mm | 2480 mm | Not provided | 1650 kg | 200 mm |
| 1.6 AT | 4030 mm | 1635 mm | 1700 mm | 2480 mm | Not provided | 1650 kg | 200 mm |
| Modification | Length | Width | Height | Wheelbase | Curb weight | Max weight | Ground clearance, minimum |
|---|---|---|---|---|---|---|---|
| 1.6 AT | 3620 mm | 1630 mm | 1654 mm | 2200 mm | Not provided | 1500 kg | 200 mm |
| 1.6 MT | 3620 mm | 1630 mm | 1654 mm | 2200 mm | Not provided | 1500 kg | 200 mm |
| 1.6 MT | 3620 mm | 1630 mm | 1654 mm | 2200 mm | 1075 kg | Not provided | 200 mm |
| 1.6 AT | 3620 mm | 1630 mm | 1654 mm | 2200 mm | Not provided | Not provided | 200 mm |
| Modification | Trunk volume min |
|---|---|
| 1.6 MT | 202 l |
| 1.6 MT | 202 l |
| 1.6 AT | 202 l |
| 1.6 AT | 202 l |
| Modification | Trunk volume min |
|---|---|
| 1.6 MT | 580 l |
| 1.6 MT | 580 l |
| 1.6 AT | 580 l |
| 1.6 AT | 580 l |
