Foton Tunland Specs, Engines & Dimensions (from 2018) — First Generation Restyling

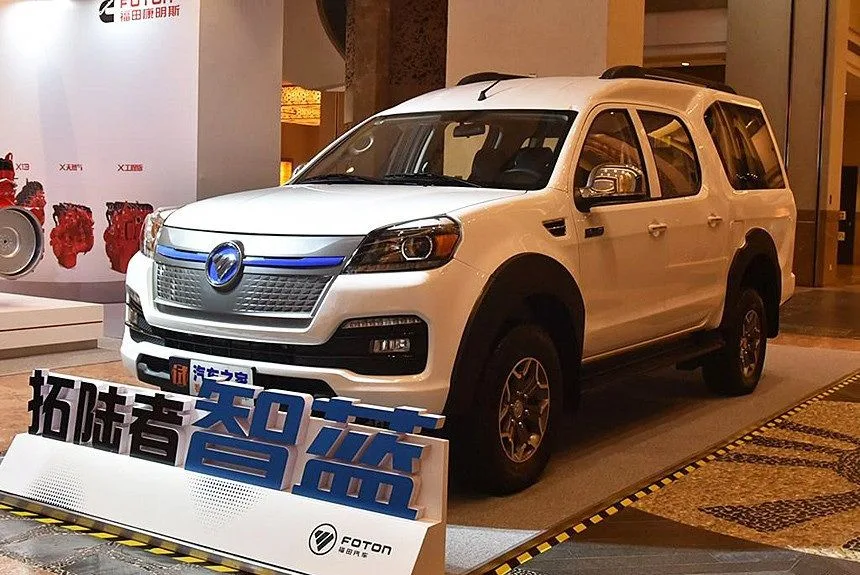

The restyled first-generation Foton Tunland is a working vehicle offered as a pickup double-cab and a van, pairing practical load-carrying manners with a choice of diesel and electric drive for daily commercial use.

← All Foton models

13 modificationsAll supplied years

Foton Tunland Engines and Transmissions

Each Foton Tunland engine is matched to a job rather than to outright speed. The 2.0 AT pickup double-cab combines diesel torque with an automatic transmission and rear-wheel drive for easy town work, while the 2.8 MT double-cab adds a manual gearbox and all-wheel drive for loaded or loose surfaces. An electric Van widens the choice.

Pickup double-cab — Foton Tunland Engines and Transmissions

Pickup double-cab Foton Tunland Engines and Transmissions
ModificationEngine typeEngine capacityMaximum powerMaximum power, kwMaximum torque N⋅mTransmissionType of drive
2.0 MTDiesel2000 cm³201 hp147 kWNot providedManualAWD
2.0 MTDiesel2000 cm³201 hp147 kWNot providedManualRWD
2.0 ATDiesel2000 cm³218 hp160 kWNot providedAutomaticRWD
2.0 MTDiesel2000 cm³150 hp110 kWNot providedManualRWD
2.0 MTDiesel2000 cm³150 hp110 kWNot providedManualAWD
2.8 ATDiesel2000 cm³177 hp130 kWNot providedAutomaticRWD
2.8 MTDiesel2000 cm³177 hp130 kWNot providedManualRWD
2.8 ATDiesel2000 cm³177 hp130 kWNot providedAutomaticAWD
2.8 MTDiesel2000 cm³177 hp130 kWNot providedManualAWD
ATElectroNot provided177 hp130 kWNot providedAutomaticRWD
ATElectroNot provided136 hp100 kW360 N⋅mAutomaticRWD
2.0 ATDiesel1968 cm³150 hp110 kWNot providedAutomaticAWD

Van — Foton Tunland Engines and Transmissions

Van Foton Tunland Engines and Transmissions
ModificationEngine typeMaximum powerMaximum power, kwMaximum torque N⋅mTransmissionType of drive
ATElectro136 hp100 kW360 N⋅mAutomaticRWD

Foton Tunland Dimensions

Pickup double-cab — Foton Tunland Dimensions

Pickup double-cab Foton Tunland Dimensions
ModificationLengthWidthHeightWheelbaseGround clearance, minimum
2.0 MT5310 mm1880 mm1860 mm3105 mm200 mm
2.0 MT5310 mm1880 mm1860 mm3105 mm200 mm
2.0 AT5310 mm1880 mm1860 mm3105 mm200 mm
2.0 MT5310 mm1880 mm1860 mm3105 mm200 mm
2.0 MT5310 mm1880 mm1860 mm3105 mm200 mm
2.8 AT5310 mm1880 mm1860 mm3105 mm200 mm
2.8 MT5310 mm1880 mm1860 mm3105 mm200 mm
2.8 AT5310 mm1880 mm1860 mm3105 mm200 mm
2.8 MT5310 mm1880 mm1860 mm3105 mm200 mm
AT5310 mm1880 mm1860 mm3105 mm200 mm
AT5310 mm1880 mm1860 mm3105 mm200 mm
2.0 AT5310 mm1880 mm1860 mm3105 mm200 mm

Van — Foton Tunland Dimensions

Van Foton Tunland Dimensions
ModificationLengthWidthHeightWheelbaseGround clearance, minimum
AT5310 mm1880 mm1980 mm3105 mm200 mm

Foton Tunland Battery, Range, Charging

The AT Van is electric, driving the rear wheels through an automatic, and Foton Tunland battery capacity comes from a lithium-ion pack. On everyday delivery routes that means quiet, smooth pulling away and overnight charging at base, with real range depending on load, temperature and how much stop-start driving you do.

Pickup double-cab — Foton Tunland Battery, Range, Charging

Pickup double-cab Foton Tunland Battery, Range, Charging
ModificationBattery powerBattery typeDriving range, maximumFull charge home
AT68 kWhLithium-ion batterieNot provided640 min
AT68 kWhLithium-ion batterie310 km640 min

Van — Foton Tunland Battery, Range, Charging

Van Foton Tunland Battery, Range, Charging
ModificationBattery powerBattery typeDriving range, maximumFull charge home
AT68 kWhLithium-ion batterie310 km641 min
