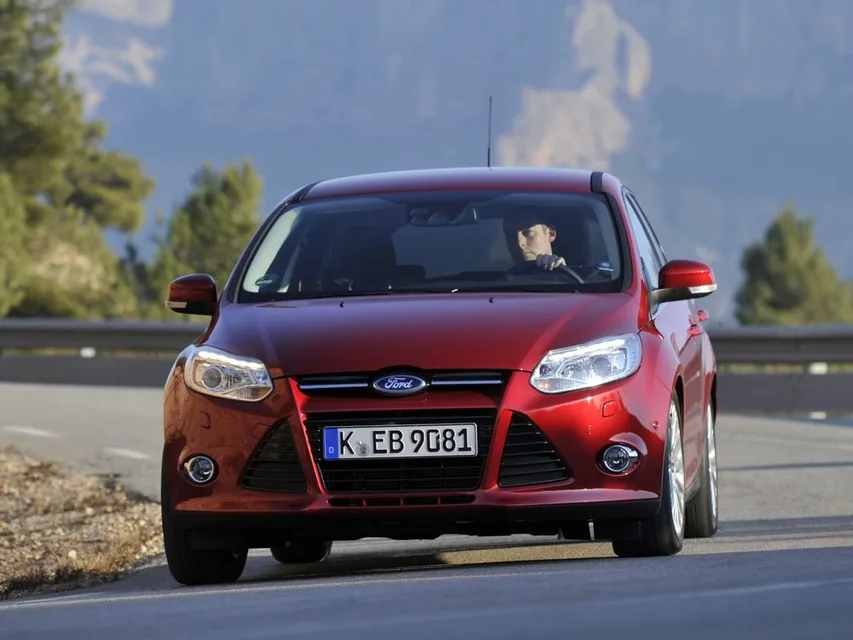

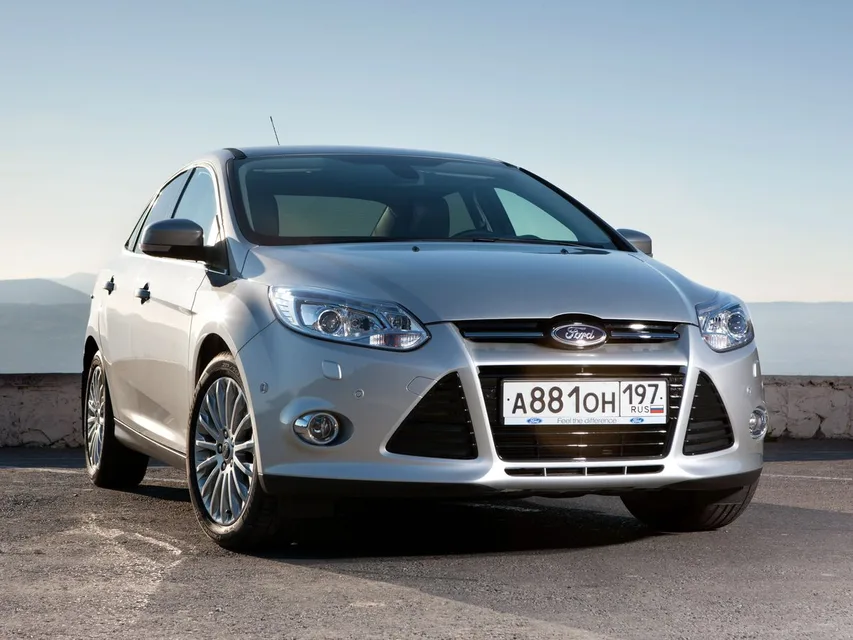

Ford Focus Specs, Engines & Dimensions (2010–2015) — Third Generation

The third-generation Ford Focus offers estate, sedan and five-door hatchback bodies. Your choice depends on how you carry passengers and luggage, which powertrain suits your daily driving and what equipment you value.

← All Ford models

Ford Focus Engines and Transmissions

Among the Ford Focus engine and transmission options, the 2.0 MT estate combines gasoline power with manual gear changes. The electric AT hatchback offers automatic operation and makes charging access part of your planning. Both examples use front-wheel drive and illustrate different ways to approach everyday driving.

Estate 5-door — Ford Focus Engines and Transmissions

Estate 5-door Ford Focus Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.6 Powershift	Gasoline	1596 cm³	105 hp	77 kW	150 N⋅m	Robotic	FWD
1.6 MT	Gasoline	1596 cm³	105 hp	77 kW	150 N⋅m	Manual	FWD
2.0 MT	Gasoline	1999 cm³	150 hp	110 kW	202 N⋅m	Manual	FWD
2.0 Powershift	Gasoline	1999 cm³	150 hp	110 kW	202 N⋅m	Robotic	FWD
1.0 MT	Gasoline	998 cm³	100 hp	74 kW	170 N⋅m	Manual	FWD
1.6 MT	Gasoline	1596 cm³	85 hp	63 kW	141 N⋅m	Manual	FWD
1.6 Powershift	Gasoline	1596 cm³	105 hp	77 kW	150 N⋅m	Robotic	FWD
1.6 MT	Gasoline	1596 cm³	150 hp	110 kW	240 N⋅m	Manual	FWD
1.6 MT	Gasoline	1596 cm³	182 hp	134 kW	240 N⋅m	Manual	FWD
1.6 MT	Diesel	1560 cm³	95 hp	70 kW	230 N⋅m	Manual	FWD
1.6 MT	Diesel	1560 cm³	105 hp	77 kW	270 N⋅m	Manual	FWD
1.6 MT	Diesel	1560 cm³	115 hp	84 kW	270 N⋅m	Manual	FWD
2.0 Powershift	Diesel	1997 cm³	115 hp	85 kW	300 N⋅m	Robotic	FWD
2.0 Powershift	Diesel	1997 cm³	140 hp	103 kW	320 N⋅m	Robotic	FWD
2.0 Powershift	Diesel	1997 cm³	163 hp	120 kW	340 N⋅m	Robotic	FWD
2.0 MT	Diesel	1997 cm³	163 hp	120 kW	340 N⋅m	Manual	FWD
1.6 MT	Gasoline	1596 cm³	125 hp	92 kW	159 N⋅m	Manual	FWD
1.6 Powershift	Gasoline	1596 cm³	125 hp	92 kW	159 N⋅m	Robotic	FWD
1.0 MT	Gasoline	999 cm³	125 hp	92 kW	170 N⋅m	Manual	FWD
2.0 MT	Diesel	1997 cm³	140 hp	103 kW	320 N⋅m	Manual	FWD
2.0 Powershift	Gasoline	1999 cm³	170 hp	125 kW	198 N⋅m	Robotic	FWD

Sedan — Ford Focus Engines and Transmissions

Sedan Ford Focus Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.6 Powershift	Gasoline	1596 cm³	105 hp	77 kW	150 N⋅m	Robotic	FWD
1.6 MT	Gasoline	1596 cm³	105 hp	77 kW	150 N⋅m	Manual	FWD
2.0 MT	Gasoline	1999 cm³	150 hp	110 kW	202 N⋅m	Manual	FWD
2.0 Powershift	Gasoline	1999 cm³	150 hp	110 kW	202 N⋅m	Robotic	FWD
1.0 MT	Gasoline	998 cm³	100 hp	74 kW	170 N⋅m	Manual	FWD
1.0 MT	Gasoline	999 cm³	125 hp	92 kW	170 N⋅m	Manual	FWD
1.6 MT	Gasoline	1596 cm³	85 hp	63 kW	141 N⋅m	Manual	FWD
1.6 MT	Gasoline	1596 cm³	150 hp	110 kW	240 N⋅m	Manual	FWD
1.6 MT	Gasoline	1596 cm³	182 hp	134 kW	240 N⋅m	Manual	FWD
2.0 Powershift	Gasoline	1999 cm³	160 hp	118 kW	198 N⋅m	Robotic	FWD
2.0 MT	Gasoline	1999 cm³	160 hp	118 kW	198 N⋅m	Manual	FWD
1.6 MT	Diesel	1560 cm³	95 hp	70 kW	230 N⋅m	Manual	FWD
1.6 MT	Diesel	1560 cm³	115 hp	84 kW	270 N⋅m	Manual	FWD
2.0 Powershift	Diesel	1997 cm³	115 hp	85 kW	300 N⋅m	Robotic	FWD
2.0 Powershift	Diesel	1997 cm³	140 hp	103 kW	320 N⋅m	Robotic	FWD
2.0 MT	Diesel	1997 cm³	140 hp	103 kW	320 N⋅m	Manual	FWD
2.0 Powershift	Diesel	1997 cm³	163 hp	120 kW	340 N⋅m	Robotic	FWD
2.0 MT	Diesel	1997 cm³	163 hp	120 kW	340 N⋅m	Manual	FWD
1.6 Powershift	Gasoline	1596 cm³	125 hp	92 kW	159 N⋅m	Robotic	FWD
1.6 MT	Gasoline	1596 cm³	125 hp	92 kW	159 N⋅m	Manual	FWD
2.0 Powershift	Gasoline	1999 cm³	170 hp	125 kW	198 N⋅m	Robotic	FWD

Hatchback 5-door — Ford Focus Engines and Transmissions

Hatchback 5-door Ford Focus Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.6 MT	Gasoline	1596 cm³	85 hp	63 kW	141 N⋅m	Manual	FWD
1.6 MT	Gasoline	1596 cm³	105 hp	77 kW	150 N⋅m	Manual	FWD
1.6 Powershift	Gasoline	1596 cm³	105 hp	77 kW	150 N⋅m	Robotic	FWD
2.0 MT	Gasoline	1999 cm³	150 hp	110 kW	202 N⋅m	Manual	FWD
2.0 Powershift	Gasoline	1999 cm³	150 hp	110 kW	202 N⋅m	Robotic	FWD
1.0 MT	Gasoline	998 cm³	100 hp	74 kW	170 N⋅m	Manual	FWD
1.0 MT	Gasoline	999 cm³	125 hp	92 kW	170 N⋅m	Manual	FWD
1.6 MT	Gasoline	1596 cm³	150 hp	110 kW	240 N⋅m	Manual	FWD
2.0 MT	Gasoline	1999 cm³	160 hp	118 kW	198 N⋅m	Manual	FWD
2.0 Powershift	Gasoline	1999 cm³	160 hp	118 kW	198 N⋅m	Robotic	FWD
AT	Electro	Not provided	145 hp	107 kW	250 N⋅m	Automatic	FWD
1.6 MT	Diesel	1560 cm³	95 hp	70 kW	230 N⋅m	Manual	FWD
1.6 MT	Diesel	1560 cm³	105 hp	77 kW	270 N⋅m	Manual	FWD
1.6 MT	Diesel	1560 cm³	115 hp	84 kW	270 N⋅m	Manual	FWD
2.0 Powershift	Diesel	1997 cm³	115 hp	85 kW	300 N⋅m	Robotic	FWD
2.0 Powershift	Diesel	1997 cm³	140 hp	103 kW	320 N⋅m	Robotic	FWD
2.0 MT	Diesel	1997 cm³	140 hp	103 kW	320 N⋅m	Manual	FWD
2.0 Powershift	Diesel	1997 cm³	163 hp	120 kW	340 N⋅m	Robotic	FWD
2.0 MT	Diesel	1997 cm³	163 hp	120 kW	340 N⋅m	Manual	FWD
1.6 MT	Gasoline	1596 cm³	125 hp	92 kW	159 N⋅m	Manual	FWD
1.6 Powershift	Gasoline	1596 cm³	125 hp	92 kW	159 N⋅m	Robotic	FWD
1.6 MT	Gasoline	1596 cm³	182 hp	134 kW	240 N⋅m	Manual	FWD
2.0 Powershift	Gasoline	1999 cm³	170 hp	125 kW	198 N⋅m	Robotic	FWD

Ford Focus Dimensions

Estate 5-door — Ford Focus Dimensions

Estate 5-door Ford Focus Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.6 Powershift	4556 mm	1823 mm	1505 mm	2648 mm	1316 kg	1825 kg	150 mm
1.6 MT	4556 mm	1823 mm	1505 mm	2648 mm	1307 kg	1825 kg	150 mm
2.0 MT	4556 mm	1823 mm	1505 mm	2648 mm	1323 kg	1875 kg	150 mm
2.0 Powershift	4556 mm	1823 mm	1505 mm	2648 mm	1362 kg	1900 kg	150 mm
1.0 MT	4556 mm	1823 mm	1505 mm	2648 mm	1313 kg	1900 kg	120 mm
1.6 MT	4556 mm	1823 mm	1505 mm	2648 mm	1307 kg	1825 kg	150 mm
1.6 Powershift	4556 mm	1823 mm	1505 mm	2648 mm	1340 kg	1825 kg	150 mm
1.6 MT	4556 mm	1823 mm	1505 mm	2648 mm	1357 kg	1900 kg	150 mm
1.6 MT	4556 mm	1823 mm	1505 mm	2648 mm	1357 kg	1900 kg	150 mm
1.6 MT	4556 mm	1823 mm	1505 mm	2648 mm	1338 kg	1900 kg	120 mm
1.6 MT	4556 mm	1823 mm	1505 mm	2648 mm	1374 kg	1900 kg	120 mm
1.6 MT	4556 mm	1823 mm	1505 mm	2648 mm	1368 kg	1900 kg	150 mm
2.0 Powershift	4556 mm	1823 mm	1505 mm	2648 mm	1471 kg	2050 kg	150 mm
2.0 Powershift	4556 mm	1823 mm	1505 mm	2648 mm	1485 kg	2050 kg	150 mm
2.0 Powershift	4556 mm	1823 mm	1505 mm	2648 mm	1471 kg	2050 kg	150 mm
2.0 MT	4556 mm	1823 mm	1505 mm	2648 mm	1460 kg	2050 kg	150 mm
1.6 MT	4556 mm	1823 mm	1505 mm	2648 mm	1312 kg	1825 kg	150 mm
1.6 Powershift	4556 mm	1823 mm	1505 mm	2648 mm	1341 kg	1825 kg	150 mm
1.0 MT	4556 mm	1823 mm	1505 mm	2648 mm	1316 kg	1900 kg	150 mm
2.0 MT	4556 mm	1823 mm	1505 mm	2648 mm	1460 kg	2050 kg	150 mm
2.0 Powershift	4556 mm	1823 mm	1505 mm	2648 mm	Not provided	Not provided	120 mm

Sedan — Ford Focus Dimensions

Sedan Ford Focus Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.6 Powershift	4534 mm	1823 mm	1484 mm	2648 mm	1324 kg	1825 kg	150 mm
1.6 MT	4534 mm	1823 mm	1484 mm	2648 mm	1290 kg	1825 kg	150 mm
2.0 MT	4534 mm	1823 mm	1484 mm	2648 mm	1333 kg	1875 kg	150 mm
2.0 Powershift	4534 mm	1823 mm	1484 mm	2648 mm	1348 kg	1900 kg	150 mm
1.0 MT	4534 mm	1823 mm	1484 mm	2648 mm	1302 kg	1900 kg	120 mm
1.0 MT	4534 mm	1823 mm	1484 mm	2648 mm	1306 kg	1900 kg	150 mm
1.6 MT	4534 mm	1823 mm	1484 mm	2648 mm	1290 kg	1825 kg	150 mm
1.6 MT	4534 mm	1823 mm	1484 mm	2648 mm	1340 kg	1900 kg	150 mm
1.6 MT	4534 mm	1823 mm	1484 mm	2648 mm	1340 kg	1900 kg	150 mm
2.0 Powershift	4534 mm	1823 mm	1484 mm	2648 mm	1395 kg	2050 kg	120 mm
2.0 MT	4534 mm	1823 mm	1484 mm	2648 mm	1319 kg	1900 kg	120 mm
1.6 MT	4534 mm	1823 mm	1484 mm	2648 mm	1345 kg	1900 kg	150 mm
1.6 MT	4534 mm	1823 mm	1484 mm	2648 mm	1350 kg	1900 kg	150 mm
2.0 Powershift	4534 mm	1823 mm	1484 mm	2648 mm	1468 kg	2050 kg	150 mm
2.0 Powershift	4534 mm	1823 mm	1484 mm	2648 mm	1468 kg	2050 kg	150 mm
2.0 MT	4534 mm	1823 mm	1484 mm	2648 mm	1429 kg	2050 kg	150 mm
2.0 Powershift	4534 mm	1823 mm	1484 mm	2648 mm	1468 kg	2050 kg	150 mm
2.0 MT	4534 mm	1823 mm	1484 mm	2648 mm	1429 kg	2050 kg	150 mm
1.6 Powershift	4534 mm	1823 mm	1484 mm	2648 mm	1324 kg	1825 kg	150 mm
1.6 MT	4534 mm	1823 mm	1484 mm	2648 mm	1296 kg	1825 kg	150 mm
2.0 Powershift	4534 mm	1823 mm	1484 mm	2648 mm	Not provided	Not provided	120 mm

Hatchback 5-door — Ford Focus Dimensions

Hatchback 5-door Ford Focus Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.6 MT	4358 mm	1823 mm	1484 mm	2648 mm	1270 kg	1825 kg	150 mm
1.6 MT	4358 mm	1823 mm	1484 mm	2648 mm	1270 kg	1825 kg	150 mm
1.6 Powershift	4358 mm	1823 mm	1484 mm	2648 mm	1316 kg	1825 kg	150 mm
2.0 MT	4358 mm	1823 mm	1484 mm	2648 mm	1323 kg	1875 kg	150 mm
2.0 Powershift	4358 mm	1823 mm	1484 mm	2648 mm	1337 kg	1900 kg	150 mm
1.0 MT	4358 mm	1823 mm	1484 mm	2648 mm	1276 kg	1900 kg	120 mm
1.0 MT	4358 mm	1823 mm	1484 mm	2648 mm	1279 kg	1900 kg	150 mm
1.6 MT	4358 mm	1823 mm	1484 mm	2648 mm	1333 kg	1900 kg	150 mm
2.0 MT	4358 mm	1823 mm	1484 mm	2648 mm	1324 kg	1900 kg	120 mm
2.0 Powershift	4358 mm	1823 mm	1484 mm	2648 mm	1385 kg	2050 kg	120 mm
AT	4358 mm	1823 mm	1484 mm	2648 mm	1674 kg	Not provided	Not provided
1.6 MT	4358 mm	1823 mm	1484 mm	2648 mm	1338 kg	1900 kg	150 mm
1.6 MT	4358 mm	1823 mm	1484 mm	2648 mm	1350 kg	1900 kg	120 mm
1.6 MT	4358 mm	1823 mm	1484 mm	2648 mm	1344 kg	1900 kg	150 mm
2.0 Powershift	4358 mm	1823 mm	1484 mm	2648 mm	1461 kg	2050 kg	150 mm
2.0 Powershift	4358 mm	1823 mm	1484 mm	2648 mm	1461 kg	2050 kg	150 mm
2.0 MT	4358 mm	1823 mm	1484 mm	2648 mm	1421 kg	2050 kg	150 mm
2.0 Powershift	4358 mm	1823 mm	1484 mm	2648 mm	1461 kg	2050 kg	150 mm
2.0 MT	4358 mm	1823 mm	1484 mm	2648 mm	1421 kg	2050 kg	150 mm
1.6 MT	4358 mm	1823 mm	1484 mm	2648 mm	1276 kg	1825 kg	150 mm
1.6 Powershift	4358 mm	1823 mm	1484 mm	2648 mm	1316 kg	1825 kg	150 mm
1.6 MT	4358 mm	1823 mm	1484 mm	2648 mm	1333 kg	1900 kg	150 mm
2.0 Powershift	4358 mm	1823 mm	1484 mm	2648 mm	1395 kg	2050 kg	120 mm

Ford Focus Cargo Space

Estate 5-door — Ford Focus Cargo Space

Estate 5-door Ford Focus Cargo Space
Modification	Trunk volume min	Trunk volume max
1.6 Powershift	476 l	1502 l
1.6 MT	476 l	1502 l
2.0 MT	476 l	1502 l
2.0 Powershift	476 l	1502 l
1.0 MT	476 l	1502 l
1.6 MT	476 l	1502 l
1.6 Powershift	476 l	1502 l
1.6 MT	476 l	1502 l
1.6 MT	476 l	1502 l
1.6 MT	476 l	1502 l
1.6 MT	476 l	1502 l
1.6 MT	476 l	1502 l
2.0 Powershift	476 l	1502 l
2.0 Powershift	476 l	1502 l
2.0 Powershift	476 l	1502 l
2.0 MT	476 l	1502 l
1.6 MT	476 l	1502 l
1.6 Powershift	476 l	1502 l
1.0 MT	476 l	1502 l
2.0 MT	476 l	1502 l
2.0 Powershift	476 l	1502 l

Sedan — Ford Focus Cargo Space

Sedan Ford Focus Cargo Space
Modification	Trunk volume min
1.6 Powershift	372 l
1.6 MT	372 l
2.0 MT	372 l
2.0 Powershift	372 l
1.0 MT	372 l
1.0 MT	372 l
1.6 MT	372 l
1.6 MT	372 l
1.6 MT	372 l
2.0 Powershift	372 l
2.0 MT	372 l
1.6 MT	372 l
1.6 MT	372 l
2.0 Powershift	372 l
2.0 Powershift	372 l
2.0 MT	372 l
2.0 Powershift	372 l
2.0 MT	372 l
1.6 Powershift	372 l
1.6 MT	372 l
2.0 Powershift	372 l

Hatchback 5-door — Ford Focus Cargo Space

Hatchback 5-door Ford Focus Cargo Space
Modification	Trunk volume min	Trunk volume max
1.6 MT	277 l	1062 l
1.6 MT	277 l	1062 l
1.6 Powershift	277 l	1062 l
2.0 MT	277 l	1062 l
2.0 Powershift	277 l	1062 l
1.0 MT	277 l	1062 l
1.0 MT	277 l	1062 l
1.6 MT	277 l	1062 l
2.0 MT	277 l	1062 l
2.0 Powershift	277 l	1062 l
AT	277 l	1062 l
1.6 MT	277 l	1062 l
1.6 MT	277 l	1062 l
1.6 MT	277 l	1062 l
2.0 Powershift	277 l	1062 l
2.0 Powershift	277 l	1062 l
2.0 MT	277 l	1062 l
2.0 Powershift	277 l	1062 l
2.0 MT	277 l	1062 l
1.6 MT	277 l	1062 l
1.6 Powershift	277 l	1062 l
1.6 MT	277 l	1062 l
2.0 Powershift	277 l	1062 l

Ford Focus Trims and Equipment

Ford Focus trim levels describe equipment, while a designation such as 2.0 MT identifies the engine and transmission. Trend is an equipment configuration offered with the gasoline manual estate. Check each car’s fitted comfort, convenience and safety features, since equipment can vary with market, model year and optional extras.

Ford Focus Trims and Equipment
Modification	Body	Equipment
1.6 MT	Estate 5-door	Sync Edition
1.6 MT	Estate 5-door	Trend
2.0 MT	Estate 5-door	Trend
1.6 MT	Estate 5-door	Sport Limited Edition
1.6 MT	Estate 5-door	Trend
1.6 Powershift	Estate 5-door	Sport Limited Edition
1.6 Powershift	Estate 5-door	Titanium
1.6 Powershift	Estate 5-door	Trend
1.0 MT	Estate 5-door	Sport
2.0 MT	Estate 5-door	Trend
2.0 Powershift	Estate 5-door	Trend
2.0 Powershift	Estate 5-door	Titanium
1.6 Powershift	Sedan	Sync Edition
1.6 MT	Sedan	Sync Edition
1.6 MT	Sedan	Trend
2.0 MT	Sedan	Trend
2.0 MT	Sedan	Trend + ESP
1.6 Powershift	Sedan	Sport
1.6 Powershift	Sedan	Trend
1.6 MT	Sedan	Sport
1.6 MT	Sedan	Titanium
1.6 MT	Sedan	Trend
2.0 Powershift	Sedan	Trend
2.0 Powershift	Sedan	Titanium
1.6 MT	Hatchback 5-door	Ambiente
1.6 MT	Hatchback 5-door	Sync Edition
1.6 MT	Hatchback 5-door	Trend
2.0 MT	Hatchback 5-door	Trend
2.0 MT	Hatchback 5-door	Trend + ESP
1.6 MT	Hatchback 5-door	Sport
1.6 MT	Hatchback 5-door	Sport Limited Edition
1.6 MT	Hatchback 5-door	Titanium
1.6 MT	Hatchback 5-door	Trend
1.6 Powershift	Hatchback 5-door	Sport
1.6 Powershift	Hatchback 5-door	Sport Limited Edition
1.6 Powershift	Hatchback 5-door	Trend
1.6 MT	Hatchback 5-door	Titanium
2.0 Powershift	Hatchback 5-door	Trend
2.0 Powershift	Hatchback 5-door	Titanium
