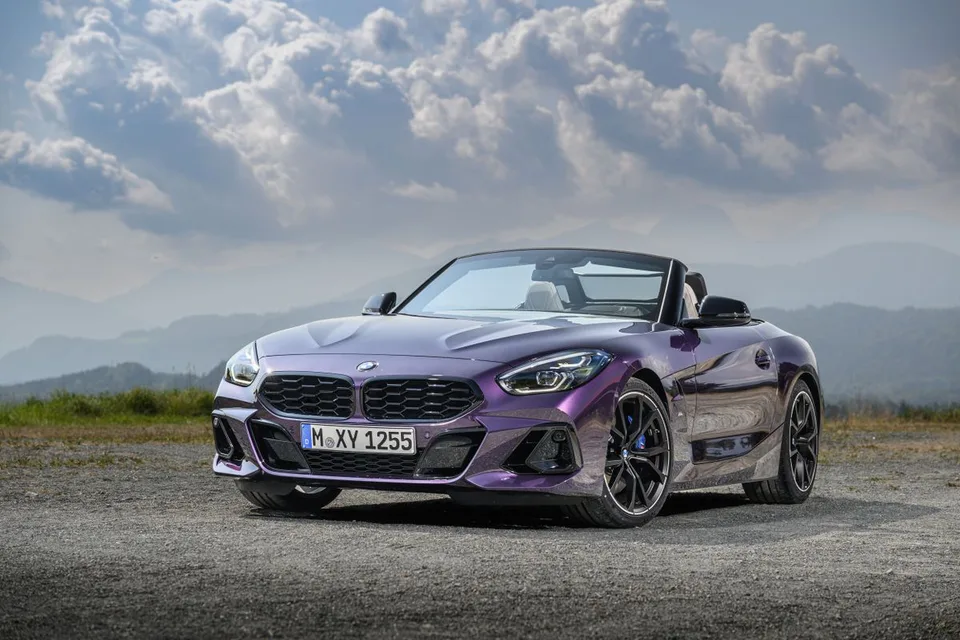

BMW Z4 20i 2.0 MT sDrive M-Design Equipment — Third Generation Restyling 1

City journeys set the frame for this look at the BMW Z4 20i 2.0 MT sDrive M-Design: short hops, parking manoeuvres and errands, where everyday habits count for more than any single specification.

3 generation, restyling 1 · Roadster

2022

20i 2.0 MT sDrive

Gasoline · Manual · RWD

At a glance

View full specifications ↓

M-Design

Report an inaccuracy ↗

Specifications

Jump to a section

Performance & powertrain

Top speed
?

The highest speed a vehicle can sustain under manufacturer test conditions. Some cars are electronically limited below their mechanical potential. Glossary entry

241 km/h
Engine type
Gasoline
Transmission
Manual
Type of boost
?

A turbocharger or supercharger compresses the air entering the engine so a smaller engine can produce more power. Naturally aspirated engines draw air without a compressor. Glossary entry

Turbo
Type of drive
?

Which wheels receive power: front-wheel drive, rear-wheel drive or all-wheel drive. All-wheel drive can send power to every wheel for extra traction. Glossary entry

RWD
Bore and stroke
?

The diameter of a cylinder (bore) and the distance the piston travels inside it (stroke). Together they determine the displacement of the engine. Glossary entry

82 x94.6 mm
Engine capacity
?

The total volume swept by all pistons inside the cylinders, usually stated in cubic centimetres or litres. Larger displacement often means more power but higher consumption. Glossary entry

1998 cm³
Engine location
Front, longitudinal
Number of gears
?

How many fixed forward ratios a gearbox offers. More gears can improve economy and refinement; continuously variable transmissions have no fixed steps. Glossary entry

6
Maximum power
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

197 hp
Maximum power, kw
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

144 kW
Compression ratio
?

The ratio between the largest and smallest volume of a cylinder as the piston moves. Higher ratios improve efficiency but may require higher-octane fuel. Glossary entry

10.2
Maximum power rpm
4500 rpm
Maximum torque N⋅m
320 N⋅m
Maximum torque rpm
1450 rpm
Acceleration to 100
?

The time a vehicle needs to reach 100 km/h from a standstill, a common shorthand for overall performance. Glossary entry

6.8 s
Engine power system
Direct injection (direct)
Number of cylinders
4
Valves per cylinder
?

The number of intake and exhaust valves in each cylinder. Four valves per cylinder is common and helps the engine breathe at higher speeds. Glossary entry

4
Cylinder arrangement
Inline
Maximum power ICE
Not provided
Maximum power ICE
Not provided

Energy & emissions

ECO class
Not provided
Battery power
Not provided
Fuel grade
95
Mild Hybrid
?

A car with a small electric motor and battery that assist the combustion engine and recover braking energy but cannot drive on electricity alone. Glossary entry

Not provided
Battery type
Not provided
CO2 emissions
?

The amount of carbon dioxide released per kilometre under a standardised test. Lower figures usually go hand in hand with lower fuel consumption. Glossary entry

Not provided
Full charge home
Not provided
Power consumption
Not provided
Fuel tank capacity
52 l
Full public charging time
Not provided
Driving range, maximum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

Not provided
Driving range, minimum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

Not provided
Fuel consumption city
Not provided
Average consumption
7.1 l
Fuel consumption highway
Not provided

Dimensions & body

Doors number
2
Number of seats
4
Width
1868 mm
Height
1304 mm
Length
4324 mm
Body type
Roadster
Wheelbase
?

The distance between the centres of the front and rear wheels. A longer wheelbase usually gives more cabin space and a calmer ride; a shorter one helps agility and parking. Glossary entry

2470 mm
U-turn diameter
Not provided
Depth of the ford to be crossed
Not provided
Body style
Drop-top
Rear track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

1613 mm
Trunk volume max
Not provided
Trunk volume min
281 l
Front track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

1618 mm
Max weight
Not provided
Curb weight
?

The weight of the vehicle with all standard equipment and fluids but without passengers or cargo. Glossary entry

1435 kg
Ground clearance, maximum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

Not provided
Ground clearance, minimum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

117 mm

Identity & configuration

Vehicle class
S
Right-hand drive
No

Additional specifications

Stop
Not provided
Start
2022-09-01
Wheel size
Not provided
Rear brakes
Ventilated disc
Front brakes
Ventilated disc
Rear suspension
Independent, spring
Front suspension
Independent, spring

Trim equipment

Dimensions & body

Number of seats
4

Additional specifications

Driver Assistance Systems
Anti-lock braking system (ABS), Electronic stability program (ESP), Emergency brake assist (BAS, EBD, EBA), Automatic slip regulation (ASR), Lane departure warning system, Blind spot monitoring system, Smart Brake Support (Rear Crossing) (SBS-RC) System
Stop
Not provided
View
Light sensor, Rain sensor
Start
2022-09-01
Airbags
Driver's airbag, Passenger airbag
Camera
Rear-view camera
Isofix
Isofix for the back row
Material
Alloy
Comfort
On-board computer, Power folding mirrors, Power mirrors, Folding mirrors, Self-darkening exterior mirrors
Interior
Leather steering wheel, Power window
Safety
Tire pressure sensors
Headlights
LED headlights
Sound
Audio system
Diameter
R18 ″
Multimedia
USB, Bluetooth, Carplay, Android Auto
Speakers
10 speakers
Cruise control
Cruise control
Parking assist system
Front parking sensors, Rear parking sensors, Automatic parking system
Power steering
Power steering
Air conditioner
Dual-zone climate control
Seat position memory
Front seats with memory function
Electric heating
Front seats, Side mirrors
Steering wheel adjustment
Steering wheel height adjustment, Steering wheel reach adjustment
Seat trim
Genuine leather seats
Power seat adjustment
Front seat adjustment

Not provided means the source has no value. Zero remains zero. Units are shown as supplied; range test cycles are only stated when known.
