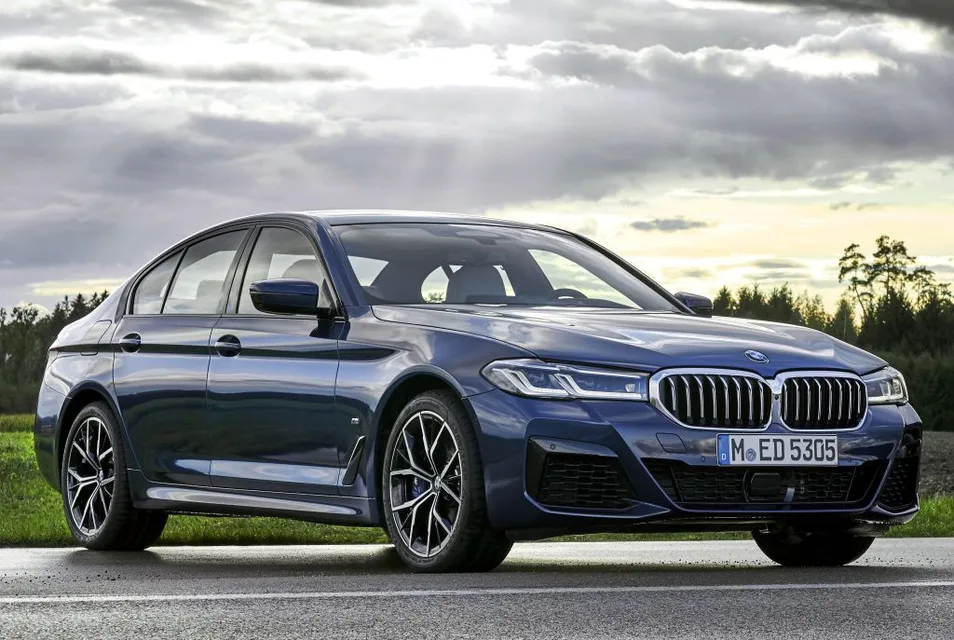

BMW 5 Series Specs, Engines & Dimensions (2020–2023) — Seventh Generation Restyling

The BMW 5 Series Seventh Generation Restyling builds on a proven executive formula with updated styling and technology. Offered as a Sedan or Estate 5-door, it delivers a range of powertrains to suit different needs.

← All BMW models

21 modificationsAll supplied years

BMW 5 Series Engines and Transmissions

The BMW 5 Series engine lineup covers gasoline, diesel, and plug-in hybrid options, all paired with an automatic transmission. For example, the 540i MHEV xDrive offers mild-hybrid gasoline power with all-wheel drive, while the 540d MHEV xDrive provides diesel efficiency with the same traction benefits. Drivers choosing the Estate 5-door gain practicality without sacrificing performance.

Estate 5-door — BMW 5 Series Engines and Transmissions

Estate 5-door BMW 5 Series Engines and Transmissions
ModificationEngine typeEngine capacityMaximum powerMaximum power, kwMaximum torque N⋅mTransmissionType of drive
540i MHEV xDriveGasoline2998 cm³333 hp244 kW450 N⋅mAutomaticAWD
540d MHEV xDriveDiesel2993 cm³340 hp250 kW700 N⋅mAutomaticAWD
530i MHEV xDriveGasoline2998 cm³252 hp185 kW350 N⋅mAutomaticAWD
530i MHEVGasoline2998 cm³252 hp185 kW350 N⋅mAutomaticRWD
530e Plug-in HybridPlug-in1998 cm³292 hp215 kW428 N⋅mAutomaticRWD
530e Plug-in Hybrid xDrivePlug-in1998 cm³292 hp215 kW428 N⋅mAutomaticAWD
530d MHEV xDriveDiesel2993 cm³286 hp210 kW650 N⋅mAutomaticAWD
530d MHEVDiesel2993 cm³286 hp210 kW650 N⋅mAutomaticRWD
520i MHEVGasoline1998 cm³184 hp135 kW290 N⋅mAutomaticRWD
520e Plug-in HybridPlug-in1998 cm³204 hp150 kW300 N⋅mAutomaticRWD

Sedan — BMW 5 Series Engines and Transmissions

Sedan BMW 5 Series Engines and Transmissions
ModificationEngine typeEngine capacityMaximum powerMaximum power, kwMaximum torque N⋅mTransmissionType of drive
520d MHEV SteptronicDiesel1995 cm³190 hp139 kW400 N⋅mAutomaticRWD
530d MHEVDiesel2993 cm³286 hp210 kW650 N⋅mAutomaticRWD
530d MHEV xDriveDiesel2993 cm³286 hp210 kW650 N⋅mAutomaticAWD
530e Plug-in HybridPlug-in1998 cm³292 hp215 kW428 N⋅mAutomaticRWD
545e Plug-in Hybrid xDrive SteptronicPlug-in2998 cm³394 hp289 kW450 N⋅mAutomaticAWD
540i MHEVGasoline2998 cm³333 hp244 kW450 N⋅mAutomaticRWD
520d MHEV xDrive SteptronicDiesel1995 cm³190 hp139 kW400 N⋅mAutomaticAWD
540i MHEV xDriveGasoline2998 cm³333 hp244 kW450 N⋅mAutomaticAWD
520e Plug-in HybridPlug-in1998 cm³204 hp150 kW300 N⋅mAutomaticRWD
530e xDrive Plug-in HybridPlug-in1998 cm³292 hp215 kW428 N⋅mAutomaticAWD
550iGasoline4395 cm³530 hp389 kW750 N⋅mAutomaticRWD

BMW 5 Series Dimensions

Estate 5-door — BMW 5 Series Dimensions

Estate 5-door BMW 5 Series Dimensions
ModificationLengthWidthHeightWheelbaseCurb weightMax weightGround clearance, minimum
540i MHEV xDrive4963 mm1868 mm1498 mm2975 mm1850 kg2535 kg140 mm
540d MHEV xDrive4963 mm1868 mm1498 mm2975 mm1925 kg2615 kg140 mm
530i MHEV xDrive4963 mm1868 mm1498 mm2975 mm1790 kg2490 kg140 mm
530i MHEV4963 mm1868 mm1498 mm2975 mm1730 kg2425 kg140 mm
530e Plug-in Hybrid4963 mm1868 mm1498 mm2975 mm1900 kg2550 kg143 mm
530e Plug-in Hybrid xDrive4963 mm1868 mm1498 mm2975 mm1960 kg2610 kg143 mm
530d MHEV xDrive4963 mm1868 mm1498 mm2975 mm1925 kg2610 kg140 mm
530d MHEV4963 mm1868 mm1498 mm2975 mm1865 kg2550 kg140 mm
520i MHEV4963 mm1868 mm1498 mm2975 mm1715 kg2410 kg140 mm
520e Plug-in Hybrid4963 mm1868 mm1498 mm2975 mm1900 kg2550 kg143 mm

Sedan — BMW 5 Series Dimensions

Sedan BMW 5 Series Dimensions
ModificationLengthWidthHeightWheelbaseCurb weightMax weightGround clearance, minimum
520d MHEV Steptronic4963 mm1868 mm1483 mm2975 mm1675 kg2345 kg140 mm
530d MHEV4963 mm1868 mm1483 mm2975 mm1760 kg2440 kg140 mm
530d MHEV xDrive4963 mm1868 mm1483 mm2975 mm1820 kg2505 kg140 mm
530e Plug-in Hybrid4963 mm1868 mm1483 mm2975 mm2034 kgNot provided150 mm
545e Plug-in Hybrid xDrive Steptronic4963 mm1868 mm1483 mm2975 mm2034 kgNot provided150 mm
540i MHEV4963 mm1868 mm1483 mm2975 mm1685 kg2395 kg140 mm
520d MHEV xDrive Steptronic4963 mm1868 mm1483 mm2975 mm1735 kg2405 kg140 mm
540i MHEV xDrive4963 mm1868 mm1483 mm2975 mm1745 kg2455 kg140 mm
520e Plug-in Hybrid4963 mm1868 mm1483 mm2975 mm1835 kg2505 kg143 mm
530e xDrive Plug-in Hybrid4963 mm1868 mm1483 mm2975 mm2034 kg2560 kg150 mm
550i4963 mm1868 mm1483 mm2975 mm1915 kg2560 kg140 mm

BMW 5 Series Cargo Space

Estate 5-door — BMW 5 Series Cargo Space

Estate 5-door BMW 5 Series Cargo Space
ModificationTrunk volume minTrunk volume max
540i MHEV xDrive560 l1700 l
540d MHEV xDrive560 l1700 l
530i MHEV xDrive560 l1700 l
530i MHEV560 l1700 l
530e Plug-in Hybrid560 l1700 l
530e Plug-in Hybrid xDrive560 l1700 l
530d MHEV xDrive560 l1700 l
530d MHEV560 l1700 l
520i MHEV560 l1700 l
520e Plug-in Hybrid560 l1700 l

Sedan — BMW 5 Series Cargo Space

Sedan BMW 5 Series Cargo Space
ModificationTrunk volume min
520d MHEV Steptronic410 l
530d MHEV410 l
530d MHEV xDrive410 l
530e Plug-in Hybrid410 l
545e Plug-in Hybrid xDrive Steptronic410 l
540i MHEV410 l
520d MHEV xDrive Steptronic410 l
540i MHEV xDrive410 l
520e Plug-in Hybrid410 l
530e xDrive Plug-in Hybrid410 l
550i410 l

BMW 5 Series Trims and Equipment

BMW 5 Series trim levels allow buyers to tailor equipment to their preferences. The 530e Plug-in Hybrid Sedan, for instance, is available in configurations like M-Sport and M-Superior, which add sportier styling and enhanced features. This flexibility ensures the car can be as luxurious or dynamic as desired.

BMW 5 Series Trims and Equipment
ModificationBodyEquipment
530e Plug-in HybridSedanM-Sport
530e Plug-in HybridSedanM-Superior
530e Plug-in HybridSedanM-Design
530e Plug-in HybridSedanExclusive
530e Plug-in HybridSedanExclusive M
530e Plug-in HybridSedanM-Design SE
545e Plug-in Hybrid xDrive SteptronicSedan545 e M-Sport
545e Plug-in Hybrid xDrive SteptronicSedan545e M-Superior
520d MHEV xDrive SteptronicSedanExclusive
520e Plug-in HybridSedanM-Sport
530e xDrive Plug-in HybridSedanM-Sport
530e xDrive Plug-in HybridSedanM-Superior
530e xDrive Plug-in HybridSedanExclusive
530e xDrive Plug-in HybridSedanExclusive M

BMW 5 Series Battery, Range, Charging

For those considering the plug-in hybrid variants, the BMW 5 Series battery capacity supports practical electric-only driving for daily commutes. The 530e Plug-in Hybrid Estate, whether rear-wheel drive or xDrive, uses a lithium-ion battery that can be recharged at home or public stations, blending efficiency with everyday usability.

Estate 5-door — BMW 5 Series Battery, Range, Charging

Estate 5-door BMW 5 Series Battery, Range, Charging
ModificationBattery powerBattery typeDriving range, maximumFull charge homeFull public charging time
530e Plug-in Hybrid12 kWhLithium-ion batterie56 km360 min216 min
530e Plug-in Hybrid xDrive12 kWhLithium-ion batterie56 km360 min216 min
520e Plug-in Hybrid12 kWhLithium-ion batterieNot providedNot providedNot provided

Sedan — BMW 5 Series Battery, Range, Charging

Sedan BMW 5 Series Battery, Range, Charging
ModificationBattery powerBattery typeDriving range, maximumFull charge homeFull public charging time
530e Plug-in Hybrid12 kWhLithium-ion batterie56 km360 min216 min
545e Plug-in Hybrid xDrive Steptronic12 kWhLithium-ion batterie49 kmNot providedNot provided
520e Plug-in Hybrid12 kWhLithium-ion batterie61 km120 min120 min
530e xDrive Plug-in Hybrid12 kWhLithium-ion batterie56 km360 min216 min
