Transmission Pan Drop and Filter Replacement Explained
Dropping the transmission pan is one of the few automatic transmission services that lets you see what is happening inside the unit. Besides draining old fluid, it exposes the filter, the pan magnet, and the gasket. Knowing when a pan drop makes sense, what a transmission fluid filter kit contains, and how the job differs from a plug drain helps you decide whether to do it yourself or book a shop.
What the transmission pan does and why servicing it matters
The transmission pan sits at the bottom of the case and serves as the fluid reservoir for most conventional automatic transmissions. The pump draws fluid from the pan through the filter or screen. It then sends that fluid under pressure to the valve body, the clutches, and the torque converter. Gravity pulls debris downward, so the pan also collects whatever material the transmission sheds as it wears. Many pans carry one or more magnets that hold fine steel particles so the pump does not draw them back into circulation.
Over thousands of miles, clutch friction material and fine metal settle into a sludgy film on the pan floor and around the magnet. A drain-only service removes the fluid that flows out easily, but it leaves that sediment in place and never lets you inspect the filter. Pan designs vary a lot. Some pans have a drain plug, many have none, and some sealed units are not meant for owner service at all. Before you assume a pan drop applies to your vehicle, confirm the exact transmission type in the owner's documentation or through a dealer lookup.
Pan drop versus simple drain: what each service actually changes
Pulling a drain plug replaces only the fluid sitting in the pan, which is just part of the total fill. Removing the pan drains about the same volume, but it also exposes the filter, the magnet, and the gasket. That lets you replace wear items and read the debris. Neither method flushes the torque converter, the valve body passages, or the cooler lines, where a substantial amount of fluid stays behind. Any drain or pan service therefore replaces only part of the fluid. Repeating the service over time is how the overall fluid condition gradually improves.
The term drain pan causes confusion because it can mean two things. It may refer to the transmission pan bolted to the case, or to the catch pan placed underneath to collect old fluid. You need to plan for both. A good catch pan needs a wide footprint, because fluid often runs unevenly off the pan rim as the fasteners loosen and the pan tips. It also needs enough capacity for the expected volume plus some extra room. A spout or sealing cap lets you transfer the fluid cleanly for recycling.
What comes in a transmission fluid filter kit and how to match it

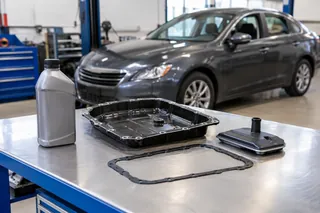

A typical transmission fluid filter kit includes the filter or screen and a pan gasket or reusable seal. Some kits also include an O-ring or pickup tube seal that keeps the filter sealed against the valve body, and broader transmission service kits may add hardware as well. Kits are matched by transmission model and often by pan depth, not by the vehicle badge alone. One model line may use several transmission variants depending on engine, drivetrain, and production year. A deep-pan version, for example, may need a longer pickup than a shallow one.
To confirm fit, identify the transmission code and production date from the vehicle's documentation, the build label, or a VIN-based parts lookup. Don't rely on a generic fits-all listing. Also check whether your unit takes a replaceable filter at all. Some transmissions use an internal screen designed to last the life of the unit, while others use a serviceable filter element. If yours has a lifetime screen, there may be no kit for it, and a fluid change alone may be the intended maintenance.
Symptoms that suggest the filter or pan deserves attention
Several observable signs can point toward the filter, the fluid, or the pan. These include delayed engagement when shifting into drive or reverse, slipping after a hot restart, a whine that changes with fluid level or temperature, and wetness along the pan rim. The fluid itself adds evidence. Dark fluid with a burnt smell, or a magnet coated in heavy paste or carrying visible metal flakes, suggests internal wear that a new filter will not reverse. A filter only traps debris. It cannot restore worn clutches or bushings.
Symptoms alone cannot confirm the cause. A clogged filter restricts pump intake and can cause slipping or whining, but a worn pump, a leaking seal, or a valve body problem can feel much the same from the driver's seat. Stored fault codes help narrow the possibilities, but they are evidence to interpret alongside pressure readings, not proof that a specific part has failed. Some problems go beyond what a pan service can fix. If harsh shifts come with warning lights, or the pan holds metallic chunks rather than fine paste, have the transmission professionally diagnosed.
Planning the job safely and knowing when to hand it off
The vehicle must sit on a level surface on secure supports rated for its weight, never on a jack alone. Being level also matters for reading the fluid accurately afterward. You need the correct fluid and a way to measure how much drains out, because that measurement guides the refill. Take the fluid specification from the owner's manual or service documentation, not from a universal claim on a store shelf. Automatic transmission fluids differ in friction properties and viscosity. The wrong type can cause shudder or harsh shifts and can damage clutches and seals.
The sealing surfaces on both the pan and the case must be clean and undamaged, because old gasket residue or a bent pan flange invites seepage. Pan fasteners have a specified torque, and it is often modest. Overtightening can warp a thin stamped pan or strip threads in the case. Use a shop if the pan has no drain plug and you cannot support the vehicle safely. The same applies when a sealed unit requires a fill procedure with temperature checks. Take used fluid to an approved collection point, and never pour it down a drain or onto the ground.
Refilling and verifying the service was done correctly
After a pan drop, the refill volume is less than the transmission's total listed capacity, because much of the old fluid stayed in the converter and cooler circuit. The amount that drained out is your starting reference. The final level comes from checking, not from pouring in the full capacity figure. Check the level using the method your transmission specifies. Dipstick units call for a reading at a set temperature and operating condition. Many modern units instead use a level plug that must be checked within a narrow temperature window.
After the service, look for smooth, prompt engagement into drive and reverse, and for stable shifting once the transmission reaches operating temperature. After a test drive and a short cool-down, check that the pan gasket is not seeping. Recheck the level after that drive, because trapped air and warming fluid can change the reading. If slipping, flare, or delayed engagement continues after a correct service with verified fluid and level, the pan and filter probably were not the root cause. At that point, professional pressure testing and a scan of transmission data will tell you more than repeating the service.
