Primus IQ Trailer Brake Controller: Manual, Setup and Operation Guide
What the Primus IQ Brake Controller Does
The Primus IQ is an inertia-based, proportional electric trailer brake controller. It senses vehicle deceleration and sends a matching voltage signal to the trailer brakes. This means the trailer brakes are not simply on or off; their braking force increases or decreases in proportion to how hard the tow vehicle is slowing. The controller is intended for trailers with electric brakes, typically on one to three axles.
Scope of the Manual and Model Qualification
Instructions in this guide apply to the Primus IQ electronic brake control as covered by its owner's manual. While the broader Primus trailer brake controller family shares similar operation, exact button labels, diagnostic blink codes and mounting dimensions can vary by production version or market. Always confirm the specific manual supplied with your unit, particularly when replacing a controller from a different model year or trim package.
Mounting and Initial Calibration

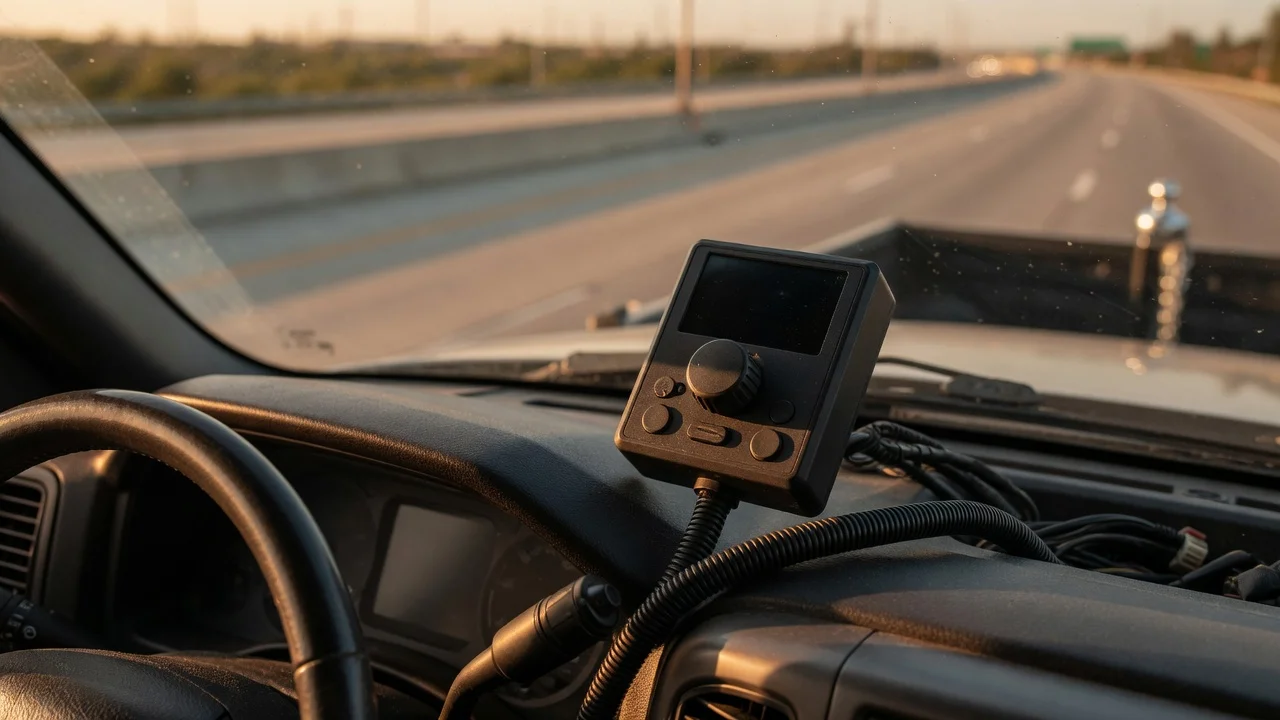

The controller must be mounted securely in the tow vehicle, with its sensing axis oriented correctly. The manual specifies mounting the unit horizontally, parallel to the direction of travel, and away from direct heat or moisture. After wiring is completed, the controller performs an initial calibration sequence when power is first applied. During this phase the display may flash or show a diagnostic pattern while it learns its level position.
Setting the Gain
Gain controls how much braking force the controller sends to the trailer for a given amount of vehicle deceleration. The Primus IQ uses a rotary adjustment or paired buttons depending on the exact version. The manual describes starting at a low or mid-range gain setting and testing on a dry, level, low-traffic surface at low speed. The goal is to achieve firm, even trailer braking without wheel lockup or harsh jerking. Gain may need adjustment after changing trailer load, road surface or trailer brake condition.
Manual Override Function
The controller includes a manual override control, typically a lever or slide on the front face. Activating it sends braking signal to the trailer independently of the vehicle brake pedal. The manual recommends using this function to test trailer brake response before a trip and as an emergency measure if trailer sway begins. The override applies braking in proportion to how far the control is moved, not always at full power.
Reading Diagnostic Indicators
The Primus IQ display uses a combination of steady lights, flashing lights and color changes to report status and faults. The supplied manual defines each pattern. Common statuses include a solid indicator for normal powered operation, a slow flash during calibration, and a rapid flash pattern when the trailer brake circuit is open, shorted or disconnected. No vehicle or trailer wiring should be modified based on a displayed code without checking the exact meaning in the paper or digital manual for your unit version, because blink patterns can differ between production revisions.
Wiring and Connection Notes
Primary connections include 12-volt vehicle power, brake switch input, ground, and the blue trailer brake output wire. The manual specifies a circuit breaker or fuse rating for the power feed and warns against connecting the brake output to the vehicle's stop lamp circuit as a substitute. The stop lamp signal is only a trigger; the controller draws operating current for the trailer brakes from its dedicated power circuit.
Troubleshooting Common Conditions
No trailer braking at any gain: check trailer brake magnets, connector ground, and controller output circuit with the manual override pressed. Brakes grab or lock quickly: reduce gain, check trailer brake adjustment, and confirm the controller is mounted level and not exposed to strong vibration. Intermittent braking or flickering indicator: inspect the 7-way connector, trailer-side brake wiring and ground connections for looseness or corrosion. Controller shuts off under braking: verify the power feed fuse or breaker rating and check for a shorted trailer brake magnet.
Inspection and Maintenance
The controller itself needs little maintenance beyond keeping the face and connectors clean. The manual directs more attention to the trailer brake system: magnet wear, wiring insulation, connector pins and brake shoe or hub adjustment. A trailer brake system should be inspected at the intervals recommended by the trailer axle or brake manufacturer, not solely by the controller manual.
When a Physical Manual Is Unavailable
If the printed manual is missing, the same setup sequence and diagnostic table are normally available from the controller manufacturer's documentation for the Primus IQ model. Third-party summaries can help, but they should not replace the model and version-specific manual, especially for wire color confirmation and blinking code interpretation.
Bottom Line
The Primus IQ manual centers on correct mounting, power wiring, gain tuning and the manual override. The essential operating principle is proportional braking based on deceleration sensing. Following the calibration and low-speed test procedure from the manual is the most reliable way to set safe trailer brake response for a specific vehicle-and-trailer combination.
