Audi Automatic Transmission Fluid Change: Requirements and Procedure
Before you start
An automatic transmission fluid change on an Audi is not the same as an engine oil change. The transmission may have a fill plug, a separate drain plug or a combined fill and level tube, depending on the model and gearbox. You need the correct Audi-specified fluid, a way to read transmission temperature, and a level or lift that keeps the vehicle stable while the engine is running during the final level check.
Check the service information for your exact model, year and transmission code before buying fluid. Audi uses several automatic and dual-clutch transmissions, and they do not all accept the same ATF. Using a generic fluid may cause shift quality problems or transmission damage.
Typical prerequisites include: approved ATF in the quantity listed for the transmission; a new drain plug sealing washer or replacement plug if required; a new filter or pan gasket when the service procedure includes them; a scan tool or suitable method for checking transmission fluid temperature; a fluid pump or filler adapter that fits the fill opening; and a torque wrench with the specified torque values.
The process runs locally on the vehicle. Plan for the fluid to be at the correct temperature during filling and checking, and allow the vehicle to cool enough to work safely around hot exhaust and transmission surfaces.
Step-by-step instructions
Raise and support the vehicle so it is level. If the transmission fill and level check must be done with the vehicle level, use a lift or four sturdy supports. Remove the underbody panel or splash shield if it blocks the transmission pan, drain plug or fill plug.
Place a suitable drain container under the transmission. Remove the drain plug if the transmission has one, and let the old fluid drain fully into the container.

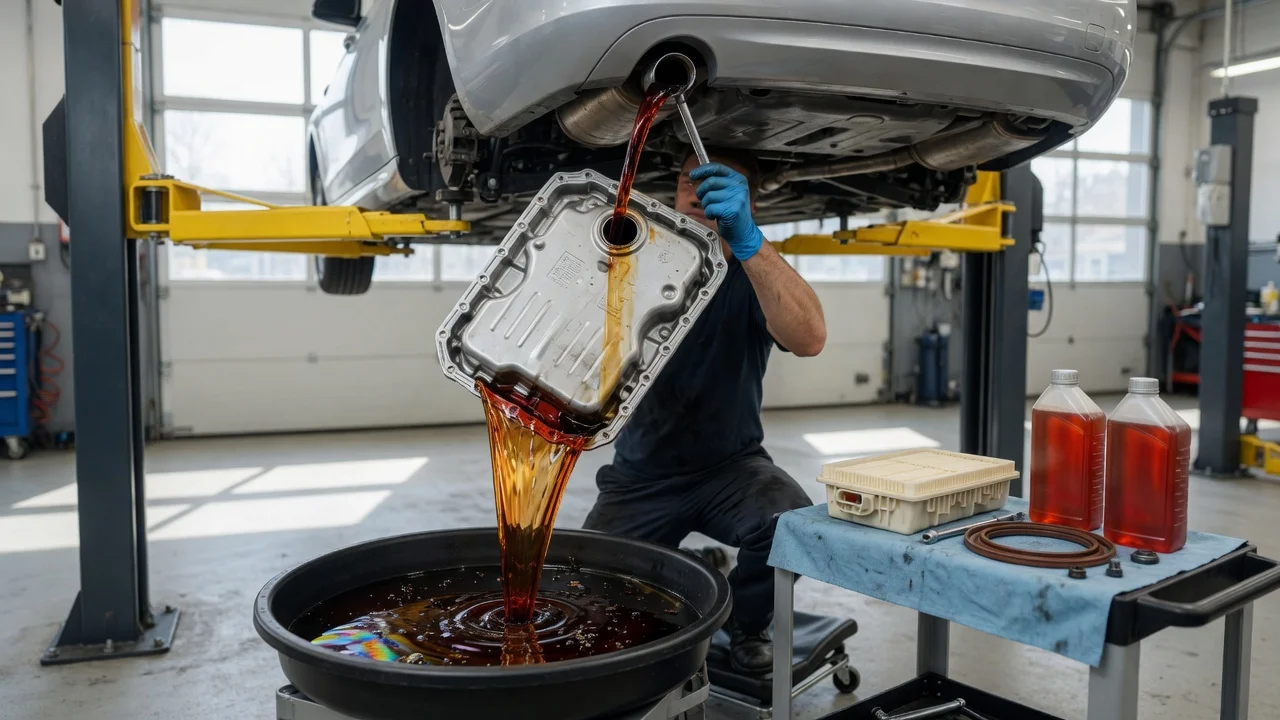

If the service includes a filter or pan removal, remove the pan fasteners carefully and lower the pan without spilling fluid onto wiring or connectors. Clean the pan and magnet, replace the filter if applicable, and install the pan with a new gasket if specified.
Reinstall the drain plug with a new sealing washer and tighten it to the specified torque. If the transmission uses a combined fill and level tube, leave the fill plug open for filling.
Pump the approved ATF into the fill opening until fluid starts to run back out of an open fill or level tube. Start the engine and let it idle. On many Audi transmissions you must monitor transmission temperature while shifting through the selector positions with the brake applied.
At the specified transmission temperature, add fluid slowly until a small amount drips from the level opening. Wait for the flow to settle to a slight drip, then install the fill plug with a new sealing ring if required and tighten it to the specified torque.
Wipe the transmission and surrounding area clean, reinstall any removed shields or panels, and lower the vehicle.
Important settings vary by gearbox. Some transmissions are filled with the engine off, while others require the engine running and a specific temperature range. A drain and refill often changes only part of the total fluid; a full exchange may be a separate procedure. Keep the old fluid in a closed container and take it to a facility that accepts used oil.
Check the output
After the change, start the vehicle and let it idle. Move the selector through each position, pausing briefly in each, then return to Park or Neutral according to the service procedure. The shifts should engage without harsh delay or unusual sound.
Drive gently at first and check that upshifts and downshifts are smooth. After the drive, inspect around the pan, drain plug and fill plug for leaks. A small amount of residual fluid from filling should be cleaned away; a growing wet area or drip points to a leak that needs correction.
The result is limited by the service method. A simple drain and refill replaces only the fluid that drains, not all fluid held in the torque converter and cooler lines. The transmission will not immediately feel better if it already has a mechanical or electronic fault, and the fluid level must be checked using the temperature and level procedure for that gearbox rather than by guesswork.
Common problems and next steps
Audi automatic transmission fluid capacity is often confused with the amount needed for a drain and refill. The total filling capacity includes fluid that does not drain during a standard service. Buy the amount listed for your service method, not the total gearbox capacity alone, to avoid running short during filling.
People sometimes ask what Audi automatic transmission fluid is used. The answer depends on the transmission code. Check the owner's manual or service information for the exact ATF specification and do not substitute by color or brand name alone.
Audi transmission fluid capacity varies by gearbox, so transferring figures from another Audi model can lead to a wrong level. If fluid was added while the transmission was too hot or too cold, the level may be inaccurate. Repeat the level check at the correct temperature before adding more.
If the transmission slips, flares, clunks or shows a warning message after the service, stop driving aggressively and check the fluid level and specification first. A harsh shift may also come from adaptation values, a fluid leak, or an existing fault. When the cause is not the level or fluid type, have the vehicle diagnosed rather than repeatedly adding fluid.
