Volvo S80 Specs, Engines & Dimensions (2006–2010)

Volvo S80 Engines and Transmissions

Each Volvo S80 engine pairs with a powertrain suited to its character. The 2.0 MT is a gasoline unit with a manual gearbox and front-wheel drive, while the 2.0 AT offers diesel economy through an automatic. The 3.2 AT adds a larger gasoline six, automatic shifting and all-wheel-drive traction.

Sedan — Volvo S80 Engines and Transmissions

Sedan Volvo S80 Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
2.0 MT	Gasoline	1999 cm³	146 hp	107 kW	190 N⋅m	Manual	FWD
2.5 MT	Gasoline	2521 cm³	200 hp	147 kW	300 N⋅m	Manual	FWD
3.2 AT	Gasoline	3192 cm³	238 hp	175 kW	320 N⋅m	Automatic	AWD
2.0 AT	Gasoline	1999 cm³	146 hp	107 kW	185 N⋅m	Automatic	FWD
2.4 AT	Diesel	2400 cm³	175 hp	129 kW	420 N⋅m	Automatic	FWD
2.4 MT	Diesel	2400 cm³	175 hp	129 kW	420 N⋅m	Manual	FWD
2.4 AT	Diesel	2400 cm³	205 hp	151 kW	420 N⋅m	Automatic	AWD
1.6 MT	Diesel	1560 cm³	109 hp	80 kW	240 N⋅m	Manual	FWD
2.0 AT	Diesel	1997 cm³	136 hp	100 kW	320 N⋅m	Automatic	FWD
2.0 MT	Diesel	1997 cm³	136 hp	100 kW	320 N⋅m	Manual	FWD
2.4 AT	Diesel	2400 cm³	185 hp	136 kW	400 N⋅m	Automatic	AWD
2.4 MT	Diesel	2400 cm³	185 hp	136 kW	400 N⋅m	Manual	FWD
2.4 MT	Diesel	2400 cm³	185 hp	136 kW	400 N⋅m	Manual	AWD
2.4 AT	Diesel	2401 cm³	163 hp	120 kW	340 N⋅m	Automatic	FWD
2.4 MT	Diesel	2401 cm³	163 hp	120 kW	340 N⋅m	Manual	FWD
2.5 AT	Gasoline	2521 cm³	200 hp	147 kW	300 N⋅m	Automatic	FWD
3.0 AT	Gasoline	2953 cm³	286 hp	210 kW	400 N⋅m	Automatic	AWD
4.4 AT	Gasoline	4414 cm³	315 hp	232 kW	440 N⋅m	Automatic	AWD
3.2 AT	Gasoline	3192 cm³	238 hp	175 kW	320 N⋅m	Automatic	FWD
2.4 AT	Diesel	2400 cm³	185 hp	136 kW	400 N⋅m	Automatic	FWD

Volvo S80 Dimensions

Sedan — Volvo S80 Dimensions

Sedan Volvo S80 Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
2.0 MT	4851 mm	1861 mm	1493 mm	2835 mm	1560 kg	2060 kg	135 mm
2.5 MT	4851 mm	1861 mm	1493 mm	2835 mm	1545 kg	2150 kg	148 mm
3.2 AT	4851 mm	1861 mm	1493 mm	2835 mm	1760 kg	2270 kg	135 mm
2.0 AT	4851 mm	1861 mm	1493 mm	2835 mm	Not provided	Not provided	149 mm
2.4 AT	4851 mm	1861 mm	1493 mm	2835 mm	1655 kg	2200 kg	135 mm
2.4 MT	4851 mm	1861 mm	1493 mm	2835 mm	1655 kg	2200 kg	135 mm
2.4 AT	4851 mm	1861 mm	1493 mm	2835 mm	1770 kg	2270 kg	151 mm
1.6 MT	4851 mm	1861 mm	1493 mm	2835 mm	1456 kg	2100 kg	149 mm
2.0 AT	4851 mm	1861 mm	1493 mm	2835 mm	Not provided	Not provided	Not provided
2.0 MT	4851 mm	1861 mm	1493 mm	2835 mm	Not provided	Not provided	Not provided
2.4 AT	4851 mm	1861 mm	1493 mm	2835 mm	1632 kg	2270 kg	149 mm
2.4 MT	4851 mm	1861 mm	1493 mm	2835 mm	1531 kg	2190 kg	149 mm
2.4 MT	4851 mm	1861 mm	1493 mm	2835 mm	1617 kg	2290 kg	149 mm
2.4 AT	4851 mm	1861 mm	1493 mm	2835 mm	1538 kg	2200 kg	149 mm
2.4 MT	4851 mm	1861 mm	1493 mm	2835 mm	1519 kg	2190 kg	149 mm
2.5 AT	4851 mm	1861 mm	1493 mm	2835 mm	1615 kg	2160 kg	148 mm
3.0 AT	4851 mm	1861 mm	1493 mm	2835 mm	1790 kg	2290 kg	135 mm
4.4 AT	4851 mm	1861 mm	1493 mm	2835 mm	1870 kg	2320 kg	151 mm
3.2 AT	4851 mm	1861 mm	1493 mm	2835 mm	1553 kg	2150 kg	149 mm
2.4 AT	4851 mm	1861 mm	1493 mm	2835 mm	1590 kg	2200 kg	149 mm

Volvo S80 Cargo Space

Sedan — Volvo S80 Cargo Space

Sedan Volvo S80 Cargo Space
Modification	Trunk volume min
2.0 MT	480 l
2.5 MT	480 l
3.2 AT	480 l
2.0 AT	480 l
2.4 AT	480 l
2.4 MT	480 l
2.4 AT	480 l
1.6 MT	480 l
2.0 AT	480 l
2.0 MT	480 l
2.4 AT	480 l
2.4 MT	480 l
2.4 MT	480 l
2.4 AT	480 l
2.4 MT	480 l
2.5 AT	480 l
3.0 AT	480 l
4.4 AT	480 l
3.2 AT	480 l
2.4 AT	480 l

Volvo S80 Trims and Equipment

Volvo S80 trim levels sit on top of the mechanical version rather than changing it. The 2.0 MT, for example, comes as the base 2.0 or the better-appointed Optima, so both share the same engine and gearbox while differing in comfort, convenience and interior features.

Volvo S80 Trims and Equipment
Modification	Body	Equipment
2.0 MT	Sedan	2.0
2.0 MT	Sedan	Optima
2.0 MT	Sedan	Premium
2.0 MT	Sedan	Base
2.5 MT	Sedan	2.5T
2.5 AT	Sedan	Classic
3.0 AT	Sedan	Base 3.2
4.4 AT	Sedan	Base
4.4 AT	Sedan	V8
3.2 AT	Sedan	D5
2.4 AT	Sedan	D5

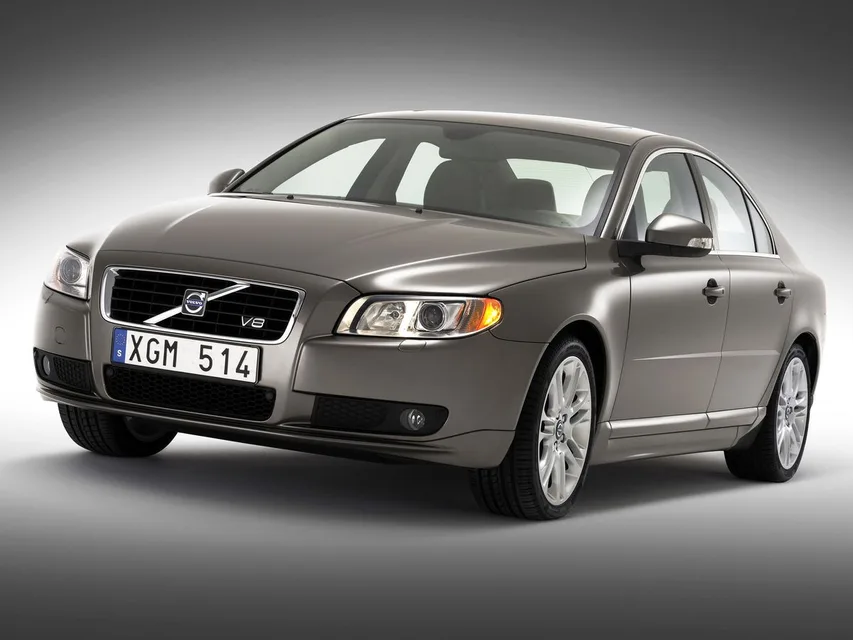

Volvo S80 Specs, Engines & Dimensions (2006–2010) — Second Generation
