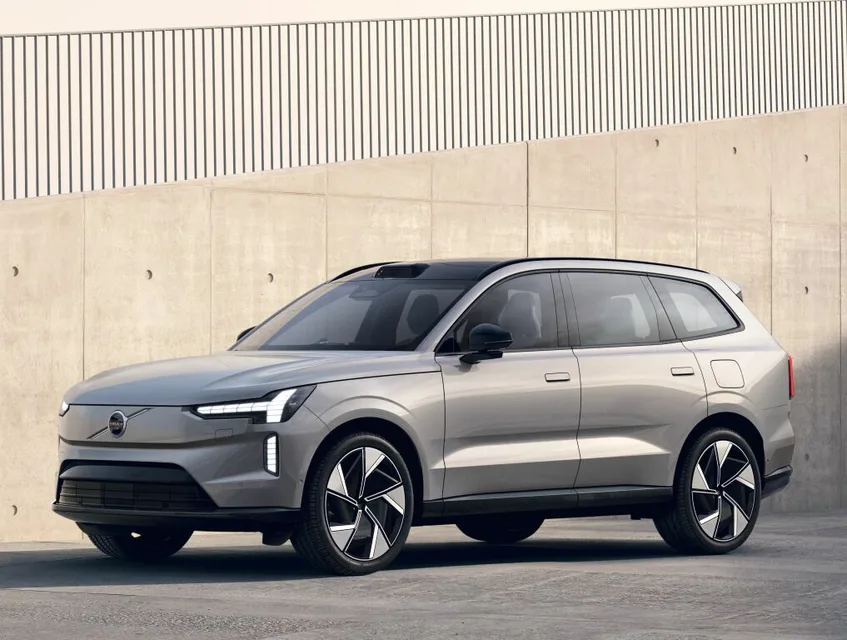

Volvo EX90 AT Performance Ultra Equipment — First Generation

The Volvo EX90 AT Performance Ultra is described here in the context of routine errands, the weekly shop, returns, sports kit and the ordinary bags that travel with a household during a normal week.

1 generation · SUV 5-doors

2022

AT Performance

Electro · Automatic · AWD

At a glance

View full specifications ↓

Ultra

Report an inaccuracy ↗

Specifications

Jump to a section

Performance & powertrain

Top speed
?

The highest speed a vehicle can sustain under manufacturer test conditions. Some cars are electronically limited below their mechanical potential. Glossary entry

180 km/h
Engine type
Electro
Transmission
Automatic
Type of boost
?

A turbocharger or supercharger compresses the air entering the engine so a smaller engine can produce more power. Naturally aspirated engines draw air without a compressor. Glossary entry

Not provided
Type of drive
?

Which wheels receive power: front-wheel drive, rear-wheel drive or all-wheel drive. All-wheel drive can send power to every wheel for extra traction. Glossary entry

AWD
Bore and stroke
?

The diameter of a cylinder (bore) and the distance the piston travels inside it (stroke). Together they determine the displacement of the engine. Glossary entry

Not provided
Engine capacity
?

The total volume swept by all pistons inside the cylinders, usually stated in cubic centimetres or litres. Larger displacement often means more power but higher consumption. Glossary entry

Not provided
Engine location
Not provided
Number of gears
?

How many fixed forward ratios a gearbox offers. More gears can improve economy and refinement; continuously variable transmissions have no fixed steps. Glossary entry

1
Maximum power
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

517 hp
Maximum power, kw
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

380 kW
Compression ratio
?

The ratio between the largest and smallest volume of a cylinder as the piston moves. Higher ratios improve efficiency but may require higher-octane fuel. Glossary entry

Not provided
Maximum power rpm
Not provided
Maximum torque N⋅m
910 N⋅m
Maximum torque rpm
Not provided
Acceleration to 100
?

The time a vehicle needs to reach 100 km/h from a standstill, a common shorthand for overall performance. Glossary entry

4.9 s
Engine power system
Not provided
Number of cylinders
Not provided
Valves per cylinder
?

The number of intake and exhaust valves in each cylinder. Four valves per cylinder is common and helps the engine breathe at higher speeds. Glossary entry

Not provided
Cylinder arrangement
Not provided
Maximum power ICE
Not provided
Maximum power ICE
Not provided

Energy & emissions

ECO class
Not provided
Battery power
111 kWh
Fuel grade
Electro
Mild Hybrid
?

A car with a small electric motor and battery that assist the combustion engine and recover braking energy but cannot drive on electricity alone. Glossary entry

Not provided
Battery type
Lithium-ion batterie
CO2 emissions
?

The amount of carbon dioxide released per kilometre under a standardised test. Lower figures usually go hand in hand with lower fuel consumption. Glossary entry

0 g/km
Full charge home
2400 min
Power consumption
Not provided
Fuel tank capacity
Not provided
Full public charging time
120 min
Driving range, maximum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

580 km
Driving range, minimum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

Not provided
Fuel consumption city
Not provided
Average consumption
Not provided
Fuel consumption highway
Not provided

Dimensions & body

Doors number
5
Number of seats
7
Width
1964 mm
Height
1744 mm
Length
5037 mm
Body type
SUV 5-doors
Wheelbase
?

The distance between the centres of the front and rear wheels. A longer wheelbase usually gives more cabin space and a calmer ride; a shorter one helps agility and parking. Glossary entry

2985 mm
U-turn diameter
Not provided
Depth of the ford to be crossed
Not provided
Body style
SUV
Rear track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

Not provided
Trunk volume max
1915 l
Trunk volume min
310 l
Front track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

Not provided
Max weight
Not provided
Curb weight
?

The weight of the vehicle with all standard equipment and fluids but without passengers or cargo. Glossary entry

2818 kg
Ground clearance, maximum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

Not provided
Ground clearance, minimum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

Not provided

Identity & configuration

Vehicle class
J
Right-hand drive
No

Additional specifications

Stop
Not provided
Start
2022-11-01
Wheel size
Not provided
Rear brakes
Ventilated disc
Front brakes
Ventilated disc
Rear suspension
Independent, pneumatic
Front suspension
Independent, pneumatic

Trim equipment

Dimensions & body

Number of seats
7

Additional specifications

Driver Assistance Systems
Anti-lock braking system (ABS), Electronic stability program (ESP), Emergency brake assist (BAS, EBD, EBA), Automatic slip regulation (ASR)
Stop
Not provided
View
Fog lamp, Rain sensor
Start
2025-06-01
Airbags
Driver's airbag, Passenger airbag, Side front airbags, Window airbags (curtains)
Camera
360°
Isofix
Isofix for the back row
Comfort
On-board computer, Digital instrument cluster, Keyless entry system, Power mirrors, Multifunction steering wheel
Interior
Steering-wheel heater, Leather steering wheel, Panoramic roof, Third row seating, Power window
Headlights
Matrix headlights
Sound
Audio system
Multimedia
USB, Bluetooth, Carplay, Android Auto, Wireless Charging for Smartphone
Cruise control
Adaptive Cruise Control
Parking assist system
Front parking sensors, Rear parking sensors, Automatic parking system
Power steering
Power steering
Air conditioner
Multi-zone climate control
Electric heating
Front seats, Rear seats, Side mirrors
Steering wheel adjustment
Steering wheel height adjustment, Steering wheel reach adjustment
Seat trim
Artificial leather seats
Power seat adjustment
Front seat adjustment

Not provided means the source has no value. Zero remains zero. Units are shown as supplied; range test cycles are only stated when known.
