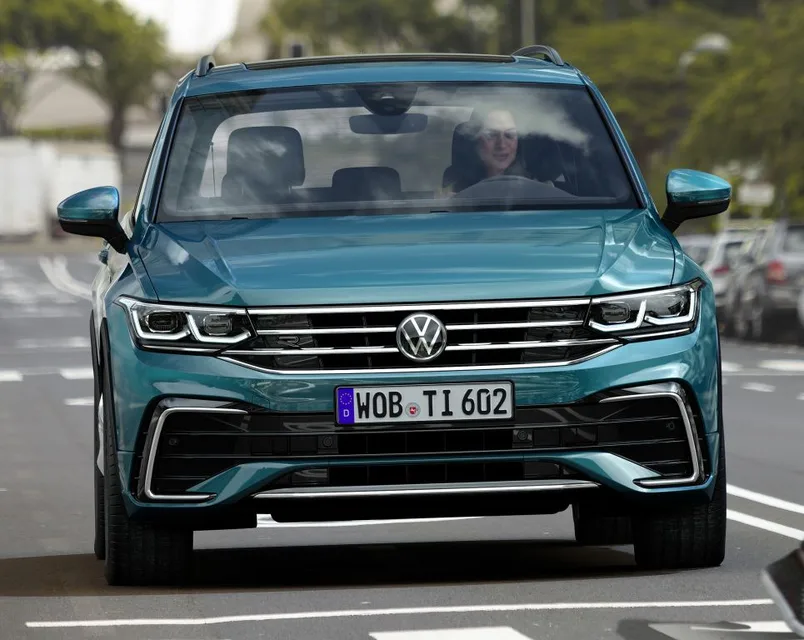

Volkswagen Tiguan Specs, Engines & Dimensions (2020–2024)

Volkswagen Tiguan Engines and Transmissions

Volkswagen Tiguan engine choices approach the same family SUV in different ways. The 1.4 DSG combines a small gasoline turbo with a quick-shifting robotic transmission, the 2.0 MT is a diesel with a manual gearbox suited to long trips, and the 3.0 AT is an automatic plug-in hybrid. All three drive the front wheels.

SUV 5-doors — Volkswagen Tiguan Engines and Transmissions

SUV 5-doors Volkswagen Tiguan Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.4 DSG	Gasoline	1395 cm³	125 hp	91 kW	200 N⋅m	Robotic	FWD
1.4 MT	Gasoline	1395 cm³	125 hp	91 kW	200 N⋅m	Manual	FWD
1.4 DSG	Gasoline	1395 cm³	150 hp	110 kW	250 N⋅m	Robotic	AWD
1.4 MT	Gasoline	1395 cm³	150 hp	110 kW	250 N⋅m	Manual	FWD
2.0 DSG	Gasoline	1984 cm³	220 hp	161 kW	350 N⋅m	Robotic	AWD
2.0 DSG	Gasoline	1984 cm³	230 hp	169 kW	350 N⋅m	Robotic	AWD
2.0 DSG	Diesel	1968 cm³	150 hp	110 kW	340 N⋅m	Robotic	FWD
2.0 MT	Diesel	1968 cm³	150 hp	110 kW	340 N⋅m	Manual	FWD
2.0 DSG	Diesel	1968 cm³	200 hp	147 kW	400 N⋅m	Robotic	AWD
2.0 DSG	Diesel	1968 cm³	150 hp	110 kW	340 N⋅m	Robotic	AWD
3.0 AT	Plug-in	2995 cm³	340 hp	250 kW	450 N⋅m	Automatic	FWD
1.5 DSG	Gasoline	1498 cm³	150 hp	110 kW	250 N⋅m	Robotic	FWD
2.0 DSG	Gasoline	1984 cm³	180 hp	132 kW	320 N⋅m	Robotic	AWD
2.0 DSG	Gasoline	1984 cm³	190 hp	139 kW	320 N⋅m	Robotic	AWD
1.4 DSG	Plug-in	1395 cm³	245 hp	180 kW	400 N⋅m	Robotic	FWD
2.0 DSG	Gasoline	1984 cm³	190 hp	139 kW	326 N⋅m	Robotic	FWD

Volkswagen Tiguan Dimensions

SUV 5-doors — Volkswagen Tiguan Dimensions

SUV 5-doors Volkswagen Tiguan Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.4 DSG	4509 mm	1839 mm	1635 mm	2678 mm	1494 kg	Not provided	189 mm
1.4 MT	4509 mm	1839 mm	1635 mm	2678 mm	1453 kg	1960 kg	189 mm
1.4 DSG	4509 mm	1839 mm	1635 mm	2678 mm	1576 kg	Not provided	189 mm
1.4 MT	4509 mm	1839 mm	1635 mm	2678 mm	1570 kg	2210 kg	189 mm
2.0 DSG	4509 mm	1839 mm	1635 mm	2678 mm	1755 kg	2360 kg	189 mm
2.0 DSG	4509 mm	1839 mm	1635 mm	2678 mm	1715 kg	2280 kg	189 mm
2.0 DSG	4509 mm	1839 mm	1635 mm	2678 mm	1631 kg	2170 kg	189 mm
2.0 MT	4509 mm	1839 mm	1635 mm	2678 mm	1568 kg	2040 kg	189 mm
2.0 DSG	4509 mm	1839 mm	1635 mm	2678 mm	1705 kg	2250 kg	189 mm
2.0 DSG	4509 mm	1839 mm	1635 mm	2678 mm	1716 kg	2260 kg	189 mm
3.0 AT	4509 mm	1839 mm	1635 mm	2678 mm	2533 kg	3010 kg	189 mm
1.5 DSG	4509 mm	1839 mm	1635 mm	2678 mm	1603 kg	2080 kg	189 mm
2.0 DSG	4509 mm	1839 mm	1635 mm	2678 mm	1735 kg	2360 kg	189 mm
2.0 DSG	4509 mm	1839 mm	1635 mm	2678 mm	1740 kg	2290 kg	189 mm
1.4 DSG	4509 mm	1839 mm	1635 mm	2678 mm	1819 kg	2350 kg	189 mm
2.0 DSG	4509 mm	1839 mm	1635 mm	2678 mm	1771 kg	2230 kg	189 mm

Volkswagen Tiguan Cargo Space

SUV 5-doors — Volkswagen Tiguan Cargo Space

SUV 5-doors Volkswagen Tiguan Cargo Space
Modification	Trunk volume min	Trunk volume max
1.4 DSG	615 l	1655 l
1.4 MT	615 l	1655 l
1.4 DSG	615 l	1655 l
1.4 MT	615 l	1655 l
2.0 DSG	615 l	1655 l
2.0 DSG	615 l	1655 l
2.0 DSG	615 l	1655 l
2.0 MT	615 l	1655 l
2.0 DSG	615 l	1655 l
2.0 DSG	615 l	1655 l
3.0 AT	615 l	1655 l
1.5 DSG	615 l	1655 l
2.0 DSG	615 l	1655 l
2.0 DSG	615 l	1655 l
1.4 DSG	615 l	1655 l
2.0 DSG	615 l	1655 l

Volkswagen Tiguan Trims and Equipment

Volkswagen Tiguan trim levels sit on top of a technical version rather than replacing it. The 1.5 DSG gasoline version, for example, appears as Life and Life Plus: the mechanical package stays the same, while comfort, infotainment and driver assistance equipment expands as you move up.

Volkswagen Tiguan Trims and Equipment
Modification	Body	Equipment
1.5 DSG	SUV 5-doors	Life
1.5 DSG	SUV 5-doors	Life Plus
1.5 DSG	SUV 5-doors	Fortline
2.0 DSG	SUV 5-doors	Grand CL
2.0 DSG	SUV 5-doors	Life Plus
1.4 DSG	SUV 5-doors	Fortline
2.0 DSG	SUV 5-doors	Life Plus

Volkswagen Tiguan Battery, Range, Charging

Volkswagen Tiguan battery capacity matters most on the plug-in hybrids. The 3.0 AT and the plug-in hybrid 1.4 DSG both use a lithium-ion battery, which you recharge from a wall box or socket and then use for quiet electric running on short daily trips before the gasoline engine joins in.

SUV 5-doors — Volkswagen Tiguan Battery, Range, Charging

SUV 5-doors Volkswagen Tiguan Battery, Range, Charging
Modification	Battery power	Battery type	Driving range, maximum	Full charge home	Full public charging time
3.0 AT	17.9 kWh	Lithium-ion batterie	60 km	300 min	220 min
1.4 DSG	10.4 kWh	Lithium-ion batterie	60 km	300 min	220 min

Volkswagen Tiguan Specs, Engines & Dimensions (2020–2024) — Second Generation Restyling
